K2 Plus Straight Stairlift

K2 Plus Straight Stairlift

  • Heavy duty unit for home or commercial use on a straight-run staircase
  • Choose from 2 seat options, including a spacious Plus seat for maximum comfort and 400 lb capacity (350 lb commercial)

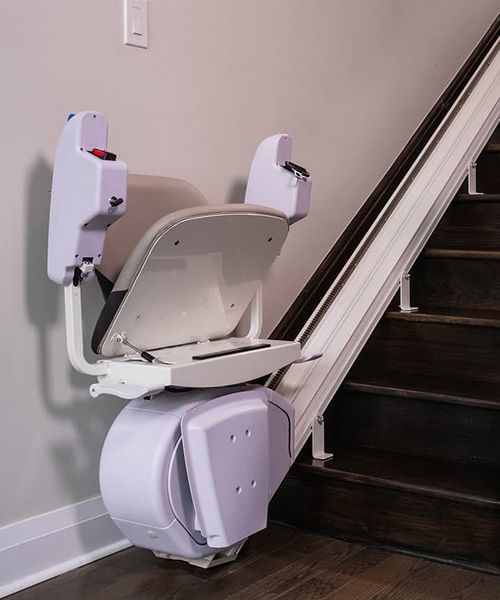

  • Lift folds away when not in use to allow for more space on the stairway
  • Quiet and smooth-riding operation from the rack and pinion drive system
  • Plus Seat option features robust design that is suited to handle transfers from wheelchair
  • Battery operated with continuous charging along the rail; can be used during a power failure
  • For stairs with multiple levels, curves or intermediate landings, see the Stairfriend 23 stairlift
REQUEST PRODUCT INFO

K2 Plus Straight Stairlift Brochure

K2 Plus Straight Stairlift Owner Manual

Features

  • Heavy duty capacity: Ready for lifting up to 400 lb (residential applications with Plus seat) on either side of a straight-run staircase.
  • Two seat choices: Plus seat adjusts up to 24 ¼" wide and offers 400 lb capacity for residential applications and 350 lb for commercial; L seat adjusts to up to 20" wide and has a 350 lb capacity for both residential and commercial applications.
  • Worry-free operation: Battery operated with continuous charging along the rail using standard power; can be used several times during a power failure.

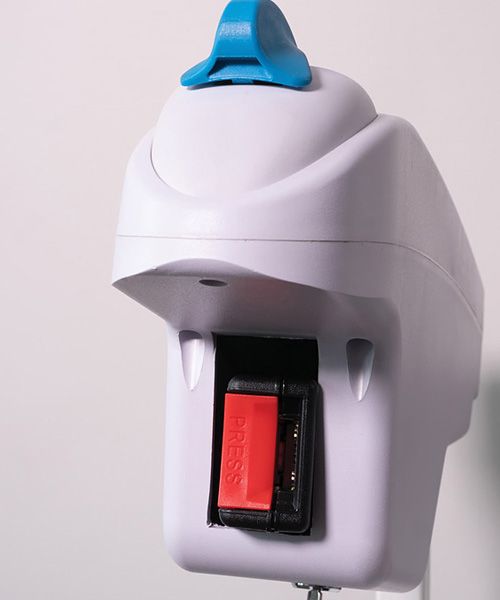

  • Simple controls: Onboard toggle controls and 2 reliable radio frequency call stations to call the chair up or down when needed.
  • Smooth, quiet operation: From the rack and pinion drive system.
  • Obstruction detection: Multiple safety sensors to detect an obstacle and stop the stairlift if necessary.
  • LED diagnostic lights: To advise of any issues (not available on Canadian commercial units).
  • Master shut off: Will turn off if not used for an extended amount of time.

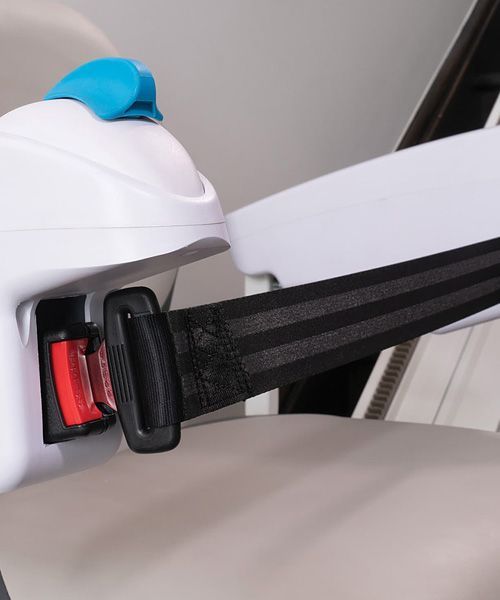

  • Safety features: Swivel and lock seat for added stability getting on and off the chair; additional safety features include retractable seat belt, non-slip footrest, overspeed brake and emergency stop button on chair for commercial models.
  • Standard finishes: Neutral color carriage with attractive stainless steel gear rack and white rail; durable, easy-clean vinyl seat.
  • Warranty: 36 months parts. Please see complete details here.

Options

  • Optional configurations: Right or left side installation.
  • Choice of seat: Plus seat or L seat.
  • Rail extension brackets: To create no intrusion at top landing when you have a door at the top of the stairs.
  • Flip-up rail: Manual flip up rail for bottom landing. Max capacity of 300 lb with flip-up rail.

Specifications

  • Applications: Residential, commercial (code permitting), indoor, straight-run stairs
  • Standard capacity: 400 lb (182 kg) residential with Plus seat; 350 lb (159 kg) commercial
  • Maximum travel: 32 ft (9.75m)
  • Travel speed: 15 ft/min (0.08m/s)
  • Drive: Rack and pinion
  • Motor: 24 VDC, 1/3 HP, 2500 RPM
  • Fold-up width: 13.5" (34.3 cm Fold-out width: 25.5" (64.8 cm)
  • Range of incline: 30˚ to 55˚
