Molift Quattro

Molift Quattro


The temporary lift solution with excellent stability


A freestanding traverse gantry

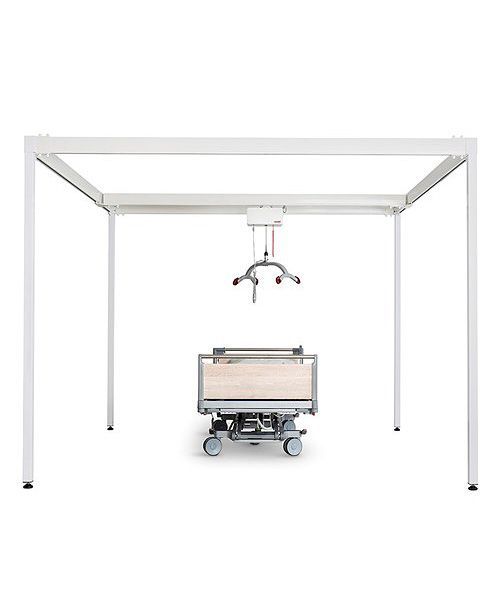

Molift Quattro is a freestanding lift unit that offers a (four-post) Traverse System which is the best alternative when the lifting need is temporary or when the facility is not built for fixed installations. The gantry is easy to install without the need to mount additional fixtures on the wall or ceiling. It is ideally suited for temporary lift applications in nursing or private homes.


Solves most overhead lifting situations

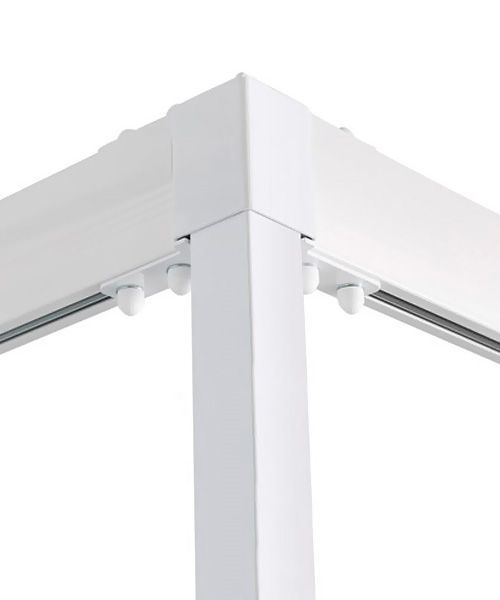

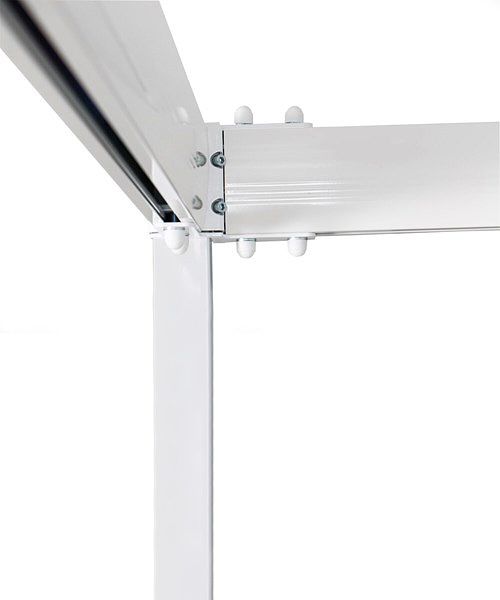

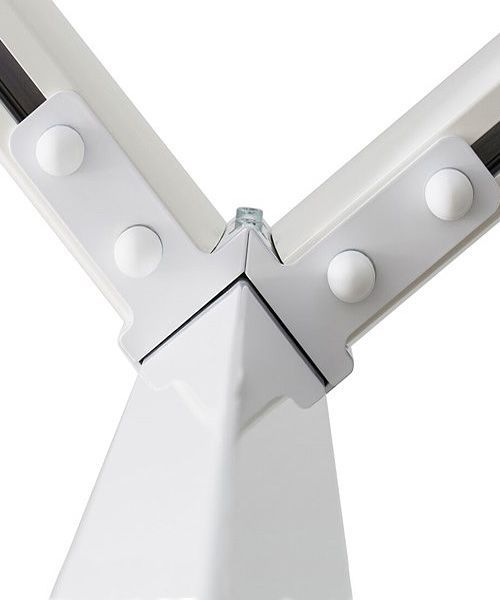

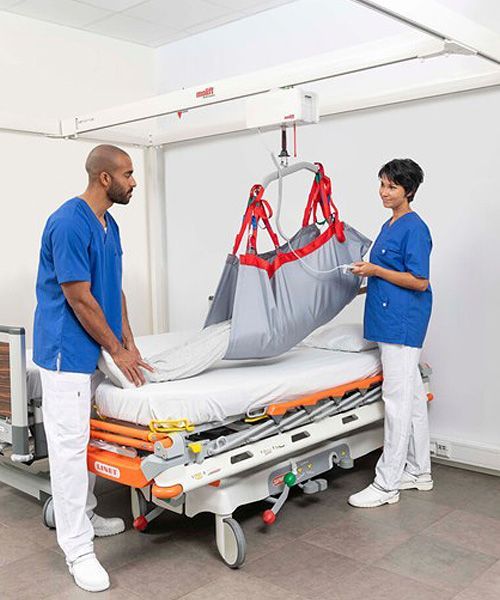

The traverse has a lightweight aluminum frame and four steel posts that provides excellent stability and covers the surface of the lifting requirement. Molift Quattro solves all overhead lifting situations together with the Molift Air or Molift Nomad lift motor and a sling. With a lifting capacity of max 660 lbs, it is ideal for lifting and transferring a person from or to bed, floor, chair, wheelchair, toilet etc.


Two options
Molift Quattro can be delivered in two sizes: 118 x 118 inches and 158 x 158 inches. The length of the posts are fixed and the max height is 96 inches. Molift Air or Molift Nomad with trolleys are ordered separately.

REQUEST PRODUCT INFO

Molift Quattro Brochure

FEATURES

Specifications

  • Expected Lifetime: 10 years
  • External height with adjustable feet (inch): 90
  • Height (inch): 92
  • Material: Anodized aluminum, Plastic
  • Safe Working Load SWL (lbs): 660

Molift Quattro 3

Item number: 1600030

Depth (inch): 124

Rail length (inch): 118

Weight (lbs): 245

Width (inch): 124


Molift Quattro 4

Item number: 1600035

Depth (inch): 164

Rail length (inch): 158

Weight (lbs): 291

Width (inch): 164

ACCESSORIES
