Molift Quick Raiser 205

Molift Quick Raiser 205


Ergonomic sit-to-stand hoist with outstanding transfer capability

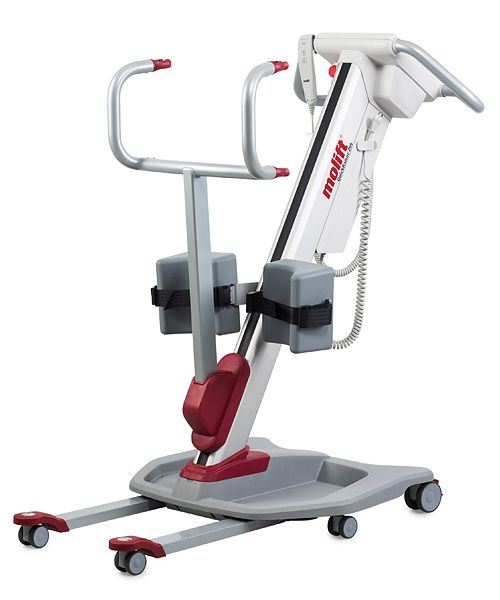

The Molift Quick Raiser 205 is a state-of-the-art sit-to-stand hoist with outstanding transfer capabilities and exceptional manoeuvrability. The design encourages a natural movement pattern and fulfils the lifting needs of users with some weight-bearing capacity.

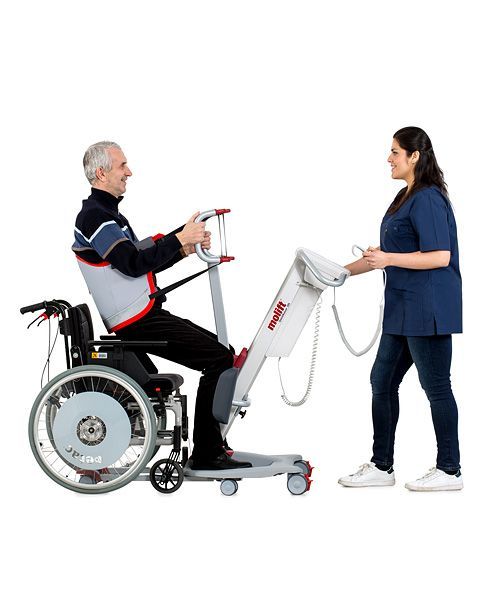

The natural movement pattern
The inclined column encourages a natural movement pattern and fulfils the lifting needs of users up to 205 kg, with some weight-bearing capacity. The user can feel safe and comfortable in every movement as the lifting experience is the same regardless of the carer, lifting arm or sling.


Exceptional maneuverability

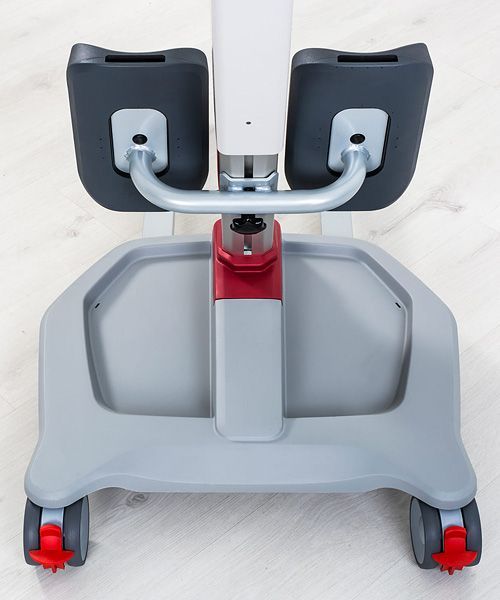

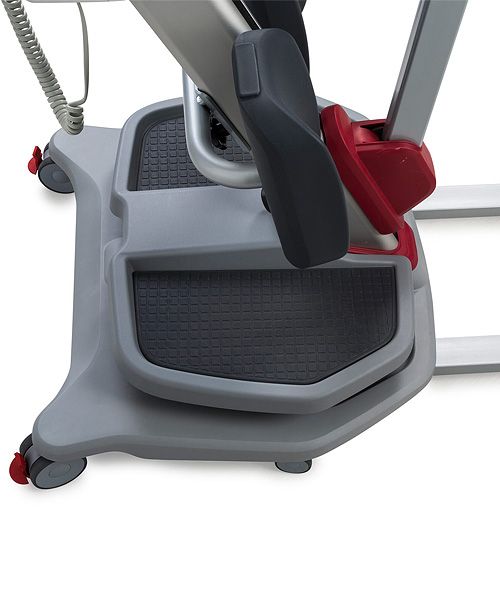

The Quick Raiser 205 is compact, stable and exceptionally easy to manoeuvre. The hoist has a small turning radius and good manoeuvrability even in tight spaces, thanks to the unique wheel position, angled push rod and outstanding weight distribution of the base.



The hoist fits under most beds and chairs, and the variant with electrically adjustable legs allows accessibility almost anywhere. The fixed leg option enables a very small footprint.

REQUEST PRODUCT INFO

Molift Quick Raiser 205

User Manual

Molift Quick Raiser 205

Brochure

FEATURES

Ergonomic design

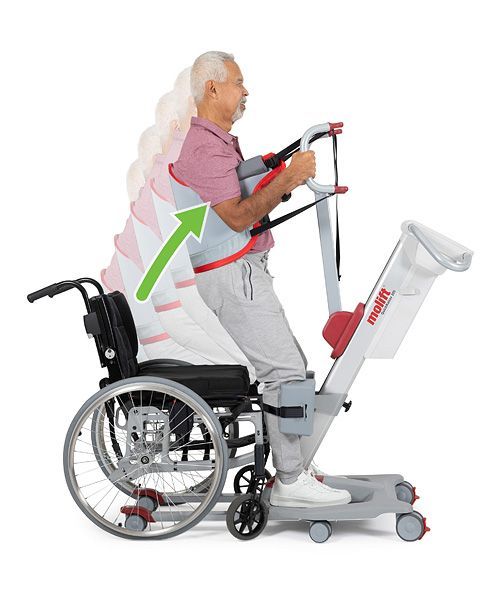

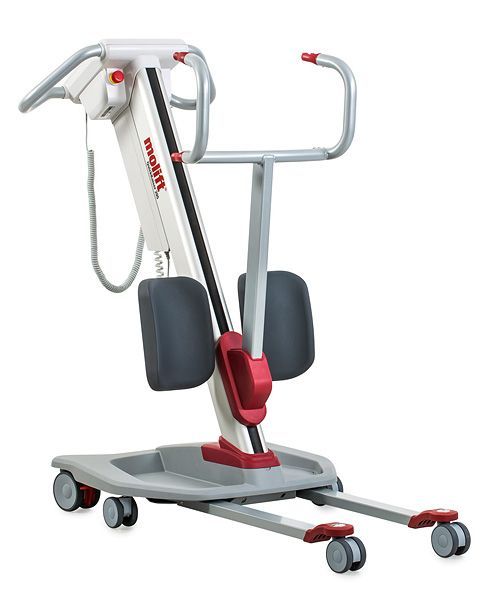

The slanting column lifts the user up and forwards to imitate a natural movement pattern.

Comfort, safety and stability

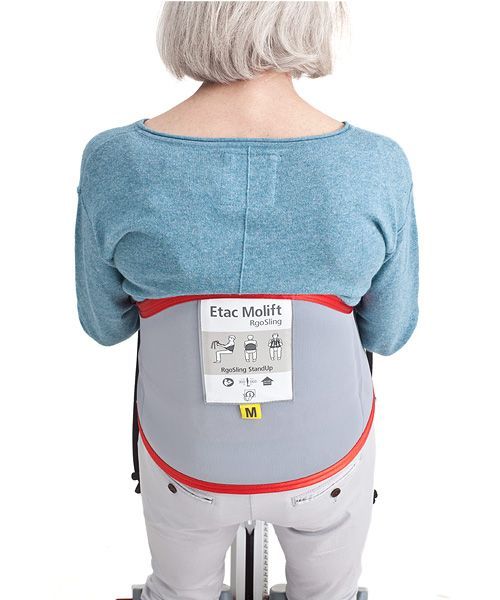

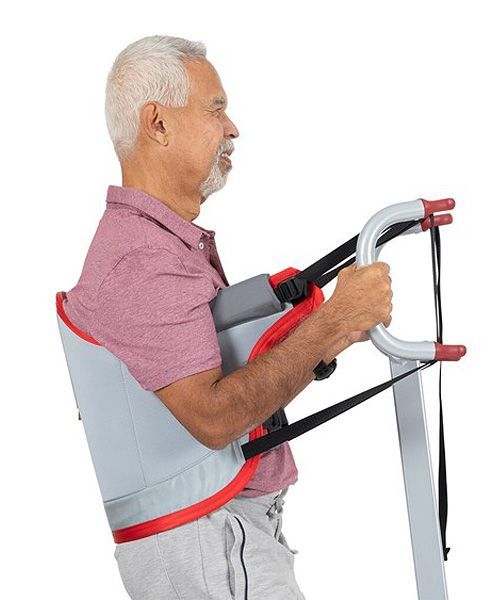

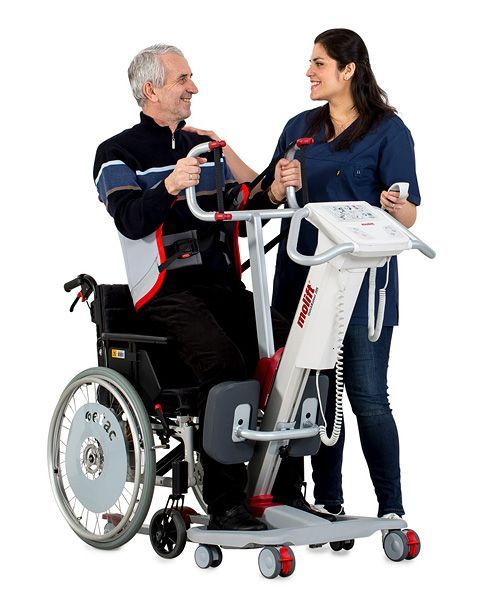

The Active lifting arm (4-point sling bar) and the RgoSling Active provides extra support when hoisting from sit to stand.

Automatic Warning

Automatic warning for (annual) periodic inspection and service.

Easy to manoeuver

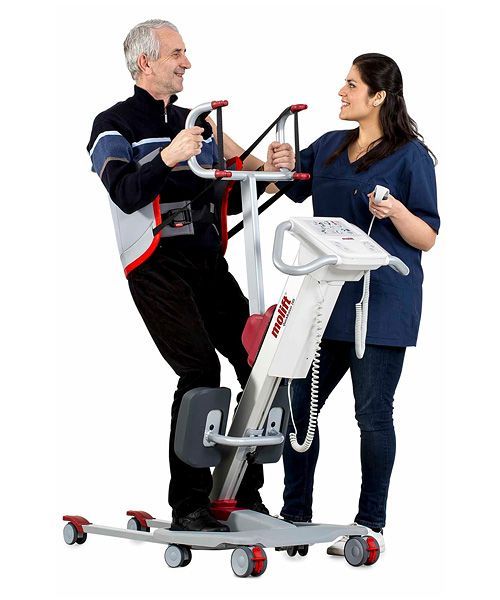

Easy to operate in moving and handling situations; toilet, sit-to-stand and stand-up training.

Specifications

  • Battery: SLA 24V 2,9 Ah
  • Battery charge time (hours): 5
  • Expected lifetime: 30 000 cycles or 10 years
  • Height (mm): 1140
  • Hoisting speed 75 kg (mm/sec): 35
  • Material: Aluminium, Plastic, Steel
  • Maximum user weight (kg): 205
  • Protection class: IP24
  • Rated performance: 100 hoists/75 kg
  • Service software: Molift Service Tool
  • Width chassis, legs inner (mm): 220
  • Width chassis, legs open inner (mm): 590
  • Width chassis, outer (mm): 630

Molift Quick Raiser 205, Active 4-point lifting arm. Adjustable leg.

Item number: M29000

Length (mm): 1320

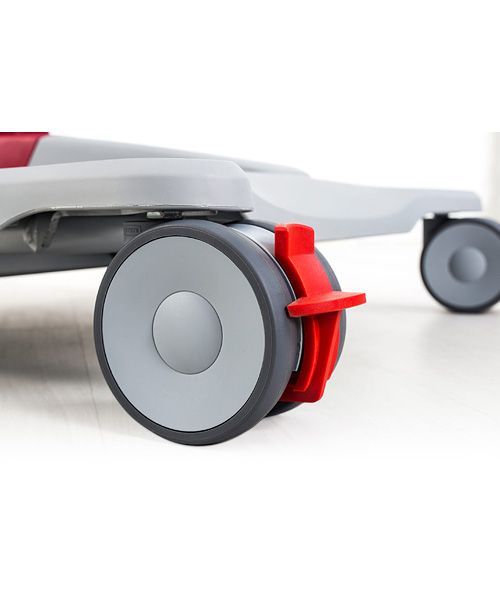

Product includes: Castor size Ø75 mm. Standard leg supports.

Total weight (kg): 44.5


Molift Quick Raiser 205, Active 4-point lifting arm. Adjustable leg.

Item number: M29100

Length (mm): 1320

Product includes: Castor size Ø100 mm. Standard leg supports.

Total weight (kg): 44.5


Molift Quick Raiser 205, Active 4-point lifting arm. Adjustable legs.

Item number: M29100-00

Length (mm): 1320

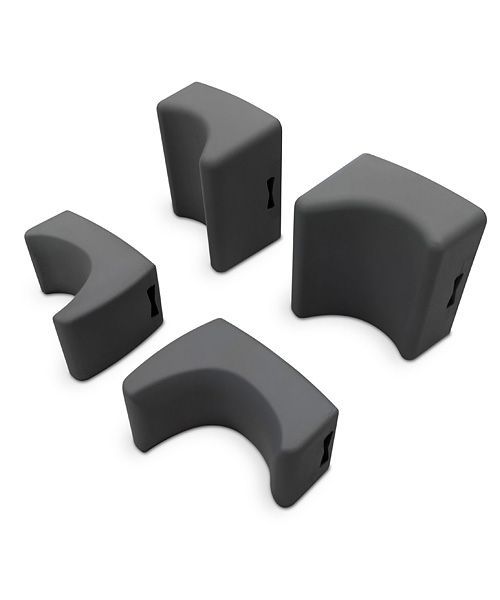

Product includes: Castor size Ø100 mm. Alternative leg supports (large).

Total weight (kg): 44.5


Molift Quick Raiser 205, Active 4-point lifting arm. Fixed leg.

Item number: M29150

Length (mm): 1165

Product includes: Castor size Ø75 mm. Standard leg supports.

Total weight (kg): 42.5


Molift Quick Raiser 205, Active 4-point lifting arm. Fixed leg.

Item number: M29200

Length (mm):1320

Product includes: Castor size Ø100 mm. Standard leg supports.

Total weight (kg): 42.5

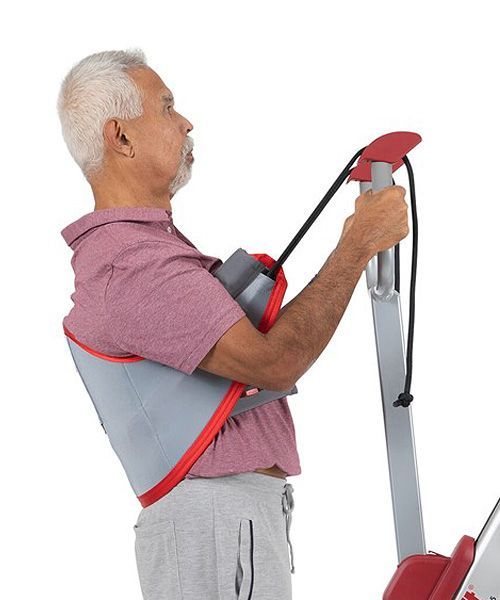

Molift Quick Raiser 205, StandUp 2-point lifting arm. Adjustable leg.

Item number: M29001

Length (mm): 1320

Product includes: Castor size Ø75 mm. Standard leg supports.

Total weight (kg): 44.5


Molift Quick Raiser 205, Standup 2-point lifting arm. Adjustable leg.

Item number: M29101

Length (mm): 1320

Product includes: Castor size Ø100 mm. Standard leg supports.

Total weight (kg): 44.5


Molift Quick Raiser 205, StandUp 2-point lifting arm. Fixed leg.

Item number: M29151

Length (mm): 1165

Product includes: Castor size Ø75 mm. Standard leg supports.

42.5


Molift Quick Raiser 205, StandUp 2-point lifting arm, Fixed leg.

Item number: M29201

Length (mm): 1165

Product includes: Castor size Ø100 mm. Standard leg supports.

Total weight (kg): 42.5
