Delta® Ultra-Light 1000

Delta® Ultra-Light 1000

Full-Electric Bed

The Delta 1000 is truly universal because the headboards and footboards are completely interchangeable. The transition box allows you to change the rotation of the high-low shaft. Headboard is taller than footboard to better fit home decor.The wood grain panels are break and scratch resistant.

REQUEST PRODUCT INFO

M3 Sales sheets

Features

  • The Delta 1000 is truly universal because the bed frame can be used with Drive's and most other manufacturers’ bed ends, old and new
  • The transition box mounted on the foot section is key to interchangeability (Figure A)
  • The transition box allows you to change the rotation of the high/low shaft
  • Headboard is taller than footboard to better fit home decor (Figure B)
  • The wood grain panels are break and scratch resistant
  • Foot section weighs 50% less than conventional foot sections to make deliveries safe and easy
  • Once installed, the high/low shaft will stay with the bed to eliminate loss or forgetting on future installations (Figure C)

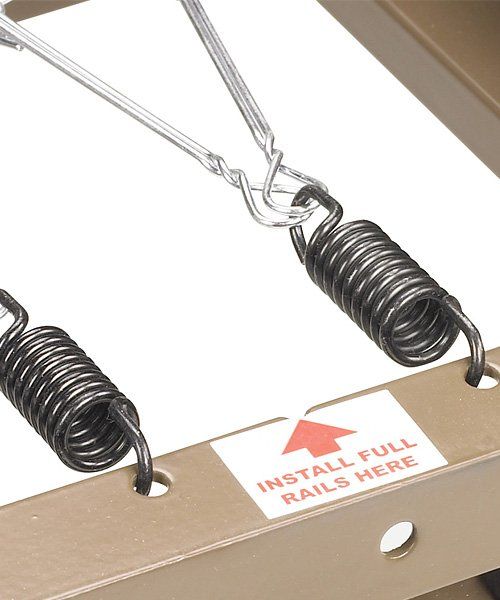

  • Labels and color-coded springs assure accurate installation of side rails for patient safety (Figure D)
  • Unique motor is completely self-contained to reduce weight and noise
  • The motor assembly can be installed and removed with patient in bed
  • Bed, side rails and mattress safety-tested by SGS, a nationally recognized testing facility Satisfies all applicable FDA entrapment guidelines
  • The motor is UL approved
  • In the event of a power failure, a 9 volt battery, located in the hand control, can lower the head and foot sections nine times No crank needed
  • New and improved hand pendant has large, easy-to-use controls (Figure E)
  • Bed ships in two cartons
  • Channel frame construction provides superior strength and reduced weight
  • Zinc-coated spring deck
  • Extension kit available (model #15030EXTKIT) extends length from 80" to 84"
  • Patent Pending
  • Weight Capacity 450 lbs

Specifications

  • Bed Height Maximum With Casters: 21.5”
  • Bed Height Minimum Without Casters: 12.5”
  • Carton Shipping Weight: 182 lbs.
  • Unit Dimensions: 36” (W) x 88” (L) | Overall Sleep Surface 36” W x 80” L
  • Warranty: (Original Purchaser) 5 Years on Motor and Hand Control, Limited Lifetime on Welds and Frame, 1 Year on All Other Parts and Components
  • Weight: 169 lbs.
  • Weight Capacity: 450 lbs
  • Bed Height Max wo caster: 18.5”
  • Bed Height Min w casters: 15.5”
