XL5

XL5

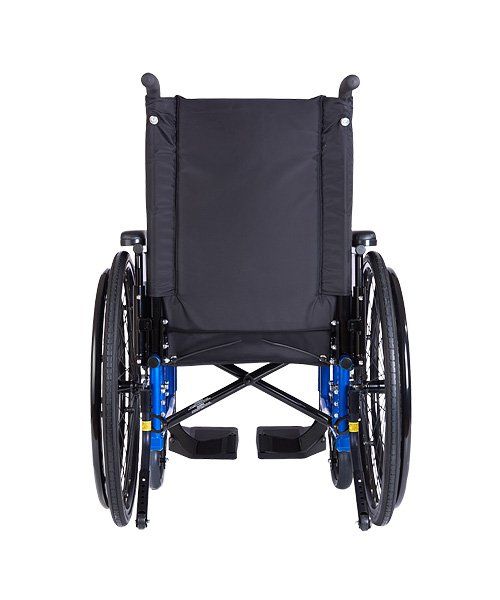

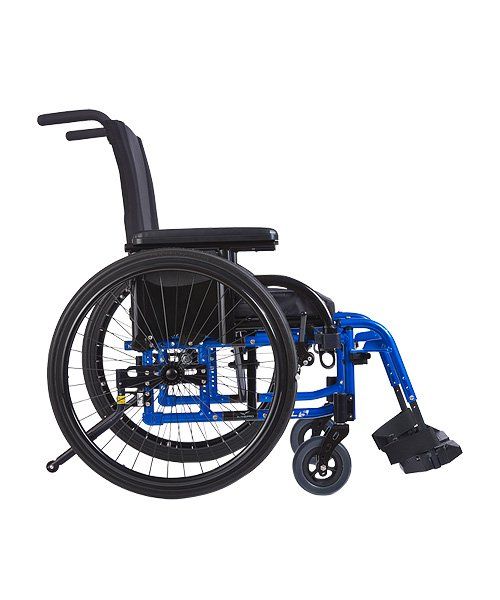

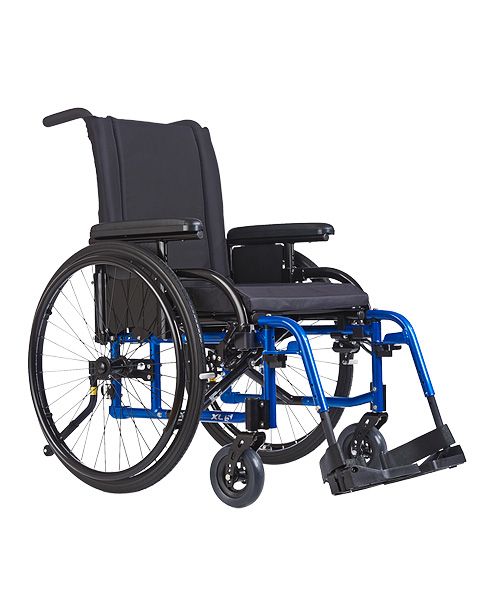

The folding XL5 wheelchair’s multiple adjustable settings make it exceptionally versatile, in accordance with the highest industry standards. Each and every component is manufactured to uncompromising standards of strength and durability.

REQUEST PRODUCT INFO

XL5 Brochure

XL5 User Manual

ALL-IN-ONE FOOTRESTS

  • Removable, height-adjustable swing-away footrests
  • Height- and angle-adjustable footplate
  • Folding strap for easy folding and storage

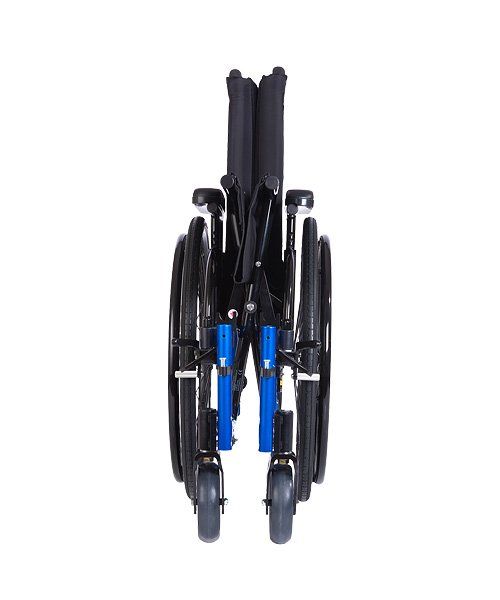

EASY STORAGE

Foldable into a minimal size that allows carrying and storing the chair with ease.

A MULTITUDE OF OPTIONS

  • Adjustable rear wheel depth
  • Axle plate offers adjustable seat height and centre of gravity
  • Anti-tippers with adjustable height and depth
  • Transit anchor points
  • Removable, height-adjustable swing-away armrests
  • Height-adjustable side guards for optimal comfort

AVAILABLE COLORS

Specifications

Frame Type: Folding

Frame Material: Aluminum

Seat depth: 14” to 22”

Seat width: 12” to 22”

Front seat-To-floor height: 13” to 21”

Rear seat-to-floor height: 13” to 20 ½”

Front wheel diameter: 4”, 5”, 6”, 7” or 8”

Rear wheel diameter: 20”, 22”, 24” or 26”

Transport weight*: 32.2 lb

Weight limit: 250 lb

Backrest height: 12” to 25”

Adjustable backrest angle range: 85° to 115°

Armrest:

« U » Type: 7” to 12”

« U » Type lowered: 6” to 9”

« L » Type: 8” to 10”

« T » Type: 8” to 12”

Footrest: 60° – 70° – 90°

Legrest: Elevating/Articulating legrest 14” to 19”


*Weight based on 16” x 16” wheelchair with all standard components except for rear wheels. Rear wheels are excluded since there are multiple different weights for possible wheel configurations. Example, a pair of standard 22” rear wheels weighs 7.8 lb.
