When you need reliability and durability, the alltrack M3 series never disappoints.

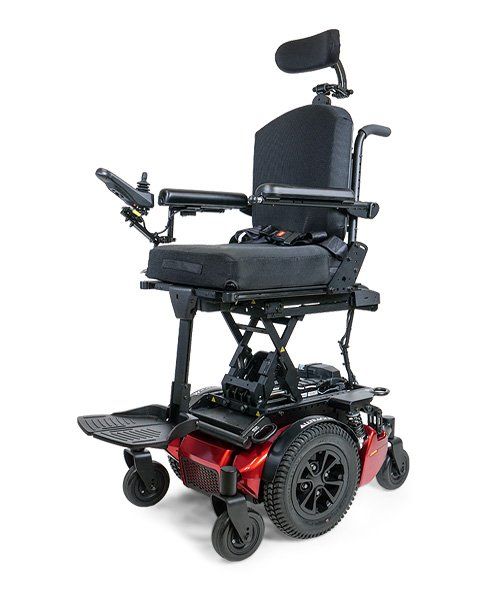

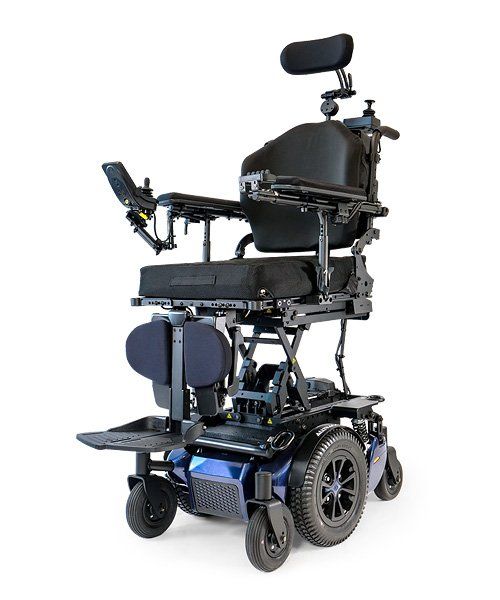

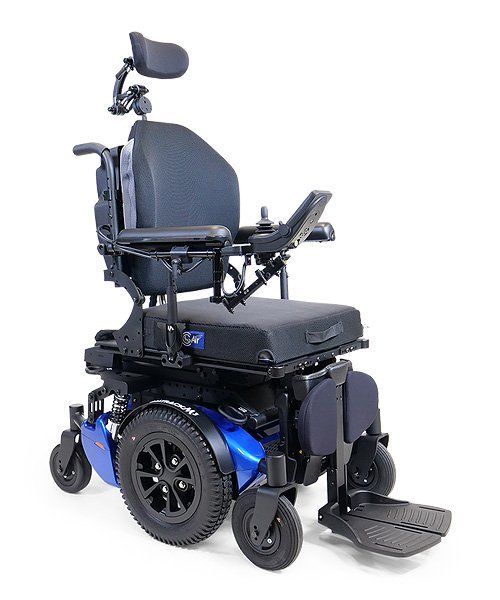

The Alltrack M3 and M3-HD Mid-Wheel Drive(MWD) provide the perfect blend of indoor maneuverability and outdoor performance, ideal for active lifestyles. Thanks to the patented dual-action suspension, the M3 enables users to easily navigate everyday obstacles both indoors and out. Each M3 is fully modular and can be equipped with a wide array of positioning and electronic accessories providing exceptional performance and endless possibilities.

REQUEST PRODUCT INFO

NEW 21" NARROW OPTIONS


  • 21” Base width with 14” drive wheels
    – 2.375” narrower than full-size M3 and P3 with
    GP22 batteries
  • Patented dual-action suspension
    – Same performance and function as
    full-size M3 and P3
  • Full Tilt (50O) and Recline (160O) is available with Seat Elevation
  • Available with both Independent
    Elevating Legrests and
    Power Center Mount Foot Platform
  • Compatible with VR2 (non-expandable) and
    R-net (expandable) electronics
  • Available on Alltrack M3 and P3
  • No additional cost, simple line-item choice
    on M3 and P3 order forms
  • Seat to floor height as low as 15.5”
  • Standard 4-pole, 6.5 mph motors
  • Seat sizes up to 22” x 22”
  • 14” or 12.5” drive wheels
  • Group 22 batteries


Narrow 2221 Option Brochure

NEW 24" NARROW OPTIONS


  • 24” Base Width with 14” drive wheels
    – 1.375” narrower than full-size
    M3 and P3 with GP24 batteries
  • Patented dual-action suspension – Same performance and function as full-size M3
  • Available with both Independent
    Elevating Legrests and
    Power Center Mount Foot Platform
  • Compatible with VR2 (non-expandable) and
    R-net (expandable) electronics
  • Full Tilt (50O) and Recline (160O) is
    available withSeat Elevation
  • Available on Alltrack M3 and P3
  • No additional cost, simple line-item choice on
    M3 and P3 order forms
  • Group 24 batteries for maximum range
  • Seat sizes up to 24” x 22”
  • 14” or 12.5” drive wheels
  • Seat to floor height as low as 15.5”
  • Standard 4-pole, 6.5 mph motors

Narrow 2424 Option Brochure

HIGHLIGHTS


  • Patented Dual-Action Suspension: Fully independent 6-wheel interactive suspension with vertical shock absorption
  • Compact turning radius
  • Completely modular
  • Full selection of power positioning options
  • Seat to floor height as low as 15.5” (395 mm)
  • Proven, 4-pole German motors
  • Multiple frame, drive wheel and caster options
  • Available in standard (300 lb weight capacity) and HD (450 lb weight capacity) models

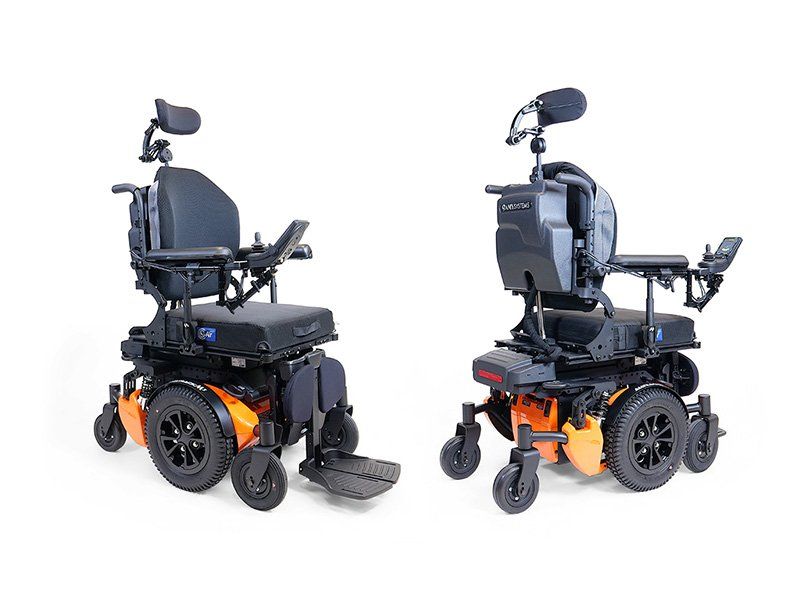

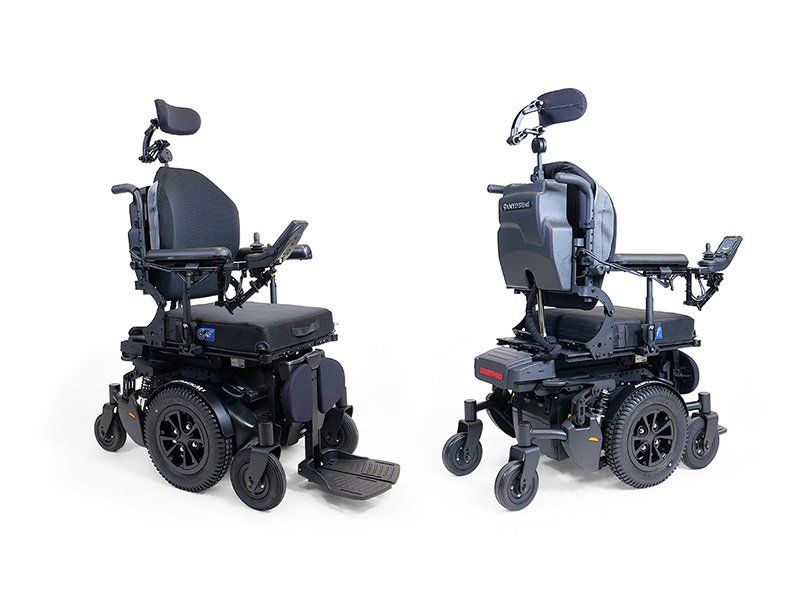

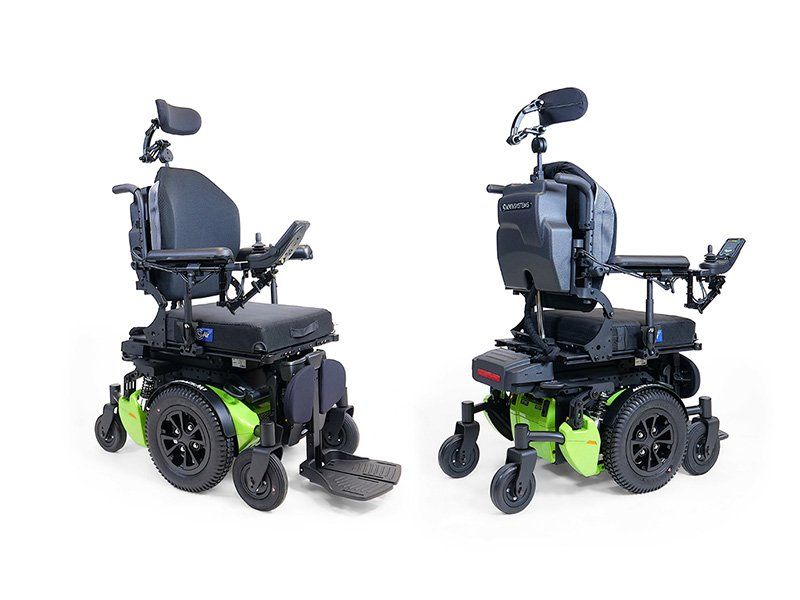

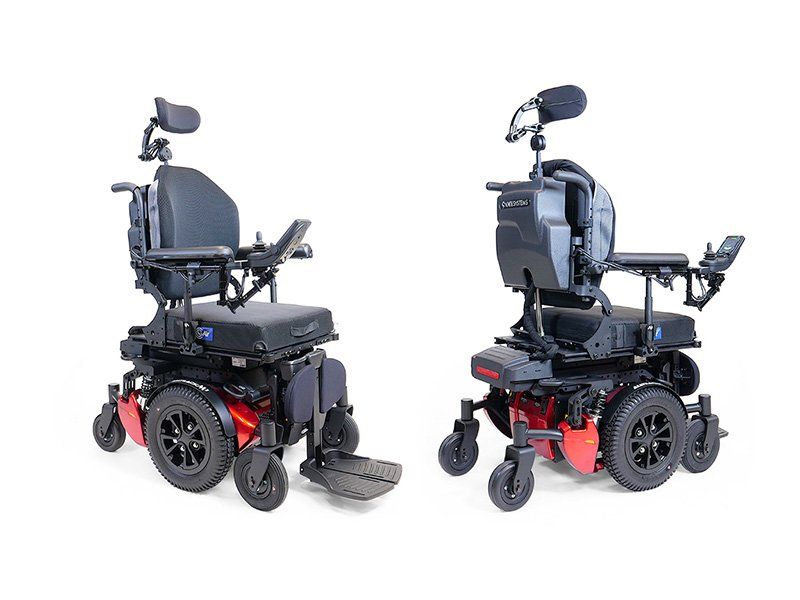

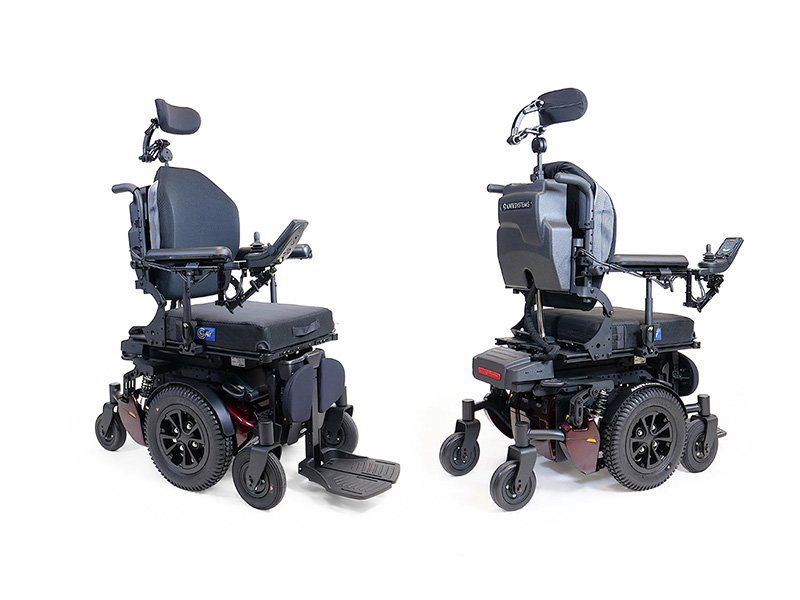

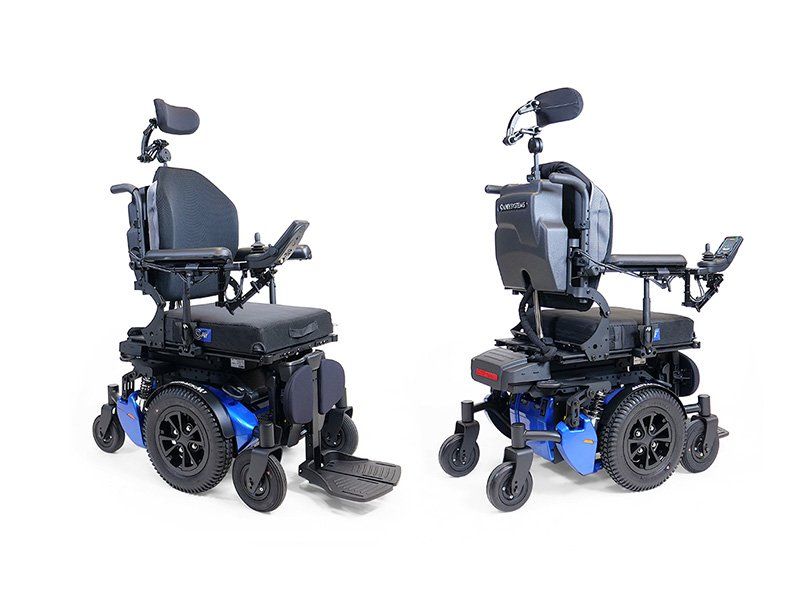

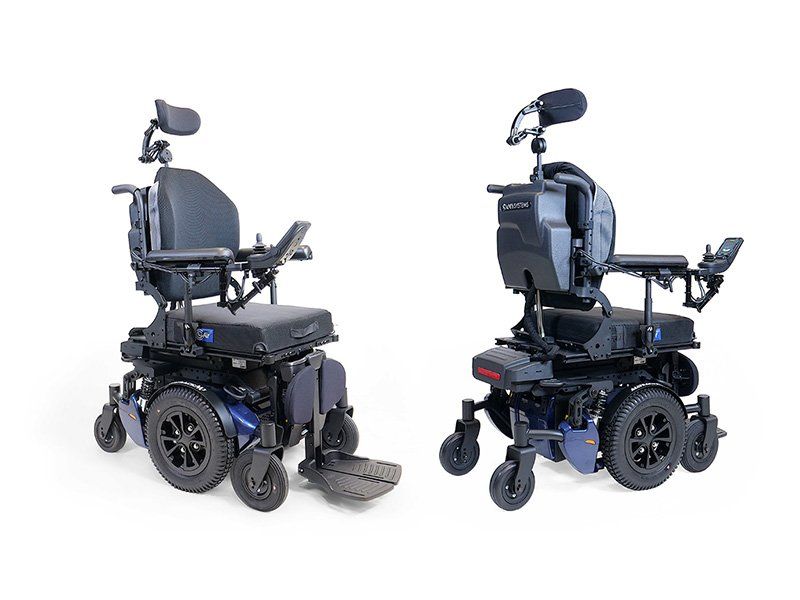

COLORS

Specifications

Configuration:

  • Mid-wheel drive – Standard (Alltack M3) or Heavy-duty (Alltrack M3-HD)

HCPCS Codes:

  • K0848/K0856/K0861 - 0-300 lb Alltrack M3
  • K0850/K0858/K0862 - 0-450 lb Alltrack M3-HD

Suspension system:

  • Patented Dual-Action Suspension:  Fully independent 6-wheel interactive suspension with vertical shock absorption

Ground clearance:

  • 3.5” (90 mm) with a 14” (355 mm) drive wheel,
  • 2.875” (75 mm) with a 12.5” (320 mm) drive wheel

Base width:

  • 23.375” (595 mm) with GP 22 batteries or 25.375” (645 mm) with GP 24 batteries

Base length:

  • 35.125” (890 mm)

Base turning radius:

  • 20” (510 mm)

Weight capacity:

  • 0-300 lb (0-136 kg) M3
  • 0-450 lb (136-205 kg) M3-HD
  • 400 lb (181 kg) for elevating seat on M3-HD

4-Pole motor options:

  • 6.5 mph Std (M3 and M3-HD)
  • 5.4 mph option (M3-HD)

Transit option (Unoccupied):

  • 4-point tie-down brackets (Standard)

Transport option WC-19 (Occupied):

  • Optional with select seat sizes and seating configurations

Battery types:

  • Two 12 V, deep cycle Gel cell Group 22NF (50 Ah) or Group 24 (70 Ah)

Battery charger:

  • 8 A, off board

Electronics:

  • PG Drives VR2 (non-expandable 90 A) or R-net (expandable 90 A or 120 A)

Assistive driving package:

  • Available with Smart-Track technology

Specialty controls:

  • Compatible with Switch-It, Stealth, ASL or MO-VIS as well as other current systems

Seat width range:

  • Adjustable from 15” to 26” (380 mm to 660 mm) wide

Power seating options and HCPCS codes:

  • Power Tilt (E1002), Power Recline with Mechanical Shear Reduction (MSR) (E1004),
  • Combination Power Tilt and Recline with MSR (E1007),
  • Center Mount Elevating & Articulating Foot Platform (E1012),
  • Independent Power Elevating & Articulating Legrests (E1010),
  • Power Seat Elevate (E2300)

Seat to floor height range (With power tilt or seat elevate):

  • 15.5” to 18.75” (395 mm to 475 mm)
  • Seat to floor height range (With combo power tilt and seat elevate):
  • 17.5” to 18.25” (445 mm to 465 mm)

Components weights:

  • For a compact base width 23.375”:128 lb (58 kg);
  • For a standard base width 25.375”: 133 lb (60 kg)
  • Batteries: Group 22NF: 2 x 36.6 lb (16.6 kg);
  • Group 24: 2 x 54 lb (24.5 kg)

Drive wheel diameter:

  • 12.5” or 14” (320 mm and 355 mm)

Caster wheel diameter:

  • 6” or 8” (150 mm or 205 mm)
