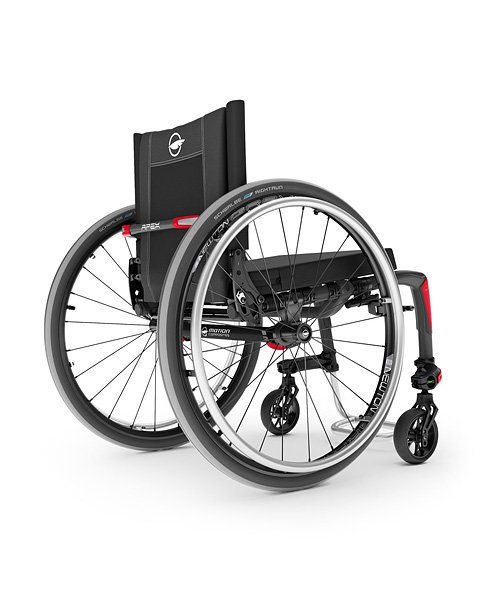

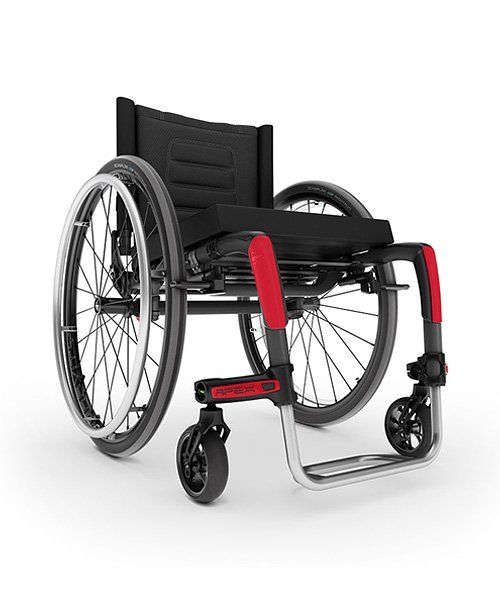

Apex

Motion Composites believes in empowering wheelchair users. How? By giving them the fit, freedom and mobility that’s rewriting the book on what’s possible. We use the world’s most advanced technologies to enhance people’s lives with every single push.


Take the new APEX. Our cutting-edge carbon fiber technology delivers an ultralight design of unrivaled strength and durability. With its superior fatigue resistance, extreme temperature tolerances and vibration damping, carbon fiber is one of the strongest yet lightest materials on earth. The ultimate wheelchair material.


The APEX redefines how the world thinks about wheelchairs. With a transport weight of just 9.2 lbs*., (4.2 kg), the revolutionary design gives you the lightest, fully adjustable rigid chair in its class. Once again, Motion Composites surpasses every expectation for performance, adjustability, weight and quality.

REQUEST PRODUCT INFO

City skyline

Photo By: John Doe
Button

Features

The lightest wheelchair in its class.

With a transport weight of just 9.8 lb* (4.5 kg), the APEX obliterates every preconceived idea about rigid chairs. It’s fully configurable to meet the needs of just about every client, and performs like a carbon fiber purebred.


Head-turning design.

Check out the design and construction details on the APEX. Or, examine its innovative components and accessories, such as the integrated impact guard and rigidizing system.

In a word…revolutionary.


The APEX from Motion Composites. Welcome to a new era in rigid chair design and performance.


Shed the weight. Up the performance.

Available in carbon or aluminum frame, the APEX cantilever design is constructed using the industry’s most advanced materials. Plus, the APEX represents not just low frame weight. It’s also the lightest configured adjustable chair in the industry. A fully configured APEX Carbon weighs just 17.3 lb (7.9 kg).


Nimble and responsive.

The unique rear rigidizing bar on the APEX optimizes ride performance. By increasing rear-frame rigidity, we’ve achieved an open design concept that increases lateral stability. Result — flex where and when you want it, and no sacrifice in stability for gains in comfort and ease of transport.


Sleek styling.

Inspired by modern design and aesthetics, the head-turning lines on the APEX prove once again that form should follow function. We invite you to linger on the APEX’s gentle curves and bold styling. Every design detail delights the eye and excites the senses.


Adjusts to your life.

As people change and evolve, so should their wheelchairs. From simple adjustments in back angle, seat and floor height to tunable rear wheel positions and seat width, the APEX is fully modular and adjustable. Plus, its laser-etched markings allow you to more easily adjust key components and specify exact positioning.

Specifications

Seat Depth: 12” to 20” (30.5 to 50.8 cm)

Seat Width: 12” to 20” (30.5 to 50.8 cm)

Rear seat to floor: 14” to 20” (35.6 to 51.0 cm)

Back Height: 9” to 21” (23.0 to 53.5 cm)

Back Angle: 80 to 101 degrees

Wheel Camber: 0, 2, 4, 6, 8 degrees

Weight Limit: 265lbs (120 kg)

Overall Width: from +6” 1/2 (from +16.5 cm)

Armrest Height: 8” to 14” (20.3 to 35.6 cm)

Gravity Centre: 0 to 6” (– to 12.7 cm)

Footrest angle: 70 to 90 degrees (5 degree increment)

Front seat to floor: 14” to 21” (35.6 to 53.3 cm)
