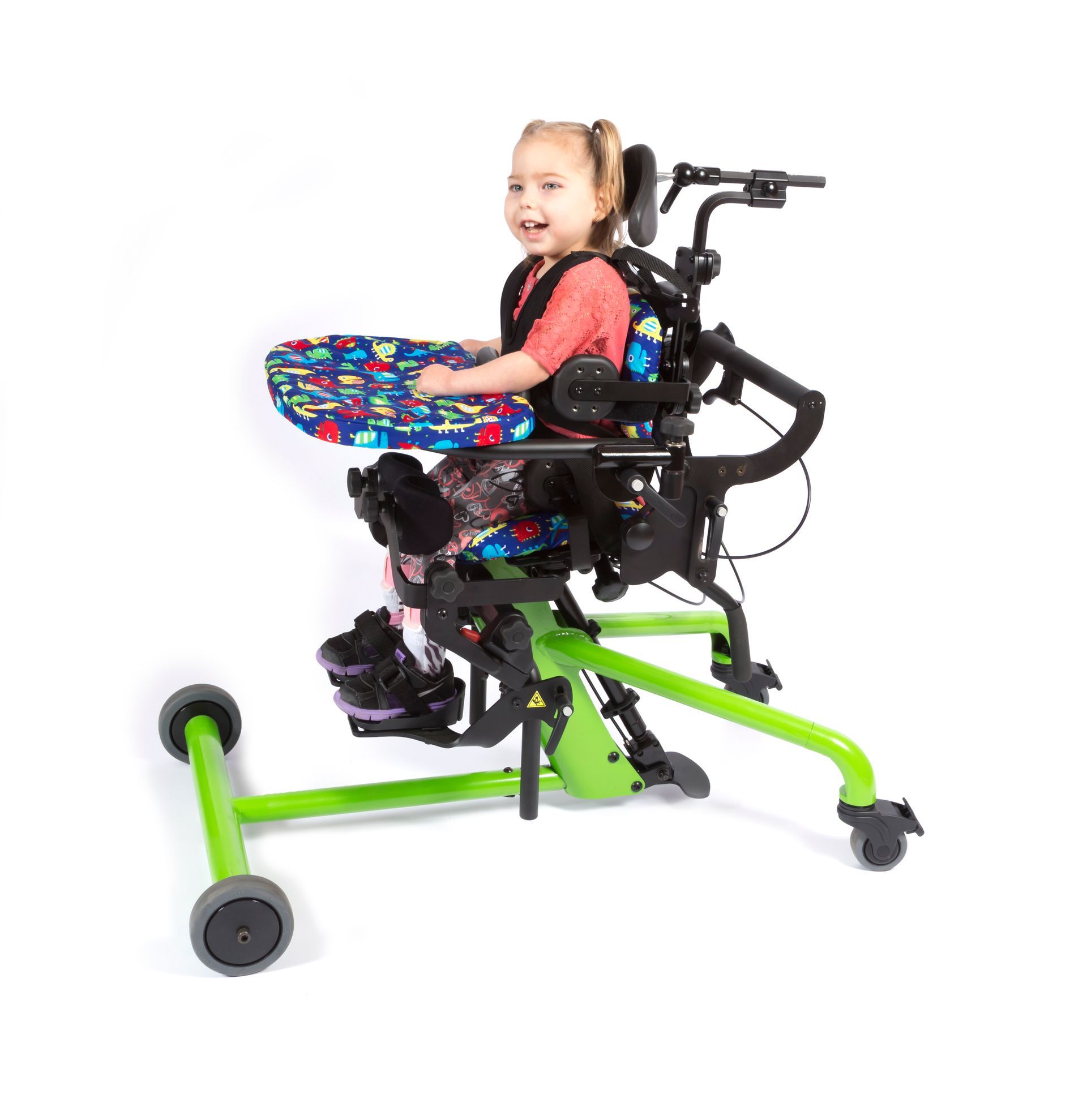

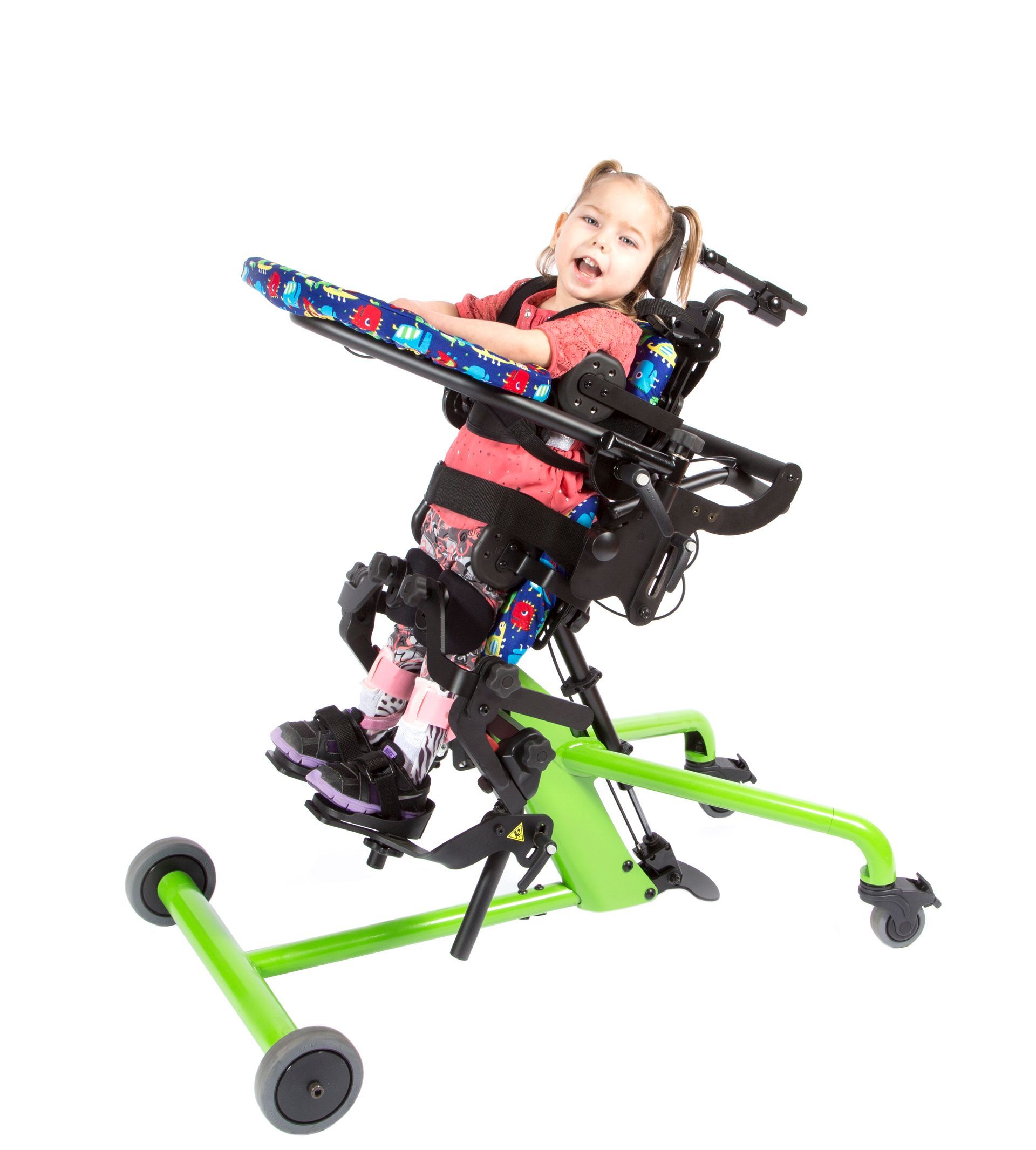

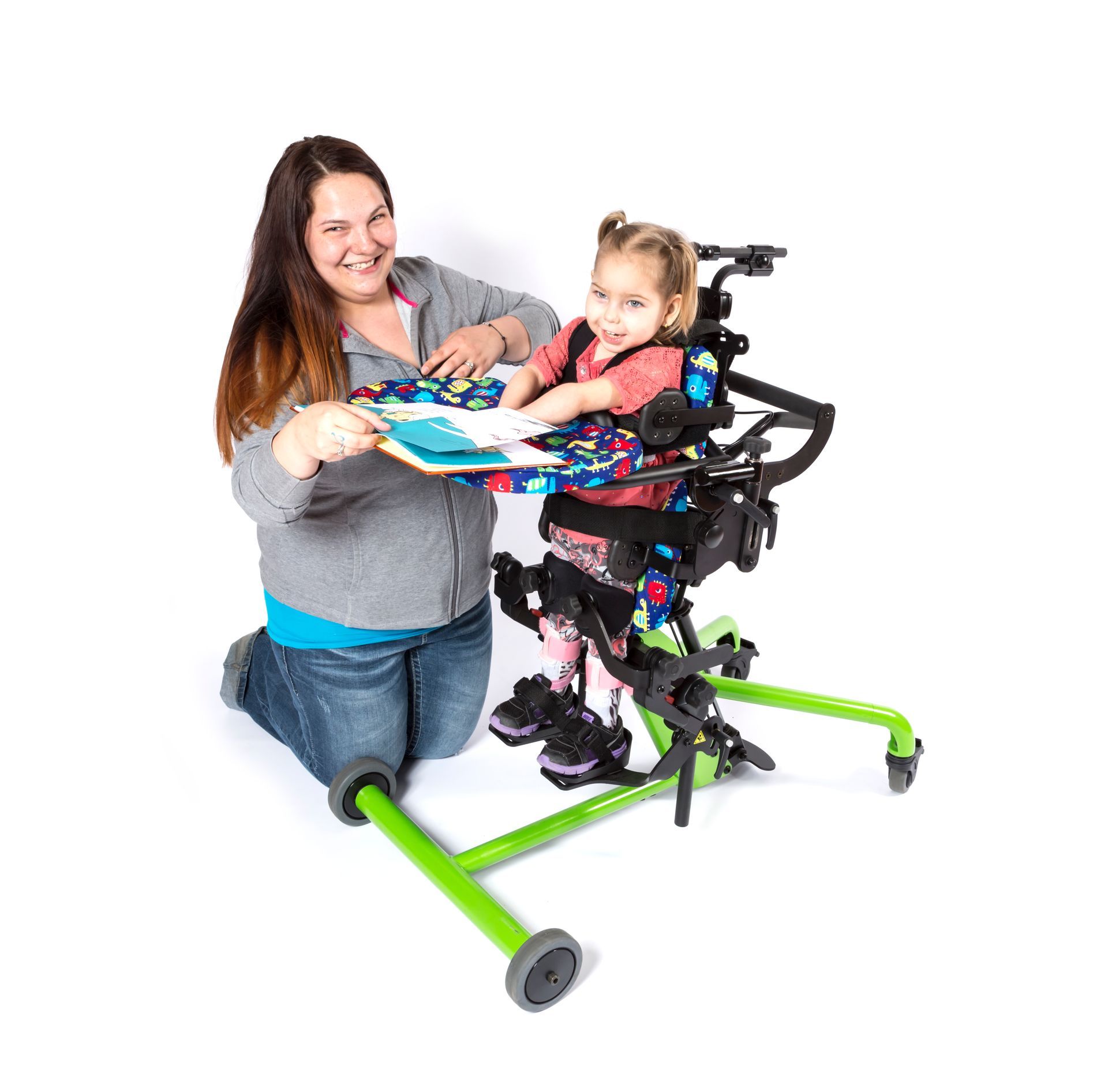

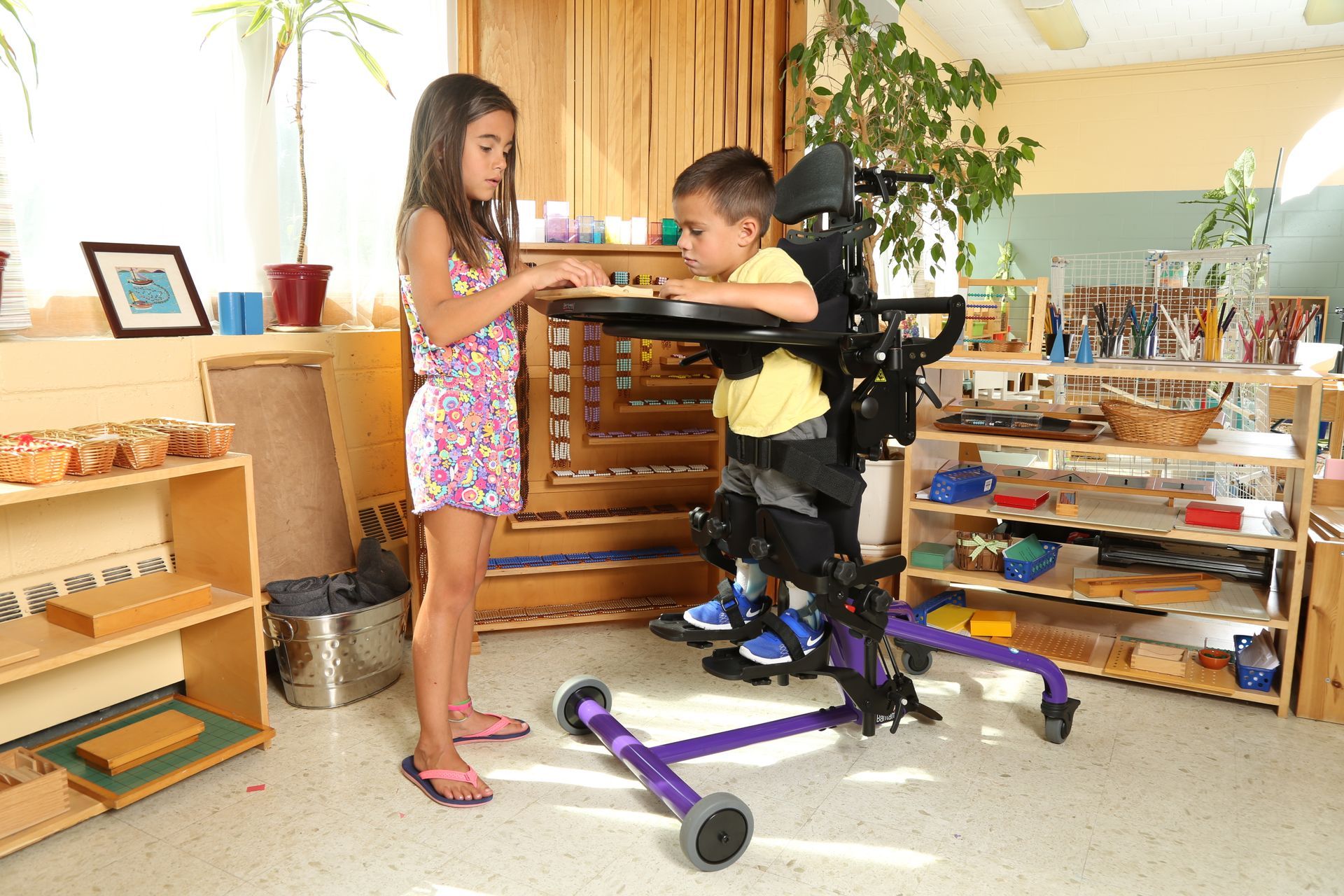

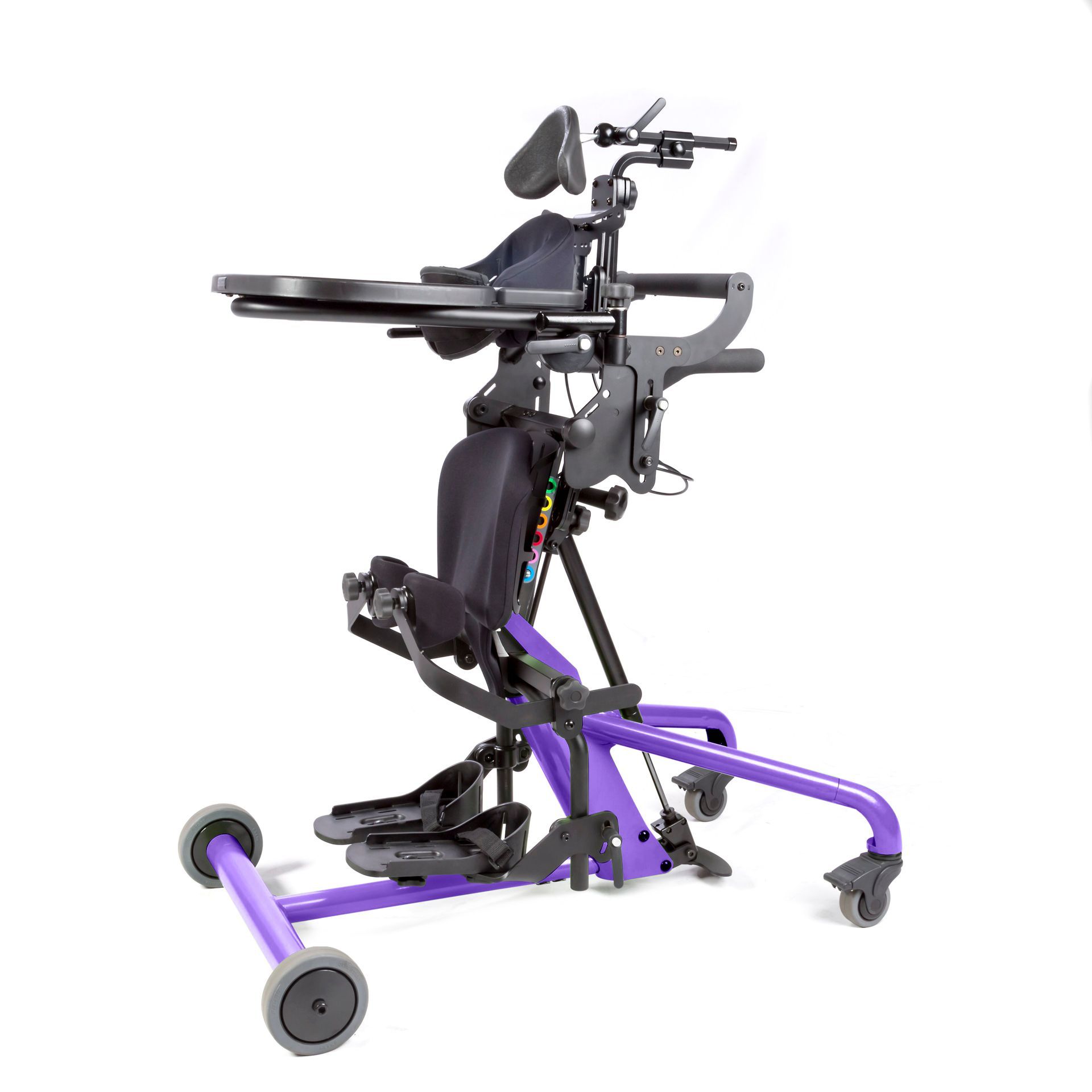

Bantam Extra Small

Bantam Extra Small

PT50001-1

Approximate Height Range: 28”- 40” tall and up to 50 lbs.
Seat Depth Range (from seat pivot with back) 7″-12″

The Bantam line of standers are the only sit to stand standers that can combine the option of supine positioning to create infinite positioning possibilities from 90-90 sitting, fully vertical standing, full supine lying and anywhere in between. No other standers can provide the amount of positioning that is possible with the EasyStand Bantam.

REQUEST PRODUCT INFO

Bantam Extra Small Brochure

EasyStand Mini Catalog

Bantam Extra Small Assembly Manual

Bantam Extra Small User Manual

Product Description

The EasyStand Bantam is the only standing frame to combine a sit-to-stand transition with the added function of an supine stander. By alternating positions, a child can tolerate standing for a longer period of time. Also, when it is safer and easier for a caregiver to transfer and stand a child, the child will stand more often, increasing standing compliance. The Bantam fits kids from early intervention through elementary school.

Button
Button
Button
Button

Options

Frame Color

Available in 4 colours.

Green
Button
Orange
Button
Purple
Button
White
Button

Knee Pads

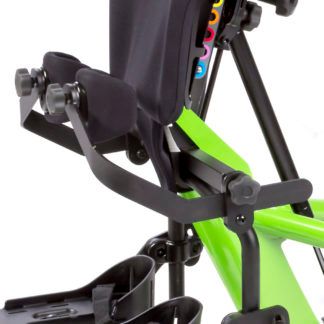

PT50262-1 Slide-In Knee Pads
Button

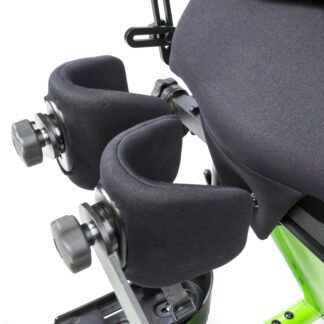

PT50268 Knee Pad – 3.25″
Button

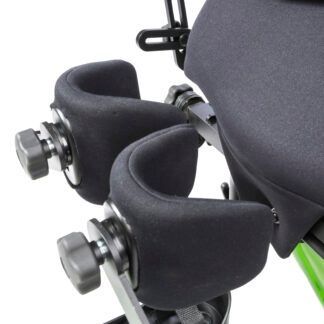

PT50270 Knee Pad – 4.25″
Button

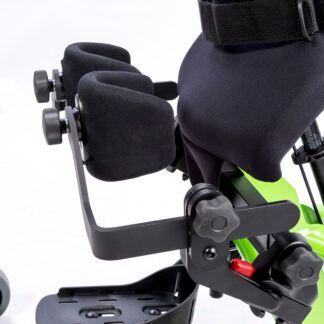

PT50264-1 Swing-Away Knee Pads
Button

Supine & Seat Adjustment

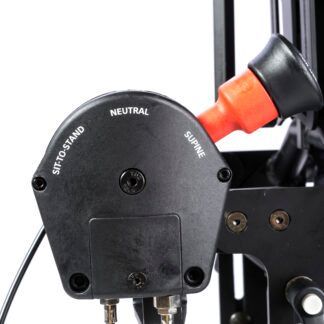

PT50234 Supine
Button

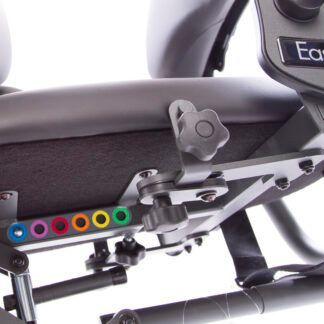

PNG50499 Easy-Adjust Seat Depth
Button

Lift Mechanisms

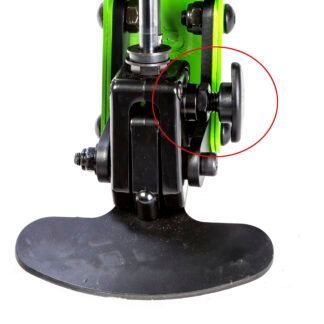

PA5614 Gas Spring Lift Lockout
Button
PNG50044 Quad Grip Handle Extension
Button
PNG50070 T-Style Handle Extension
Button

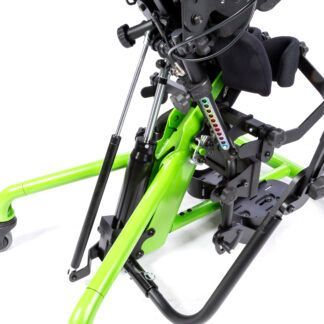

PT50020 Hydraulic Actuator with Removable Handle
Button

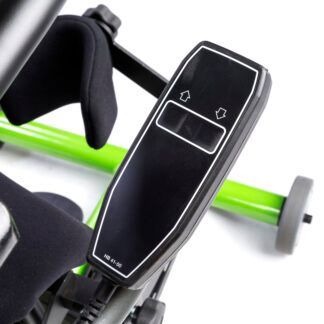

PT50022 Pow’r Up Lift
Button
PT50236 Dual Control
Button

Front Casters

PT50016-1 Front Frame
Button
PT50116 Front Frame
Button

Mobile

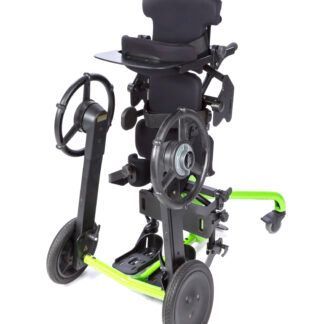

PT50177 Mobile
Button

Mobile Tray & Shadow Trays

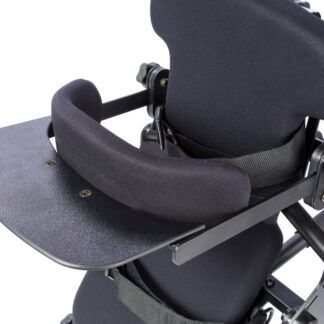

PT50246 Mobile Tray
Button
PA5600 Black Molded Swing-Away Tray – 11″Lx19″W
Button
PA5602 Clear Swing-Away Tray – 11″Lx19″W
Button
PT50074 Black Molded Shadow Tray – 21″x24″
Button
PT50076 Clear Shadow Tray – 21″24″
Button

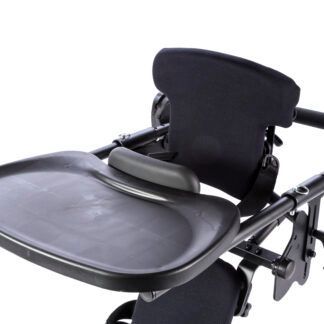

PT50204 Black Molded Shadow Tray – 11″x19″
Button

Tray Accessories

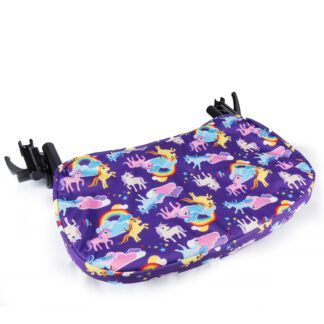

PA3038 Hygienic Padded Tray Cover-11″x19″ Tray
Button

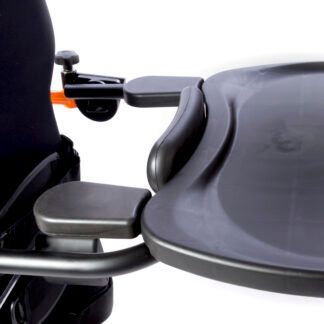

PA5604 Forearm Wings-Black Molded Tray
Button

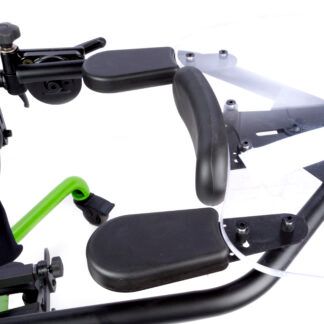

PA5606 Forearm Wings-Clear Acrylic Tray
Button
PNG50042 Hand Grips
Button

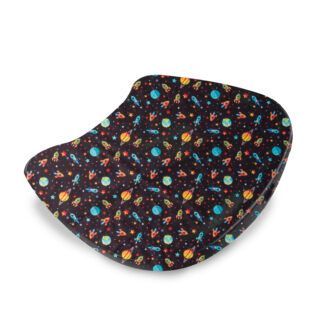

PT30093 Hygienic Padded Cover – 21″x24″ Tray
Button
PT50156 Elbow Pad – 9.25” Cutout
Button
PT50160 Elbow Pad – 11” Cutout
Button

Foot Plates and Foot Plate Accessories

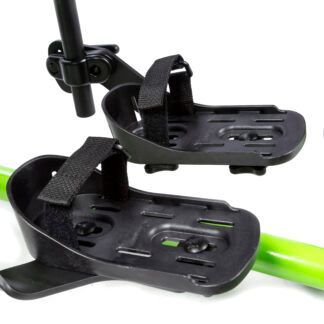

PT50080 Foot Straps – 10″L
Button

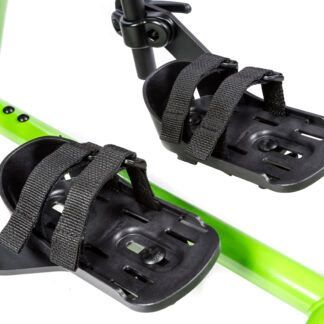

PT50082 Secure Ankle/Foot Straps – 10″L
Button

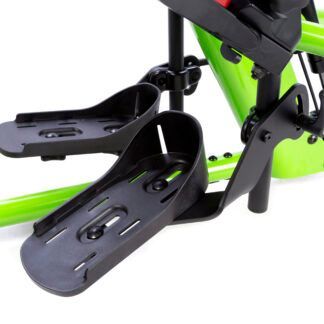

PT50252 Multi- Adjustable Foot Plates
Button

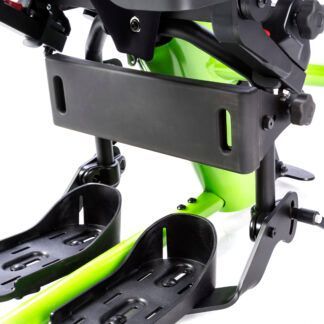

PT50278 Calf Pad
Button

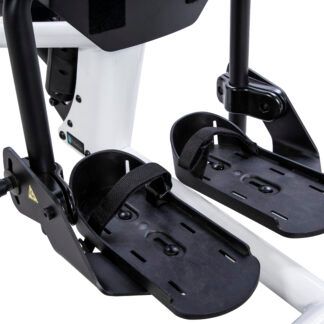

PY5636 Foot Straps – 15″L
Button

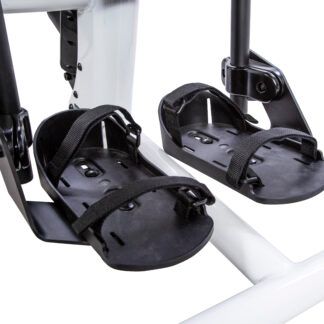

PY5638 Secure Foot Straps – 15″L
Button

Seats and Seat Accessories

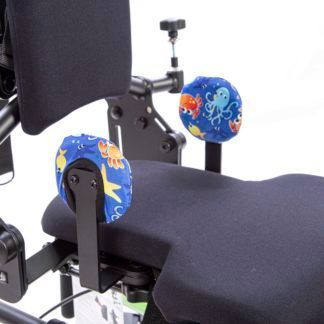

PA3039 Hygienic Cover for Hip Supports
Button
PT30082 Hygienic Cover for Standard Seat
Button

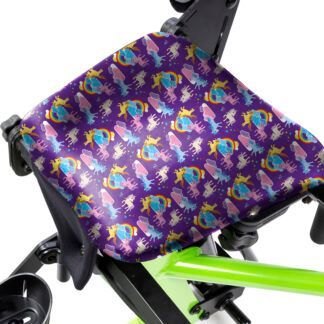

PT30083 Hygienic Cover for PT50044 Form to Fit Seat
Button

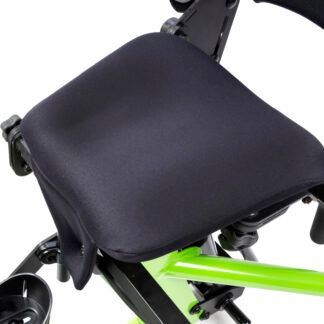

PT50044 Form to Fit Seat
Button

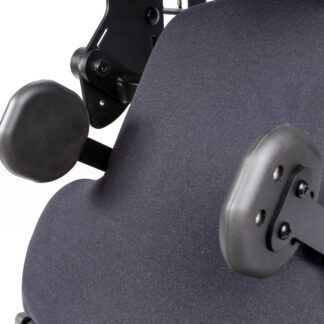

PT50098 Hip Supports
Button

Backs and Back Accessories

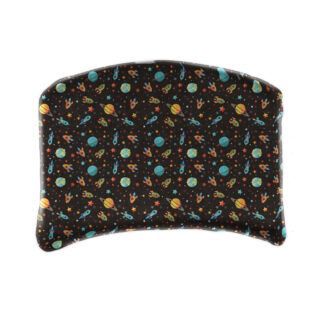

PT30078 Hygienic Cover for PT50050 Planar Back
Button

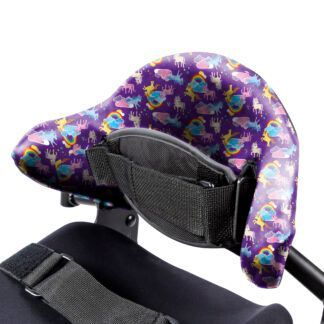

PT30079 Hygienic Cover for PT50052 Form to Fit Back
Button

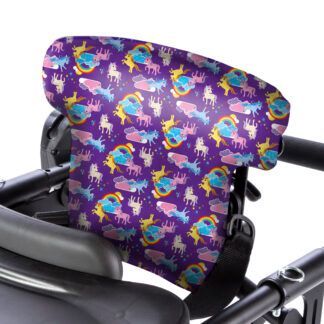

PT30089 Hygienic Cover for PT50238 Planar Back
Button

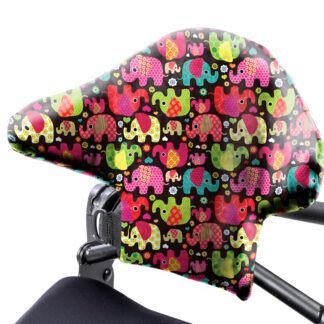

PT30090 Hygienic Cover for PT50240 Form to Fit Back
Button

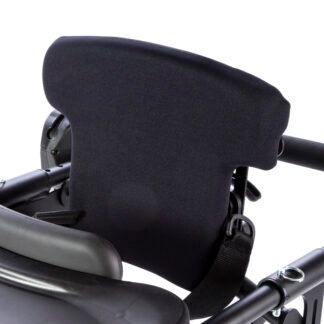

PT50050-1 Planar Back – 11″-13″H Range
Button

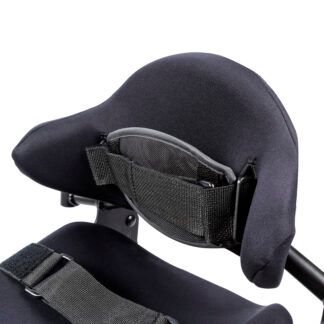

PT50052 Form to Fit Back 11″-13″H Range
Button
PT50238-1 Planar Back – 15″-17″H Range
Button

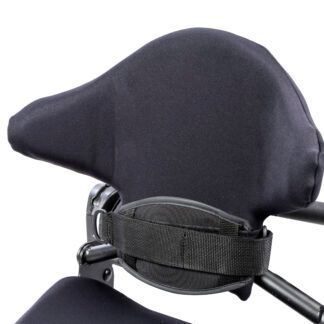

PT50240 Form to Fit Back 15″-17″H Range
Button

Positioning and Upper Body Support

PNG30318 Non-Stretch X-Style Chest Vest-11″Lx9.5″W
Button

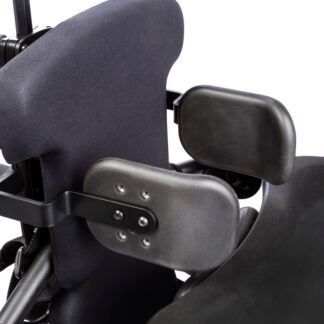

PT50248 Lateral Supports-5″-9″ Range Curved Pad
Button

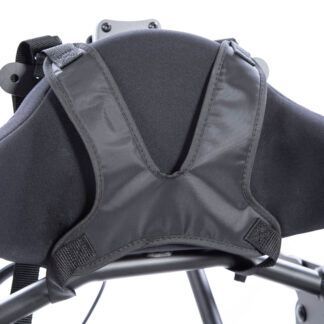

PT50302 Non-Stretch X-Style Chest Vest-9.5″Lx9″W
Button
PA5672 Padded Positioning Strap
Button
PB3049 Hygienic Cover for Lateral Supports
Button

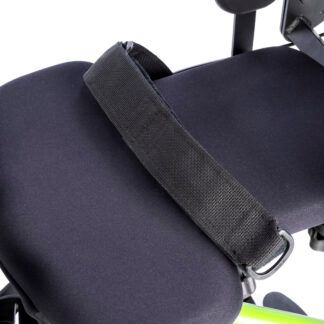

PT30066 Positioning Belt – 29″
Button

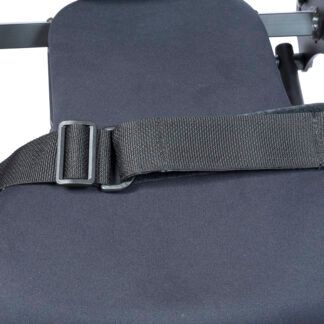

PT30094 Positioning Belt – 39″
Button
PT50008 Lateral Supports 8″-12″ Range Curved Pad
Button
PT50086 X-Style Chest Vest – 9.5″Lx9″W
Button
PT50088 X-Style Chest Vest – 11″Lx9.5″W
Button
PT50128 High Mount Chest Vest Bracket
Button

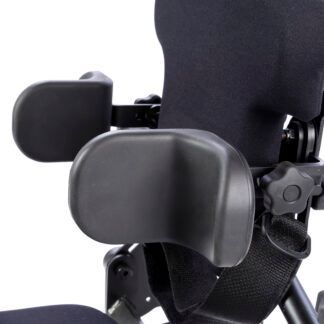

PT50216 Lateral Supports with Elbow Stop 8″-12″ Range
Button

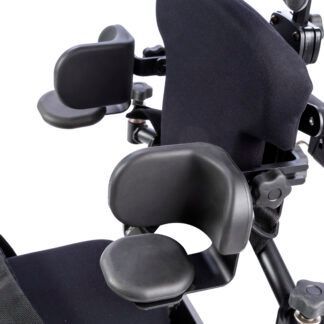

PT50218 Lateral Supports with Elbow Stop and Arm Rest
Button

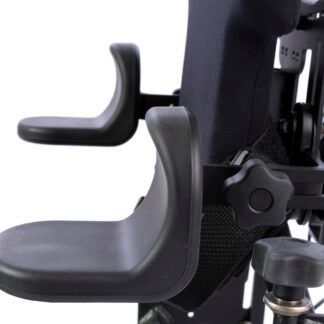

PT50220 Elbow Stop with Arm Rest
Button
PT50274 Lateral Supports 8″-12″ Range Flat Pad
Button

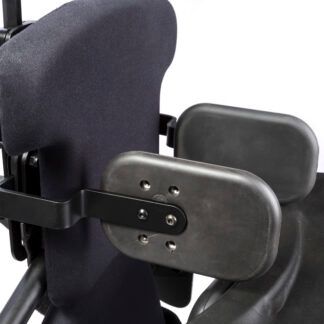

PT50276 Lateral Supports 5″-9″ Range Flat Pad
Button

Head Supports

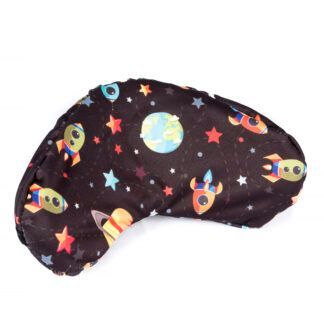

PA3035 Hygienic Cover for PY5626 Head Support
Button

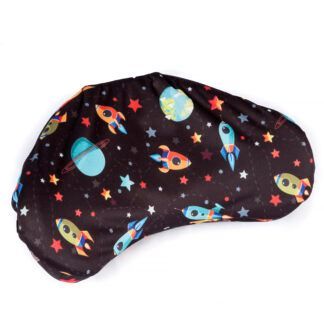

PA3036 Hygienic Cover for PY5628 Head Support
Button

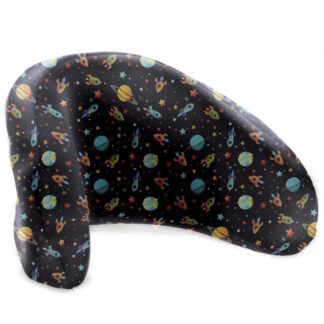

PA3037 Hygienic Cover for PA5586 Form to Fit Headrest
Button
PT50062 Head Support – 5″Hx8″W
Button

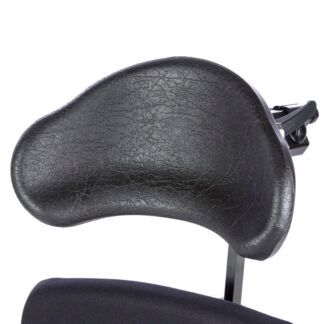

PT50064 Head Support – 6″Hx10″W
Button
PT50284 Head Support – Form To Fit
Button

Hygienic Cover Patterns

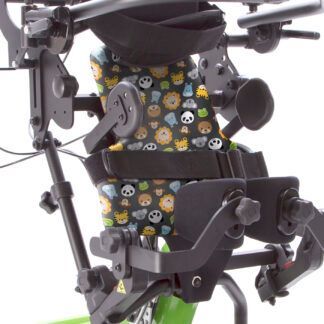

All Smiles Animals
Button
Fancy Pants Elephants
Button
Rainbow Unicorn
Button
Sea Creatures
Button
Space Race
Button

Other

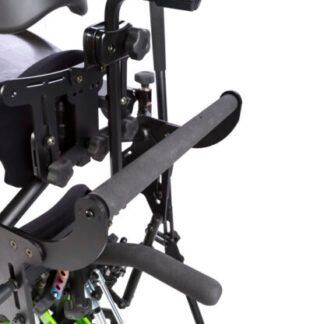

PT50230 Push Handle for Non-Supine
Button
P80246 Angle Locator
Button
P80809 Tool Pouch
Button
PT50212 Push Handle for Supine
Button

SPECIFICATIONS

Base Unit

Approximate Height Range: 28”-40” / 71-102cm
Weight Limit: 50lbs / 23kg
Seat Depth Range (from seat pivot to back surface): 7”-12” / 18-31cm
Seat Height From Floor (transfer height): 19” / 48cm
Seat to Footplate Range (from front of seat): 10”-16.5” / 25-42cm
Seat to Footplate Range – Inverted Brackets: 4.5”-11” / 11-28cm
Kneepad Depth Range (from front of seat): 2.5”-8.5” / 6-22cm
Kneepad Width: 5.5” / 14cm
Back Height From Seat, Contour & Planar: 11”-13” / 28-33cm
Back Height From Seat, Contour: 12.5”-14.5” / 32-37cm
Weight of Basic Unit: 54lbs / 24.5kg
Frame Footprint – Standard: 24.5”x36.5” / 62x93cm
Upholstery: Black Nylon/Neoprene
Frame Color: Green, Orange, Purple or White Powder Coat
Lifting Mechanism: Gas Spring Lift
Kneepad (inside access of pad): 2.5”Wx5”H / 6x13cm
Footplate Size: 7.75”Lx3.25”W / 20x8cm
Planar Seat Size: 9.5”Wx9.5”D / 24x24cm
Planar Back Pad Size: 9.5”Wx6.5H / 24x17cm

Shadow Tray

Shadow Tray Size: 21”x24” / 53x61cm
Shadow Tray Height (from seat): 7”-10” / 18-25cm
Weight of Black Molded Shadow Tray Assembly (add 3lbs or 1.4kg for Acrylic): 11.7lbs / 5.3kg
Chest Pad Depth Range: 0”-11” / 0-28cm

Mobile

Mobile Footprint: 24”x38” / 61x97cm
Mobile Handrim Height (from seat pivot): 12.75” / 32cm
Mobile Handrim Height (from floor): 31” / 79cm
Mobile Handrim Height-Tall (from seat pivot): 16.75” / 43cm
Mobile Handrim Height-Tall (from floor): 35” / 89cm
Mobile Wheelbase: 31” / 79cm
Mobile Fore/Aft Handrim Positional Range (from seat pivot): 4.75”-19” / 12-48cm
Standard Bantam w/ Mobile Weight: 70lbs / 32kg
Weight of Mobile Option: 25lbs / 11kg
Mobile Drive Chain Tensioning Method: Tension Jack-Screw
Mobile Wheel Locks: 1/4 turn rotation to lock/unlock
Mobile Threshold Height: .75” Maximum / 2cm Maximum

Options

Hip Supports Width Range: 6”-9” / 15-23cm
Frame Footprint – Swivel Casters: 30”x38” / 76x97cm
Lifting Mechanism: Manual Hydraulic Lift
Lifting Mechanism: Pow’r Up Lift
Supine Positioning: 0-90°
T-Style Handle-Extends (each direction): 7” / 18cm
Foot Straps – Range Over Arch: 2”-9” / 5-23cm
Multi-Adjustable Footplates Plantar/Dorsi: +/- 20°
Kneepad Height Range: +/- 1/2” / +/- 1.3 cm
Multi-Adjustable Footplates Fore/Aft: +/- 3/4” / +/- 1.9cm
Multi-Adjustable Footplates Rotation: 30° left/right
Multi-Adjustable Kneepads Width Range: 5.5”-10” / 14-25cm
Hip Support Pad Size: 3.5”Wx3.5”H / 9x9cm
Hip Supports Height Range: 2” (3 positions) / 5cm
Lateral Support Pad Size: 4”Wx6”H / 10x15cm
Lateral Supports Width Range: 8”-12” / 20-30cm
Contoured Seat Size: 8.5-9.5”Wx9.5”L / 22-24x24cm
Contoured Back Pad Size: 10”Wx6.5”H / 25x17cm
Chest Vest: 9.5”Lx9W / 24x23cm
Head Support Height Range (from seat, small planar only): 17”-24” / 43-61cm
Head Support Height Range (all extra small and small contour): 15”-24” / 38-61cm
Head Support Depth Range (from backrest): +1” to -2.75” / +3 to -7cm
Positioning Belt – Hip Circumference: 0-23” / 0-59cm
Swing-Away Front End Tray Height Range: 9.25 to 21.25” / 23 to 54 cm
Swing-Away Front End Tray Fore/Aft Range (from seat pivot): +10 to -11 / +26 to -28 cm
Locking Caster Diameter: 5” / 13cm
