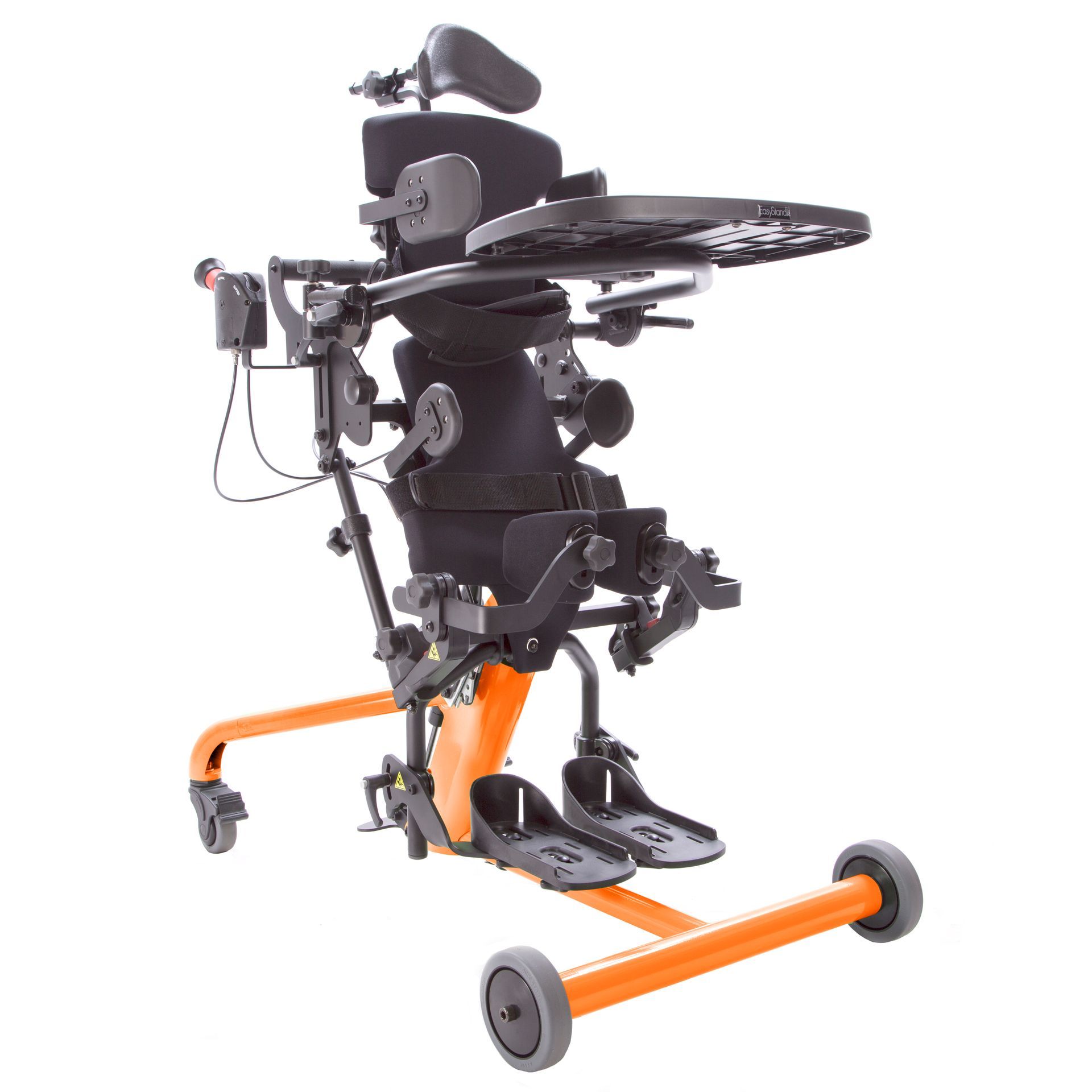

Bantam Small

Bantam Small

PT50002-1

Approximate Height Range: 36”- 54” tall and up to 100 lbs.
Seat Depth Range (from seat pivot) 11″-16″



The Bantam line of standers are the only sit to stand standers that can combine the option of supine positioning to create infinite positioning possibilities from 90-90 sitting, fully vertical standing, full supine lying and anywhere in between. No other standers can provide the amount of positioning that is possible with the EasyStand Bantam.

REQUEST PRODUCT INFO

Bantam Small Brochure

EasyStand Mini Catalog

Bantam Small Assembly Manual

Bantam Small User Manual

Product Description

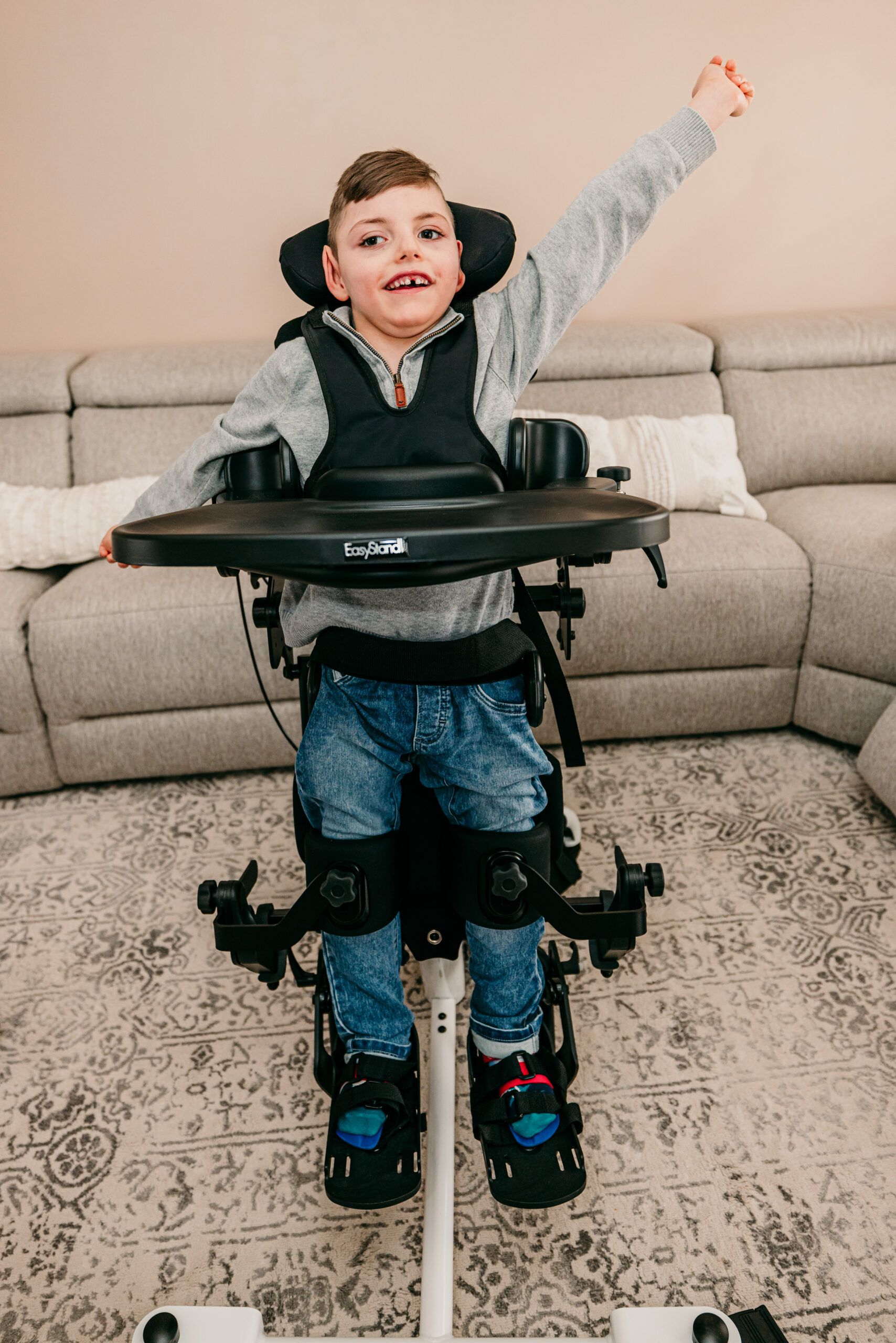

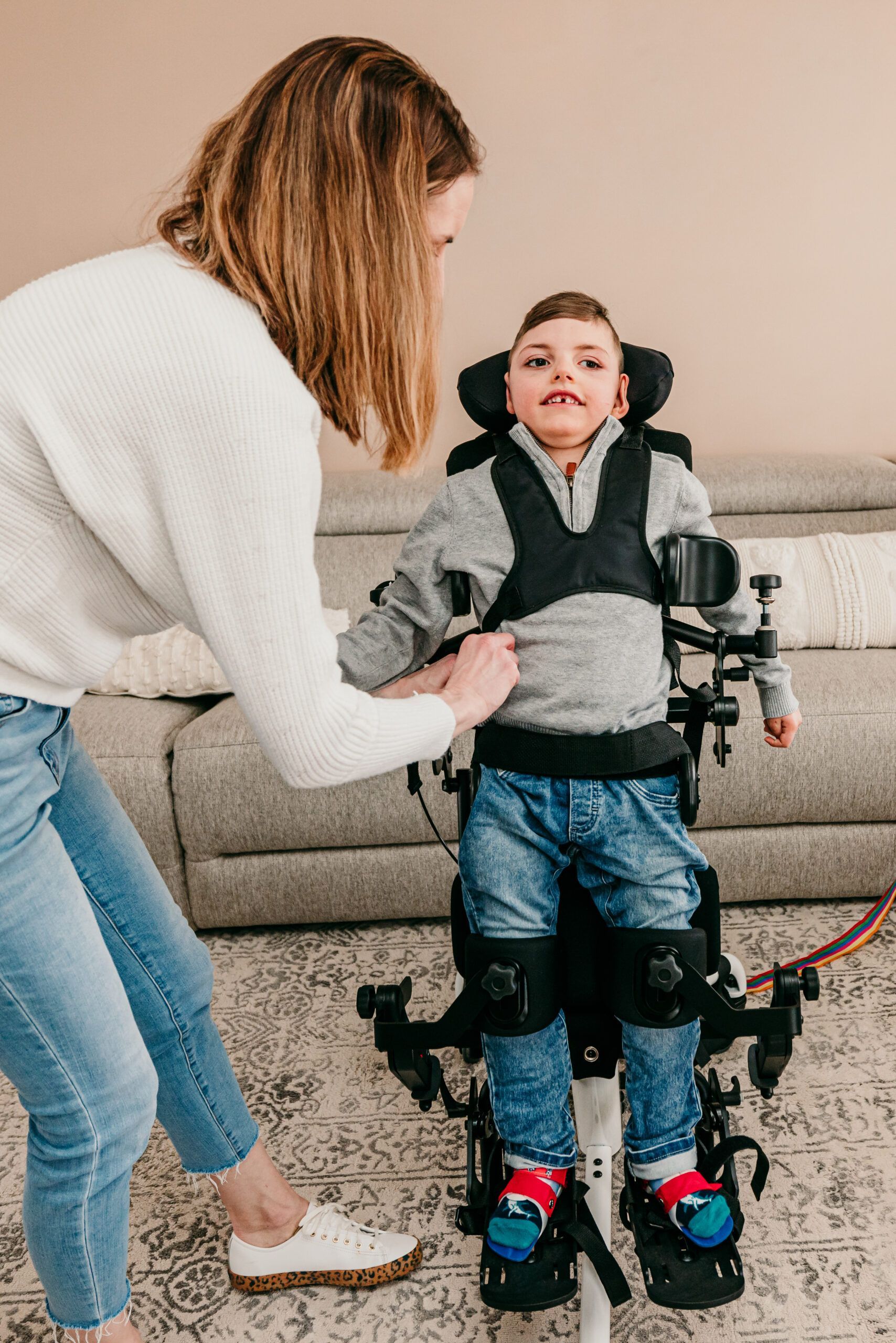

The EasyStand Bantam is the only standing frame to combine a sit-to-stand transition with the added function of an supine stander. By alternating positions, a child can tolerate standing for a longer period of time. Also, when it is safer and easier for a caregiver to transfer and stand a child, the child will stand more often, increasing standing compliance. The Bantam fits kids from early intervention through elementary school.

Options

Frame Color

Available in 4 colours.

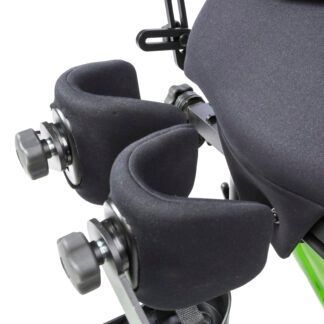

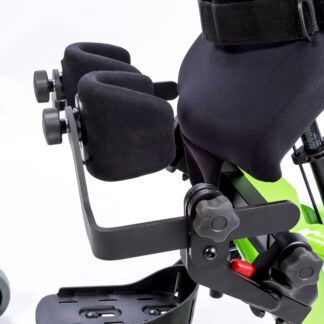

Knee Pads

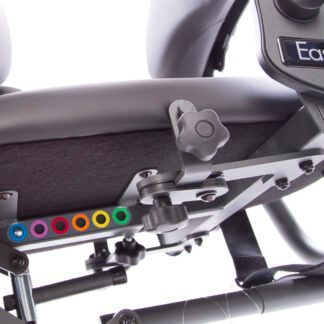

Supine & Seat Adjustment

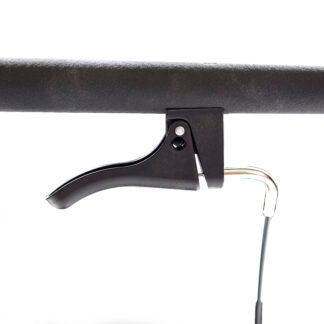

Lift Mechanisms

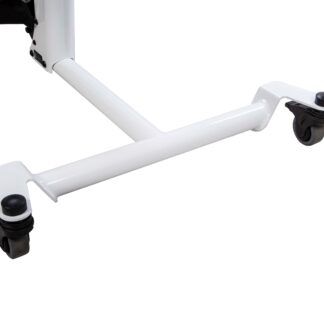

Front Casters

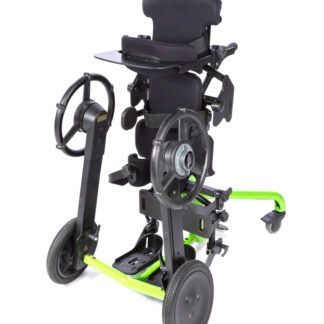

Mobile

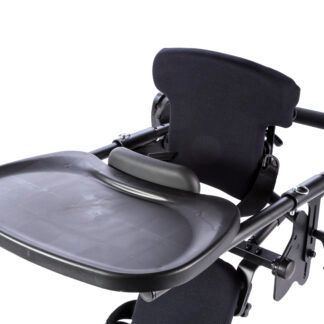

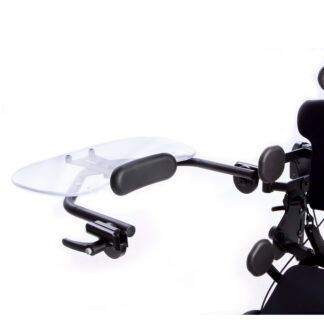

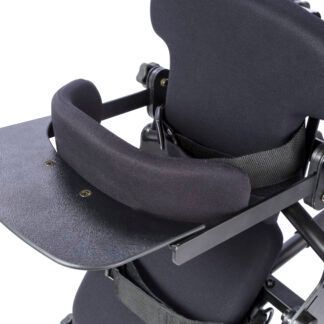

Mobile Tray & Shadow Trays

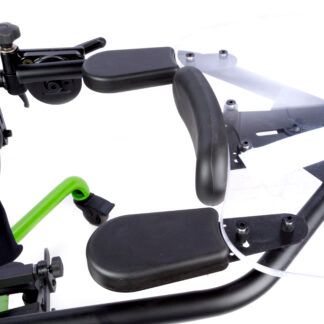

Tray Accessories

Foot Plates and Foot Plate Accessories

Seats and Seat Accessories

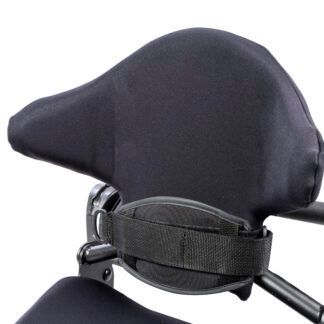

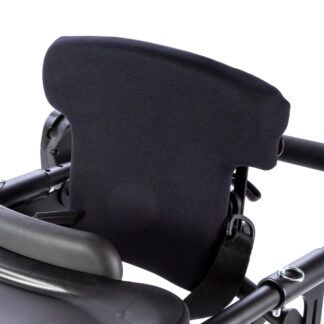

Backs and Back Accessories

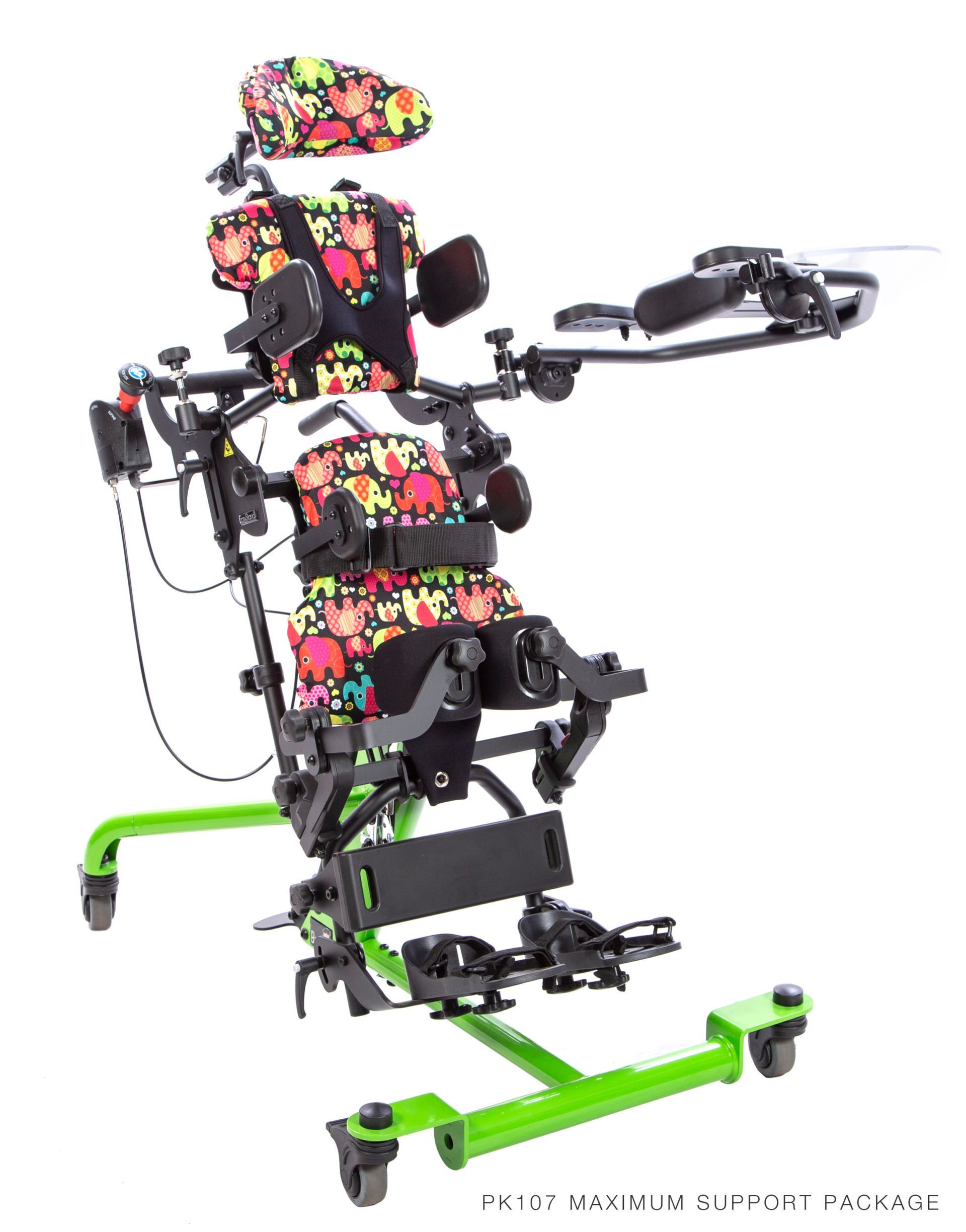

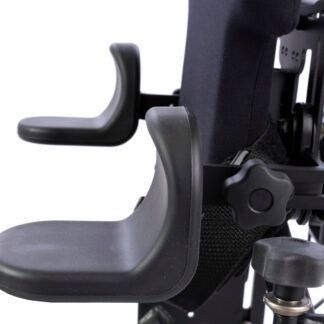

Positioning and Upper Body Support

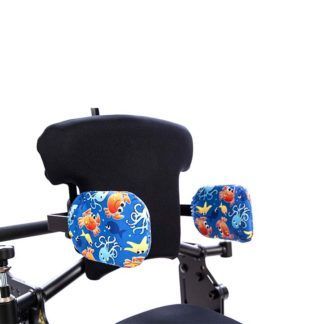

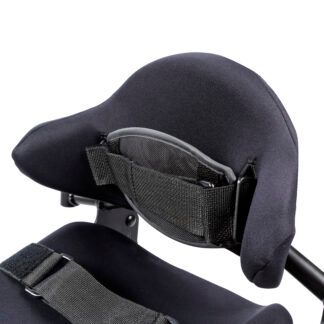

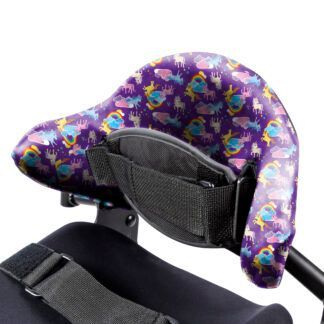

Head Supports

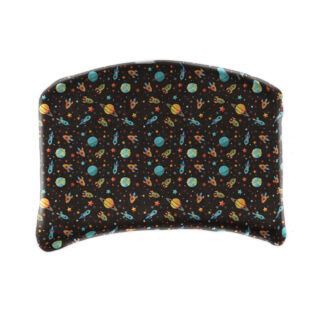

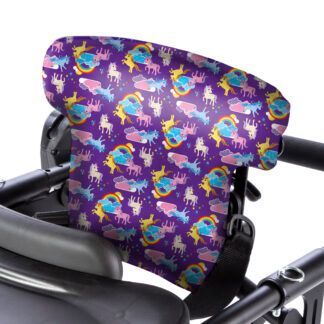

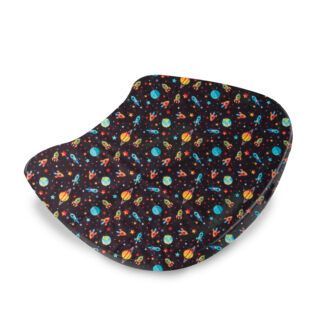

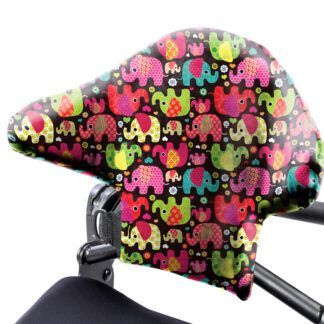

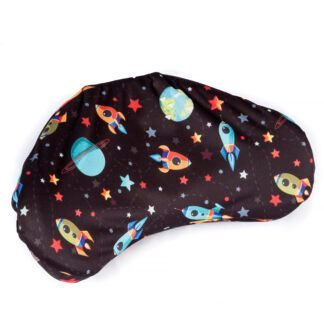

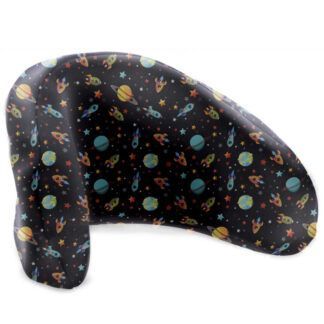

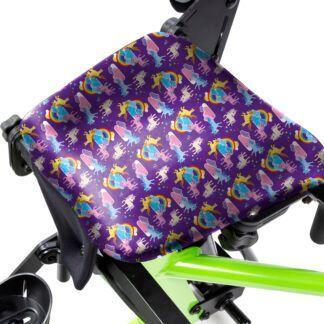

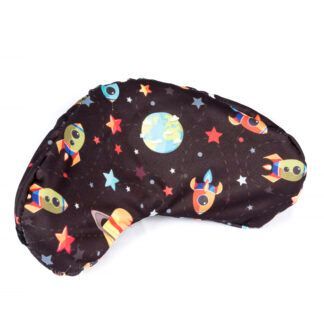

Hygienic Cover Patterns

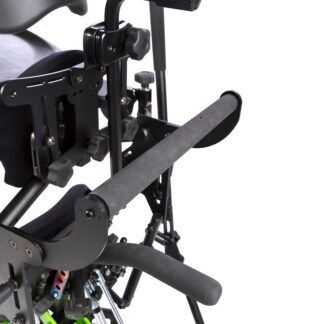

Other

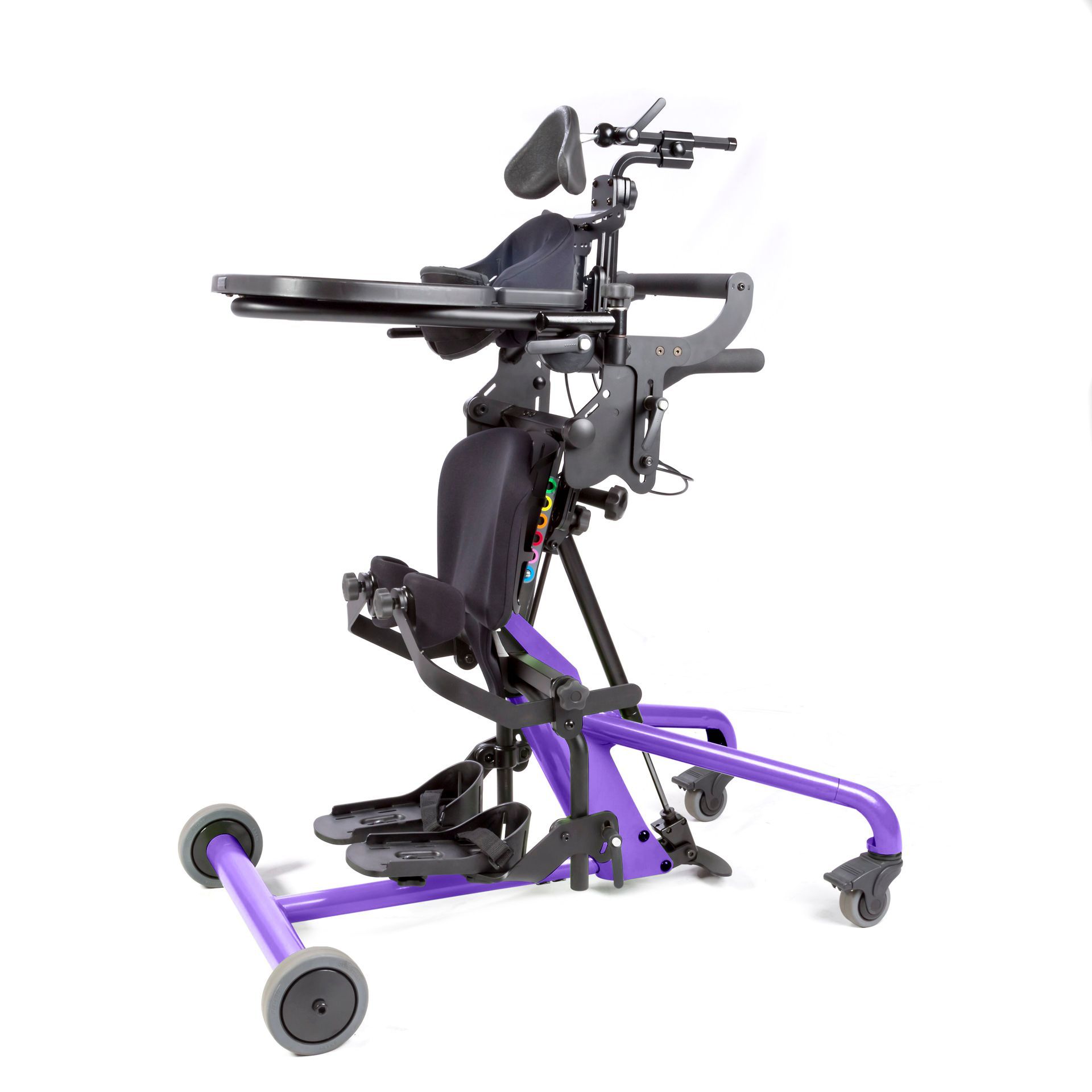

Base Unit

  • Approximate Height Range: 36”-54” / 91-137cm
  • Weight Limit: 100lbs / 45kg
  • Seat Depth Range (from seat pivot to back surface): 11”-16” / 28-41cm
  • Seat Height From Floor (transfer height): 19” / 48cm
  • Seat to Footplate Range (from front of seat): 10”-16.5” / 25-42cm
  • Seat to Footplate Range – Inverted Brackets: 4.5”-11” / 11-28cm
  • Kneepad Depth Range (from front of seat): 2.5”-8.5” / 6-22cm
  • Kneepad Width: 5.5” / 14cm
  • Back Height From Seat, Planar: 14”-16” / 36-41cm
  • Weight of Basic Unit: 54lbs / 24.5kg
  • Frame Footprint – Standard: 24.5”x36.5” / 62x93cm
  • Upholstery: Black Nylon/Neoprene
  • Frame Color: Green, Orange, Purple or White Powder Coat

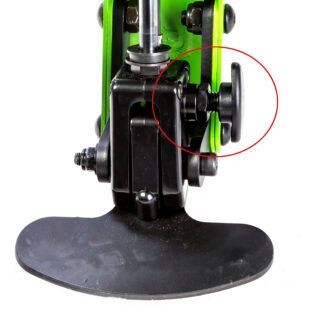

  • Lifting Mechanism: Gas Spring Lift
  • Kneepad (inside access of pad): 3.5”Wx5”H / 9x13cm
  • Footplate Size: 9 3/4”Lx4”W / 25x10cm
  • Planar Seat Size: 8”-13”Wx13.5”D / 20-33x34cm

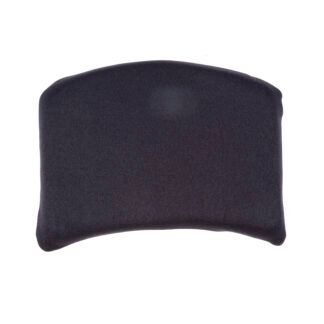

  • Planar Back Pad Size: 8”-12”Wx10”H / 20-31x25cm

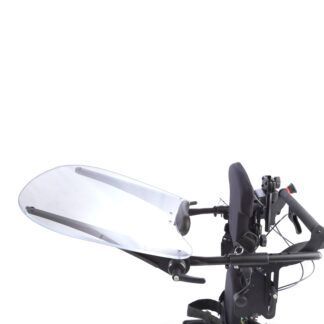

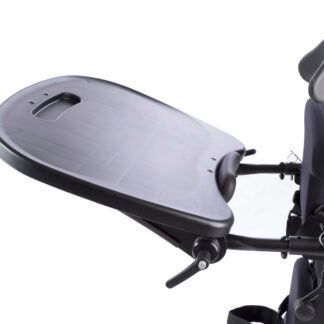

Shadow Tray

  • Shadow Tray Size: 21”x24” / 53x61cm
  • Shadow Tray Height (from seat): 7”-10” / 18-25cm
  • Weight of Black Molded Shadow Tray Assembly (add 3lbs or 1.4kg for Acrylic): 11.7lbs / 5.3kg
  • Chest Pad Depth Range: 0”-11” / 0-28cm

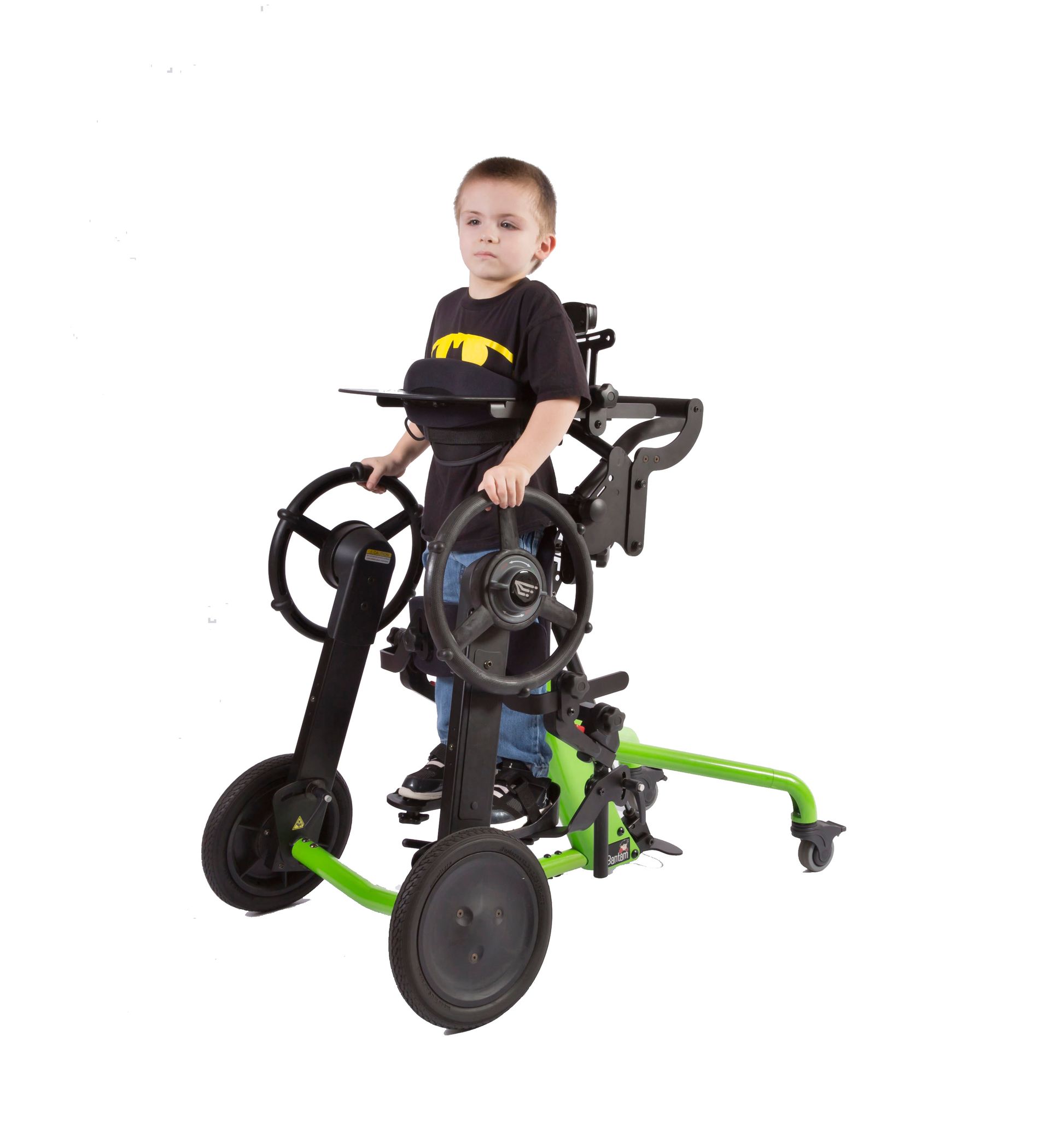

Mobile

  • Mobile Footprint: 24”x38” / 61x97cm
  • Mobile Handrim Height (from seat pivot): 12.75” / 32cm
  • Mobile Handrim Height (from floor): 31” / 79cm
  • Mobile Handrim Height-Tall (from seat pivot): 16.75” / 43cm
  • Mobile Handrim Height-Tall (from floor): 35” / 89cm
  • Mobile Wheelbase: 31” / 79cm
  • Mobile Fore/Aft Handrim Positional Range (from seat pivot): 4.75”-19” / 12-48cm
  • Standard Bantam w/ Mobile Weight: 70lbs / 32kg
  • Weight of Mobile Option: 25lbs / 11kg
  • Mobile Drive Chain Tensioning Method: Tension Jack-Screw
  • Mobile Wheel Locks: 1/4 turn rotation to lock/unlock
  • Mobile Threshold Height: .75” Maximum / 2cm Maximum

Options

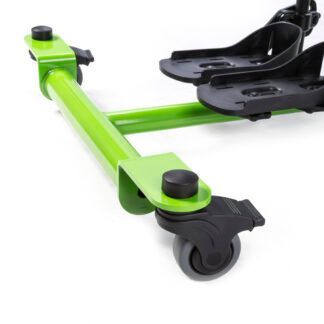

  • Frame Footprint – Swivel Casters: 30”x38” / 76x97cm

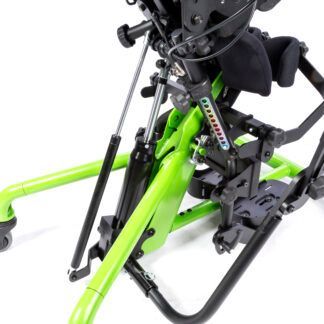

  • Lifting Mechanism: Manual Hydraulic Lift

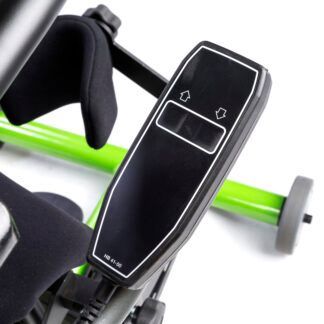

  • Lifting Mechanism: Pow’r Up Lift

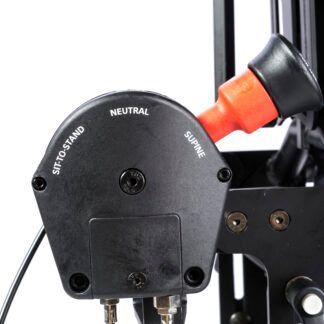

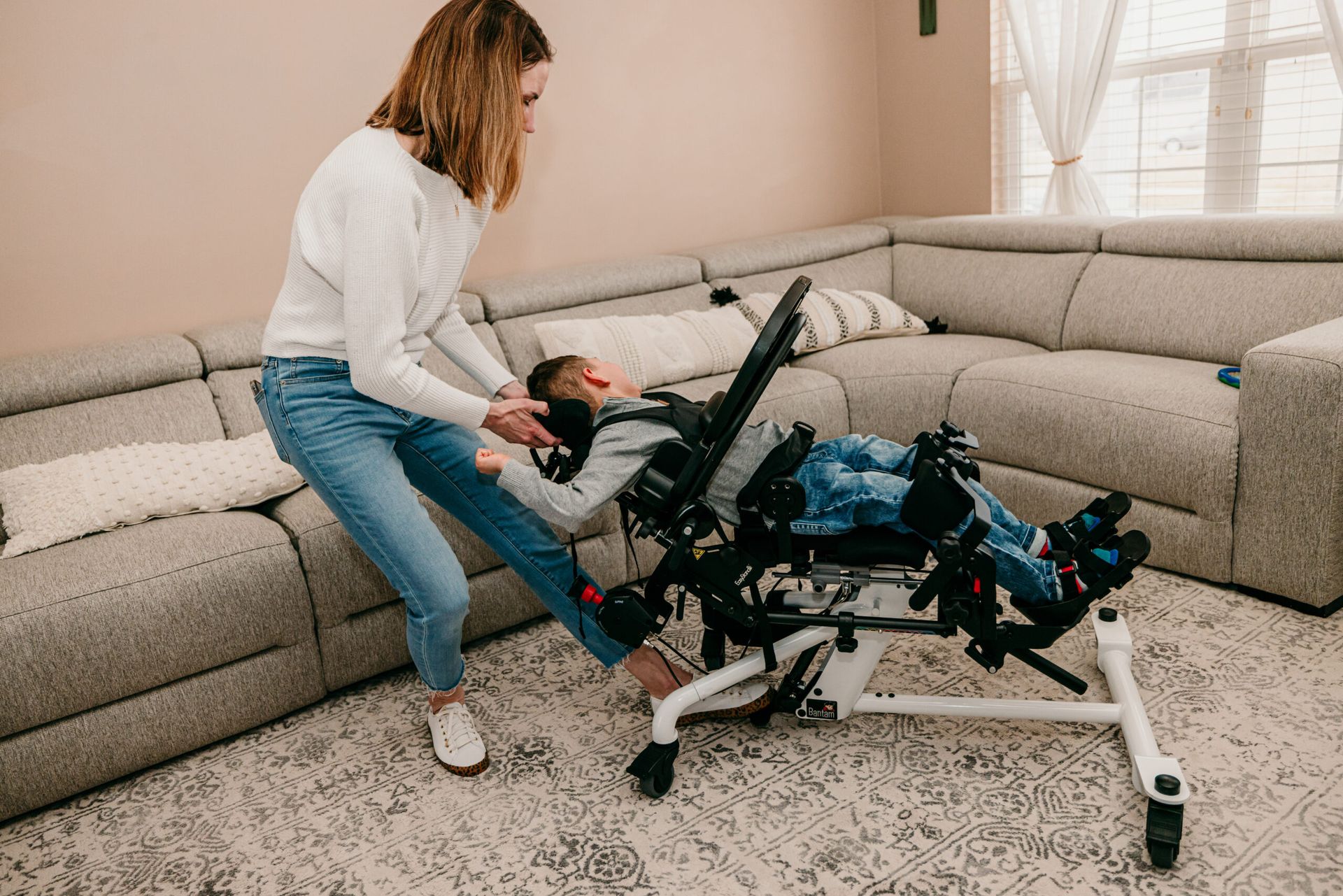

  • Supine Positioning: 0-90°
  • T-Style Handle-Extends (each direction): 7” / 18cm

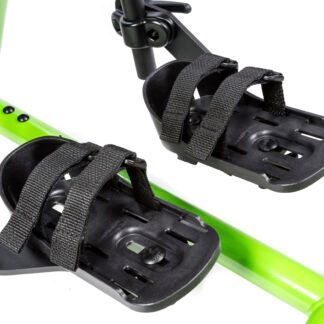

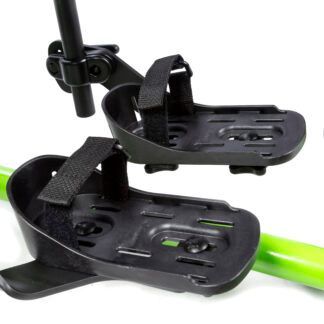

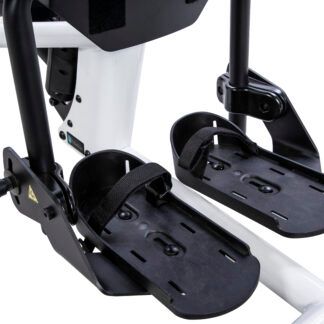

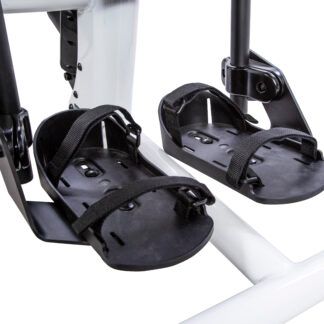

  • Foot Straps – Range Over Arch: 2”-9” / 5-23cm

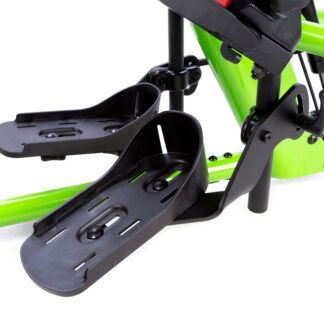

  • Multi-Adjustable Footplates Plantar/Dorsi: +/- 20°
  • Kneepad Height Range: +/- 1” / +/- 2.5cm
  • Multi-Adjustable Footplates Fore/Aft: +/- 3/4” / +/- 1.9cm
  • Multi-Adjustable Footplates Rotation: 30° left/right
  • Multi-Adjustable Kneepads Width Range: 5.5”-10” / 14-25cm

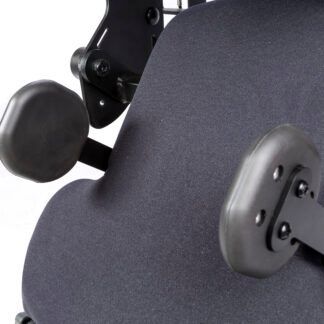

  • Hip Support Pad Size: 3.5”Wx3.5”H / 9x9cm

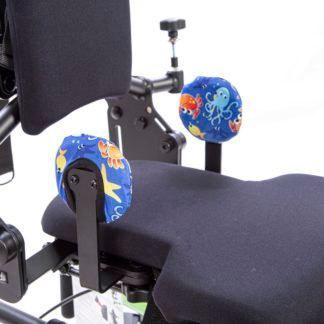

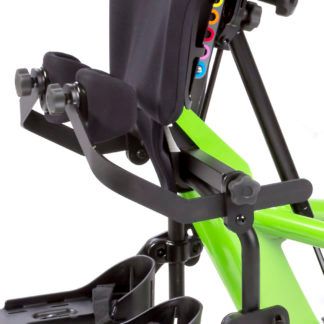

  • Hip Supports Width Range: 8”-12” / 20-30cm
  • Hip Supports Height Range: 2” (3 positions) / 5cm

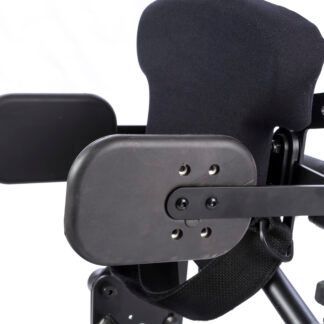

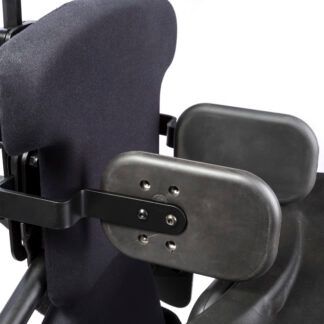

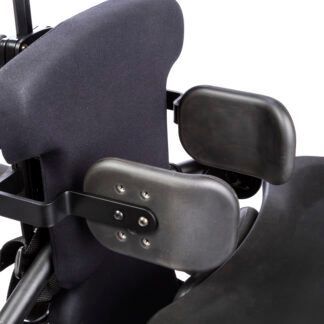

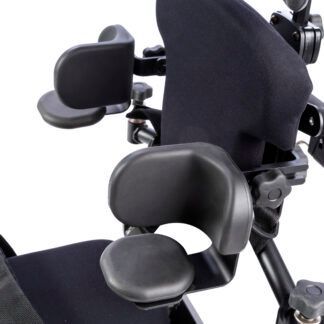

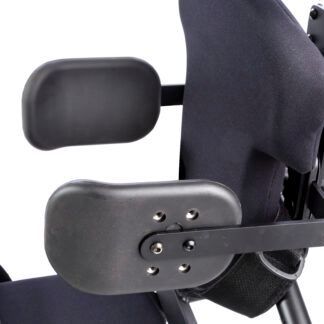

  • Lateral Support Pad Size: 4”Wx6”H / 10x15cm
  • Lateral Supports Width Range: 8”-12” / 20-30cm

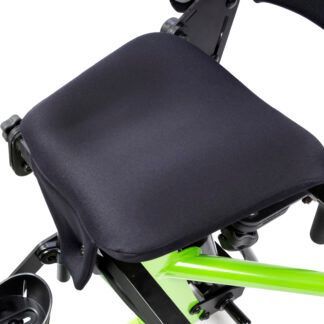

  • Contoured Seat Size: 11-13”Wx14”L / 28-33x36cm
  • Contoured Back Pad Size: 15”Wx8”H / 38x20cm

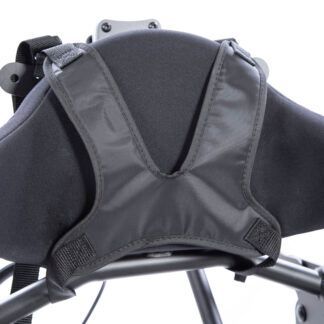

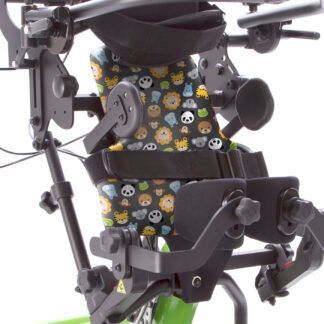

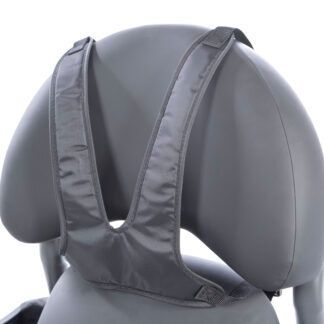

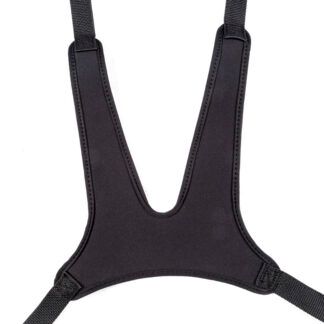

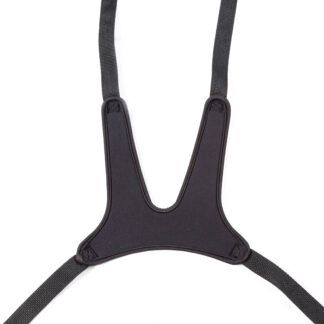

  • Chest Vest: 11”Lx9.5”W / 28x24cm

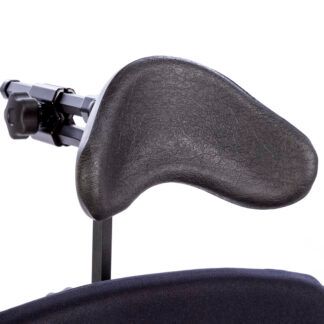

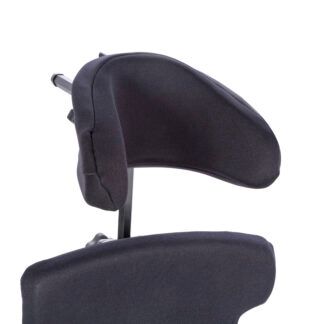

  • Head Support Height Range (from seat, small planar only): 17”-24” / 43-61cm
  • Head Support Height Range (all extra small and small contour): 15”-24” / 38-61cm
  • Head Support Depth Range (from backrest): +1” to -2.75” / +3 to -7cm

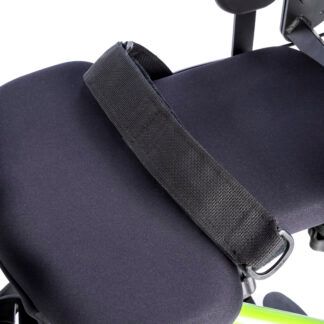

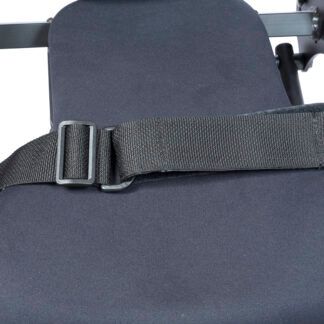

  • Positioning Belt – Hip Circumference: 0-29” 0-74cm

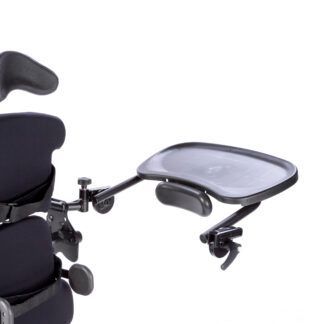

  • Swing-Away Front End Tray Height Range: 9.25 to 21.25” / 23 to 54 cm
  • Swing-Away Front End Tray Fore/Aft Range (from seat pivot): +10 to -11 / +26 to -28 cm
  • Locking Caster Diameter: 5” / 13cm
