Caribou

Caribou

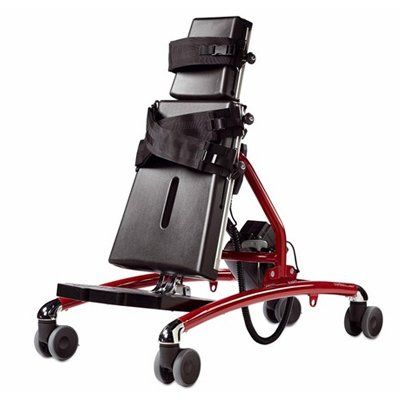

The Caribou is a versatile paediatric standing aid that supports prone, upright, or supine standing positions. The Caribou is an ideal solution for children who have limited head and trunk control, or limited range of motion.



The Caribou's tilt function and extensive accessory selection make it an excellent choice for children with disabilities. It is available in four sizes and can accommodate children from approximately 850 mm to 1840 mm in height, with a maximum user mass of 100 kg. Whether you need a prone stander or a supine stander the Caribou is a suitable choice.


The Caribou helps children build strength, improve their posture, and participate in activities with their peers. With its various sizes and options, the Caribou is a versatile standing frame that can grow with your child and adapt to their changing needs.


In summary, the R82 Caribou is an excellent standing frame for children with disabilities. Its versatile design, tilt function, and extensive accessory selection make it an excellent choice for parents and caregivers looking for a paediatric stander that can help their child stand and participate in activities they love.

REQUEST PRODUCT INFO

Caribou User Manual

Features

Options

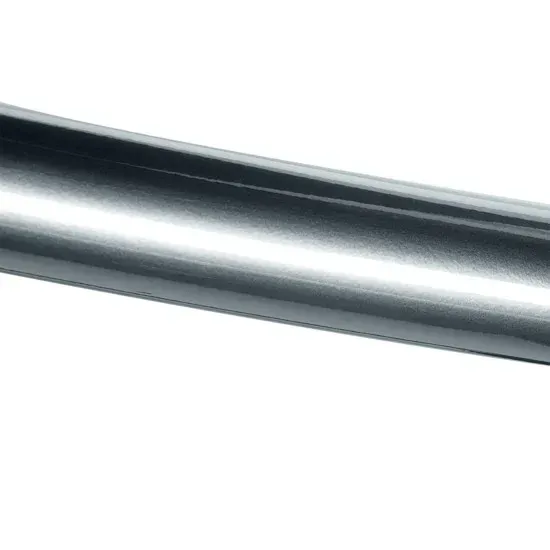

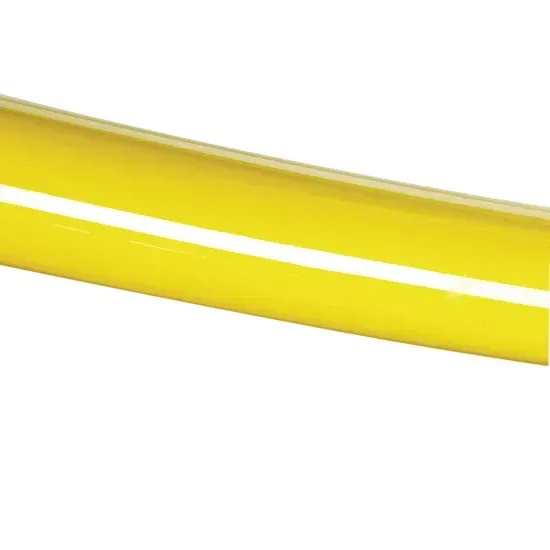

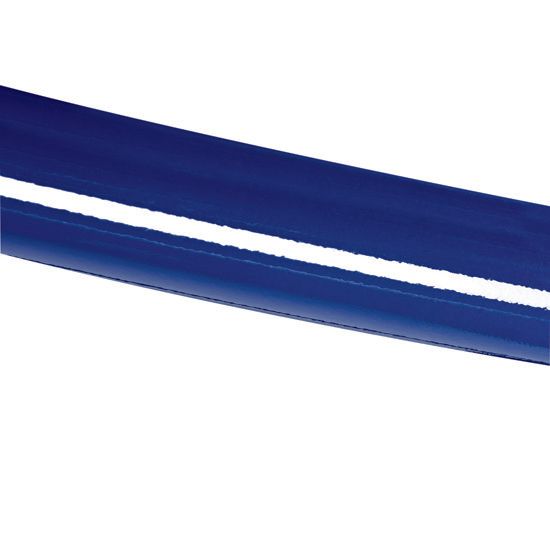

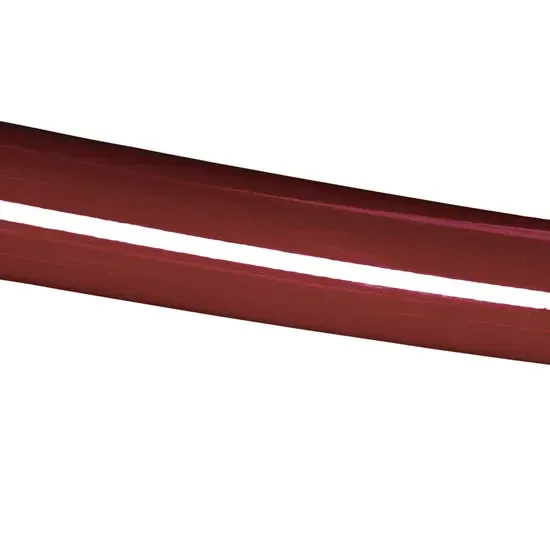

Frame colour

Available in different colours.

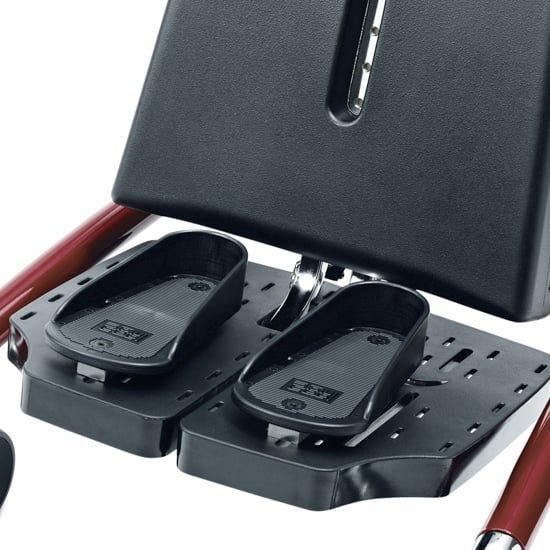

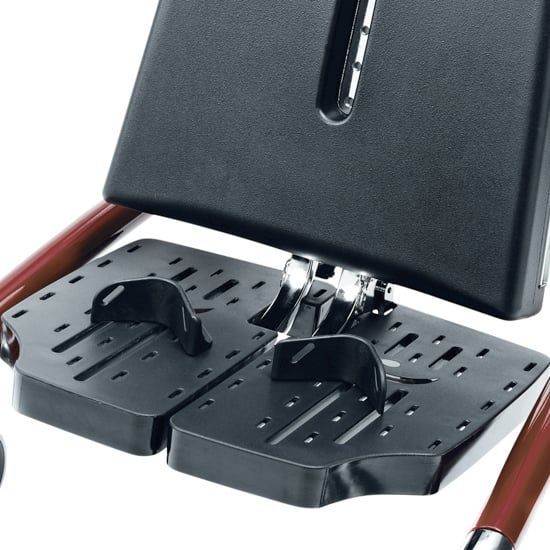

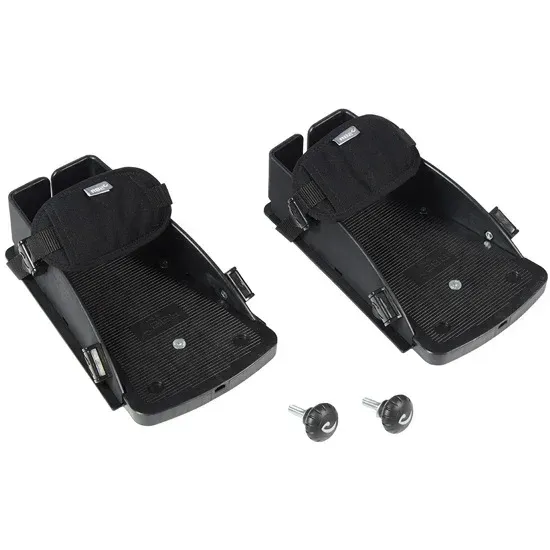

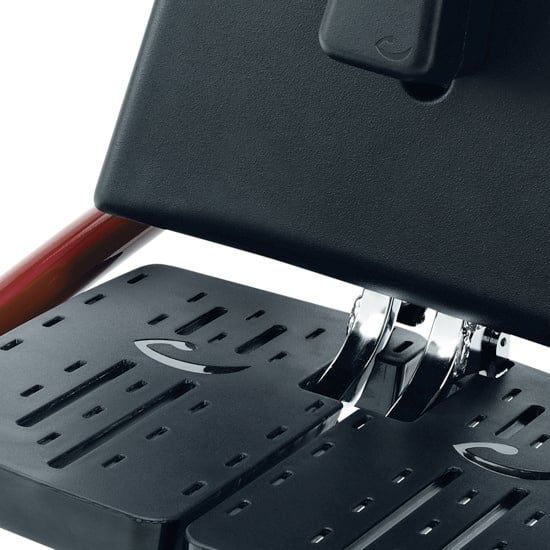

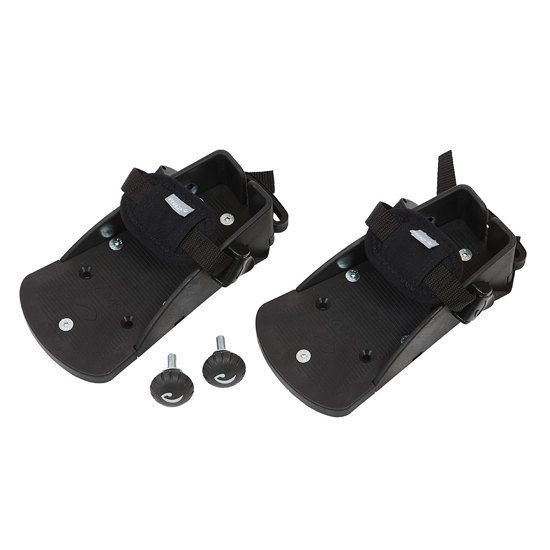

Foot plates

Parted foot supports makes it possible to adjust individual foot heights and angles.

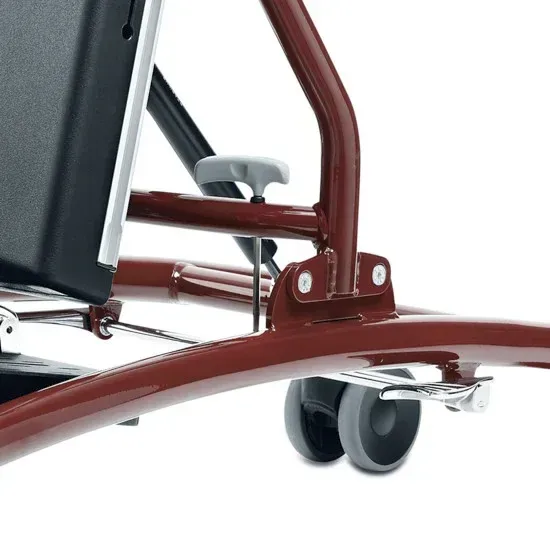

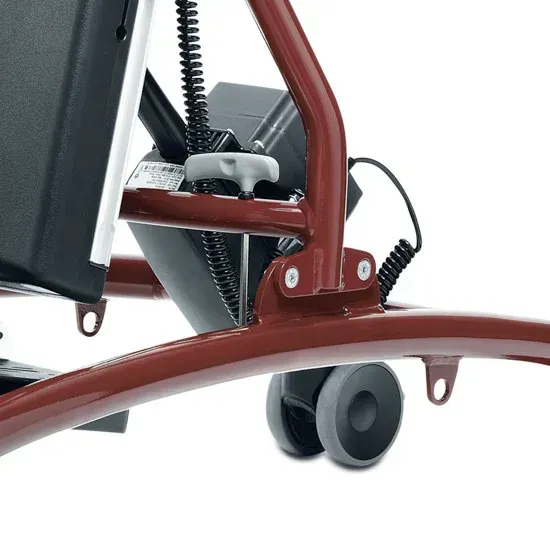

Tilt mechanism

Goes from minus 3 degrees to horizintal position. Sizes 3 and 4 are recommended in the power versions to ease tilting.

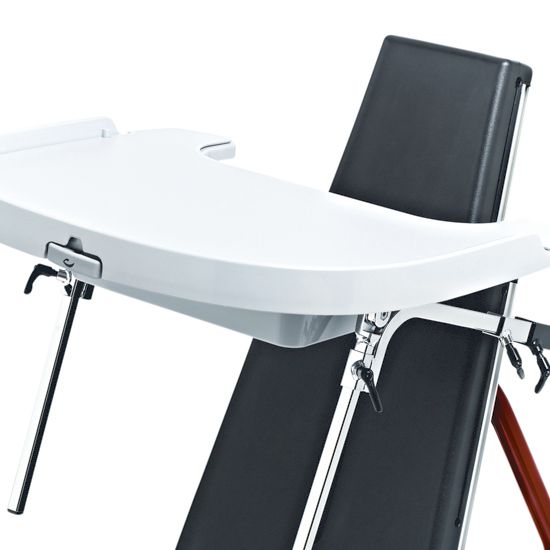

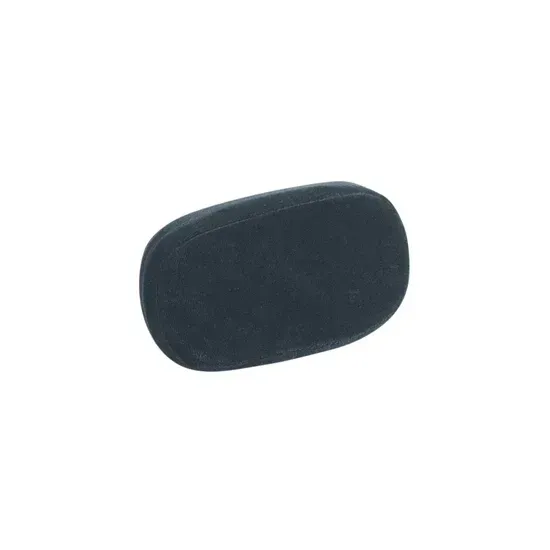

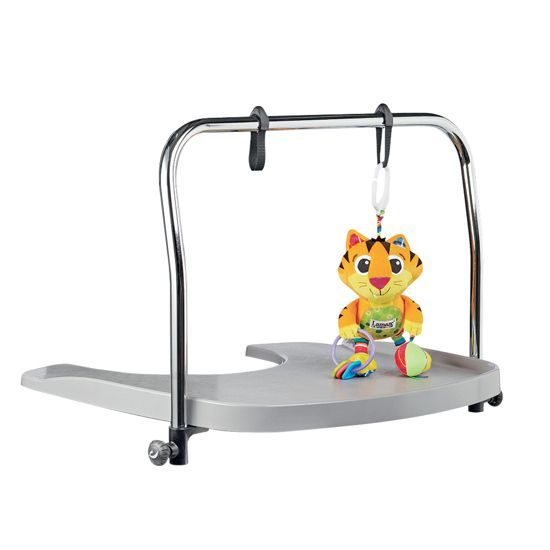

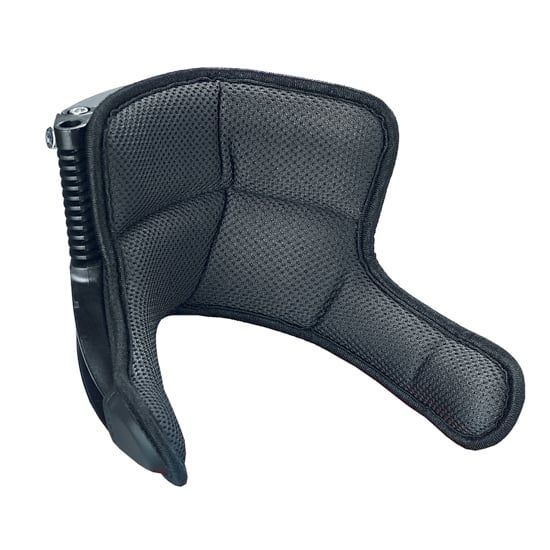

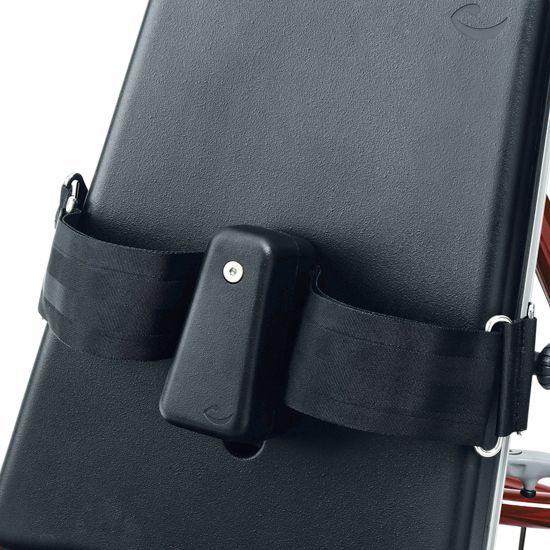

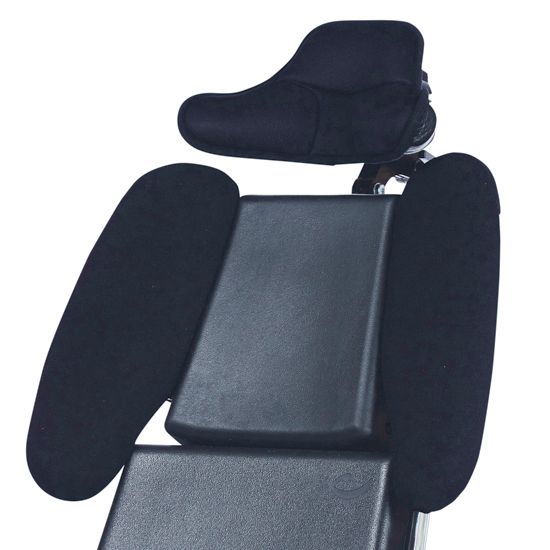

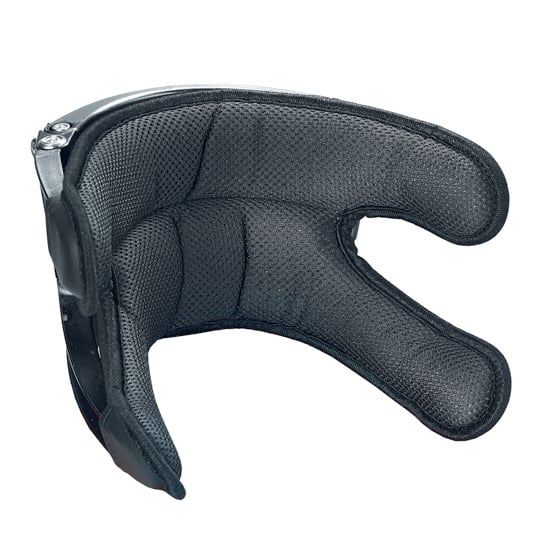

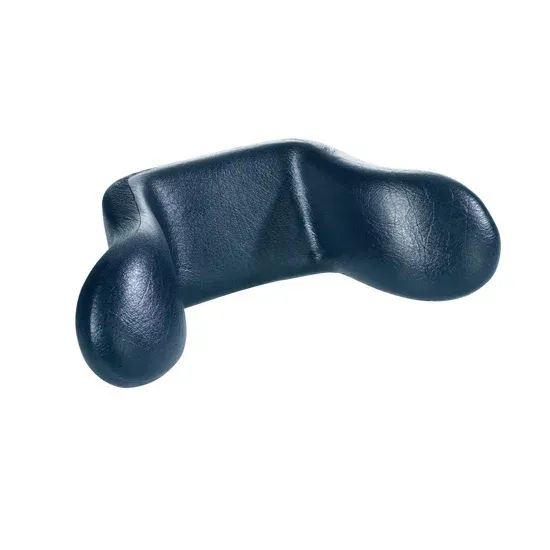

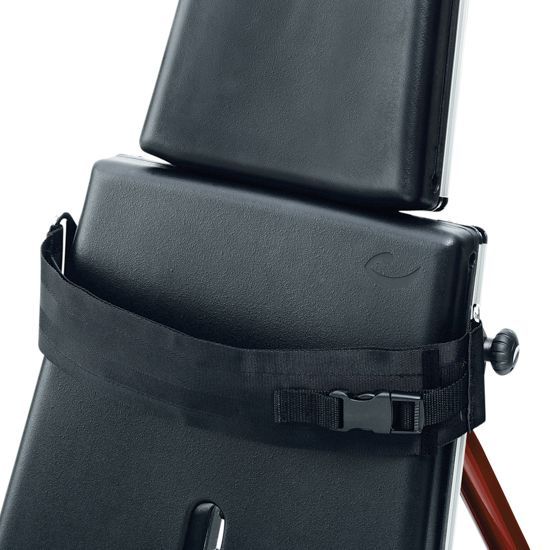

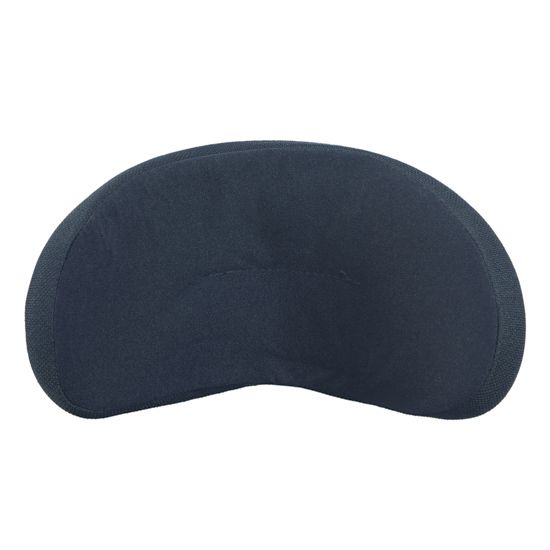

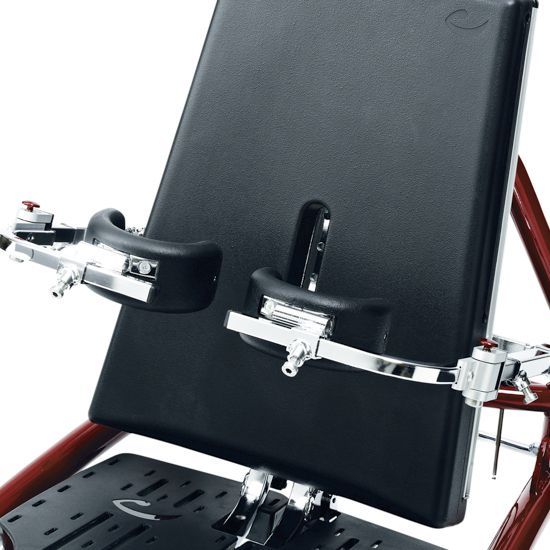

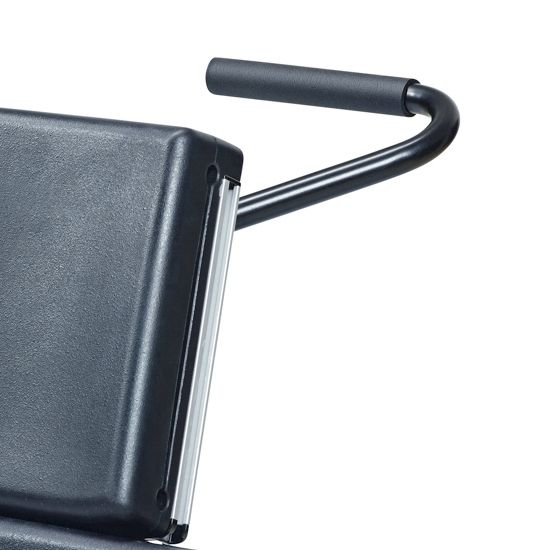

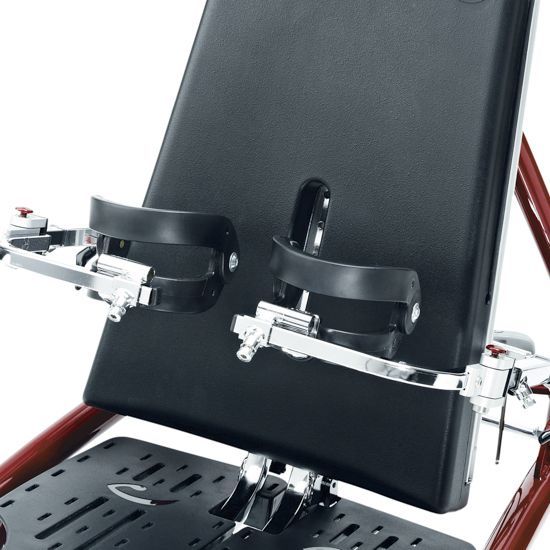

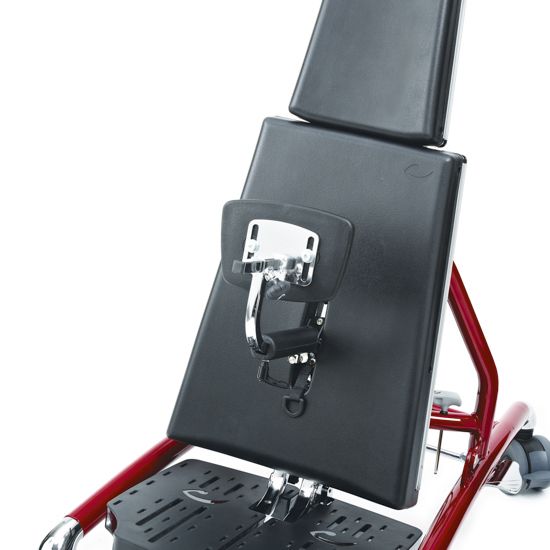

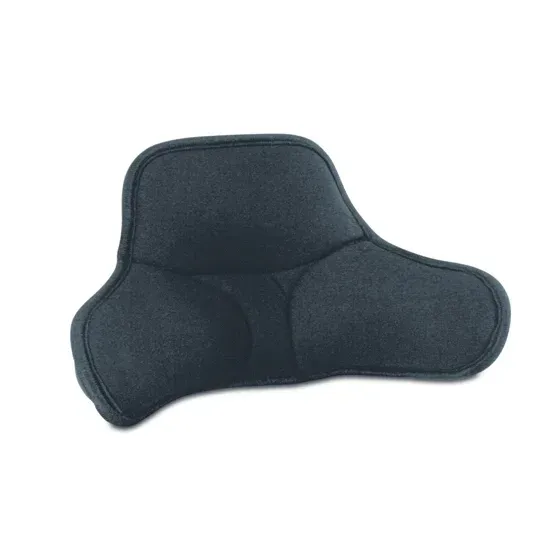

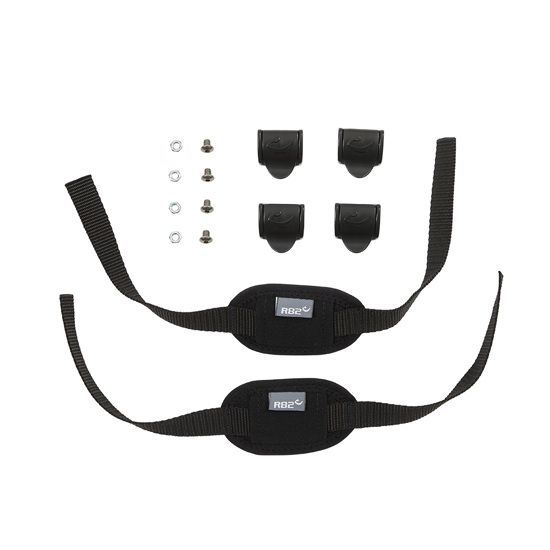

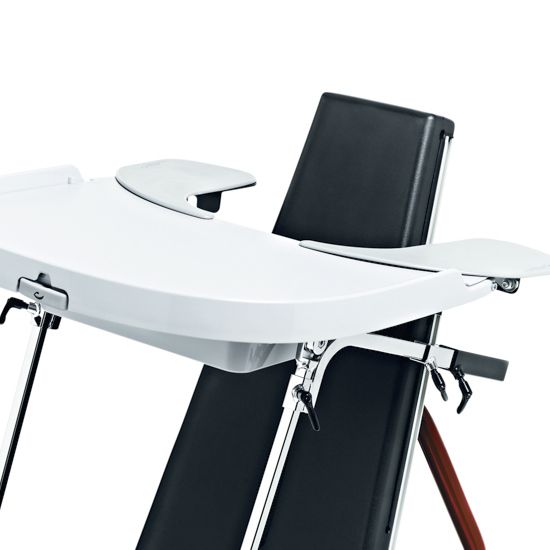

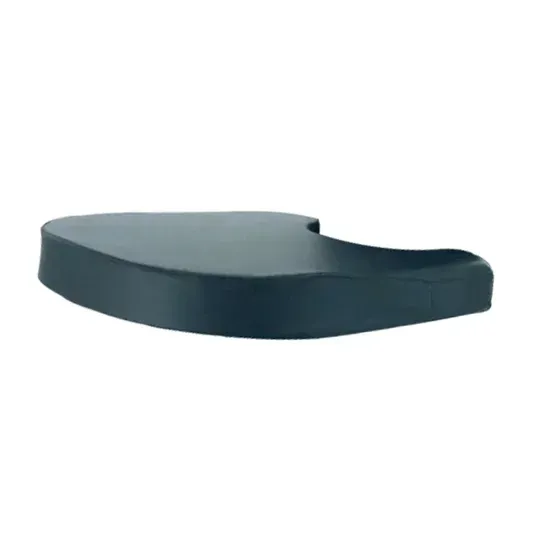

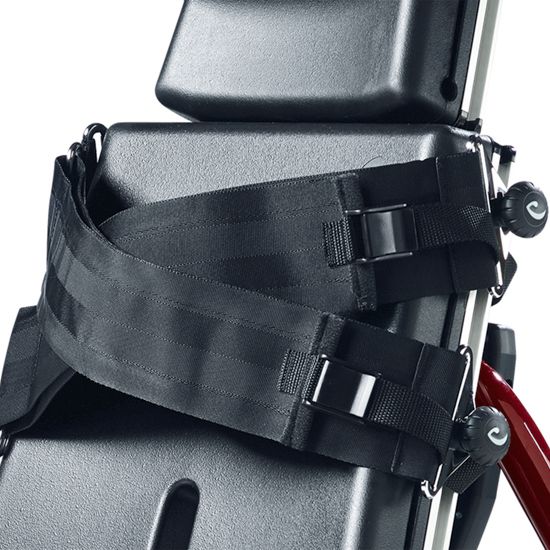

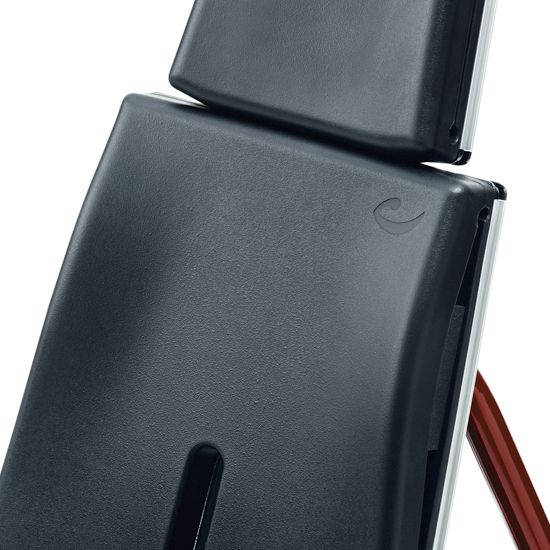

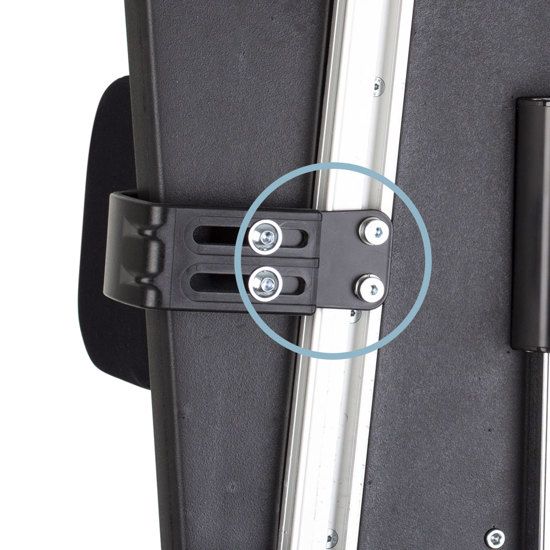

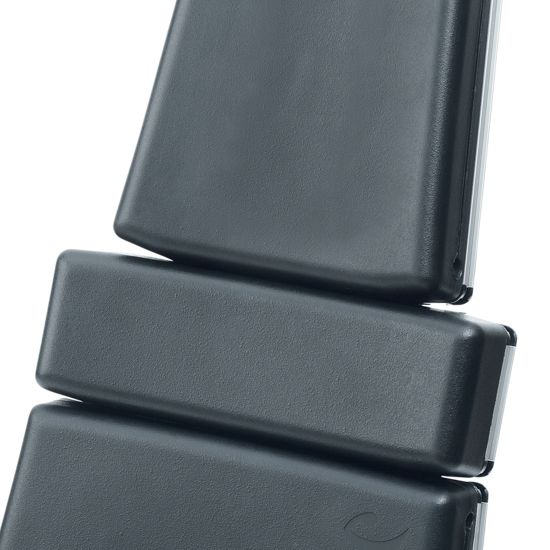

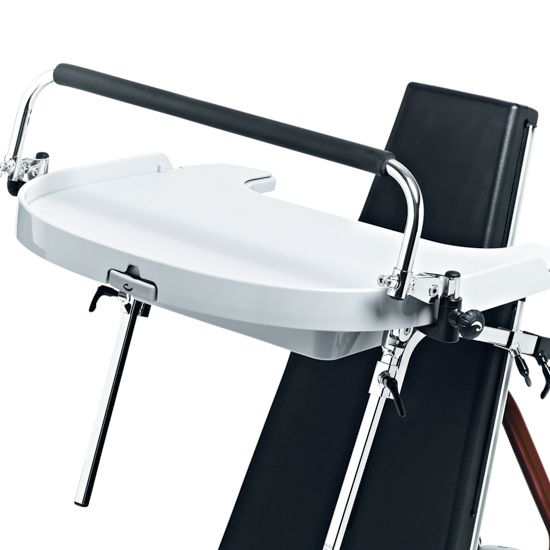

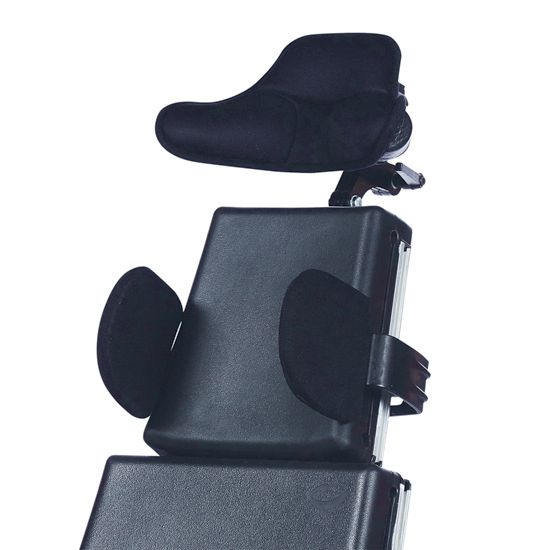

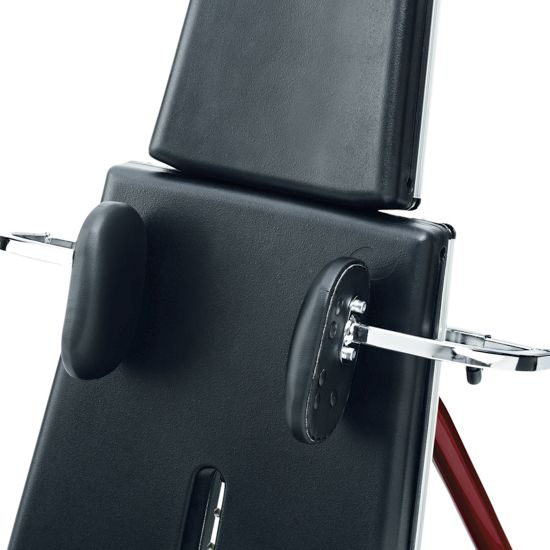

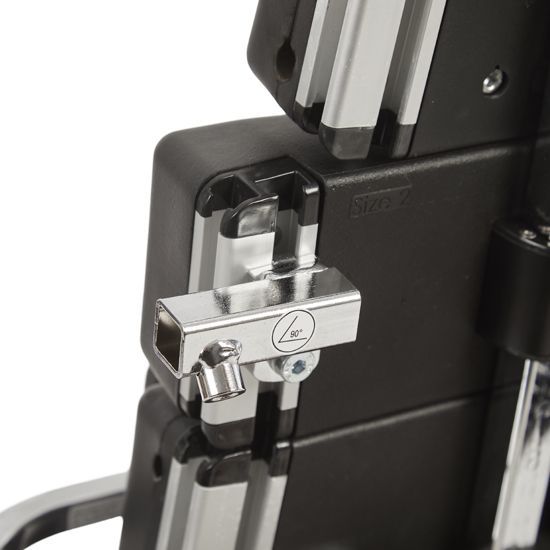

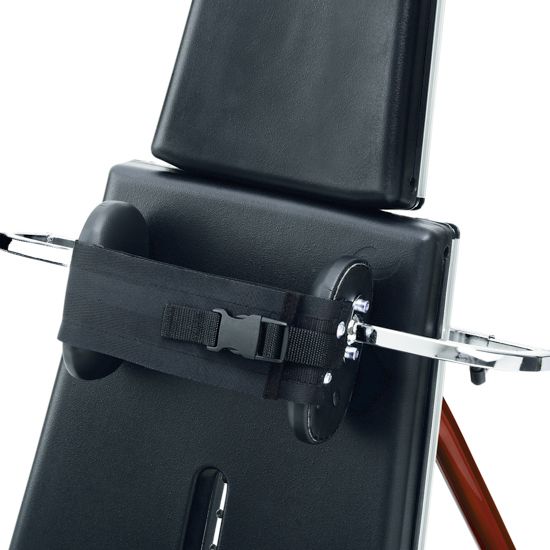

Accessories

Overview

A good standing position can be achieved for people with, spasticity, contractions and circulatory deficiencies.

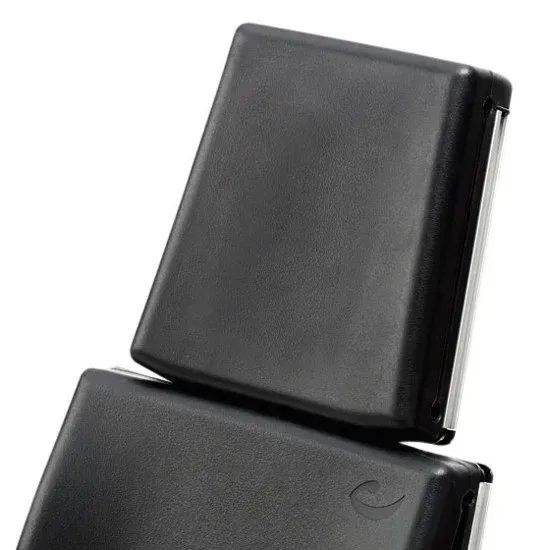

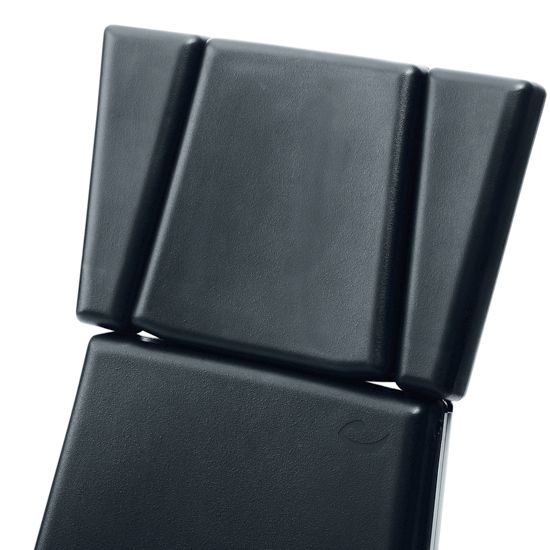

The Caribou is built with a base board and a series of optional upper body supports is available to provide the optimum freedom of movement. A wide range of accessories is also available to meet the specific needs of the user.


The Caribou is available in four sizes for users up to 220 lbs. and 75″ tall.

Features

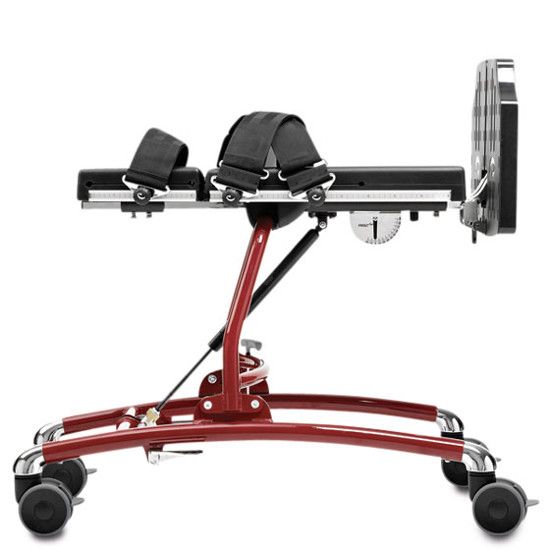

  • Easy transfer: The Caribou tilts from vertical to horizontal. The horizontal position makes it easier for the caregiver and less stressful for the user to be placed into position. The Caribou is designed with a raised frame for easy use of floor hoist

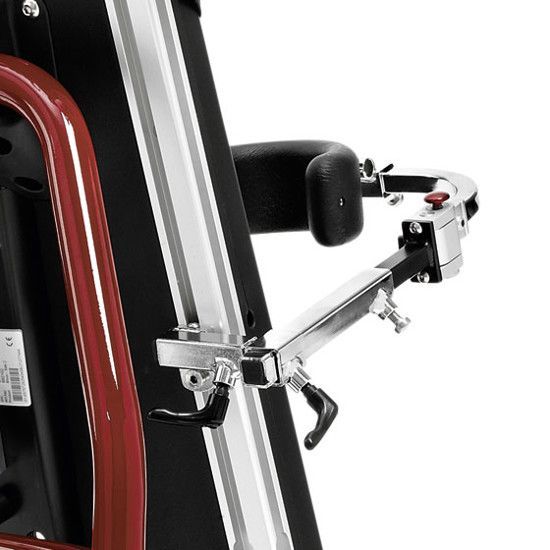

  • Interchangeable accessories makes for optimal solutions

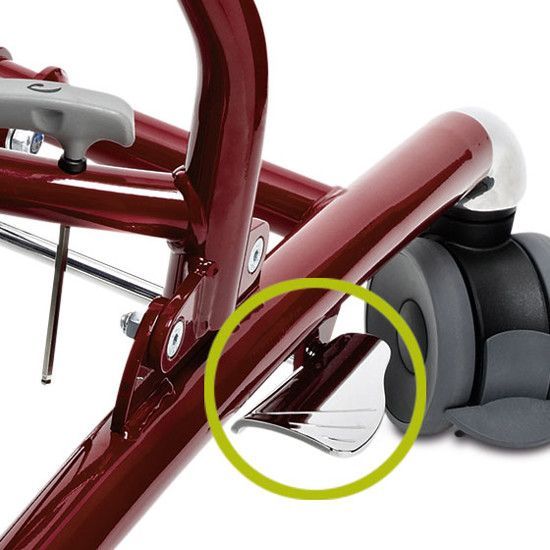

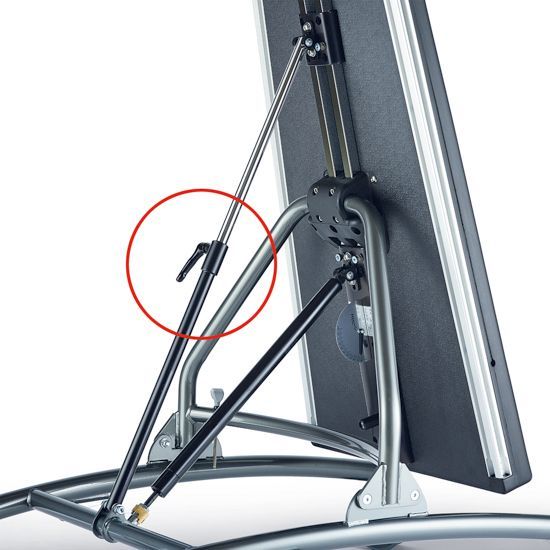

  • Easy tilt: The Caribou is supplied with an easy tilt mechanism, which allows the caregiver to have both hands free

Size 1

  • Item number: 860101
  • Angling (°): 0-87
  • Approximate total user height (mm): 850-1120
  • Foot plate angle (°): (-20) - 20
  • Length (mm): 750
  • Maximum rated load (kg): 62.5
  • Maximum user mass (kg): 40
  • Overall height, horizontal (mm): 700
  • Overall height, vertical (mm): 460-570
  • Overall width (mm): 510
  • Static stability downhill (°): 5
  • Static stability sideways (°): 5
  • Static stability uphill (°): 5
  • Total mass (kg): 20.5

Size 1 (w/ power)

  • Item number: 860101-EL
  • Angling (°): 0-87
  • Approximate total user height (mm): 850-1120
  • Foot plate angle (°): (-20) - 20
  • Length (mm): 750
  • Maximum rated load (kg): 64.5
  • Maximum user mass (kg): 40
  • Overall height, horizontal (mm): 700
  • Overall height, vertical (mm): 460-570
  • Overall width (mm): 510
  • Static stability downhill (°): 5
  • Static stability sideways (°): 5
  • Static stability uphill (°): 5
  • Total mass (kg): 22.5

Size 2

  • Item number: 860102
  • Angling (°): 0-87
  • Approximate total user height (mm): 980-1290
  • Foot plate angle (°): (-20) - 20
  • Length (mm): 920
  • Maximum rated load (kg): 86
  • Maximum user mass (kg): 60
  • Overall height, horizontal (mm): 70
  • Overall height, vertical (mm): 530-640
  • Overall width (mm): 570
  • Static stability downhill (°): 5
  • Static stability sideways (°): 5
  • Static stability uphill (°): 5
  • Total mass (kg): 24

Size 2 (w/ power)

  • Item number: 860102-EL
  • Angling (°): 0-87
  • Approximate total user height (mm): 980-1290
  • Foot plate angle (°): (-20) - 20
  • Length (mm): 920
  • Maximum rated load (kg): 87.5
  • Maximum user mass (kg): 60
  • Overall height, horizontal (mm): 700
  • Overall height, vertical (mm): 530-640
  • Overall width (mm): 570
  • Static stability downhill (°): 5
  • Static stability sideways (°): 5
  • Static stability uphill (°): 5
  • Total mass (kg): 25.5

Size 3

  • Item number: 860113
  • Angling (°): 0-87
  • Approximate total user height (mm): 1250-1560
  • Foot plate angle (°): (-20) - 20
  • Length (mm): 1110
  • Maximum rated load (kg): 112.5
  • Maximum user mass (kg): 80
  • Overall height, horizontal (mm): 800
  • Overall height, vertical (mm): 680-790
  • Overall width (mm): 650
  • Static stability downhill (°): 5
  • Static stability sideways (°): 5
  • Static stability uphill (°): 5
  • Total mass (kg): 30.5

Size 3 (w/ power)

  • Item number: 860103-EL
  • Angling (°): 0-87
  • Approximate total user height (mm): 1250-1560
  • Foot plate angle (°): (-20) - 20
  • Length (mm): 1110
  • Maximum rated load (kg): 114.5
  • Maximum user mass (kg): 80
  • Overall height, horizontal (mm): 7800
  • Overall height, vertical (mm): 680-790
  • Overall width (mm): 650
  • Static stability downhill (°): 5
  • Static stability sideways (°): 5
  • Static stability uphill (°): 5
  • Total mass (kg): 32.5

Size 4

  • Item number: 860114
  • Angling (°): 0-87
  • Approximate total user height (mm): 1530-1840
  • Foot plate angle (°): (-20) - 20
  • Length (mm): 1110
  • Maximum rated load (kg): 137
  • Maximum user mass (kg): 100
  • Overall height, horizontal (mm): 800
  • Overall height, vertical (mm): 880-990
  • Overall width (mm): 750
  • Static stability downhill (°): 5
  • Static stability sideways (°): 5
  • Static stability uphill (°): 5
  • Total mass (kg): 35

Size 4 (w/ power)

  • Item number: 860104-EL
  • Angling (°): 0-87
  • Approximate total user height (mm): 1530-1840
  • Foot plate angle (°): (-20) - 20
  • Length (mm): 1110
  • Maximum rated load (kg): 139
  • Maximum user mass (kg): 100
  • Overall height, horizontal (mm): 800
  • Overall height, vertical (mm): 880-990
  • Overall width (mm): 750
  • Static stability downhill (°): 5
  • Static stability sideways (°): 5
  • Static stability uphill (°): 5
  • Total mass (kg): 37

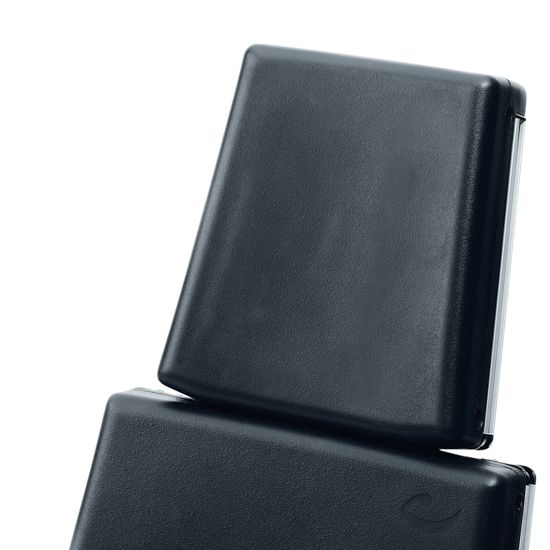

Overall height configuration: Standard product and top plate (measured from the floor)
