Catalyst 5Vx

Catalyst 5Vx


IGNITING THE EVOLUTION

Endless Style. Expected Quality. Essential Value.


From the logo to the frame, Catalyst 5Vx has been redesigned with a modern, minimalist approach. Enhanced designs let you optimize your ride.

REQUEST PRODUCT INFO

Catalyst 5Vx Brochure

Catalyst 5Vx Technical Manual

Catalyst 5Vx User Manual

THE CATALYST DIFFERENCE

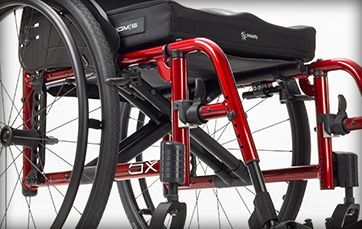

Catalyst 5Vx takes advantage of all of the "Catalyst Difference" design features to allow you to fit, adjust and ride with confidence. A defining characteristic of each chair is its axle plate which we will highlight below.


BETTER ADJUSTMENT

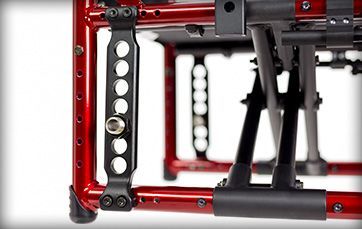

Center of gravity adjustment and ride performance go hand in hand. The redesigned axle plate and rear frame give you 2” (5.08 cm) of center of gravity adjustment in 1/2” (1.27 cm) increments and 5” (12.7 cm) of rear seat height adjustment over 7 positions. Find your fit, ease your propulsion and optimize the ride you’ve come to expect with Catalyst.


ADJUSTABLE CAMBER

The Adjustable Camber comes at no charge, giving you up to 4° of camber in 1” increments. A simple adjustment and convenient option provides you with the parts up front so you have everything you need when adjusting or fine tuning camber later.


STYLE

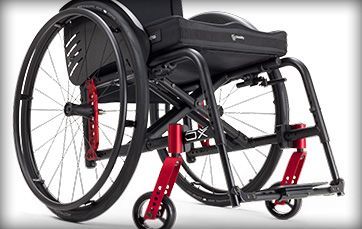

Personalizing your Catalyst 5Vx begins with you. Pick your greatest shade then highlight your look with our new anodizing package, options and accessories. With thousands of color combinations to choose from, be bold. Be you.


300 LBS STANDARD WEIGHT CAPACITY

Weighing in at a mere 13.9 lbs transport weight*, Catalyst 5Vx is the lightest and strongest folding wheelchair on the market with a 300 lbs standard weight capacity! A heavy duty option is also available.

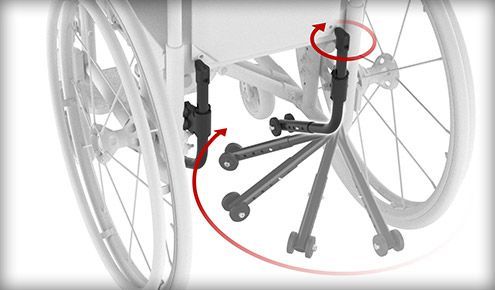

SWING-IN ANTI-TIP

Without sacrificing the compact frame design, the easy to activate Swing-In Anti-Tips swing in under the frame so they are there when you need them and gone when you don’t. Available in pairs, Left or Right mounting options.

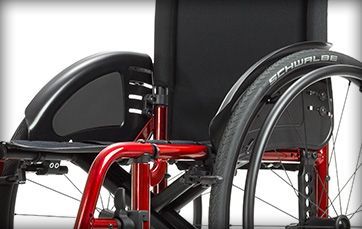

FENDER SIDE GUARDS

Choose between carbon fiber and foam padded aluminum side guards with fender to protect your clothing from the road while adding a sleek look to your chair.


TRANSIT WHEELS

Integrated into the rear frame for a minimalistic look, Transit Wheels allow you to remove the rear wheels for easier access through narrow spaces. The transit wheels are adjustable across a range of rear wheel and rear seat height combinations.

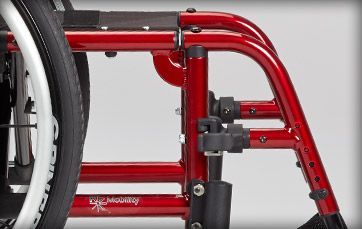

FRONT FRAME STYLES

Catalyst 5Vx offers the option of a swing away front end featuring our patented footrests or 70° or 80° fixed frames. The swing away hangers come in 4 bends (60°, 70°, 80° & 90°) are light and easy to use and so strong we offer a lifetime warranty.


MAXX MAG

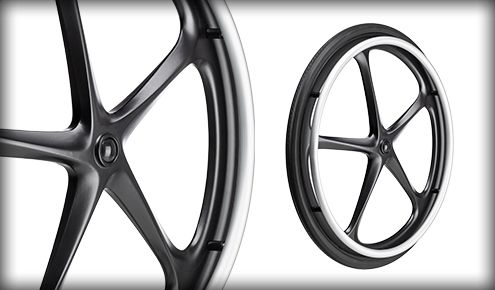

Exclusive to Ki, the magnesium Maxx Mag wheel creates a sleek, modernized look while providing greater stiffness and lower weight than classic nylon composite mag wheels. Maxx Mag wheels are available in 20”, 22” and 24”.

COLORS

MATTE FINISH


GLOSS FINISH


HYDROGRAPHICS


Features

Ki Mobility Catalyst 5 Vx

300 lb. Standard Weight Capacity – NEW

Catalyst 5Vx is one of the lightest and strongest folding chairs on the market with its NEW 300 lb. standard weight capacity! A heavy duty option is also available.


The Catalyst Difference

Catalyst 5Vx takes advantage of all of the “Catalyst Difference” design features to allow you to fit, adjust and ride with confidence.  A defining characteristic of each chair is its axle plate which we will highlight below.


Vertical Axle Plate

Center of gravity adjustment is important for optimizing wheelchair performance. The Catalyst 5Vx, with all the performance you have come to expect from a Catalyst, offers a three position CG adjustment and affordability in an extremely light (24 lbs.*), portable and high performance chair.


Front Frame Styles

Catalyst 5Vx offers the option of a swing away front end featuring our patented footrests or 70° or 80° fixed frames.  The swing away hangers come in 4 bends (60°, 70°, 80° & 90°) are light and easy to use and so strong we offer a lifetime warranty.


WC-19 Transit Approved

Transit Tested and approved. User weight capacity up to 300lbs.


Wheelchairs Are About Wheels

The Catalyst 5Vx offers Ki Mobility’s full line of specially designed Ki spoke wheels with precision machined hubs and hard anodized handrims.  Utilizing straight pull spokes this wheel promotes a stiffer and stronger wheel while the hard anodize handrim is resistant to scratching so they keep that “NEW” look longer.  We also offer the full array of industry standard wheels and casters such as Spinergy, Natural Fit, Frog Legs and Topolino.


Mags Can Be High Performance Too

Ki Mobility proudly offers the ultra-sleek and lightweight X-Coretm mags.  These wheels have far greater stiffness and rigidity than conventional mags while keeping the weight to only 1 lb. more than spokes. Now available in 20″, 22″ and 24″.



Specifications

Ki Mobility Catalyst 5 Vx

Standard Weight: 24lbs (10.89kg)

Seat Width: 14 – 22” (36 – 56cm)

Seat Depth: 14 – 20” (36 – 51cm)

Front Seat Height: 13.5 – 21” (34 – 53cm)

Rear Seat Height: 12.5 – 20” (29 – 51cm)

Camber: 0°, 2°, 4°

Weight Capacity: 300 lbs / 350lbs Heavy Duty (136 kg / 158.76kg Heavy Duty)

Top Frame Tubing Size: 1” (2.54cm)

Bottom Frame Tubing Size: 1.125” (2.86cm)

Ansi Resna WC-19 Transit Approved: YES
