Convaid Coaster

Convaid Coaster

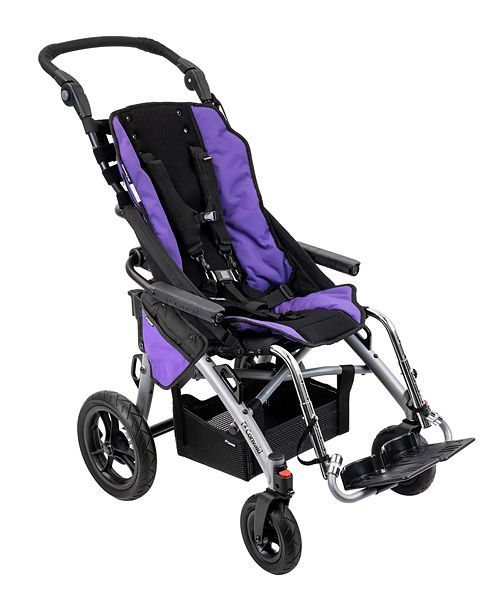

A compact, durable, adjustable fixed tilt mobility chair that provides families the freedom to go anywhere.

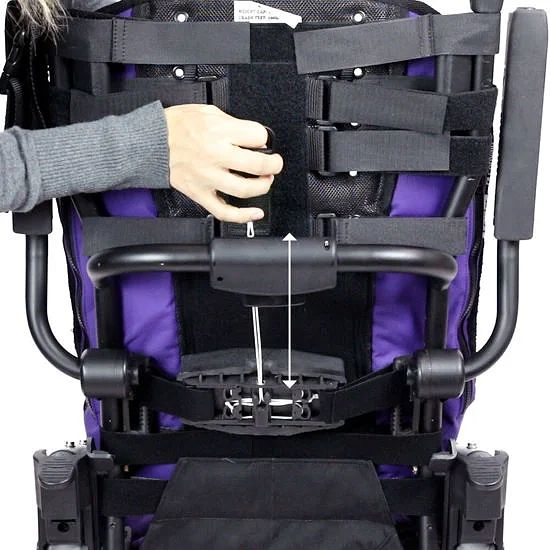

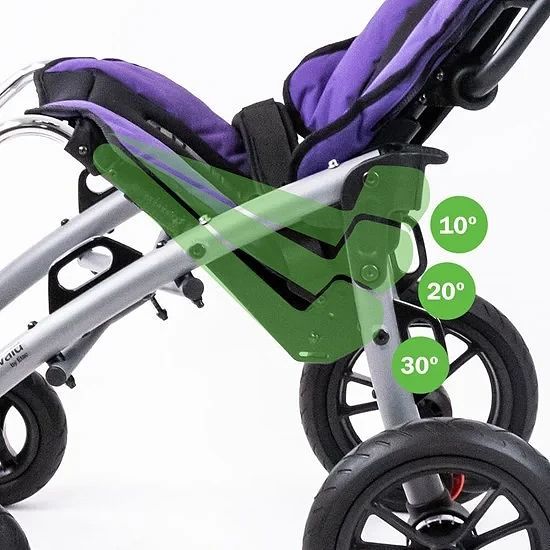

The Coaster is the latest addition to our fixed-tilt family. This mobility chair accomplishes simple adjustment between 10°, 20°, or 30° seat tilt angle, in a lightweight, compactly folded frame that demonstrates the same longevity seen in all Convaid products. The Coaster also offers an adjustable fixed recline across four different positions, providing optimal support for all children.

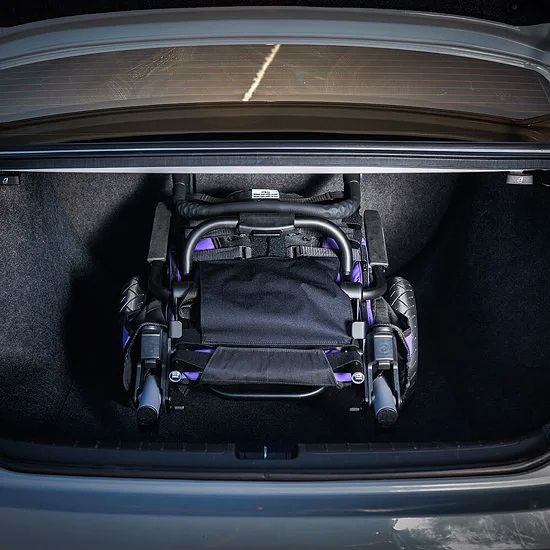

The Coaster offers 5” of seat depth growth in all four sizes, 12”, 14”, 16”, and 18” seat width, and comes in a wide variety of colors in the Convaid standard upholstery. Having been successfully tested to the WC19 & ISO7176 transport safety standards the Coaster protects users with weight up to 170lbs while also being compact and lightweight. This innovative device offers a streamlined two-step clamshell folding design and can be easily unfolded in one intuitive motion. The Coaster is the perfect family-friendly chair to get everyone out for adventures and an EZ Cruise.

REQUEST PRODUCT INFO

Convaid Coaster User Manual

Features

Options


Frame options

Upholstery colours

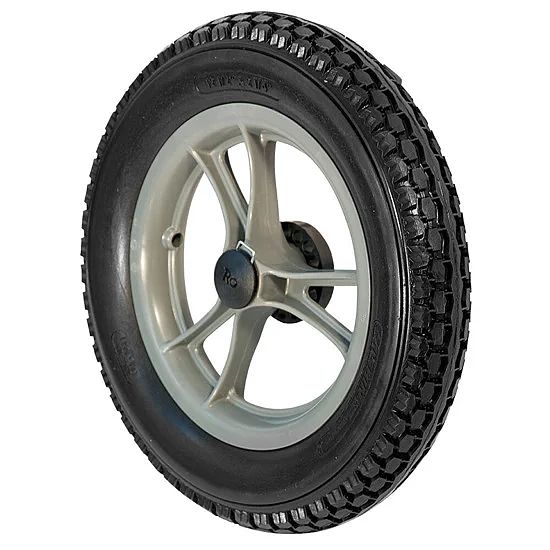

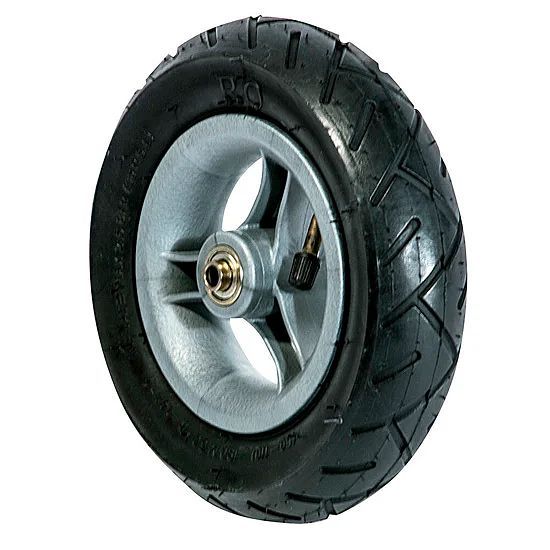

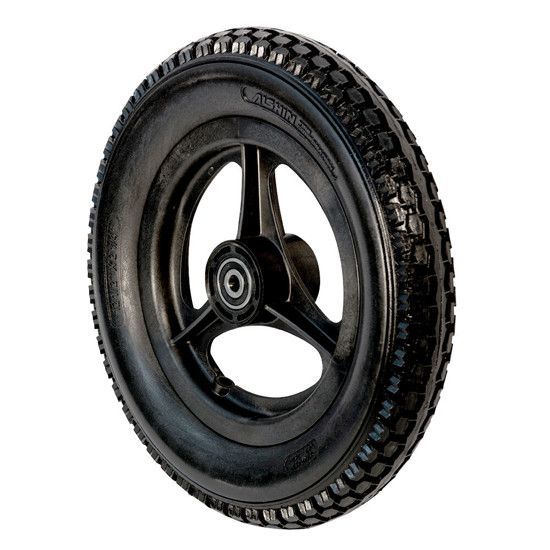

Tyre options

Transit options

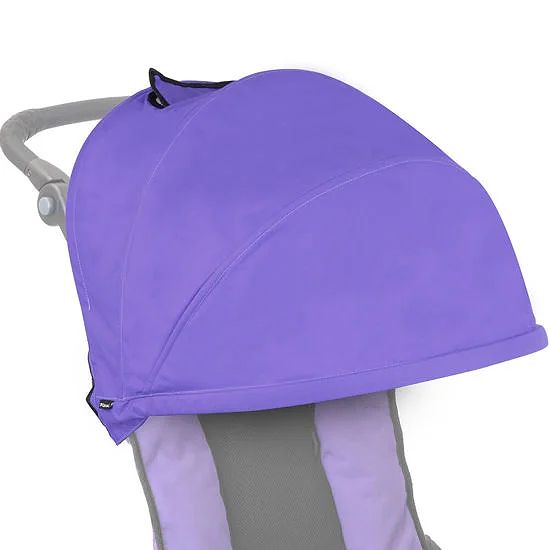

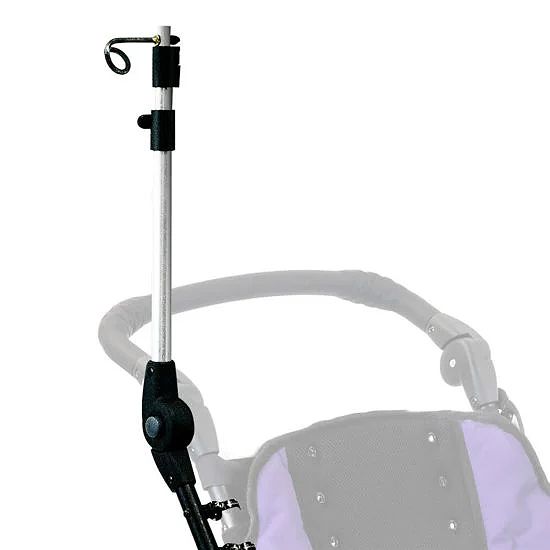

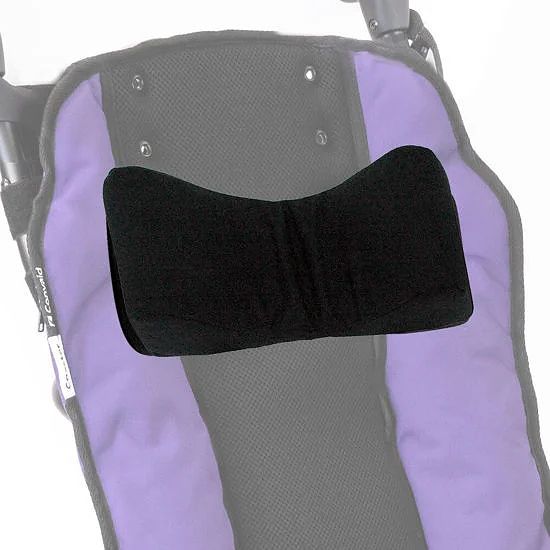

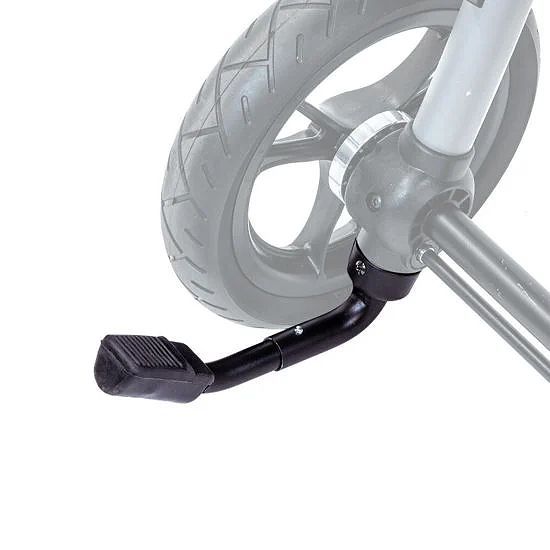

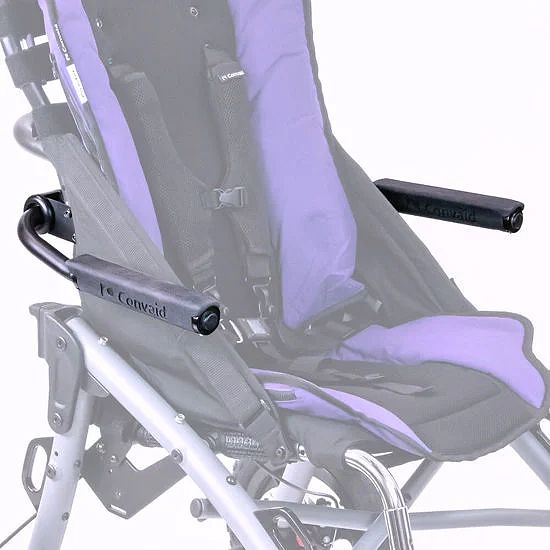

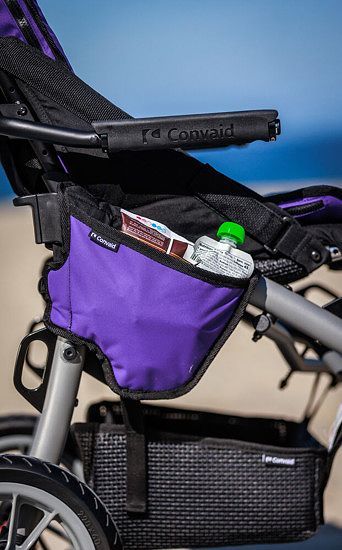

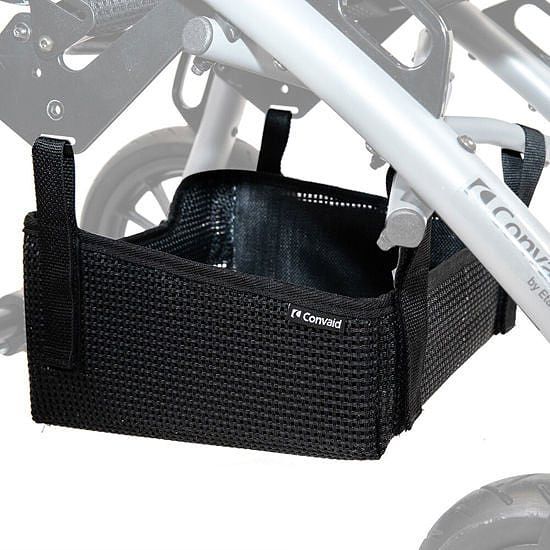

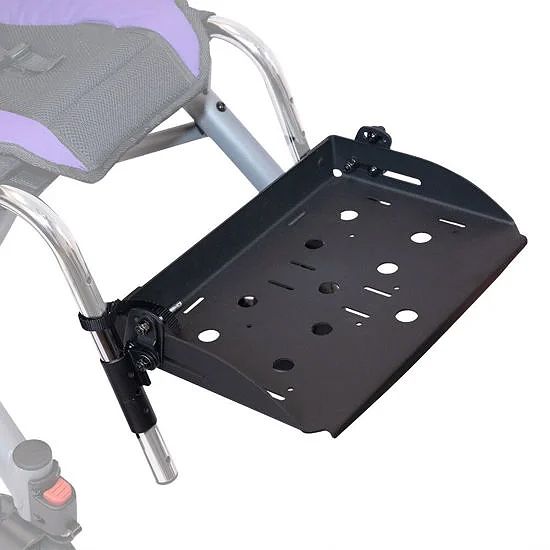

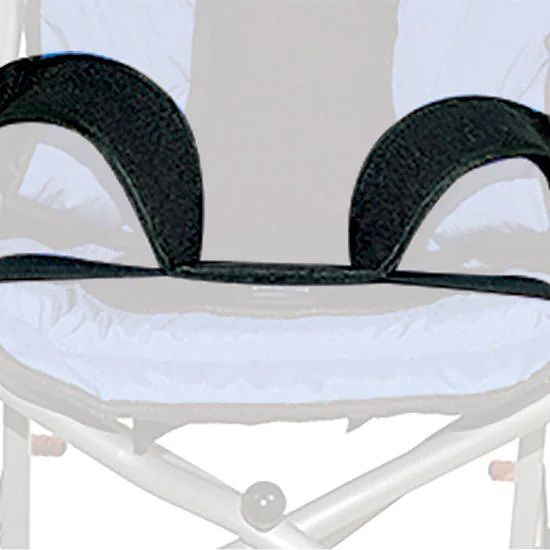

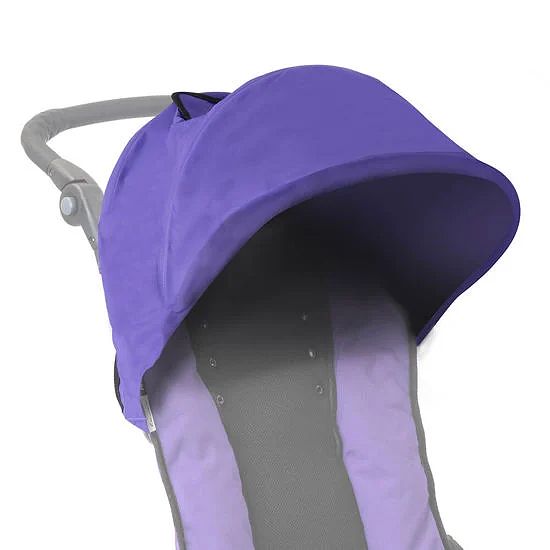

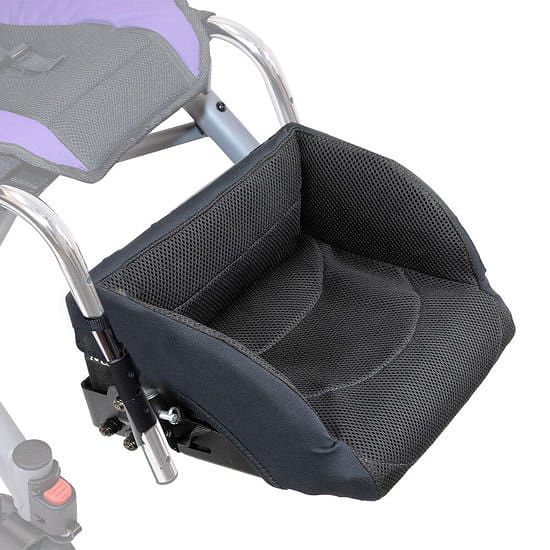

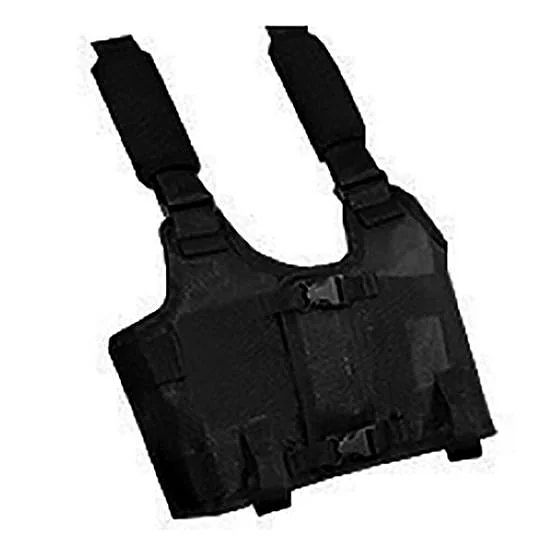

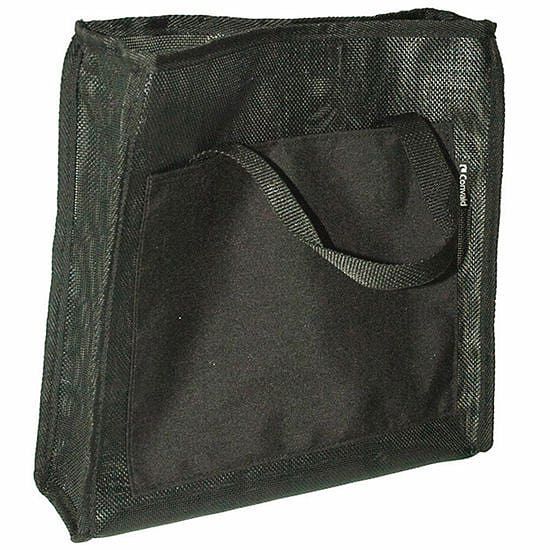

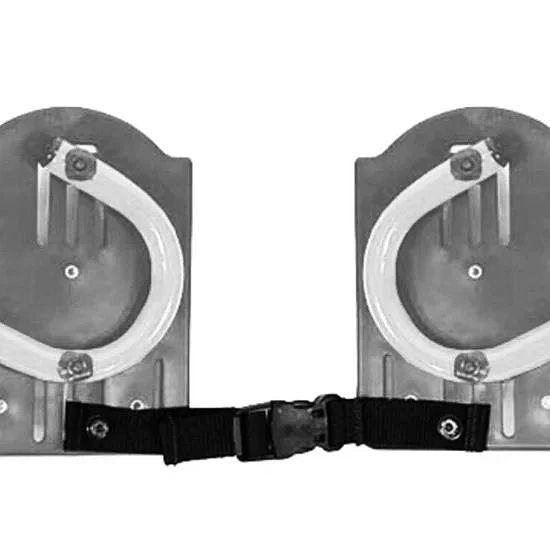

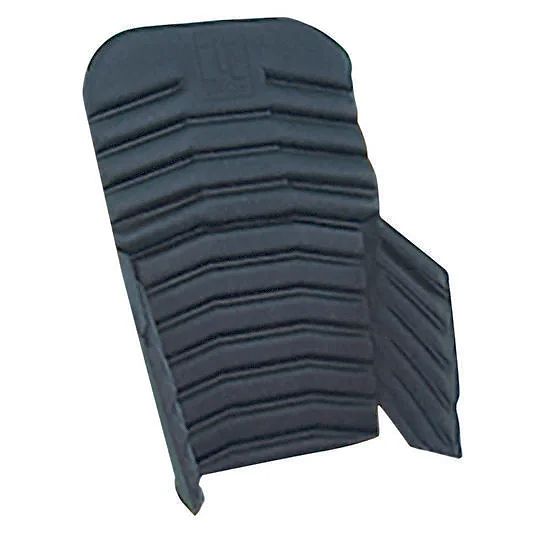

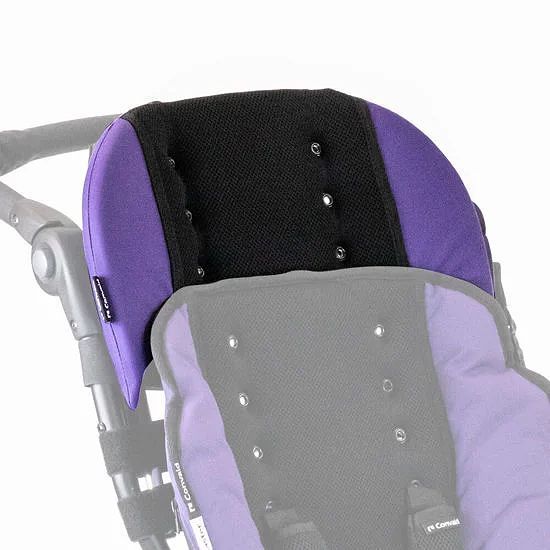

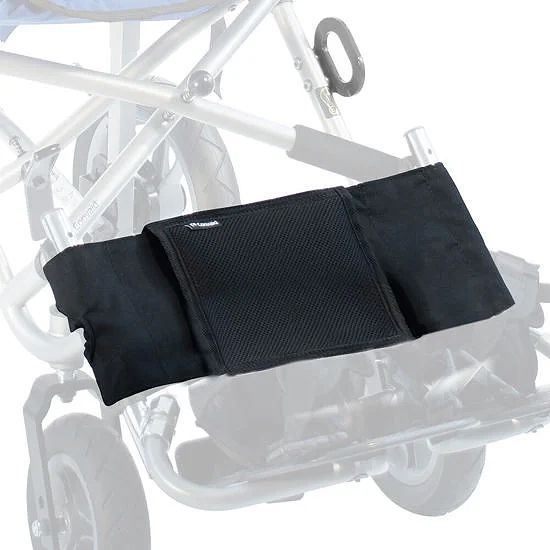

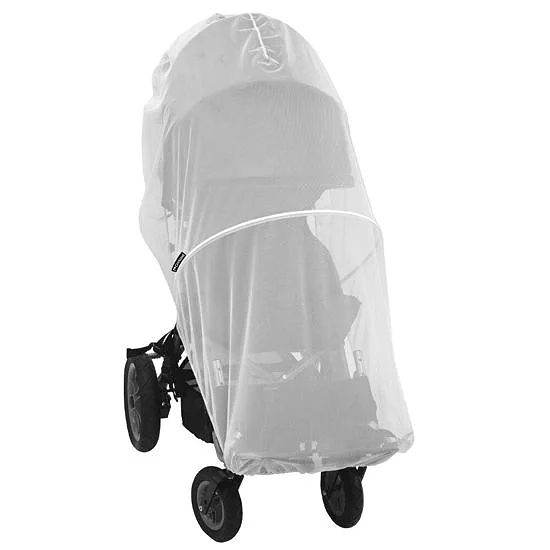

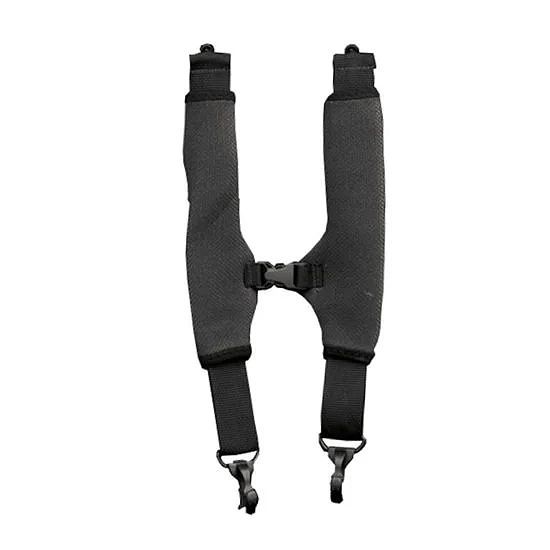

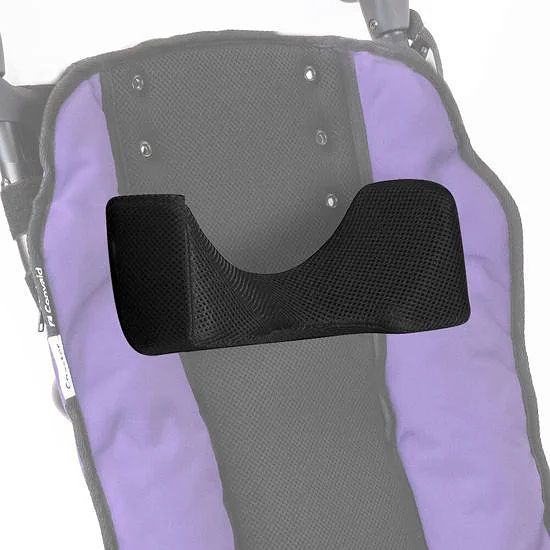

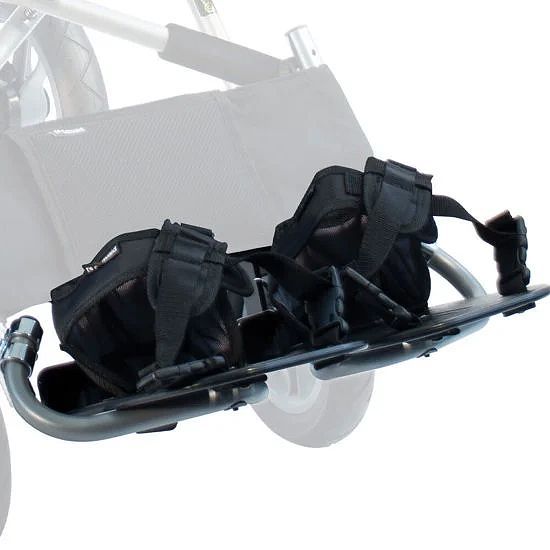

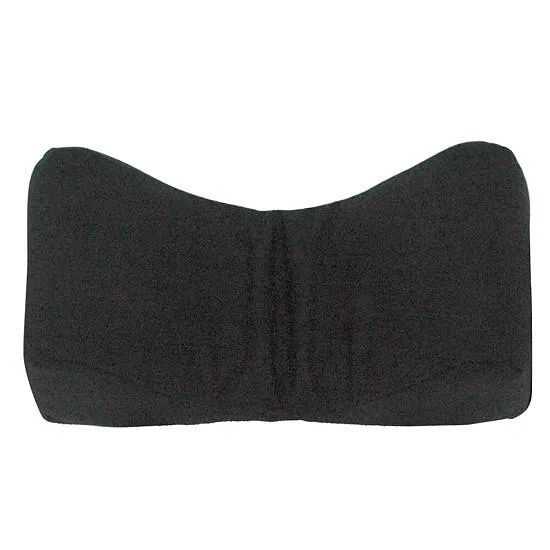

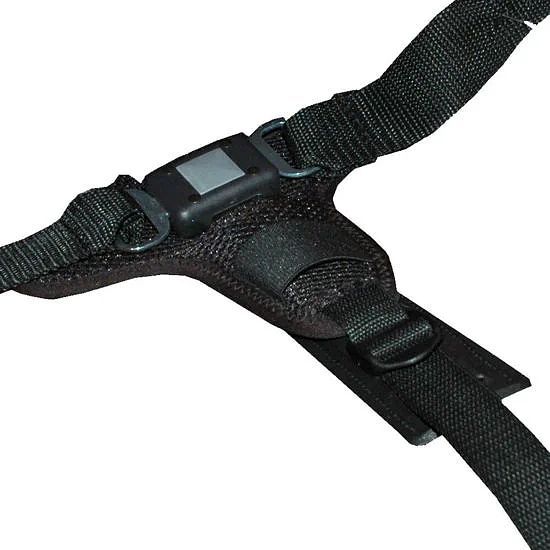

Accessories


Specifications

  • Folded height (mm): 432
  • Seat angle (°): 10, 20, 30

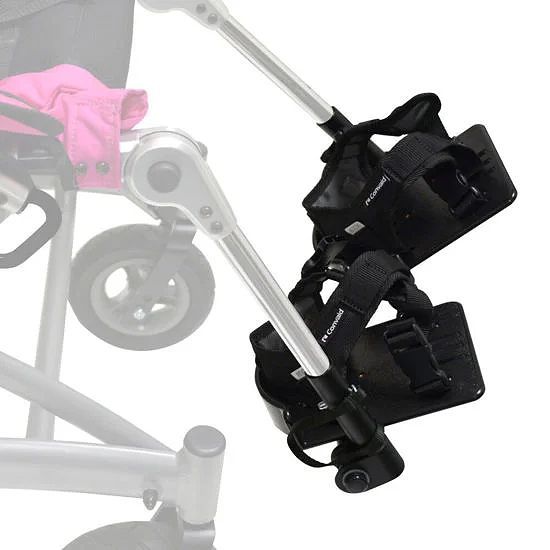

  • Foot plate angle (°): -180 - +180

Coaster CTR12

  • Folded length (mm): 813
  • Folded width (mm): 559
  • Overall height (mm): 1016
  • Overall length (mm): 762
  • Overall width (mm): 559
  • Push handle adjustments (mm): 813-1168
  • Seat back height (mm): 559-610
  • Seat depth (mm): 254-305
  • Seat to floor (mm): 483-533
  • Seat width (mm): 305
  • Shoulder strap height (mm): 267-457
  • Total weight (kg): 13
  • Weight capacity (kg): 34
  • Weight capacity transit (kg): 30

Coaster CTR14

  • Folded length (mm): 813
  • Folded width (mm): 610
  • Overall height (mm): 1041
  • Overall length (mm): 787
  • Overall width (mm): 610
  • Push handle adjustments (mm): 864-1194
  • Seat back height (mm): 635-686
  • Seat depth (mm): 279-330
  • Seat to floor (mm): 483-533
  • Seat width (mm): 356
  • Shoulder strap height (mm): 330-533
  • Total weight (kg): 13.5
  • Weight capacity (kg): 45
  • Weight capacity transit (kg): 45

Coaster CTR16

  • Folded length (mm): 889
  • Folded width (mm): 660
  • Overall height (mm): 1067
  • Overall length (mm): 813
  • Overall width (mm): 660
  • Push handle adjustments (mm): 864-1270
  • Seat back height (mm): 660-711
  • Seat depth (mm): 305-381
  • Seat to floor (mm): 533-584
  • Seat width (mm): 406
  • Shoulder strap height (mm): 356-559
  • Total weight (kg): 14
  • Weight capacity (kg): 77
  • Weight capacity transit (kg): 77

CTR18

  • Folded length (mm): 889
  • Folded width (mm): 711
  • Overall height (mm): 1118
  • Overall length (mm): 838
  • Overall width (mm): 711
  • Push handle adjustments (mm): 889-1295
  • Seat back height (mm): 711-737
  • Seat depth (mm): 368-419
  • Seat to floor (mm): 533-584
  • Seat width (mm): 457
  • Shoulder strap height (mm): 419-660
  • Total weight (kg): 14
  • Weight capacity (kg): 77
  • Weight capacity transit (kg): 77
