Convaid Rodeo

Convaid Rodeo

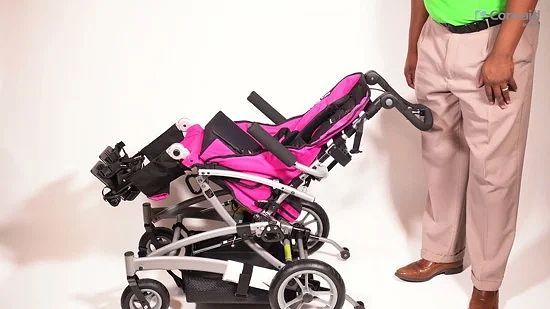

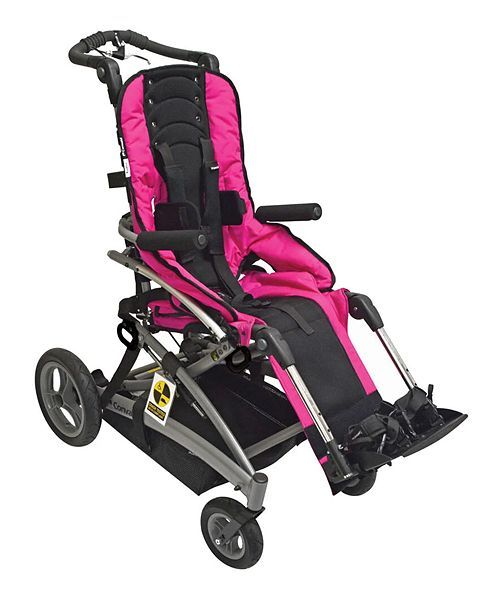

The Convaid Rodeo buggy offers up to 45° adjustable tilt and provides pressure relief and upper body support.


The Convaid Rodeo is a tilt--in--space buggy that provides 12.7 cm of seat depth extension through its seat depth growth feature. With 2 frame options available (with and without seating), it accommodates aftermarket and extensive seating needs.

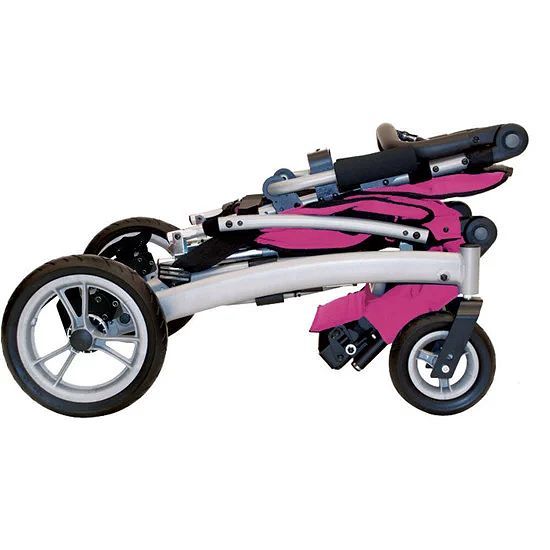

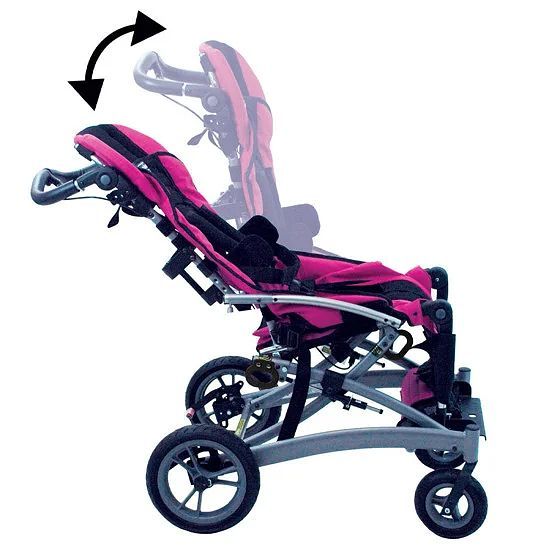

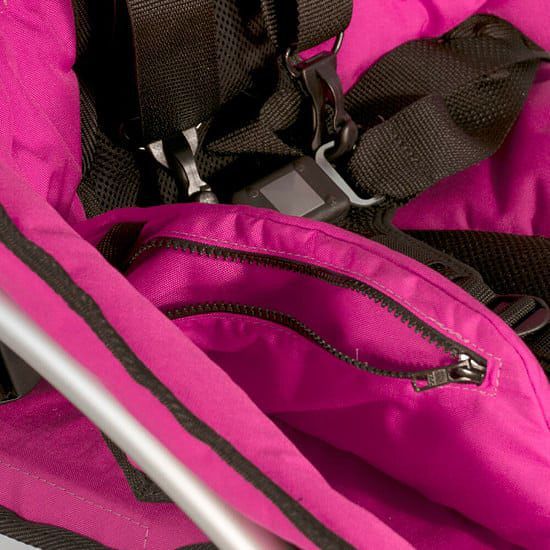

Convaid Rodeo’s Cordura upholstery comes in a wide selection of colours and is removable and fully washable. The Convaid Rodeo offers 90 to 110° of recline, allowing variance in the seat-to-back angle. The Convaid Rodeo is easy to fold for maximal portability. Available in 4 width sizes for users that weigh up to 77 kilograms. Made in the USA.

REQUEST PRODUCT INFO

Convaid Rodeo User Manual

Features

Options

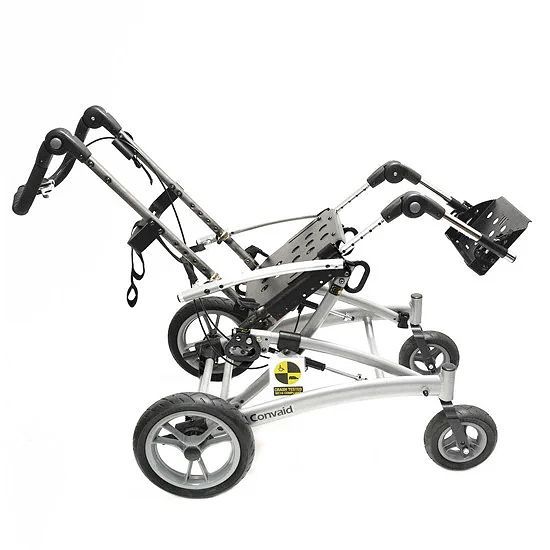

Frame options

Upholstery colours

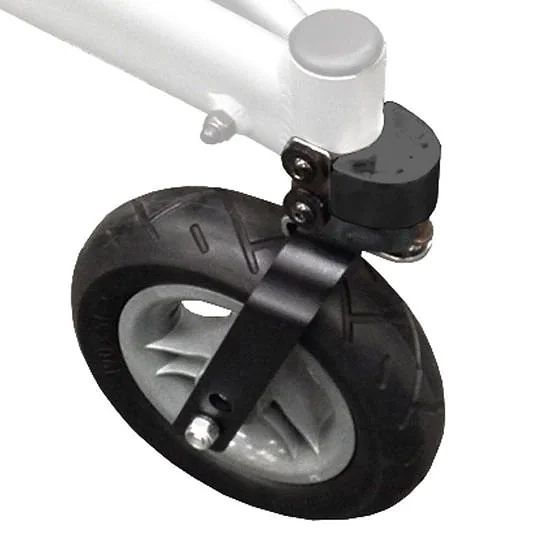

Tyre options

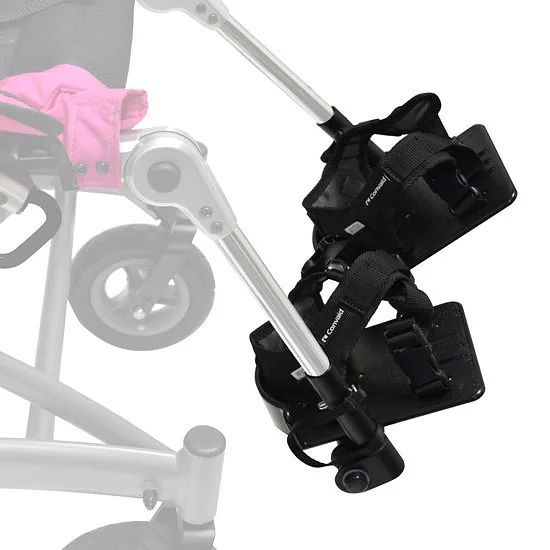

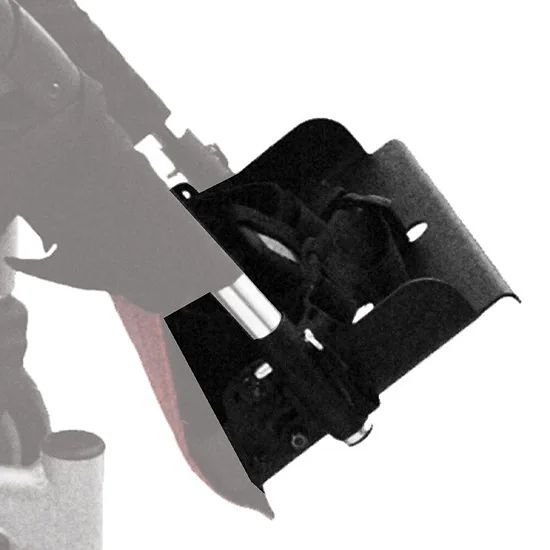

Footplate options

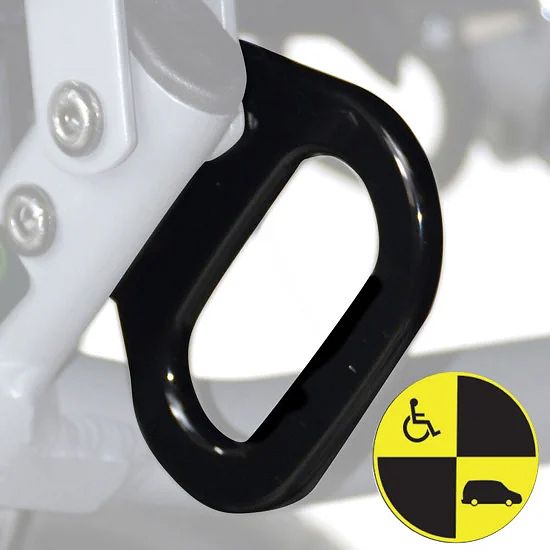

Transit options

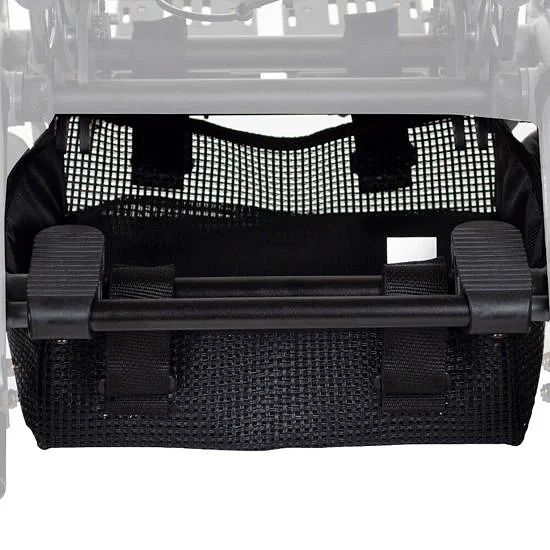

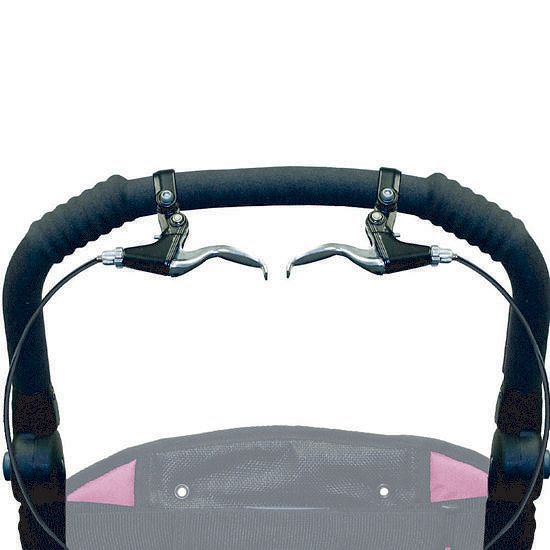

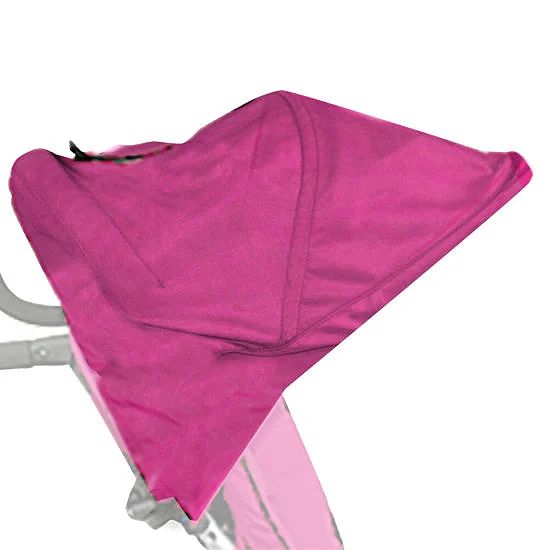

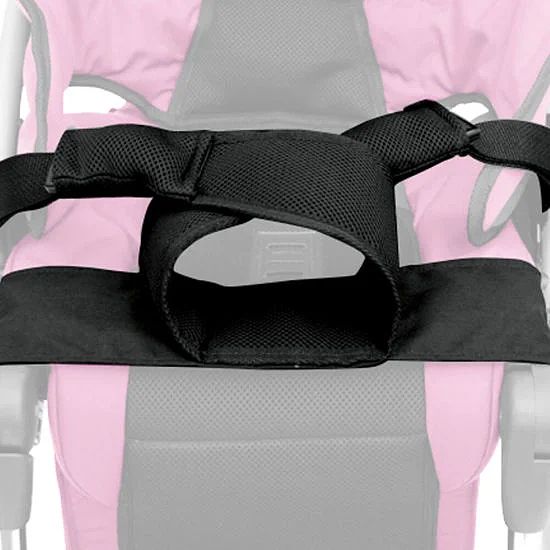

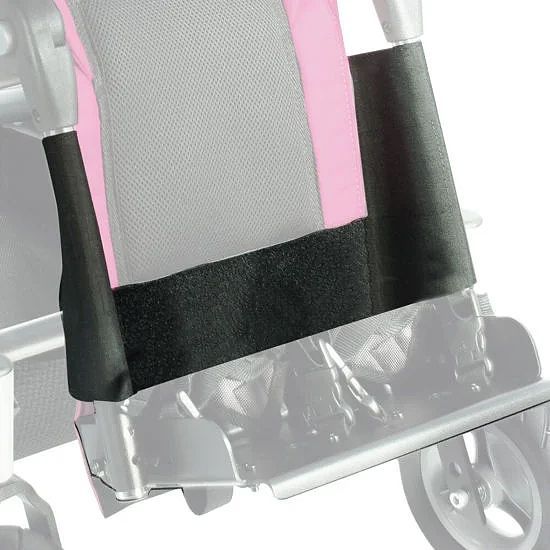

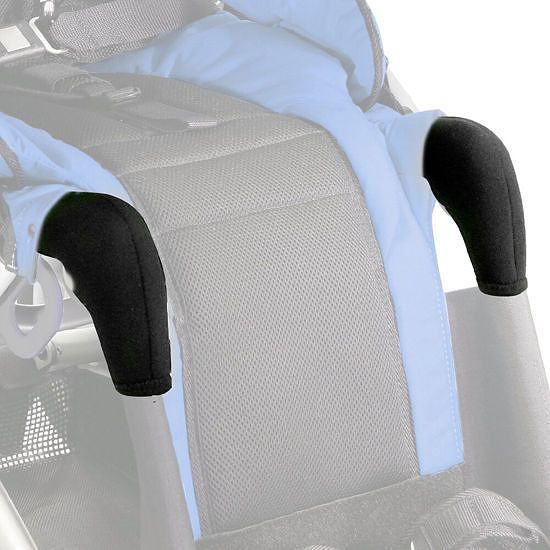

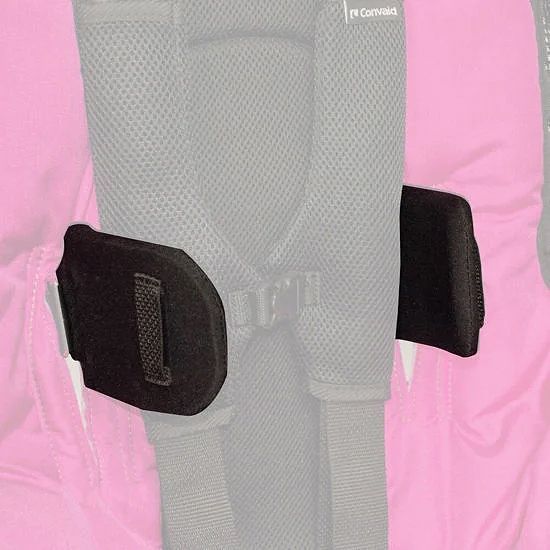

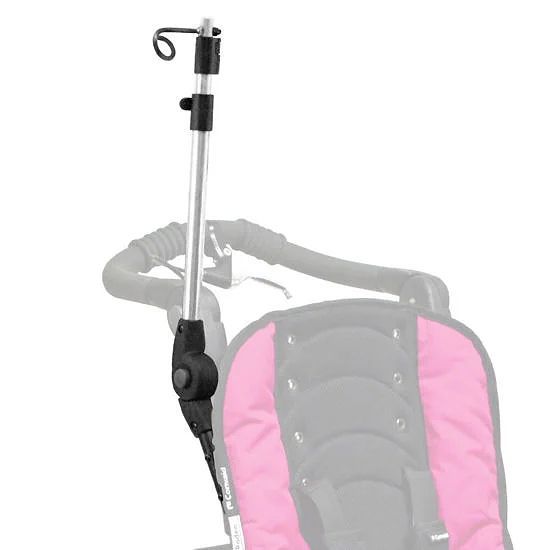

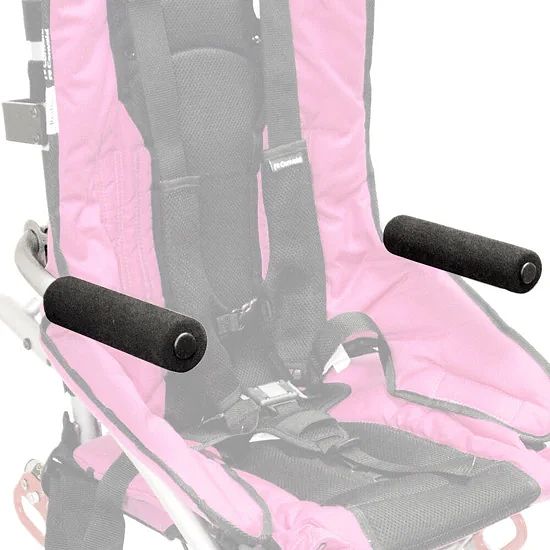

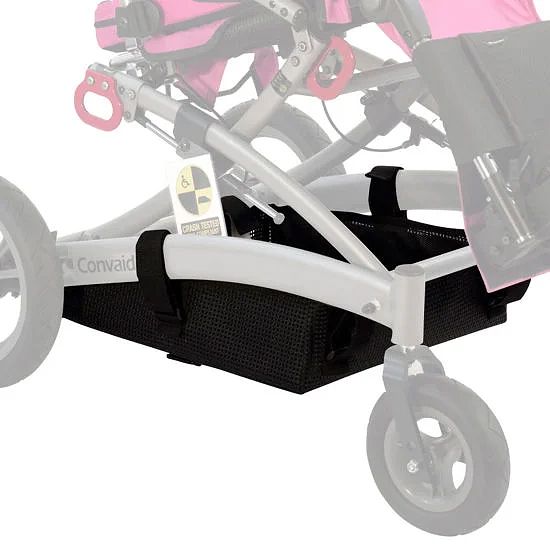

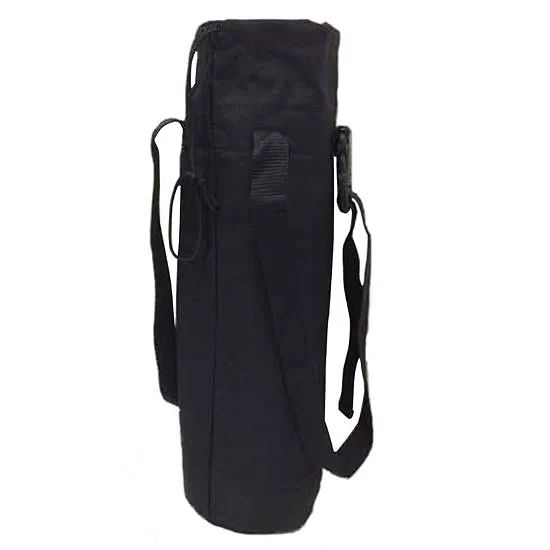

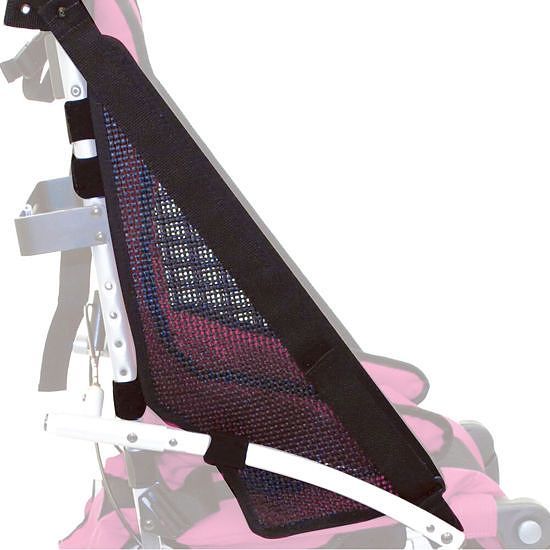

Accessories


Rodeo RD10 - E1232

  • Folded height (mm): 445
  • Folded length (mm): 850
  • Folded width (mm): 530
  • Foot plate angle (°): -40
  • Headrest extension (mm): 150
  • Overall height (mm): 1090
  • Overall length (mm): 775
  • Overall width (mm): 530
  • Push handle adjustments (mm): 810-1230
  • Recline adjustment (°): 90° or 110°
  • Seat back height (mm): 530
  • Seat depth (mm): 180-305
  • Seat to flipped individual angle adjustable footplate (mm): -
  • Seat to flipped one piece angle adjustable footplate (mm): 130-285
  • Seat to floor (mm): 510
  • Seat to individual angle adjustable footplate (mm): 180-330
  • Seat to one piece angle adjustable footplate (mm): 230-360
  • Seat width (mm): 255
  • Shoulder strap height (mm): 330-480
  • Tilt in space tilt angle (°): 5° - 45°
  • Total weight (kg): 13
  • Weight capacity (kg): 34
  • Weight seat unit (kg): 13

Rodeo RD12 - E1232

  • Folded height (mm): 430
  • Folded length (mm): 860
  • Folded width (mm): 585
  • Foot plate angle (°): -40
  • Headrest extension (mm): 200
  • Overall height (mm): 1090
  • Overall length (mm): 890
  • Overall width (mm): 585
  • Push handle adjustments (mm): 880-1290
  • Recline adjustment (°): 90° or 110°
  • Seat back height (mm): 560
  • Seat depth (mm): 230-360
  • Seat to flipped individual angle adjustable footplate (mm): 115-235
  • Seat to flipped one piece angle adjustable footplate (mm): 130-285
  • Seat to floor (mm): 530
  • Seat to individual angle adjustable footplate (mm): 180-330
  • Seat to one piece angle adjustable footplate (mm): 230-360
  • Seat width (mm): 305
  • Shoulder strap height (mm): 380-530
  • Tilt in space tilt angle (°): 5° - 45°
  • Total weight (kg): 15
  • Weight capacity (kg): 34
  • Weight seat unit (kg): 15

Rodeo RD14 - E1232

  • Folded height (mm): 460
  • Folded length (mm): 860
  • Folded width (mm): 635
  • Foot plate angle (°): -40
  • Headrest extension (mm): 200
  • Overall height (mm): 1120
  • Overall length (mm): 890
  • Overall width (mm): 635
  • Push handle adjustments (mm): 890-1320
  • Recline adjustment (°): 90° or 110°
  • Seat back height (mm): 610
  • Seat depth (mm): 280-410
  • Seat to flipped individual angle adjustable footplate (mm):110-280
  • Seat to flipped one piece angle adjustable footplate (mm): 180-340
  • Seat to floor (mm): 560
  • Seat to individual angle adjustable footplate (mm): 240-395
  • Seat to one piece angle adjustable footplate (mm): 280-410
  • Seat width (mm): 355
  • Shoulder strap height (mm): 410-560
  • Tilt in space tilt angle (°): 5° - 45°
  • Total weight (kg): 17
  • Weight capacity (kg): 45.5
  • Weight seat unit (kg): 17

Rodeo RD16 - E1161

  • Folded height (mm): 460
  • Folded length (mm): 1015
  • Folded width (mm): 685
  • Foot plate angle (°): -40
  • Headrest extension (mm): 200
  • Overall height (mm): 1140
  • Overall length (mm): 915
  • Overall width (mm): 685
  • Push handle adjustments (mm): 930-1360
  • Recline adjustment (°): 90° or 110°
  • Seat back height (mm): 635
  • Seat depth (mm): 330-460
  • Seat to flipped individual angle adjustable footplate (mm):185-340
  • Seat to flipped one piece angle adjustable footplate (mm): 235-390
  • Seat to floor (mm): 560
  • Seat to individual angle adjustable footplate (mm): 305-460
  • Seat to one piece angle adjustable footplate (mm): 305-460
  • Seat width (mm): 405
  • Shoulder strap height (mm): 460-610
  • Tilt in space tilt angle (°): 5° - 45°
  • Total weight (kg): 18
  • Weight capacity (kg): 77
  • Weight seat unit (kg): 18
