EASyS Modular S

EASyS Modular S

More freedom of movement

All-round use – concentrated on the basics

The perfect choice for children who need more positioning support in combination with the best possible freedom of movement. The short back in addition to the multidimensional adjustable headrest ensures ideal adaptation and support for active children. A large variety of adjustments for optimal seating, positioning and comfort in motion are the basis for taking part in everyday activities.

Three-dimensional adjustable headrest for optimum adaptation and support (three versions)
Large variety of adjustments for optimal seating, positioning and comfort in motion
Small height and depth adjustable arm supports positioned close to the child‘s body, for relaxed sitting
For children who need more positioning support

REQUEST PRODUCT INFO

EASyS Modular Brochure

EASyS Modular User Manual

Outdoor A Chassis
Button
Indoor Q Chassis
Button
EASyS Modular Seat Unit
Button

Button
Button
Button
Button

Gallery

Headrests

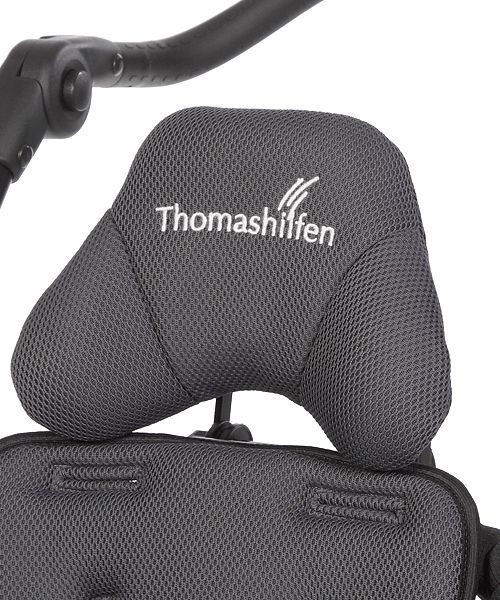

Headrest, shell
Button

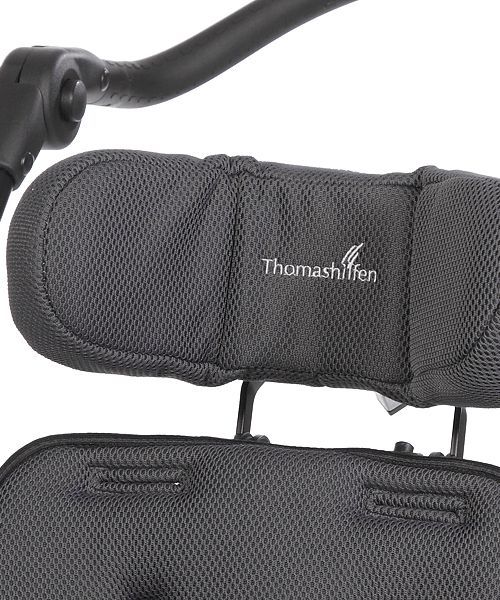

Headrest, neck support
Button

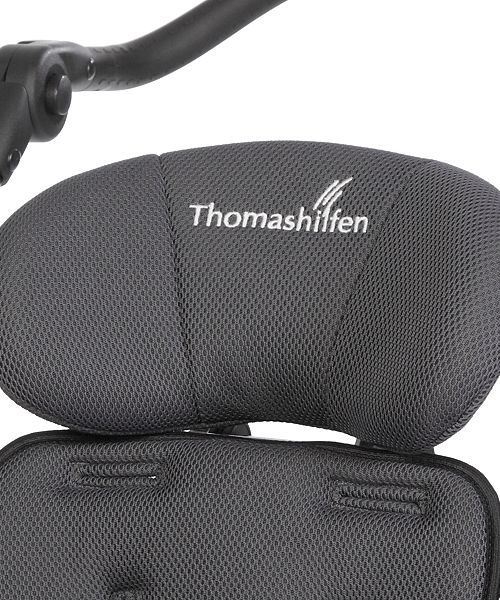

Headrest, adjustable
Button

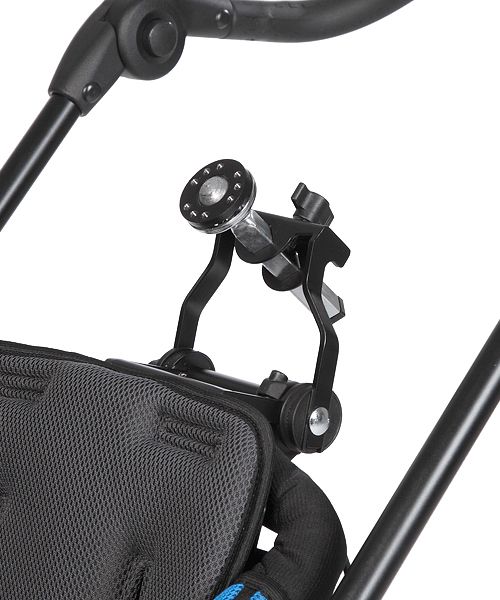

Headrest fitting, square bar with ball joint
Button

Functions

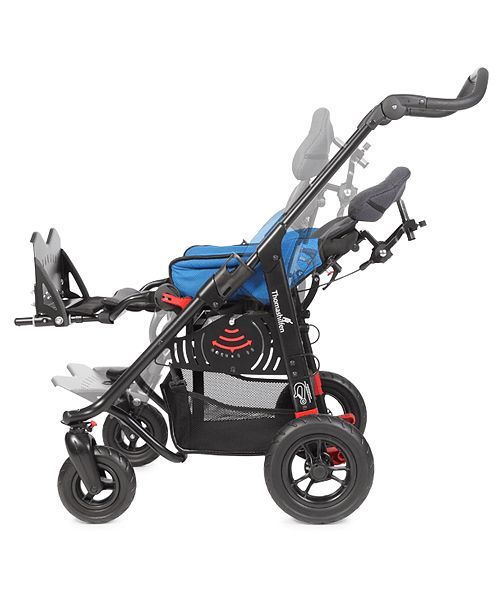

140° resting position offers comfort and relief for the child‘s spine
Button

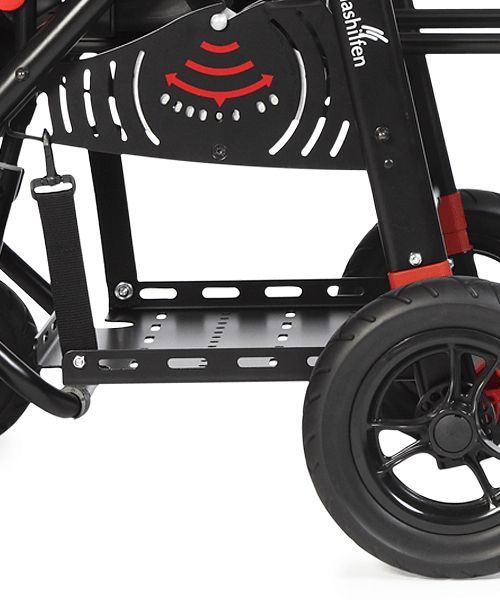

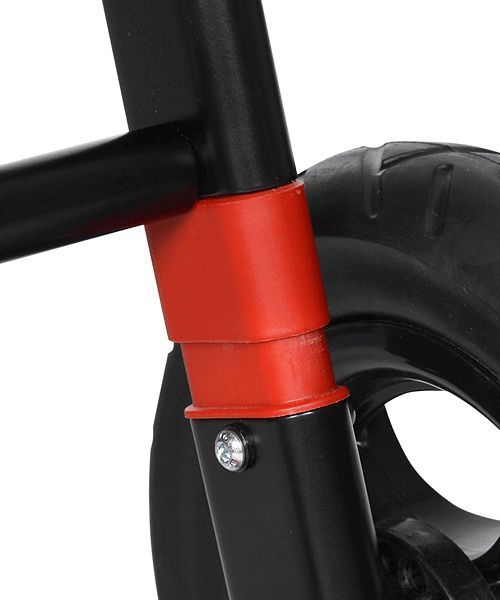

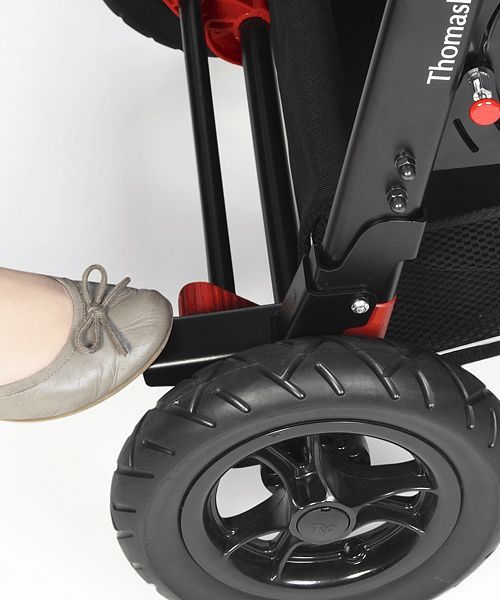

Soft suspension absorbs vibrations and ensures a smooth ride without compromising steering
Button

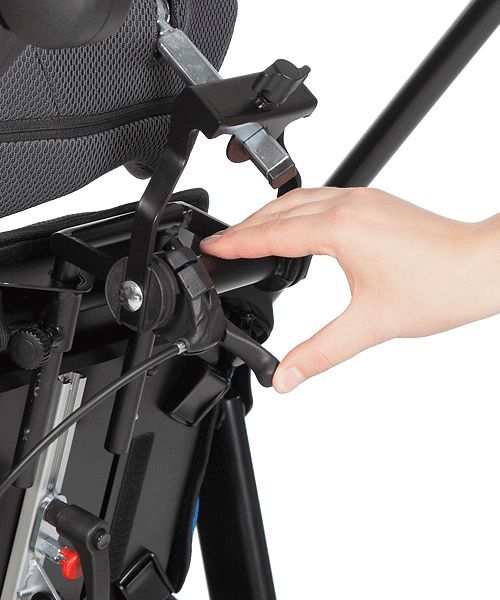

A single release lever on the headrest tubes is used for: seat tilt-in-space & separating the seat from the base
Button

Indoor

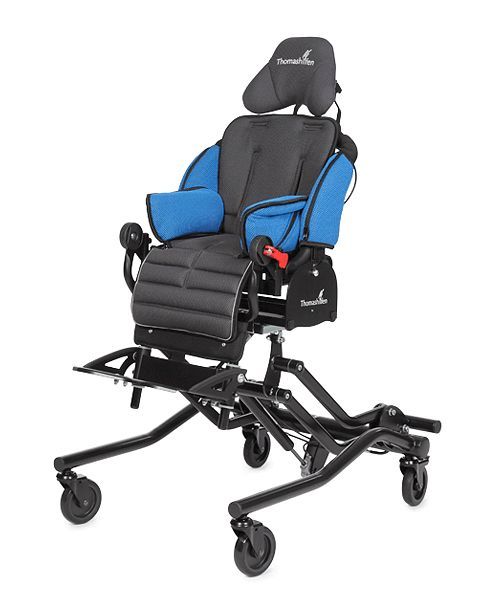

Indoor Q chassis
Button

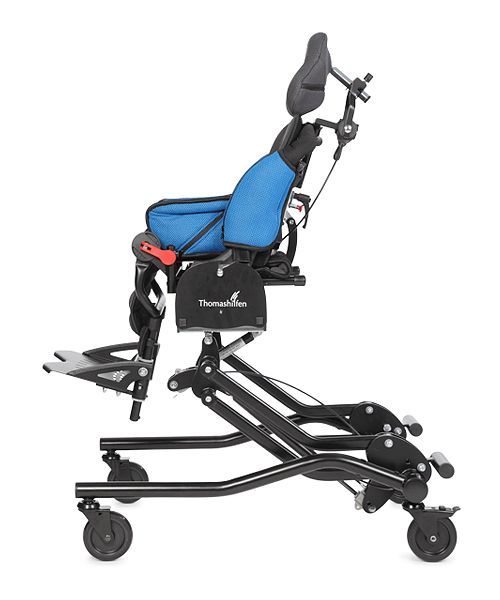

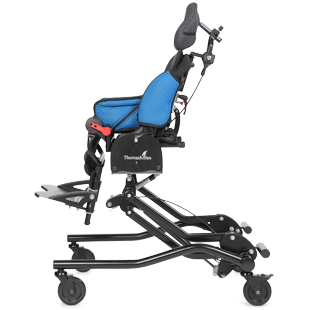

Sideview Q chassis
Button

Accessories

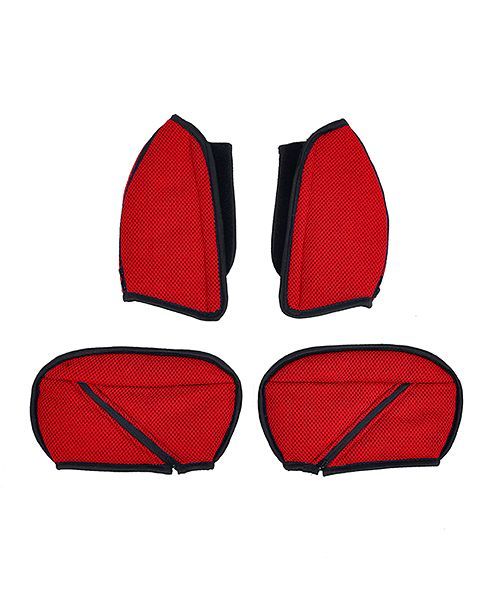

Padding, red
Button

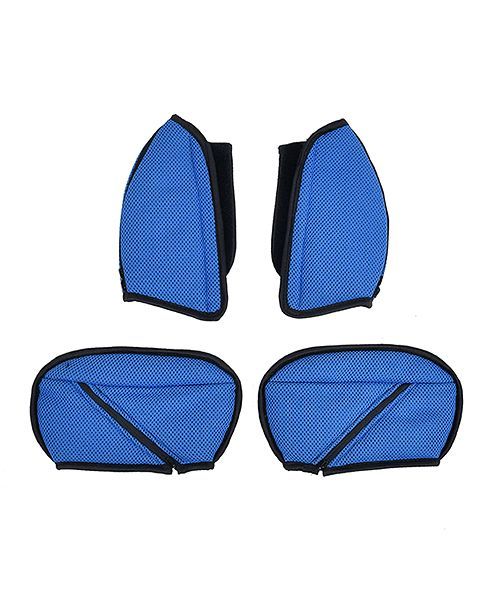

Padding, blue
Button
Padding, green
Button
Padding, magenta
Button
Padding, grey
Button

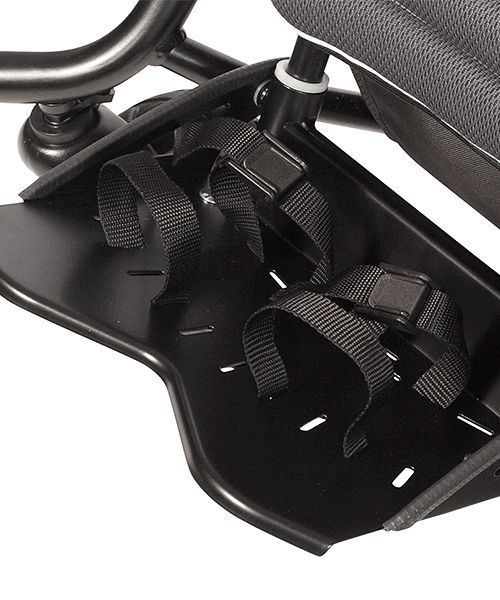

Foot straps, black
Button
Calf strap, black
Button

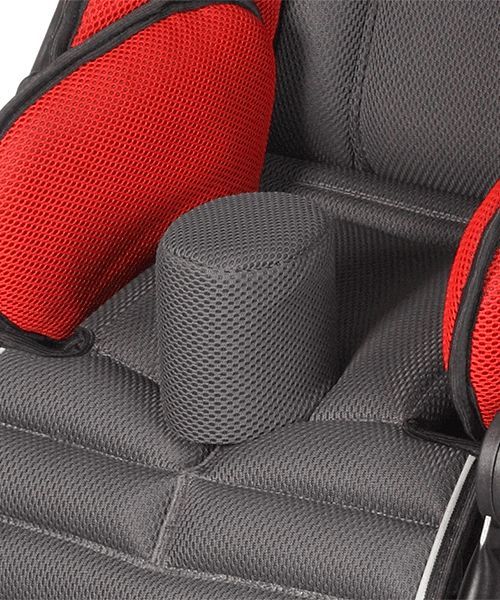

Abduction block, grey
Button

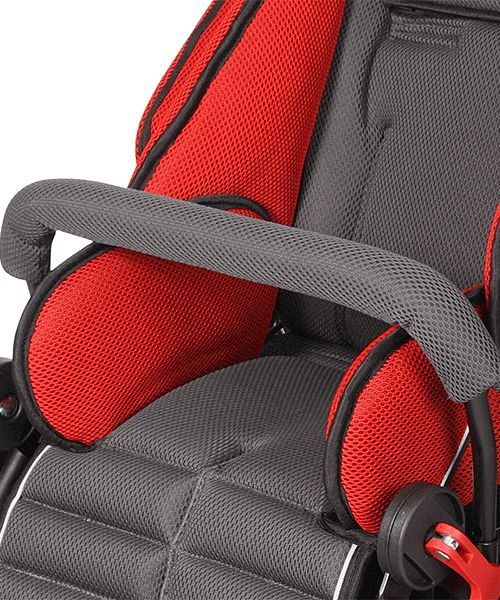

Grab bar
Button

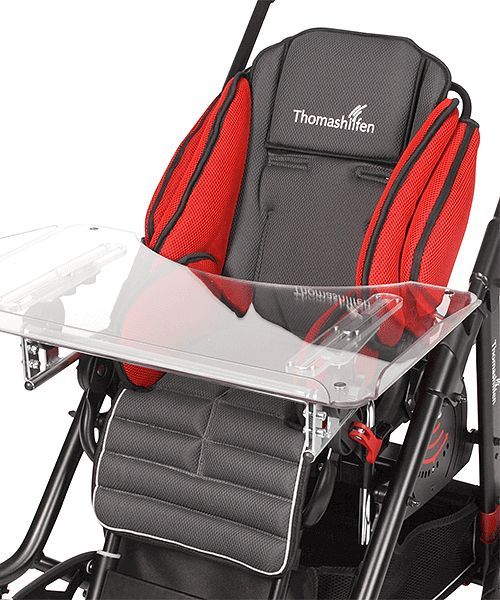

Tray, transparent
Button

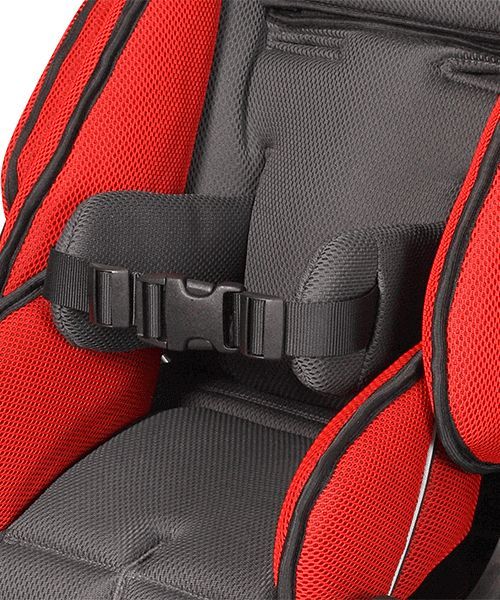

Lateral trunk support with chest belt, black
Button

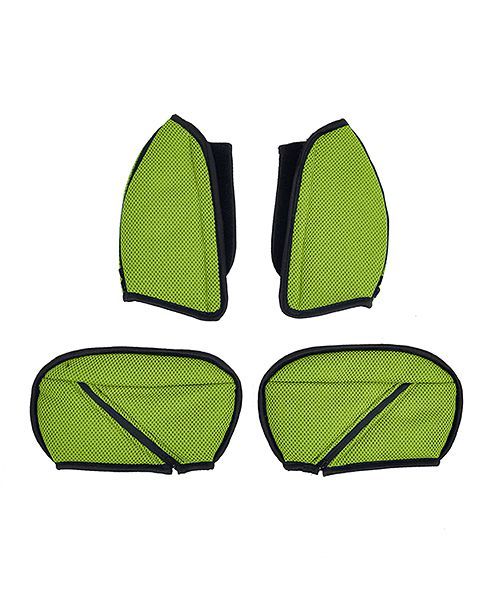

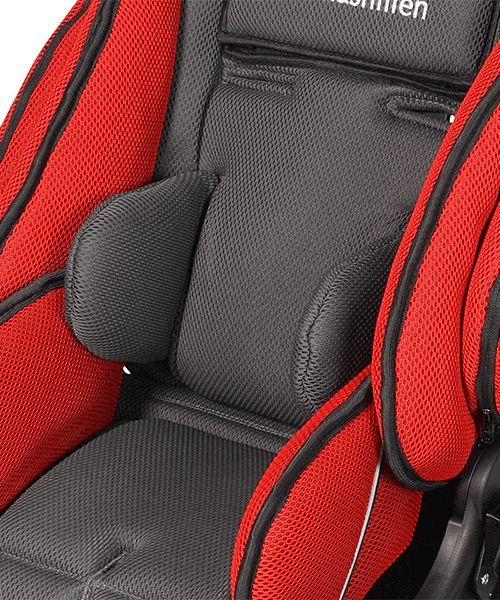

Lateral trunk support, grey
Button
Frame padding, black
Button

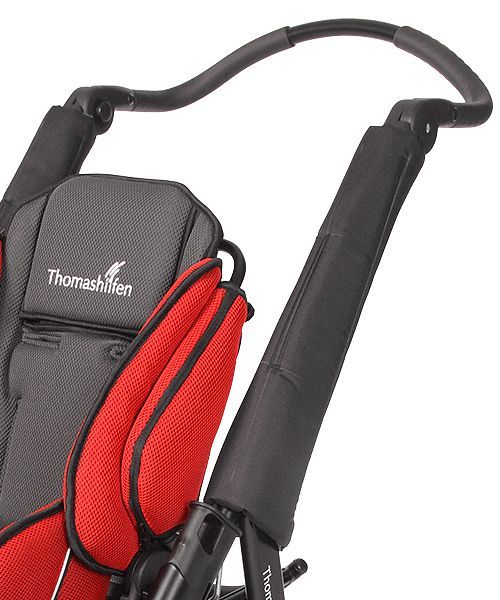

Footrest-tube upholstery, grey
Button

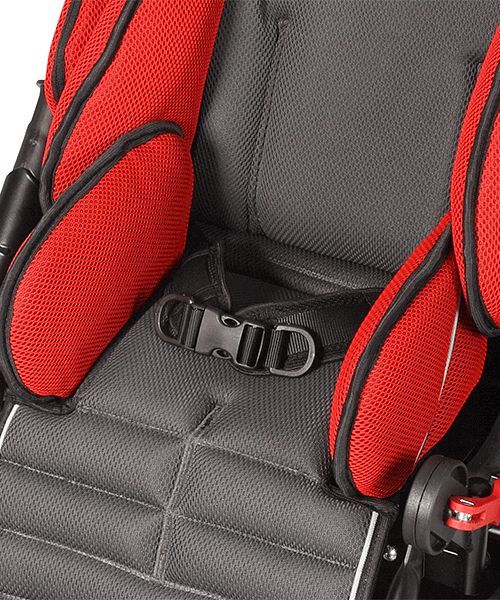

2-point pelvic belt with front pull
Button

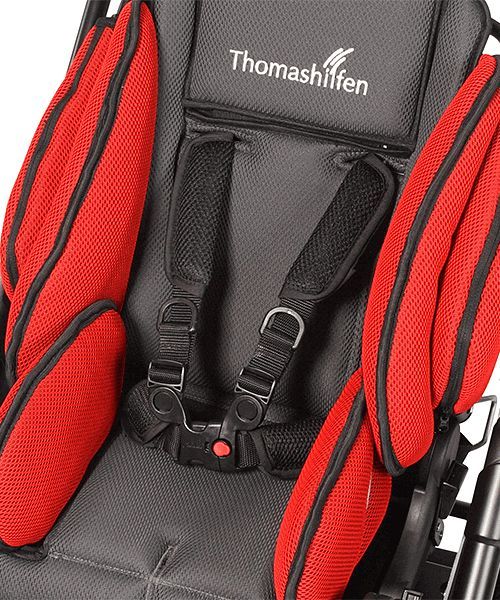

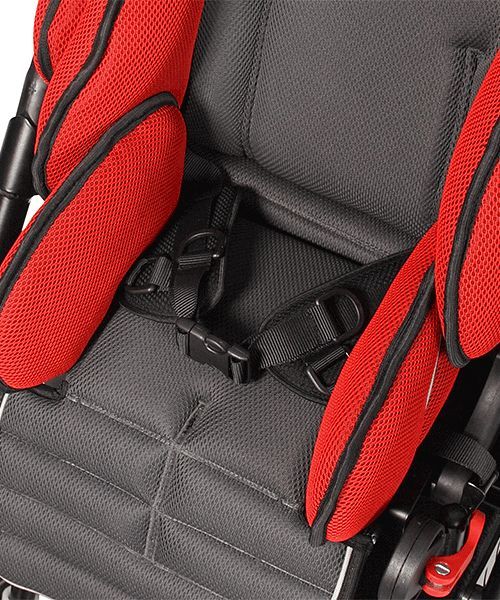

4-point pelvic belt with front pull
Button

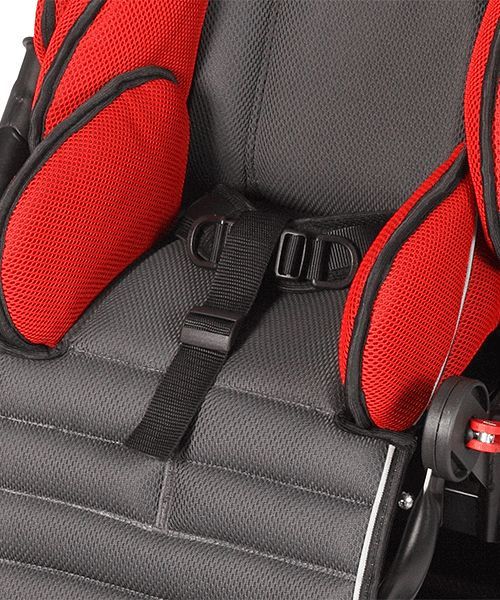

Crotch strap
Button

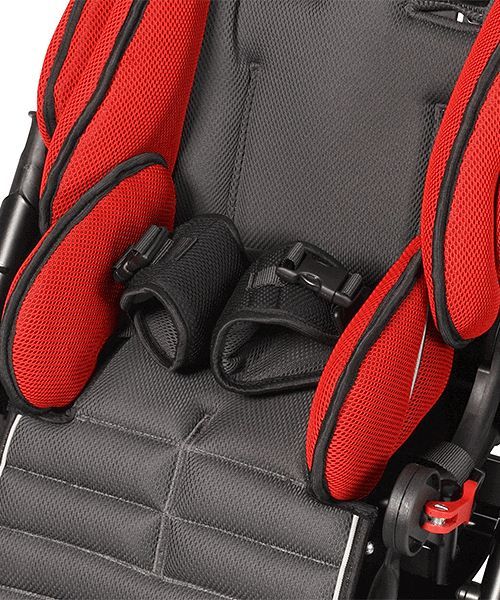

Soft pelvic harness, black
Button

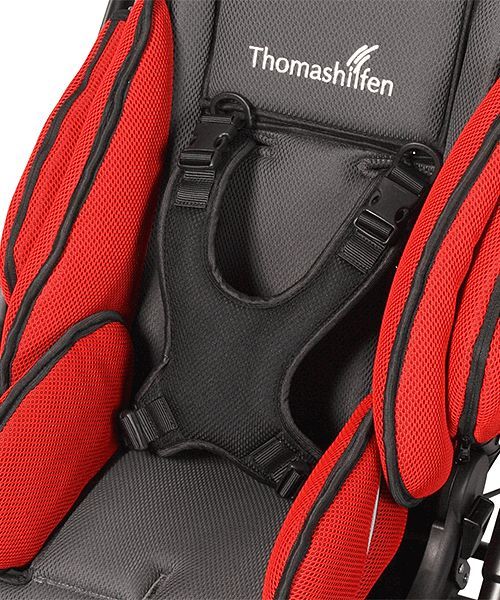

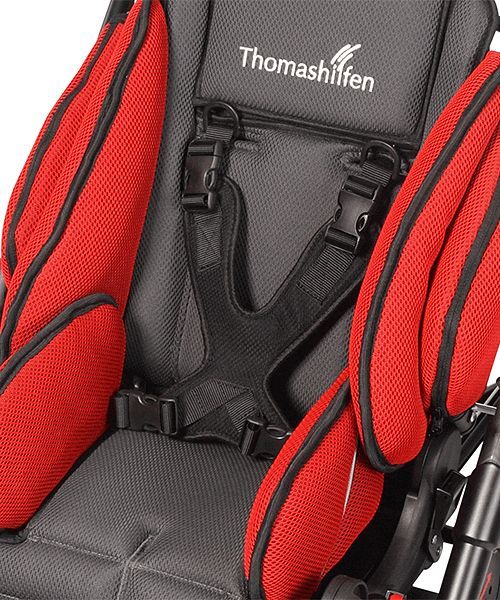

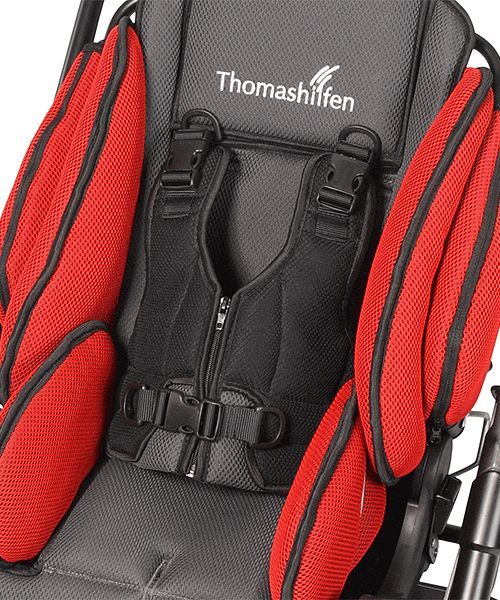

Butterfly / chest harness, black
Button
Butterfly / chest harness, flexible
Button
Seat waistcoat, black
Button
H-belt, padded
Button

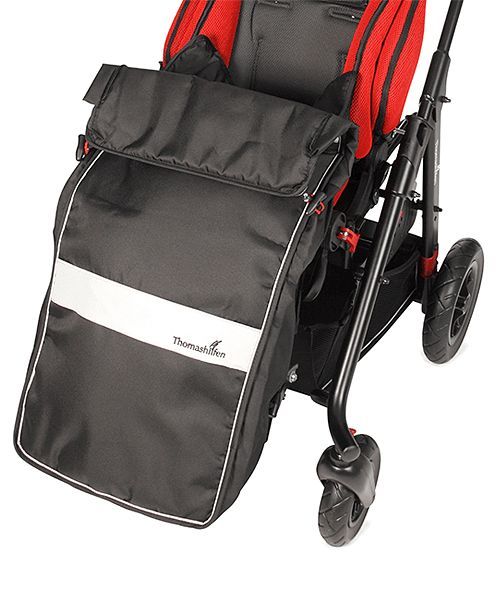

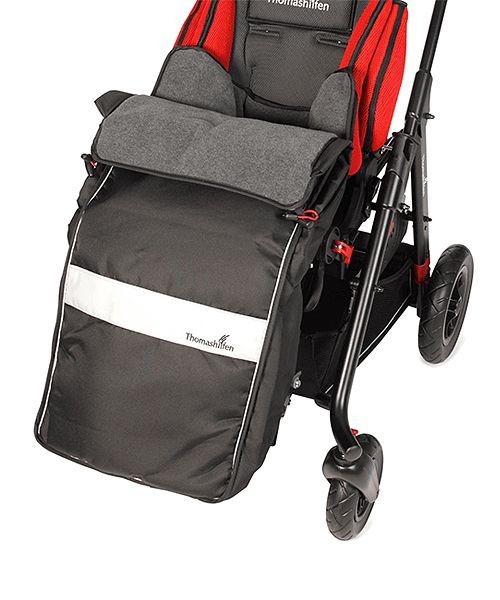

Sleeping bag, padded (summer), black
Button
Sleeping bag, woven fur (winter), black
Button

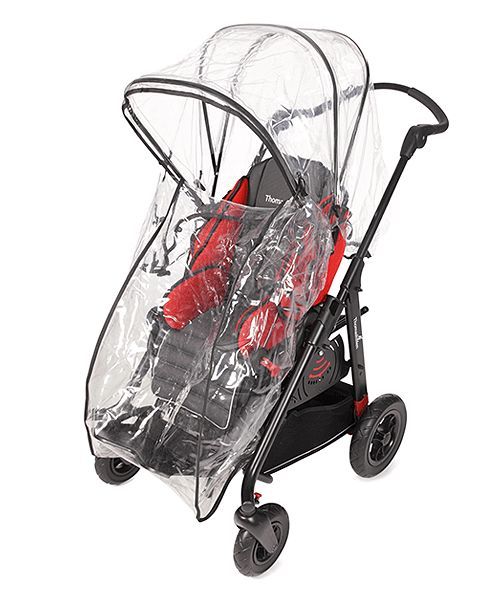

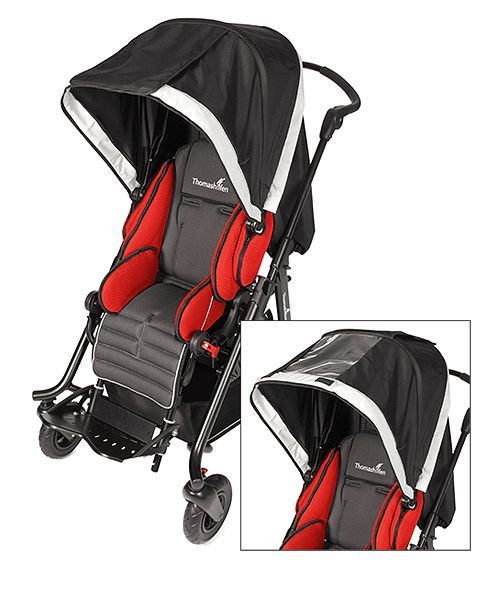

Rain shield for sun and rain cover, transparent
Button

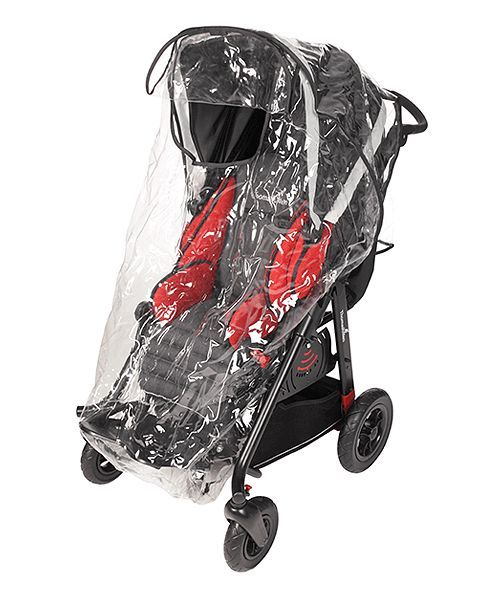

Transparent cover
Button

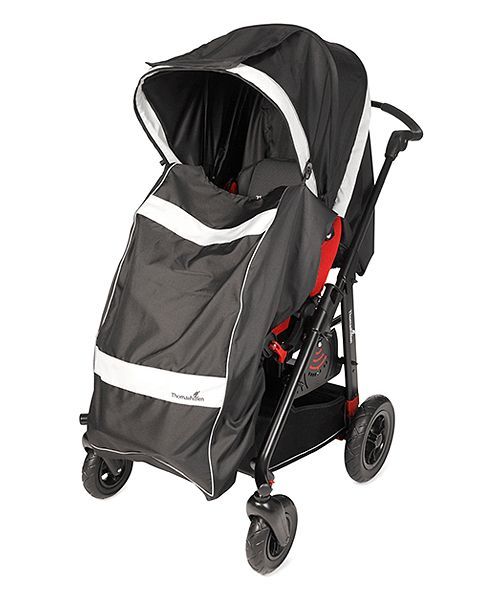

Sun and rain cover with leg blanket
Button
Sun and rain cover without leg blanket
Button

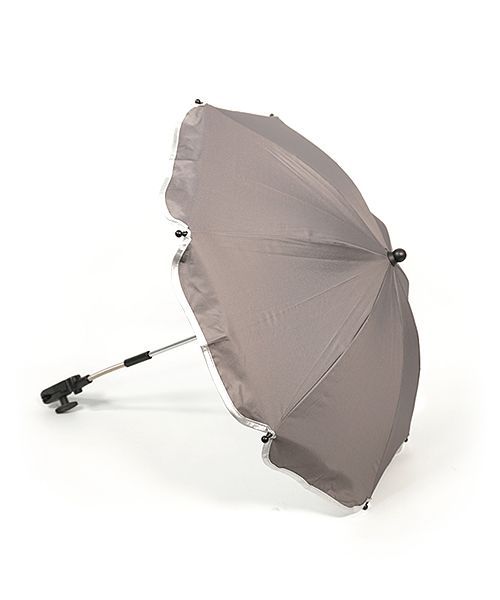

Umbrella with UV protection
Button
Vent tray
Button
Tip assist, anthracite
Button

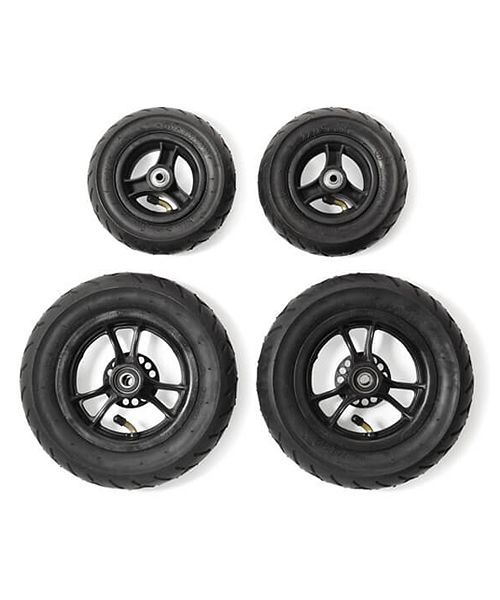

Pneumatic wheels, full set
Button

SPECIFICATIONS TECHNICAL DATA

Why should you choose EASyS Modular S?

Headrest

The multi-dimensional adjustable headrest

can be individually adapted to the child
provides a secure hold and optimum support
is available in different versions:

neck support: supports the sensitive neck area during head movements
shell: gives maximum support for the whole head
adjustable: both sides adjust for individual positioning
Adapter: an option for a custom-made headrest

Adjustment

The short back and the separate headrest

offer more freedom of movement for the upper body and arms
promote a stable sitting posture so that the child can experience his or her surroundings better

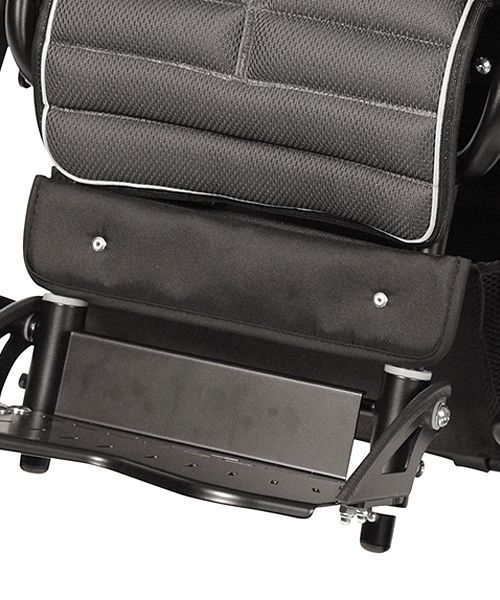

Footrest

The footrest, whose angle and height can be adjusted,

can be folded closed
lets the child get in and out independently

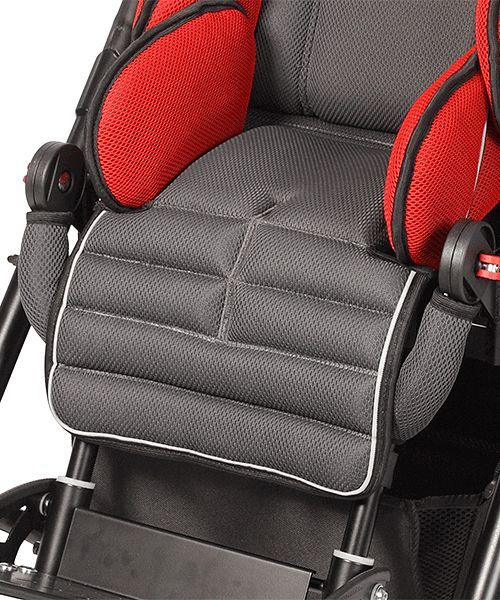

Arm supports

The lateral hip and arm supports are

positioned close to the child‘s body, for relaxed sitting
height and depth adjustable

Cover

The seat cover, which is made of high-quality fabric,

can be machine-washed up to 40°C

is soft and breathable – preventing sweating and providing a thoroughly cozy feeling

Sizes & dimensions

EASyS Modular S 1

Seat depth3 : 19 - 30 cm / 7.5 – 11.8”

Seat width4 : 19 - 26 cm / 7.5 – 10.2”

Seat height8 : 28 - 42 cm / 11 - 16.5”

Back height1 : 41,5 - 68 cm / 16.3 - 26.7”

Lower leg length2 : 18,5 - 30,5 cm / 7.3 - 12”

Hip angle: 90° to 140°

Knee angle: 90° to 180°

Foot angle: 78° to 100°

Turning range of seat: 180°

Seat tilt-in-space (on A chassis Advantage), driving direction: -10° to +35°

Seat tilt-in-space (on A chassis Advantage), face-to-face: 0° bis +35°

Size of hip guide (w x h): 23 x 12 cm / 9 x 4.7”

Size of foot rest (w x d): 28 x 18 cm / 11 x 7.1”

Overall width5 : 59.5 cm / 23.4”

Overall dimensions (on A chassis Advantage) (l x w x h): 99,5 x 59,5 x 114 cm / 39.2 x 23.4 x 44.9”

Folded dimensions (on A chassis Advantage) (l x w x h): 85 x 59.5 x 60 cm / 33.5 x 23.4 x 23.6”

Weight (seat): 8,8 kg / 19.4 lb

max. user weight (seat): 35 kg / 77.2 lb

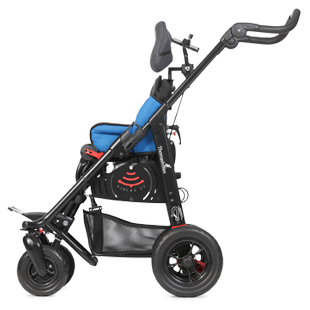

A-Chassis Advantage, size 1

Seat tilt-in-space (driving direction): -10° to +35°

Seat tilt-in-space (face to face): -10° to +35°

Push bar height 6 : 71.5 - 117 cm / 28.2 - 46.1”

Wheel size swivel wheels (front): 18 cm / 7.1”

Wheel size (rear): 25 cm / 10”

Weight (chassis): 9.8 kg / 21.6 lbs

Carrying capacity (basket): 5 kg / 11 lbs

Carrying capacity (incl. seat): 50 kg / 110.2 lbs

EASyS Modular S 2

Seat depth3 : 27 - 38 cm / 10.6 – 15”

Seat width4 : 27 - 35 cm / 10.6 – 13.8”

Seat height8 : 34 - 53 cm / 13.4 - 20.9”

Back height1 : 18,5 - 37 cm / 7.3 - 14.6”

Lower leg length2 : 18,5 - 30,5 cm / 7.3 - 12”

Hip angle: 90° to 140°

Knee angle: 90° to 180°

Foot angle: 78° to 100°

Turning range of seat: 180°

Seat tilt-in-space (on A chassis Advantage), driving direction: -10° to +35°

Seat tilt-in-space (on A chassis Advantage), face-to-face: 0° bis +35°

Size of hip guide (w x h): 29 x 11 cm / 11.4 x 4.3”

Size of foot rest (w x d): 32 x 21 cm / 12.6 x 8.3”

Overall width5 : 69 cm / 27.2”

Overall dimensions (on A chassis Advantage) (l x w x h): 107 x 69 x 120 cm / 42.1 x 27.2 x 47.2”

Folded dimensions (on A chassis Advantage) (l x w x h): 81 x 69 x 69 cm / 31.9 x 27.2 x 27.2”

Weight (seat): 11 kg / 24.3 lb

max. user weight (seat): 40 kg / 88.2 lb

A-Chassis Advantage, size 2

Seat tilt-in-space (driving direction): -10° to +35°

Seat tilt-in-space (face to face): -10° to +35°

Push bar height 6 : 71.5 - 117 cm / 28.2 - 46.1”

Wheel size swivel wheels (front): 18 cm / 7.1”

Wheel size (rear): 25 cm / 10”

Weight (chassis): 9.8 kg / 21.6 lbs

Carrying capacity (basket): 5 kg / 11 lbs

Carrying capacity (incl. seat): 50 kg / 110.2 lbs

Indoor Q chassis

Modular S size 1 & size 2

Q chassis (indoor use): 6666/6

Adapter for Q chassis (necessary in combination with EASyS Modular S seat unit): 6295/1

Push bar: 6660/1

Q chassis

Seat titlt-in-space: -7° to +31°

Seat height: 29 - 69 cm (with seat unit) / 11⅜ - 27¼”

Push bar height: -

Adapter height : 21 - 60 cm / 8¼ - 23⅝”

Overall dimensions (l x w x h)(incl. EASyS Modular seat unit): 76 x 54 x 25 bis 62 cm / 29⅞ x 21¼ x (9¾ - 24⅜”)

Folded dimensions (l x w x h) (incl. EASyS Modular seat unit): -

Wheel size swivel wheels (front): 100 mm / 4”

Wheel size (rear): -

Weight (without seat unit): 13,5 kg / 29¾ lb

Carrying capacity (incl. seat): 50 kg / 110¼ lb

1. back height 2. lower leg length 3. seat depth 4. seat width 5. overall width 6. push bar height 7. shoulder height
