Evolv Medium

Evolv Medium

PNG50162-1

Approximate Height Range: 4’0 – 5’6″ and up to 200 lbs.
Seat Depth Range (from seat pivot) 14″-19″

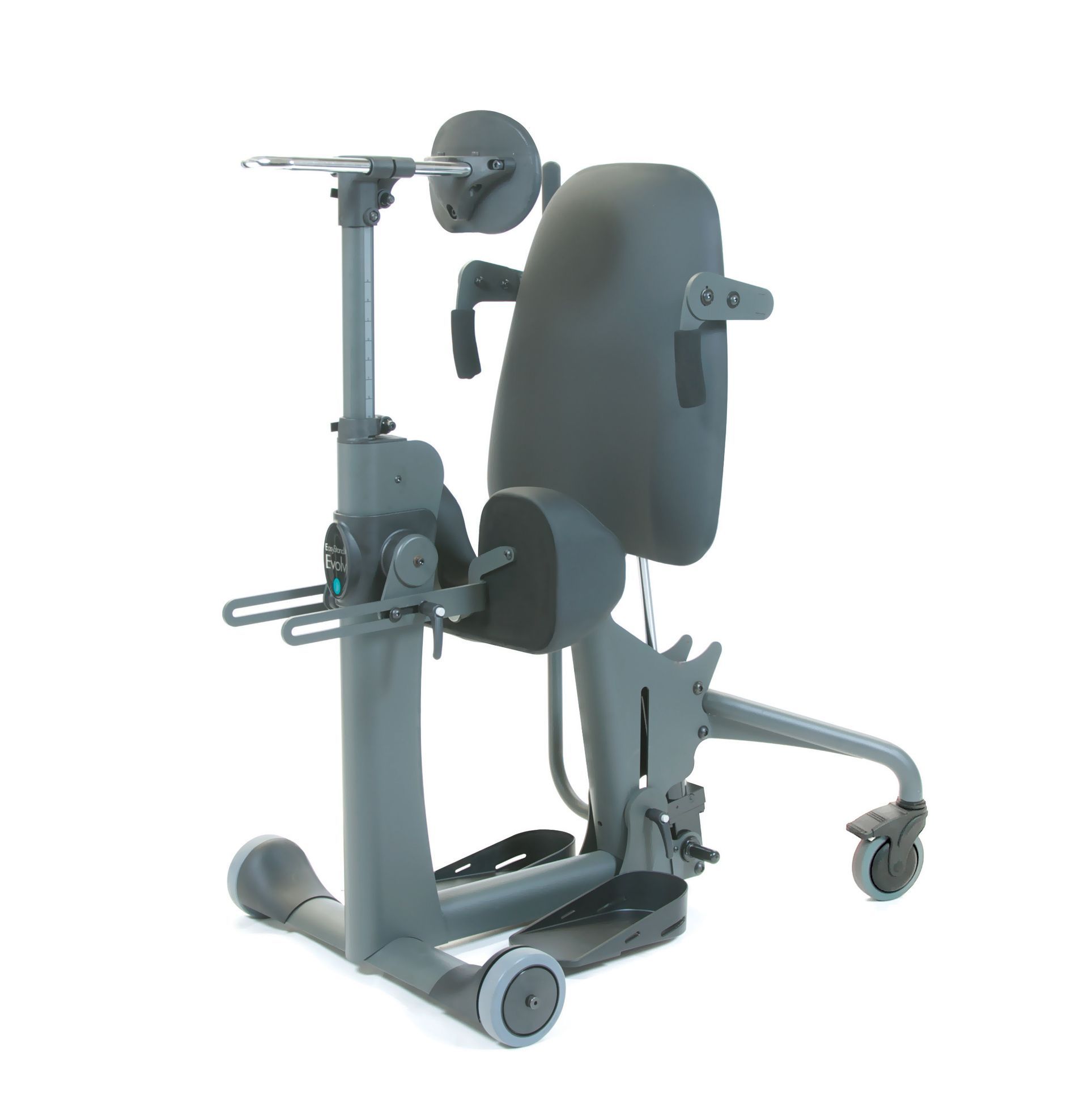

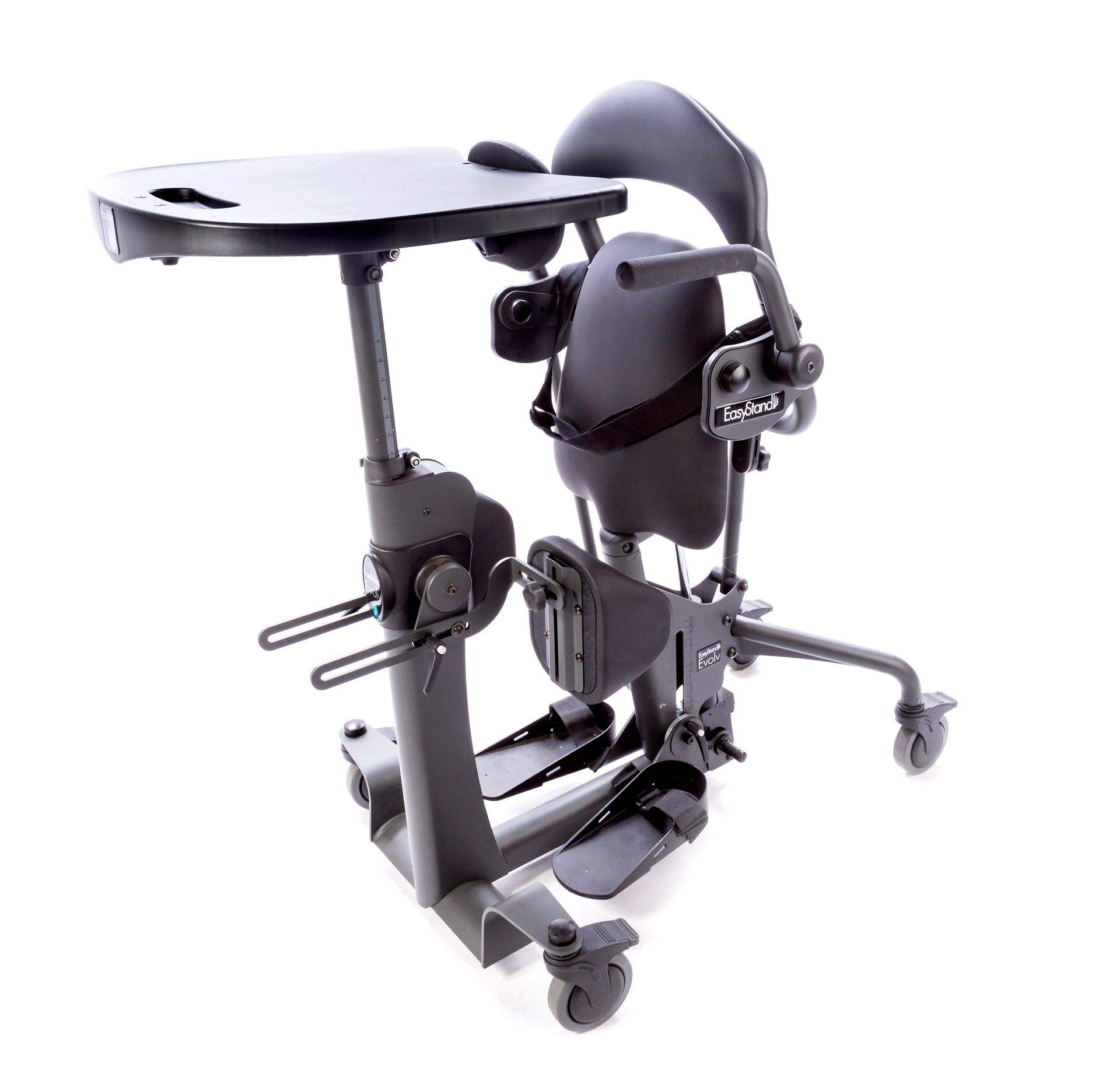

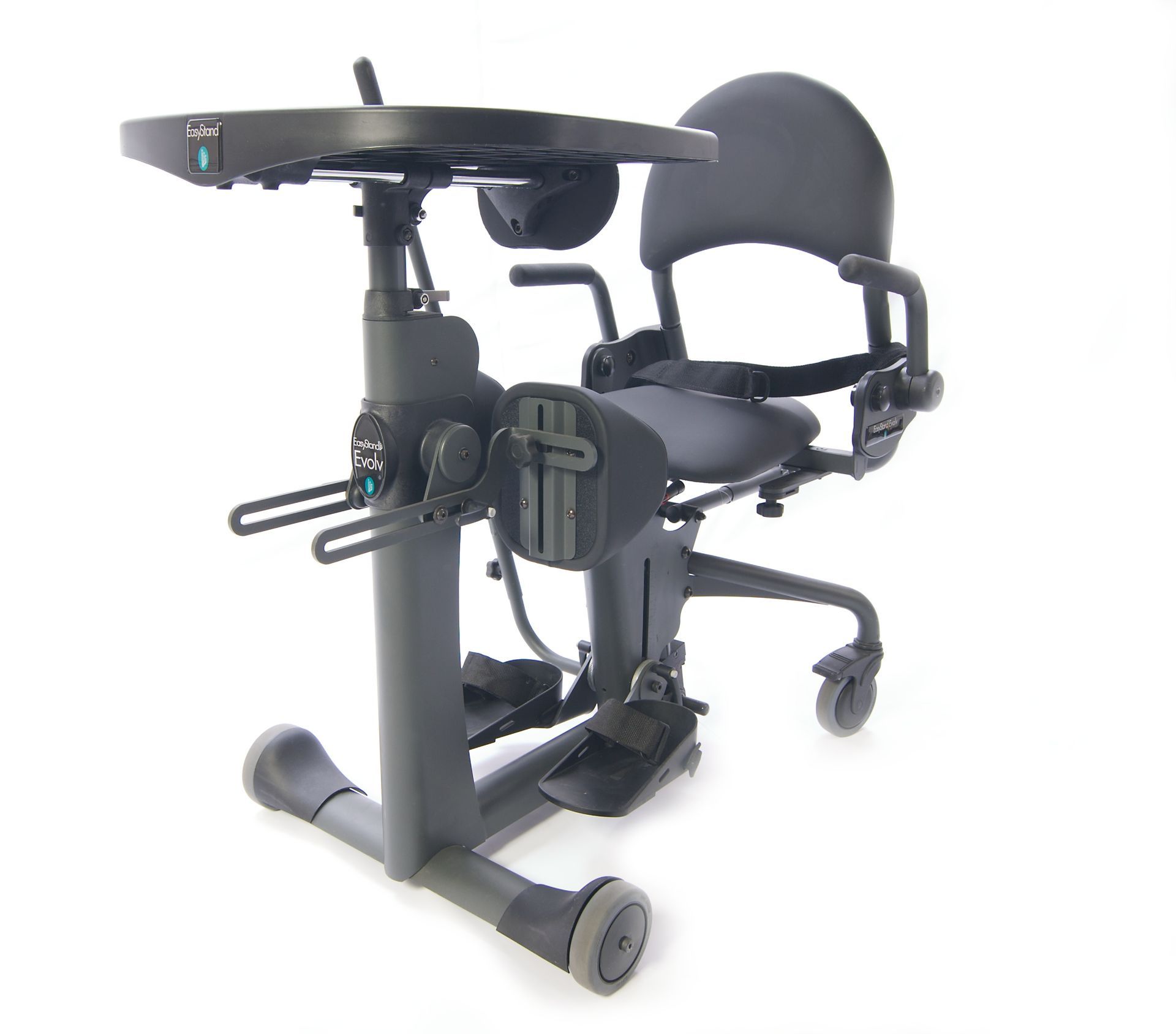

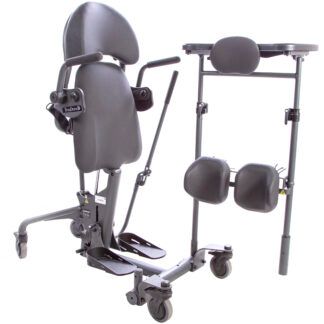

Modular design makes the EasyStand Evolv the most versatile standing frame available. The Evolv is a modular sit to stand stander with over 60 support and positioning components. The base unit is functional for many users, however when more support is needed a wide variety of positioning components can be added to accommodate the most involved users.

REQUEST PRODUCT INFO

Evolv Brochure

EasyStand Mini Catalog

Evolv Assembly Manual

Evolv User Manual

Product Description


The EasyStand Evolv is the most supportive and comfortable sit to stand stander available. With over 60 options and configurations, each unit can be built specifically for an individual or facility. These options, that would normally be custom modifications, allow a stander to be configured for specific needs.


Positioning

The optimal standing position has been perfected in the Evolv standing frame. By strategically placing the pivot points of the stander in line with the body’s natural pivot points, options like the hip supports, lateral supports, and head support remain in place from sitting to standing, minimizing shear. When positioned correctly, the contoured seat provides a maximum over-center stretch for various body types.The Evolv also accommodates for hip and knee contractures through proper positioning of the footplates and optional independent knee pads.


Accessibility and Independence

The Evolv’s open base makes independent transfers easier. A larger Transfer Seat or Rotating Seat can also be added to make transfers more manageable. To make standing pivot or lift assist transfers easier, an optional Swing-Away Front or Removable Back can be added. The user can independently achieve the standing position with the manual hydraulic actuator or optional push-button Pow’r Up Lift.


Safety and Convenience

The Evolv standing frame provides a safe and supportive transition to standing. It allows the user to stand in three easy steps – adjust, transfer, and pump up. Both caregivers and users are more comfortable with the Evolv because of the safe and easy lateral transfer and supportive transition to standing. Don’t just take our word for it – see what others have to say about the versatility and convenience of the Evolv.

Options

Lift Mechanisms

Shadow Tray Frame Styles

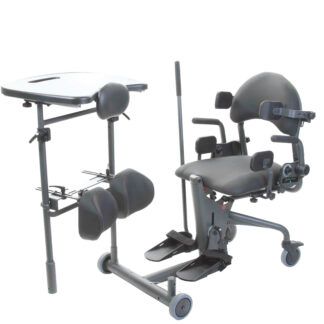

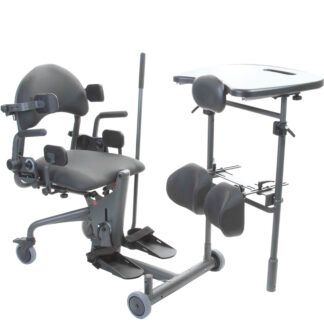

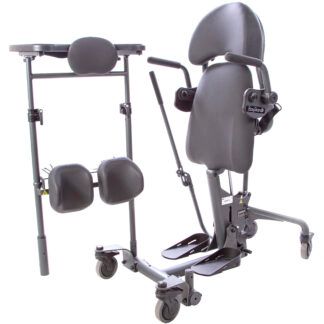

Swing-Away Frame Styles

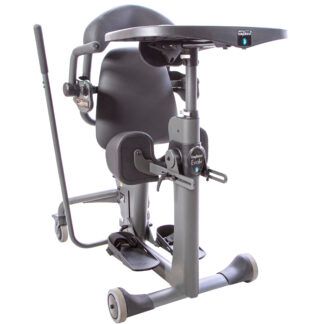

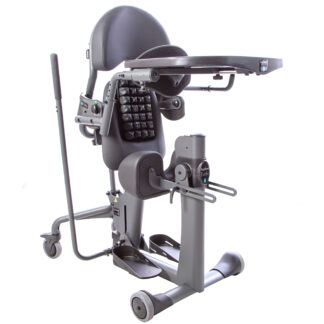

Column & Mobile Frame Styles

Shadow & Swing-Away Trays

Column & Mobile Trays

Tray Accessories

Chest & Knee Pads

Foot Plates and Foot Plate Accessories

Seats and Seat Accessories

Backs

Positioning and Upper Body Support

Head Supports

Other


Base Unit

  • Approximate Height Range: 4’0-5’6” / 122-168cm
  • Weight Limit: 200lbs / 90kg
  • Maximum Mass (fully loaded unit): 153lbs / 69kg
  • Seat Depth Range (from seat pivot): 14”-19” / 36-48cm
  • Seat to Footplate Range (from seat pivot): 11”-18” / 28-46cm
  • Knee Width (center to center): 9” / 23cm
  • Kneepad Depth Range (from seat pivot): 2”-7” / 5-18cm
  • Seat Height: 21.5” / 55cm
  • Seat Dimensions: 16”Wx17.5”L / 40x44cm
  • Standard Tray Size: 21”x24” / 53x61cm
  • Tray/Chest Pad Depth Range (from seat pivot): 0”-10.5” / 0-27cm
  • Standard Tray Height Range (from seat pivot): 15.5”-30.5” / 39-77cm
  • Footprint (at widest points): 26.5”x33.5” / 67x85cm
  • Weight of Basic Unit: 101lbs / 46kg
  • Frame Color: Charcoal
  • Standard Upholstery Color: Black
  • Locking Caster Diameter: 5” / 13cm
  • Footplates-Plantar: 10° in 3 increments / (not Glider)
  • Footplates-Dorsi: 10° in 3 increments / (not Glider)
  • Footplates- Toe-out: 15 degrees in 3 increments / (not Glider)

Shadow Tray

  • Shadow Tray 10” Height from seat (acrylic tray is 1” shorter): 10” / 25cm
  • Weight of Evolv w/Shadow: 115lbs / 52kg
  • Shadow Tray Size: 21”x24” / 53x61cm

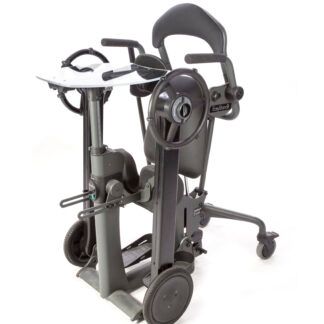

Mobile

  • Weight of Mobile Option: 38lbs / 17kg
  • Weight of Evolv Mobile (all sizes): 135lbs / 61kg
  • Footprint (including pushrims): 28.5”x36” / 72x91cm
  • Wheelbase: 29.75” / 76cm
  • Pushrim Height (from floor): 45” / 114cm
  • Wheel Locks: 1/4 turn rotation to lock/unlock
  • Drive Chain Tensioning Method: Self -Tensioning Gravity Operated
  • Mobile Tray Size: 18”Wx19”L / 46x48cm

Options

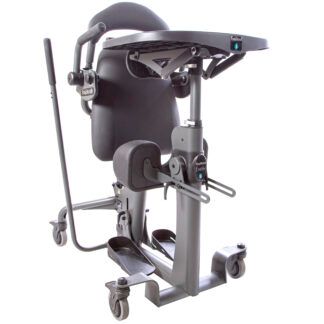

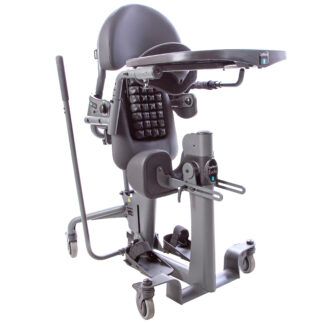

  • Front Swivel Casters Add 5” W to Footprint: 13cm
  • Adjustable/Removable Actuator Handle Range: +/- 15° from neutral
  • T-Style Handle-Extends (each direction): 6” / 15cm
  • Foot straps- Fits foot height: 4”-6.5” / 10-17cm
  • Secure Foot Straps-Fits foot height: 4”-6.5” / 10-17cm
  • Seat – Size of Roho® Insert: 7”x12” / 18x30cm
  • Transfer Seat Dimensions: 20”Wx17.5”L / 50x44cm
  • Hip Supports-Medium Width: 9”-15” / 23-38cm
  • Hip Supports-Large Width: 11”-17” / 28-43cm
  • Hip Supports Pad Size: 4”Wx6”H / 10x15cm

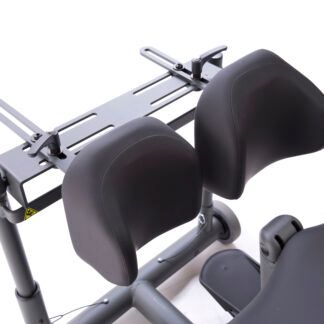

  • Independent Kneepad Height Range (from seat pivot): +5” to -5.25” / +13 to -13cm
  • Independent Kneepad Depth Range (from front of seat): 1”-7.5” / 3-19cm
  • Independent Kneepad Width Range (center to center): 9”-13.5” / 23-34cm
  • Independent Kneepad Size: 7”Wx9”H / 18x23cm
  • Independent Kneepad Roho Insert Size: 5”Wx7.5”H / 13x19cm
  • Clear Acrylic Tray Size: 21”x24” / 53x61cm
  • Oversized Clear Tray Size: 29”x22” / 74x56cm

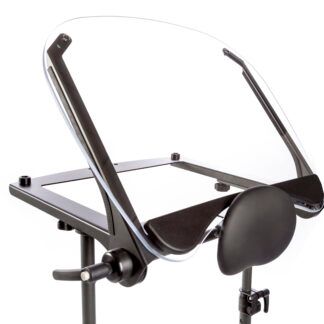

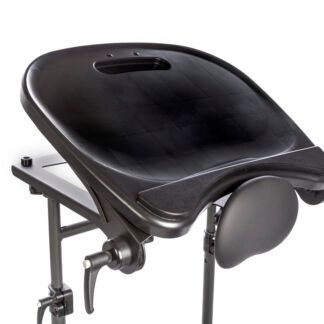

  • Angle Adjustable Tray (Angle range): 0-35°
  • Large Contoured Chest Pad (Approximate size): 9.5”x15” / 24x38cm
  • Low Back (Flat/Contoured) Height from Seat: 13” / 33cm
  • High Back (Flat/Contoured) Height from Seat: 19” / 48cm
  • Velcro Positioning Belt (Hip Circumference): 26”-55” / 66-140cm
  • Positioning Belt w/ Airline Buckle (Hip Circumference): 26”-55” / 66-140cm
  • Small Chest Strap-Pad Size: 5”Wx19”L / 13x48cm
  • Small Chest Strap-fits users chest measuring: 30”-46” / 76-117cm
  • Large Chest Strap-Pad size: 5”Wx24”L / 13x60cm
  • Large Chest Strap-fits users chest measuring: 34”-54” / 86-137cm
  • X-Style Chest Vest-Medium: 11”Lx9.5”W / 28x24cm
  • X-Style Chest Vest-Large: 12.5”Lx10”W / 32x26cm
  • Y-Style Chest Vest-Medium: 17.5”Lx11.5”W / 44x29cm
  • Y-Style Chest Vest-Large: 20.5”Lx12.5”W / 52x32cm
  • High Mount Chest Vest Bracket Positions: 18”, 19”, 20”, 21” H (above hip Pivot) / 46, 48, 51, 53cm H (above hip Pivot)
  • Lateral Supports-Medium Width Range: 9”-15” / 23-38cm
  • Lateral Supports-Large Width Range: 12”-18” / 30-46cm
  • Lateral Supports-Fore/Aft Pad Adjustment: 3” / 7.5cm
  • Lateral Supports-Height Adjustment by swapping brakets left/right: 2” / 5cm
  • Lateral Supports-Height Adjustment via mounting bolts on the pads: 2” / 5cm
  • Lateral Supports-Height Range of lateral pad from hip pivot: 4” / 10-30cm
  • Lateral Supports-Rotational setting of lateral pad via bolt mounting holes: 90, 180, 270, or 360° position / Long portion of pad may be installed pointing up, down, fore or aft.
  • Lateral Support Pad Size: 4”Wx6”H / 10x15cm
  • Head Support-Medium Height Range (from top of the seat to middle of headrest): 21”-30.5” / 53-77cm
  • Head Support-Large Height Range (from top of the seat to middle of headrest): 24”-33.5” / 61-85cm
  • Head Support-Depth Range: 3.75” / 10cm
  • Head Support-Fore/Aft Adjustment in relation to back pad: Flush with back aft to 3-3/4 / 0 to +9.5cm
