Gazelle PS

Gazelle PS

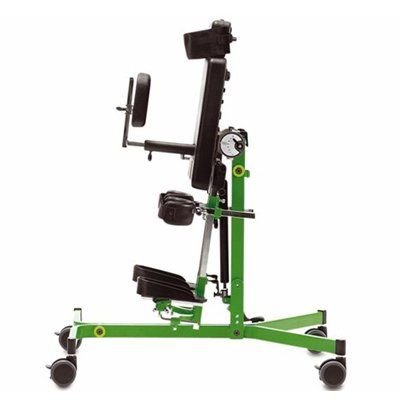

The R82 Gazelle PS is an advanced standing frame for children, meticulously crafted to suit a broad spectrum of needs. This standing frame supports prone, upright, or supine positions, offering flexibility tailored to each child's unique needs.



One of the attributes of this standing frame is its ability to provide up to 30 degrees of hip abduction in each leg. Beyond its design ingenuity, research indicates that this specific feature can play role in hip development , potentially mitigating hip migration in children with cerebral palsy. Constructed with exceptional care, the R82 Gazelle PS standing frame is available in three sizes, accommodating children from heights of 700 mm (27 1/2") to 1650 mm (65"). Its durability is further emphasized by a maximum user mass of 80 kg (176 lb). During daily activities, the R82 Gazelle PS standing frame offers dependable support for children. With a focus on adaptability, its features are tailored to meet specific user needs. In summary, the R82 Gazelle PS is a comprehensive solution for children requiring standing assistance. By accommodating diverse postures, potentially facilitating hip health , and ensuring durability, it responds effectively to various needs. Tailored for different sizes and designed for daily reliability, this standing encapsulates thoughtful engineering with a keen focus on the well-being of its users.

REQUEST PRODUCT INFO

Gazelle PS User Manual

Features

Options

Frame colour

Delivered in different colours for size 1, 2 and 3.

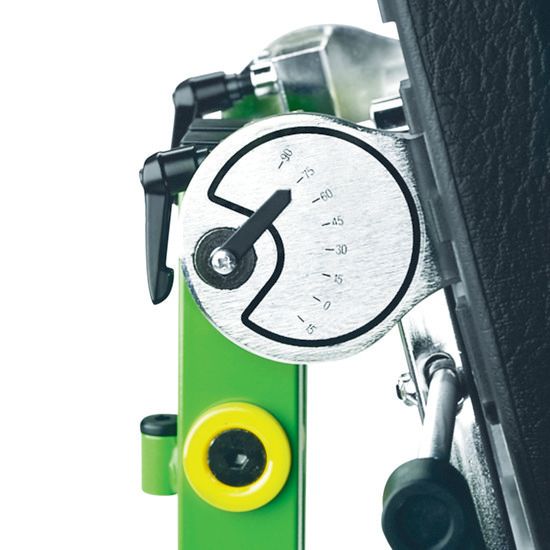

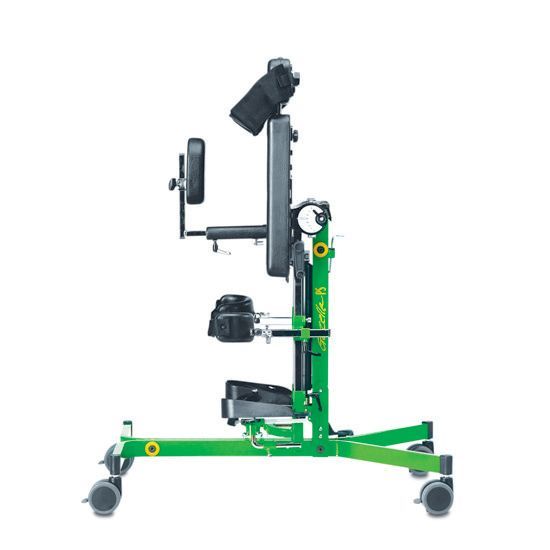

    • Tilt vertical-horizontal

    The tilt angle can vary from child to child. Tilt angle from 90° to -15°.

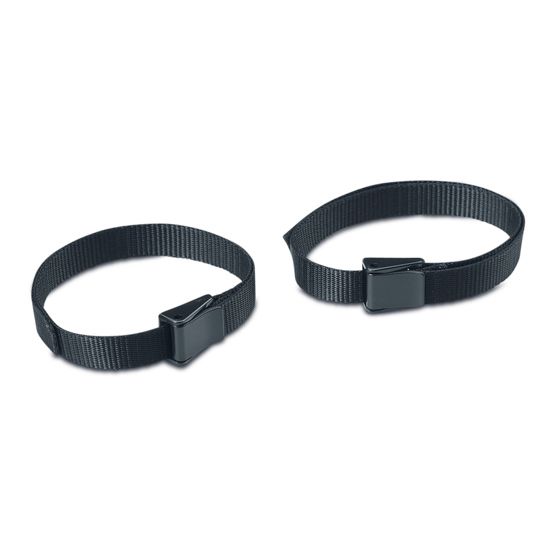

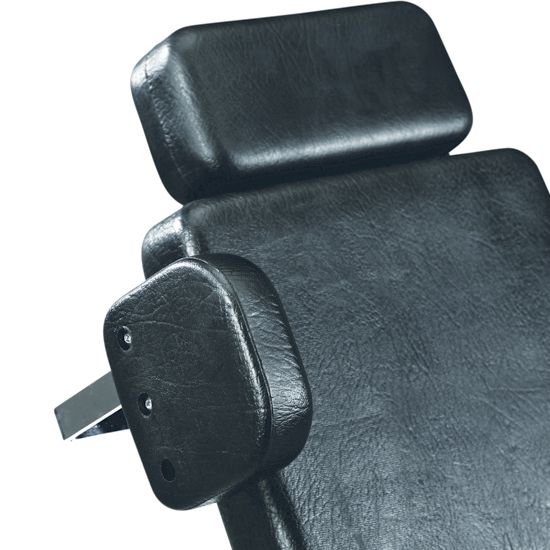

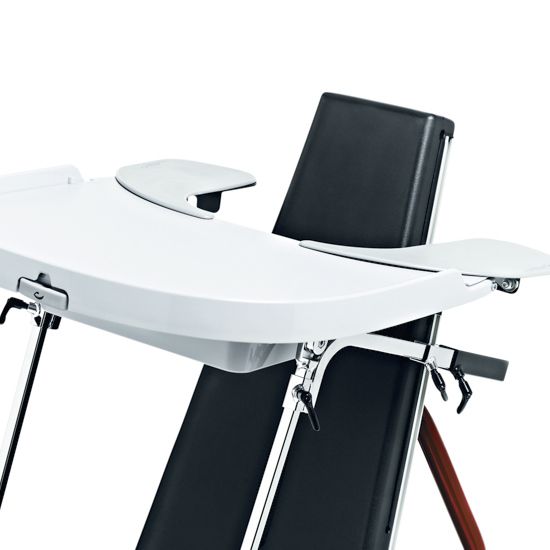

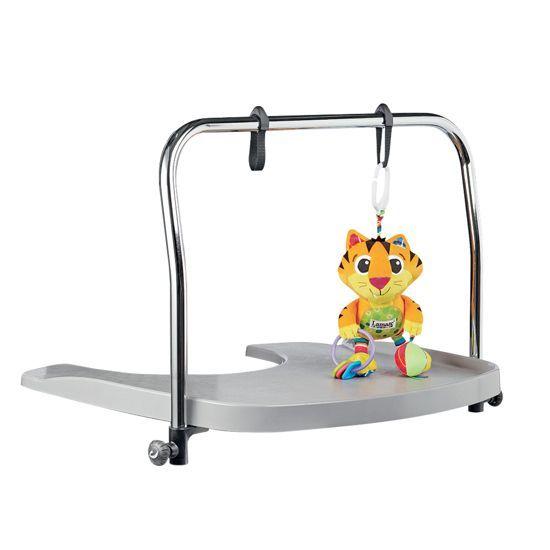

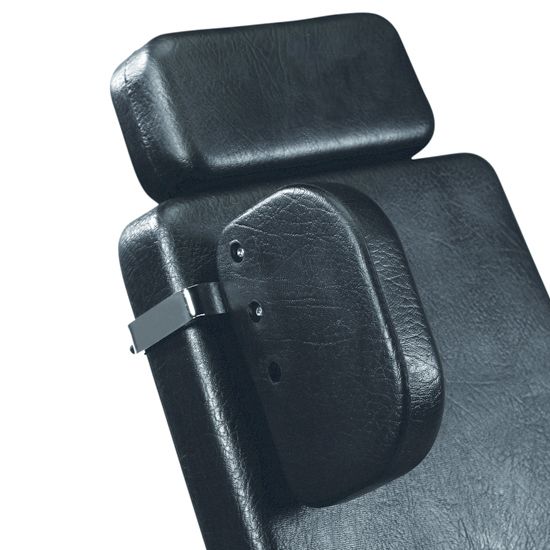

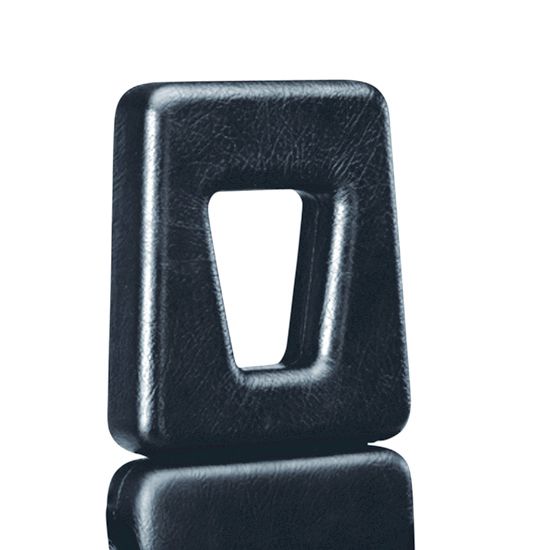

    Accessories

    Overview

    With many adjustment possibilities and a wide range of accessories the Gazelle is suitable for many different disabilities.


    The standing position is very important for both the physical and psychological well-being. When the user is placed in the prone position, the maximum stretch of both hip and knee is obtained.


    Gazelle PS is available in three sizes and is suitable for for users weighing up to 176 lbs and 74″ in height. Not all users are alike – that is why it is important to use the measuring chart to find the correct size for the user.

    Features

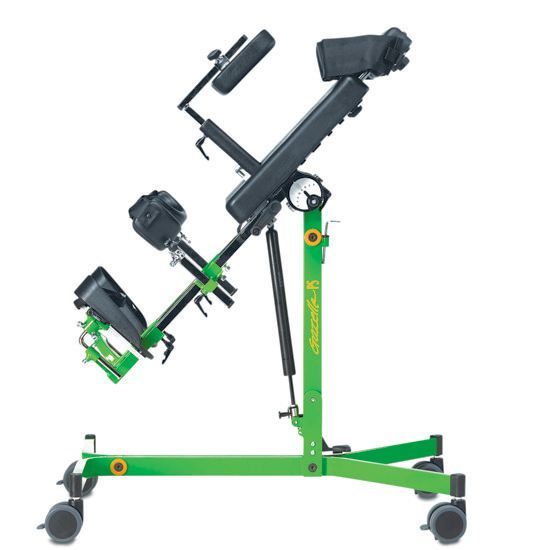

    • Tilt vertical-horizontal: The Gazelle PS tilts from vertical to 15° past horizontal. This is an excellent position for respiratory therapy and postural drainage

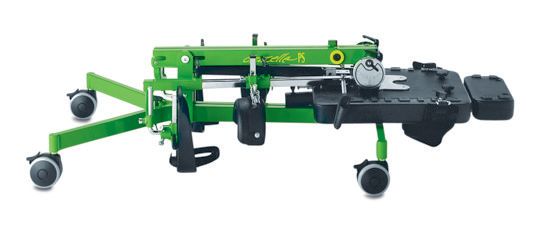

    • Foldable: From the upright position the Gazelle PS is easily folded. By loosening only one screw, abducting the legs and by lifting it slightly, the Gazelle PS is folded for storage or transportation

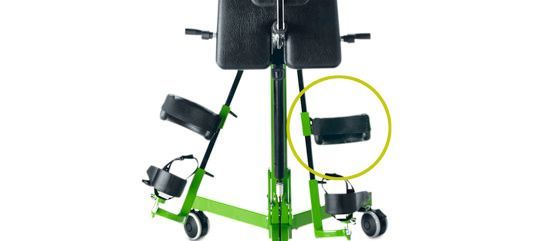

    • Manual leg abduction: Moves in an anatomically correct motion to help seat the head of the femur into the acetabulum. You can adjust either one or both legs to the optimal angle

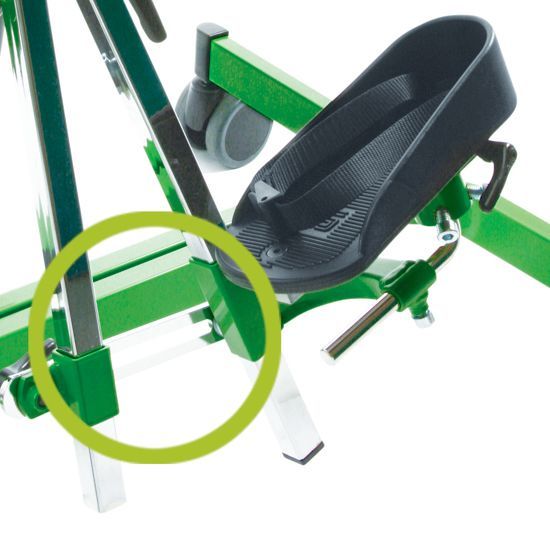

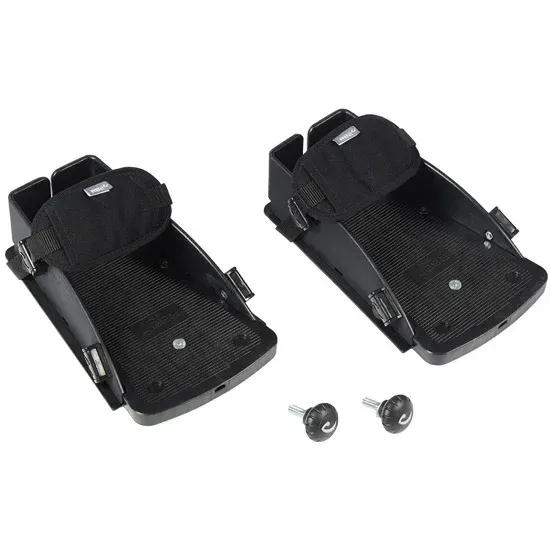

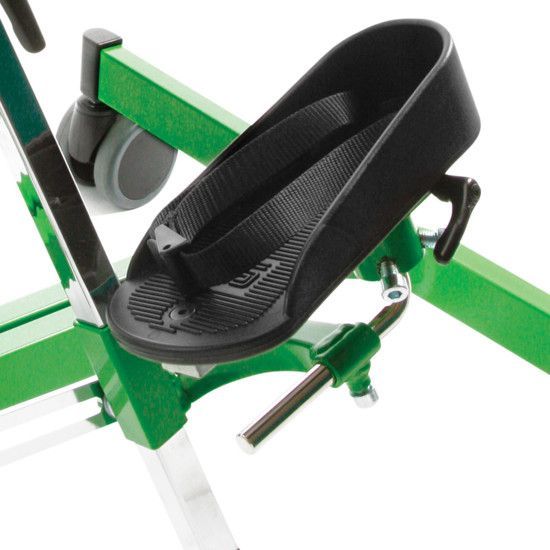

    • Multi-adjustable foot supports: Ball joints in foot plates allow for positioning and support for almost any ankle/foot placement

    Size 1

    • Item number: 88010-1
    • Angle board (°): 90-(-15)
    • Length (mm): 760
    • Mass device (kg): 20
    • Maximum rated load (kg): 62
    • Maximum user mass (kg): 40
    • Overall height, horizontal (mm): 760
    • Overall width (mm): 480
    • User height: floor to axil (mm): 450-950



    Size 2

    • Item number: 88010-2
    • Angle board (°): 90-(-15)
    • Length (mm): 880
    • Mass device (kg): 22
    • Maximum rated load (kg): 85
    • Maximum user mass (kg): 60
    • Overall height, horizontal (mm): 800
    • Overall width (mm): 580
    • User height: floor to axil (mm): 600-1050



    Size 3

    • Item number: 88010-3
    • Angle board (°): 90-(-15)
    • Length (mm): 990
    • Mass device (kg): 24
    • Maximum rated load (kg): 106
    • Maximum user mass (kg): 80
    • Overall height, horizontal (mm): 900
    • Overall width (mm): 650
    • User height: floor to axil (mm): 700-1250
