Our vision for the HELIO C2 was significantly reduced weight and greater freedom of movement. Each component was carefully selected and carbon fiber was used for strength and lightness. The result is greater mobility as well as reduced chronic shoulder and joint injuries.

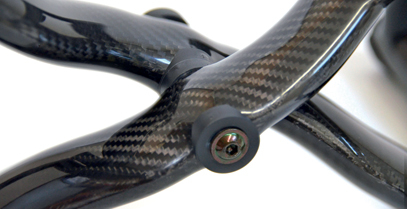

The symmetrical cross brace and rigid unibody frame distribute forces equally throughout the frame for superior energy transfer and propulsion. Our unique Ultrarigid Folding system (UFS) maximizes the chair’s overall stability, while the vertical axle plates increase rear wheel stiffness for optimal energy efficiency.

The frame’s innovative design allows you to achieve a super-low 12-inch (30.5-cm) front seat-to-floor height. In addition to easier contact with the floor, this feature provides better foot propulsion. Or, move it beyond 20 inches (50.8 cm) to meet your most challenging needs.

Because carbon fiber is both very strong and very light, it is an ideal material for making wheelchairs. It also has superior fatigue resistance and can withstand extreme temperatures. This ensures exceptional durability, for a chair that will serve you for many years to come.

For added stability and comfort.

Fully molded with integrated seat slider for better seat sling support.

High-precision tolerances and oversized pivot axles for best-in-class propulsion efficiency.

Eliminates the need for both hemi and standard frame, while providing a complete range of seat-to-floor heights.

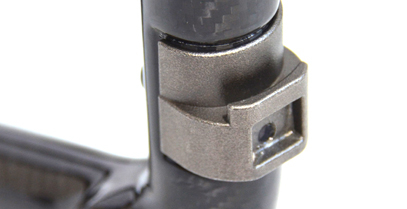

Bracket is inset with an integrated friction plate to protect the carbon fiber.

Integrated into the frame for rock-solid durability, the Evolve caster housing offers easy and precise infinite adjustments.

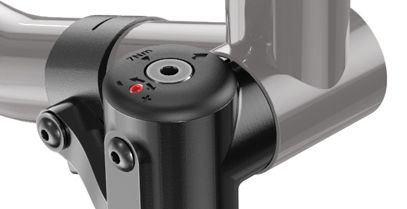

Minimize flutter with a simple twist of a screw. Provides a smooth, more efficient ride.

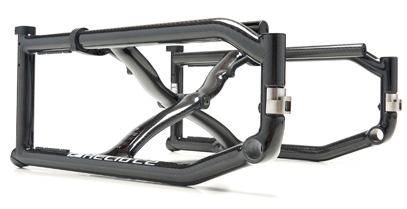

A unibody frame is much stronger and requires less maintenance than a standard two-part frame. It also reduces weight while maximizing propulsion efficiency.

14 in. to 22 in.

35.6 cm to 55.9 cm

14 in. to 20 in.

35.6 cm to 50.8 cm

13 in. to 21 ½ in.

33 cm to 54.6 cm

12 in. to 20 ¼ in.

30.5 cm to 51.4 cm

9 in. to 21 in.

22.9 cm to 53.3 cm

6 in. to 14 in.

15.2 cm to 35.6 cm

60°, 70°, 80°, 90°

85° to 110°

0°, 3°, 6°

1 in. to 4 in.

2.5 cm to 10.2 cm

20 ¾ in. min – 33 ½ in. max.

52.7 cm min – 85.1 cm max.
