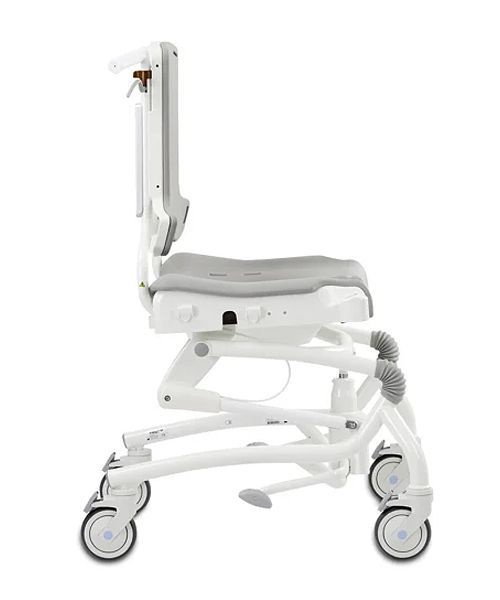

The Heron is a state of the art toilet and bathing chair.

The simple design and clean appearance features multiple functionalities that improve both the user and caregiver experience. It sets new standards for users with special needs for positioning. The seat is ergonomically correct, meaning it can be tilted and the back reclined without any disadvantage for the user. Clever design means that during recline, the anatomical pivot point at the axis of the hips is maintained. This provides the user more comfort when seated.

The Heron can be used freestanding with a pan, directly over the toilet or as a bathing chair in the shower. The smooth height, tilt and recline functions ensure optimum working conditions for the carer. To maintain safety, the Heron is equipped with four lockable casters.

Washable at 85°C in a washing machine designed for medical devices. Remember to remove all accessories, unplug all cables and make sure to dismount the control box, battery and remote control before machine washing.

REQUEST PRODUCT INFO

Heron Brochure

Heron User Manual

Features

Hydraulic or power version

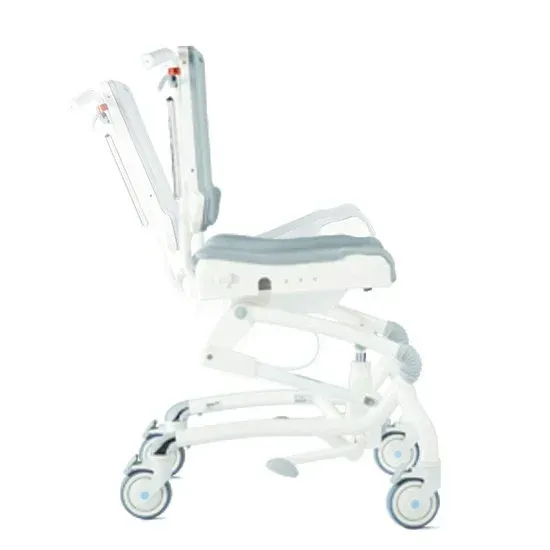

The Heron is available as a hydraulic or power version. Both contain the same features of tilt-in-space and back recline, but for extra ease and comfort for the carer, we recommend using the power version.
Button

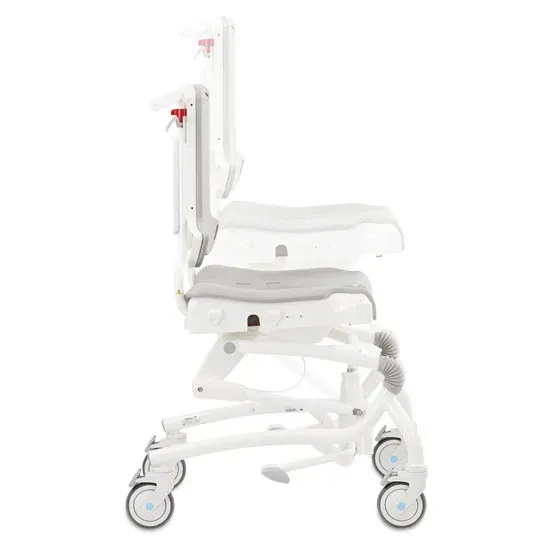

One of the great features of the Heron is the hydraulic or powered height adjustment which allow you to adjust the chair into the correct position and reduce the time spent in a twisted or awkward position.
Button
Perfect working conditions

One of the great features of the Heron is the hydraulic or powered height adjustment which allow you to adjust the chair into the correct position and reduce the time spent in a twisted or awkward position.
Button
Comfortable seating

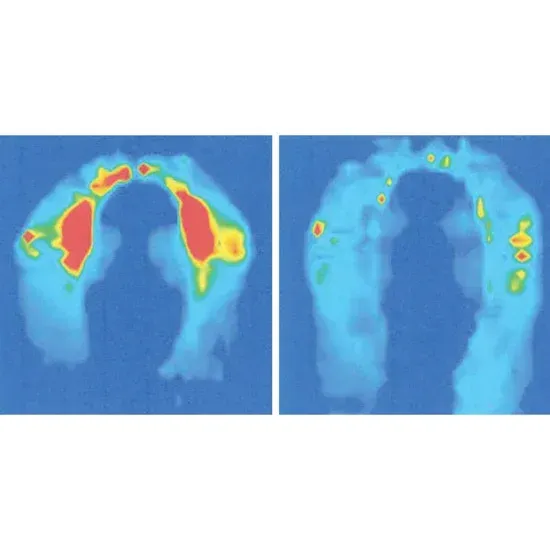

Pressure mapping has been used in the design of Heron to minimise pressure and improve comfort for users even when the seat is used for extended periods of time.
Button

Options

Different possibilities

Over the toilet
Button
Reclined over the bath tub
Button

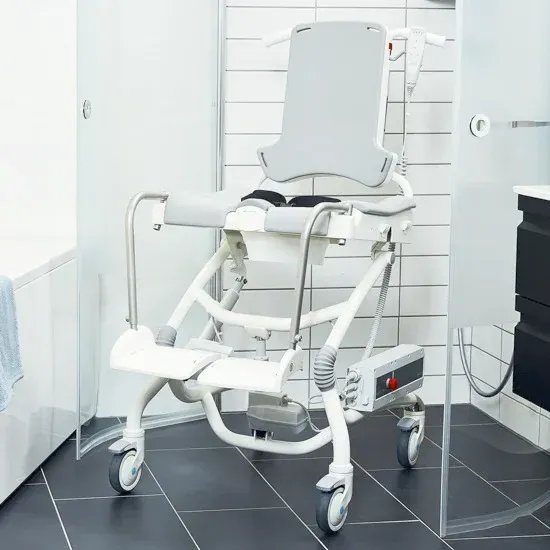

In the shower
Button

Back recline adjustment

Use the easily accessible handle to recline the back.

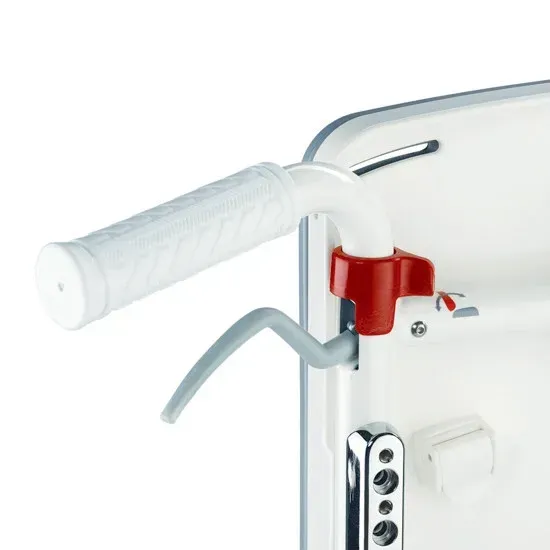

Handle for back recline adjustment
Button

Seat angle adjustment

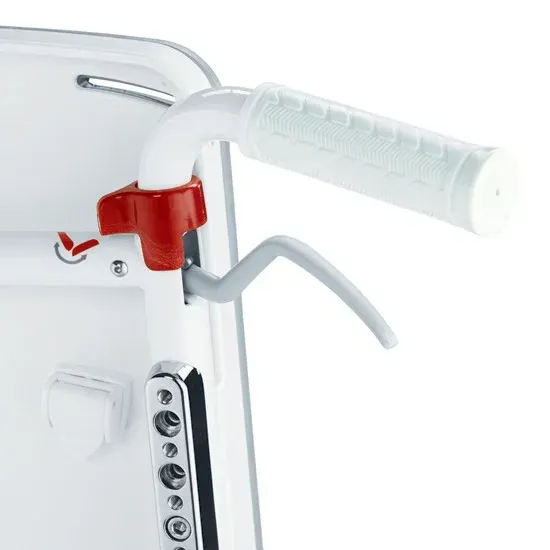

Handle for seat angle adjustment for hydraulic version
Button

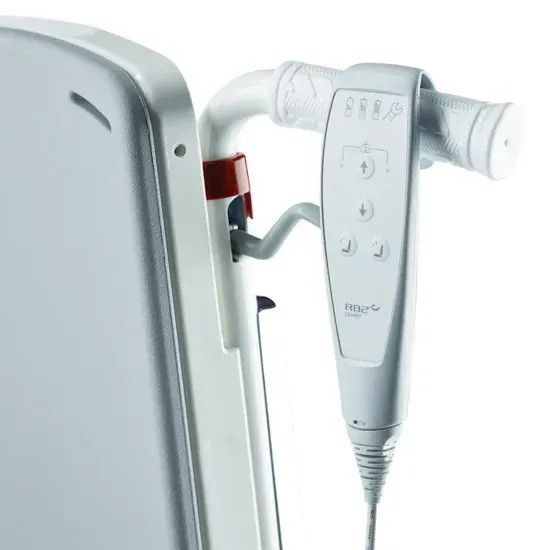

Remote for seat angle adjustment for power version
Button

Height adjustment

Foot pedal for height adjustment for hydraulic version
Button
Remote for height adjustment for power version
Button

Accessories

Fixed side support

For additional support and positioning.
Button

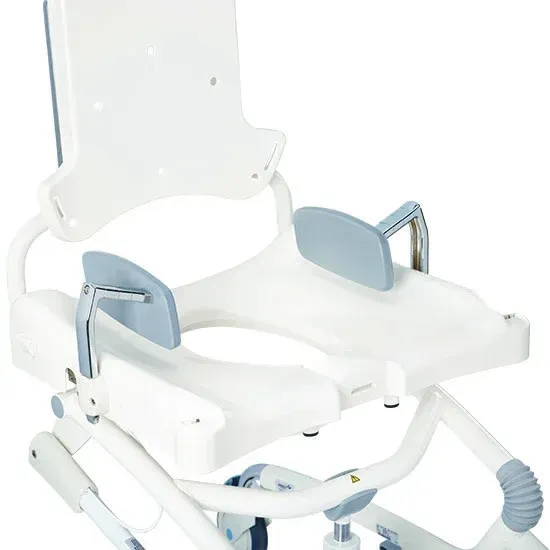

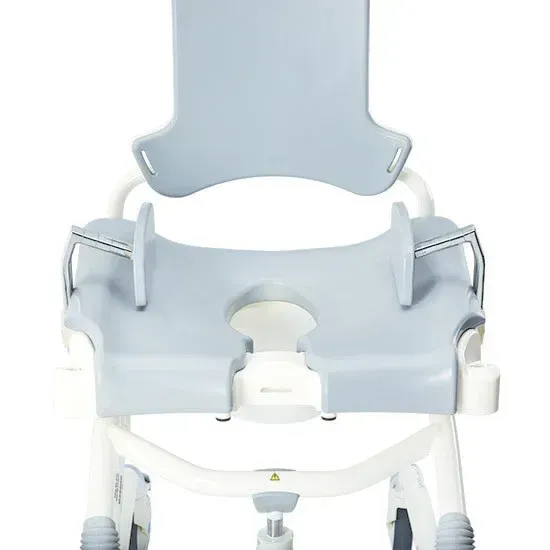

Hip supports

The Heron hip support kit includes a selection of spacer blocks and bolts making it possible to provide hip support and reduce the seat width to a 35 – 49 cm range in 1 cm increments.
Button

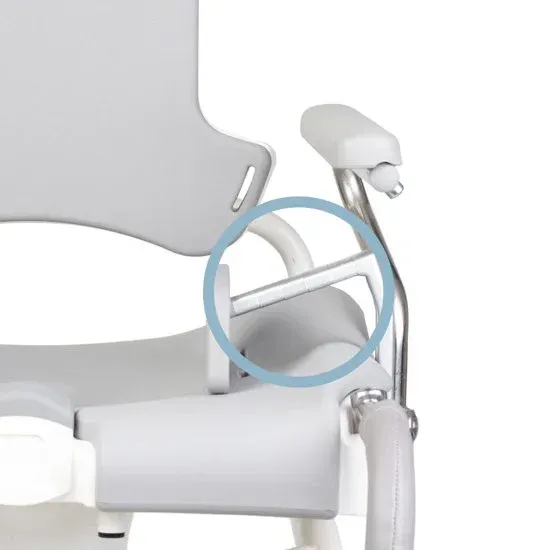

Hip support spacer blocks

An add-on to the existing hip support. An extra kit with two 1 cm and two 2 cm blocks plus corresponding bolts. These can be added to make the seat as narrow as 29 cm.
Button

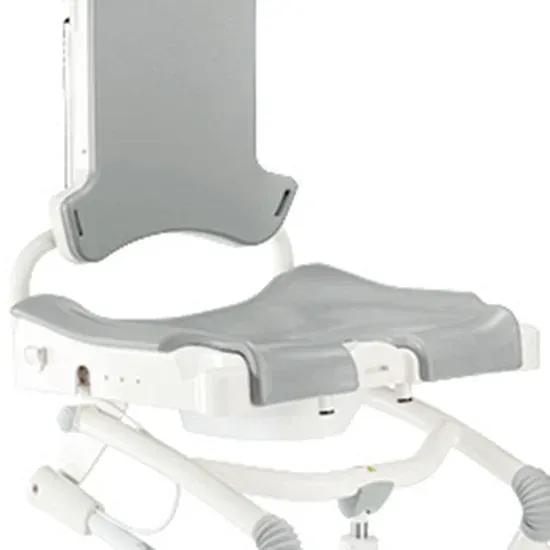

PU inlay

Provides easy to clean padded seating surface for improved comfort.
Button

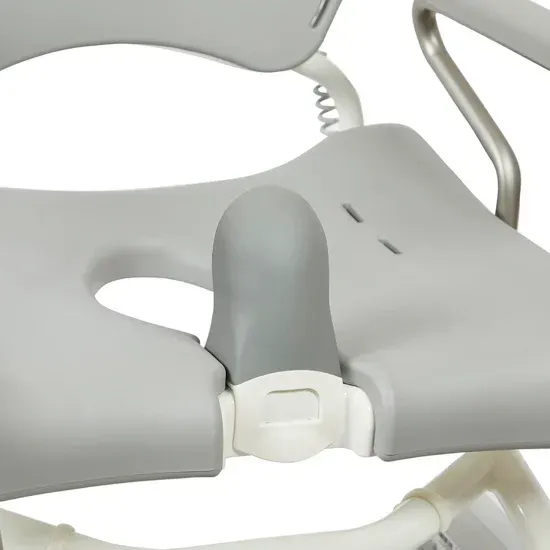

Splash guard

Ideal for maintaining alignment of the legs or managing adduction and avoid splashing outside the toilet bowl or commode pan.
Button

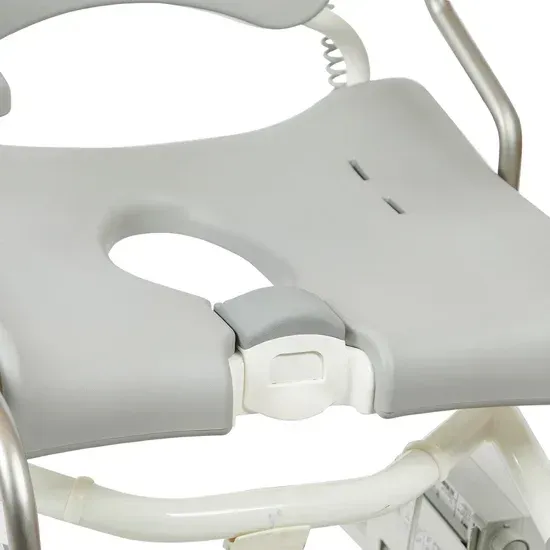

Splash guard, low

Provides easy access to the seat for users or situation where a high splash guard is not warranted.
Button

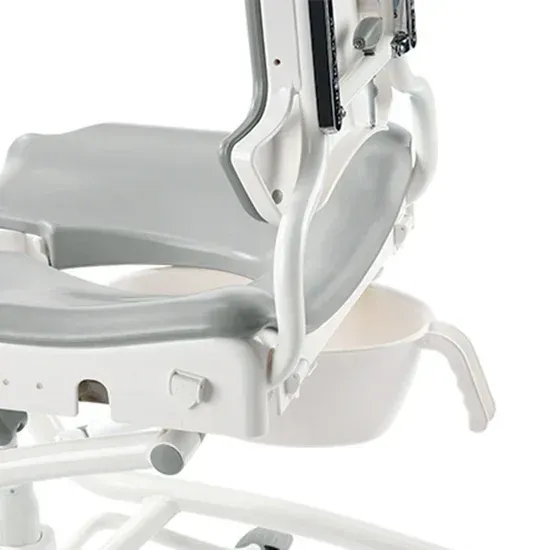

Commode pan

A commode pan helps to create a flexible and convenient toileting solution.
Button

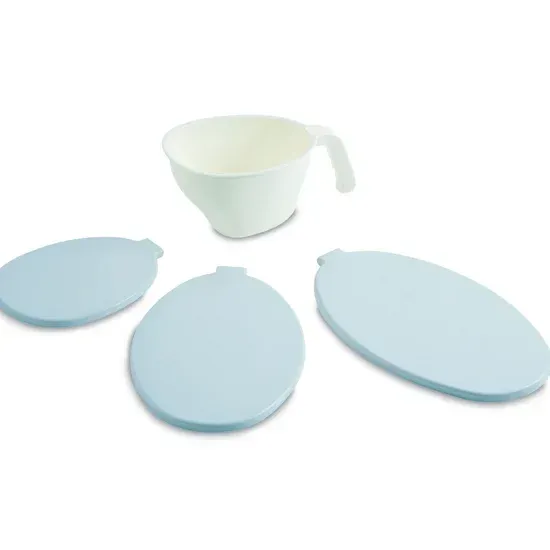

Lid for commode pan

The lid is used to cover the content of the commode pan. It retains odors and decrease the risk of spillage.
Button

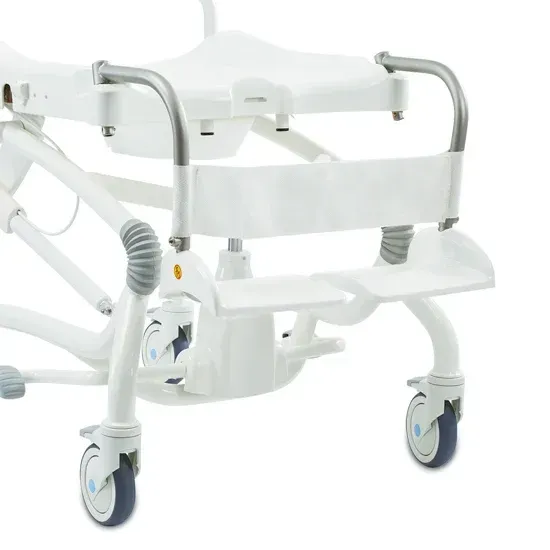

Calf support

Support for the lower legs
Button

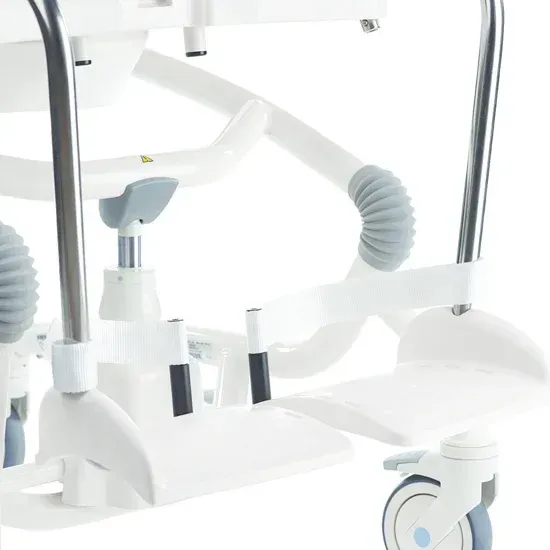

Heel stops

For correct positioning of the feet
Button

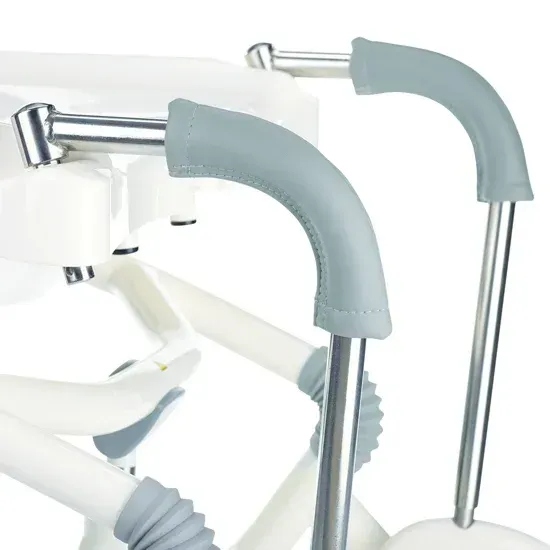

Padding for foot supports

Knee protection for users sitting in abduction. Used for foot supports.
Button

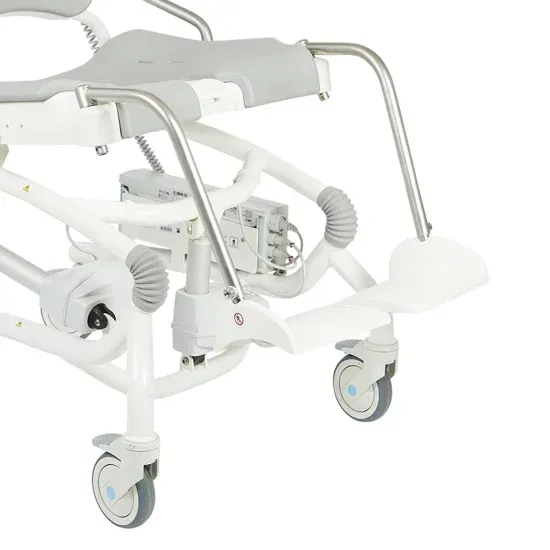

Foot supports, open knee angle

For leg positioning
Button

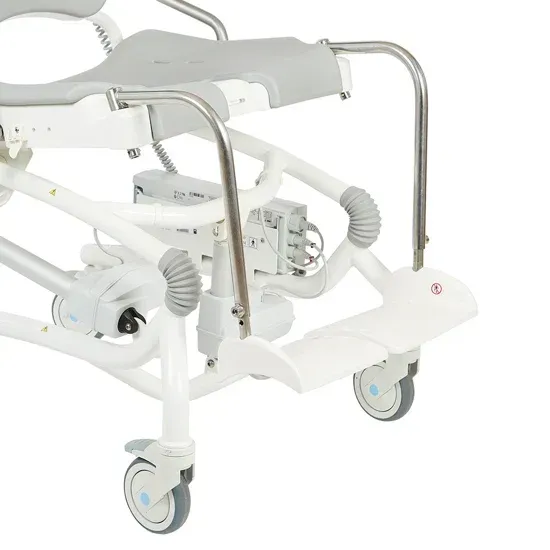

Foot supports, right-angled knee

For leg positioning
Button

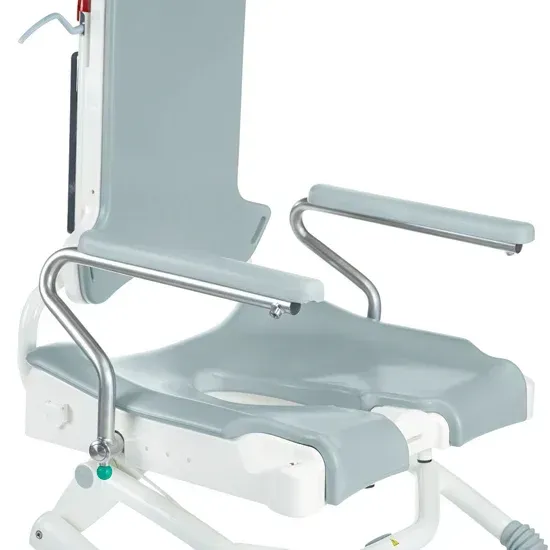

Arm rests, swing-away

Provides arm support. They can swing-away during transfers.
Button

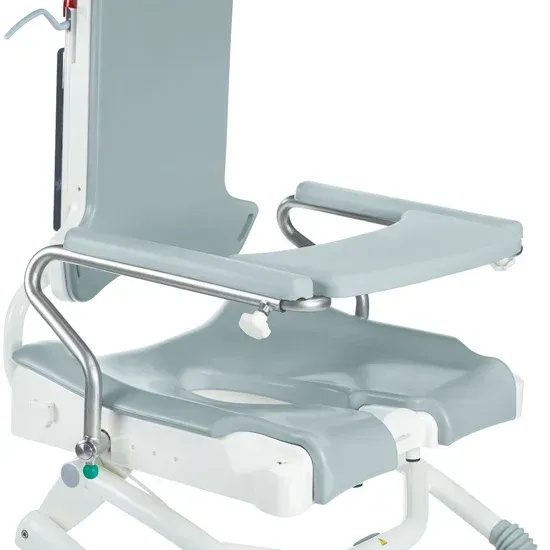

Tray

A tray may be used to support a more natural toileting position for a user with reduced upper trunk or head control.
Button
Shoulder supports

Provide a supporting surface for shoulders and trunk.
Button

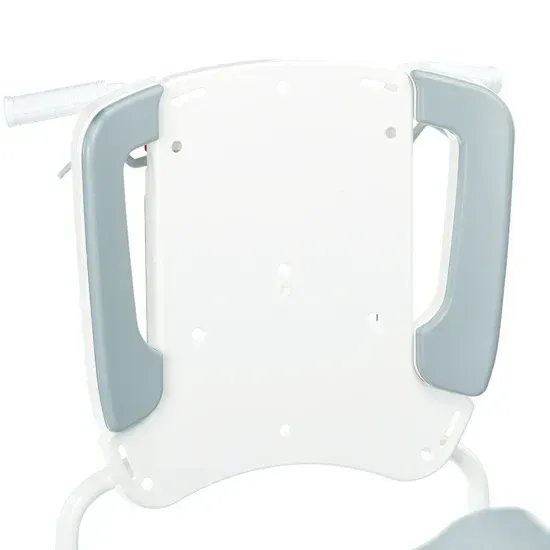

PU inlay for shoulder supports

Provides easy to clean padded surface for improved comfort.
Button

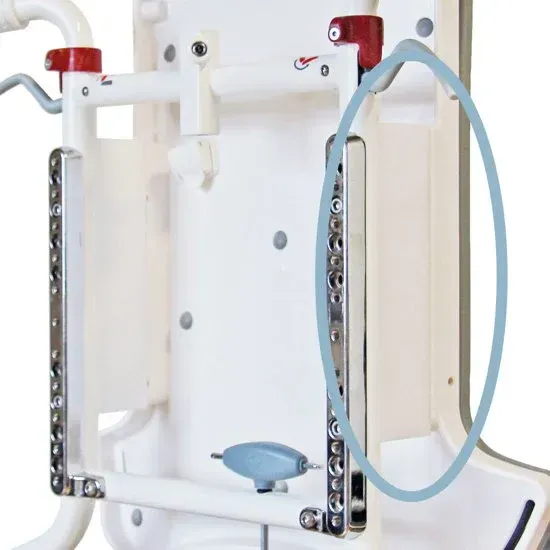

Seat depth reduction

Reduces the seat depth by 5 cm
Button

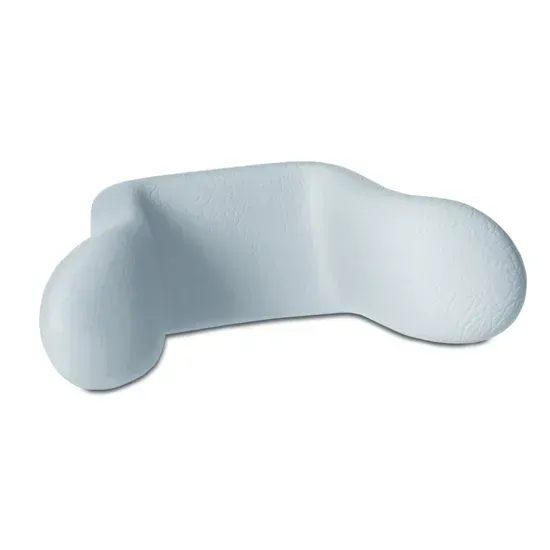

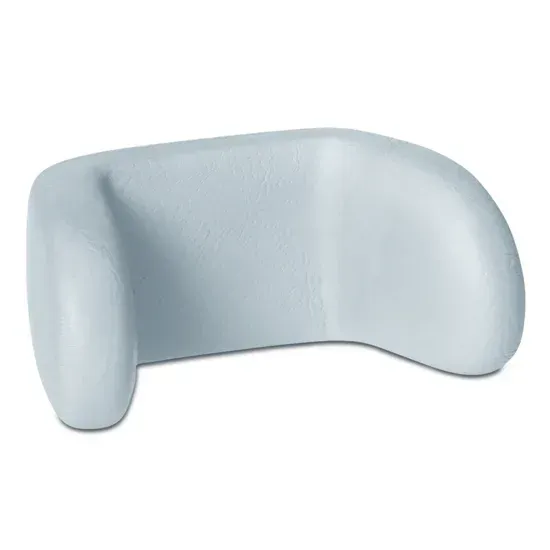

Head support no. 1.

Narrow head support with deep sides. Well suited for small users that need support sideways.
Button

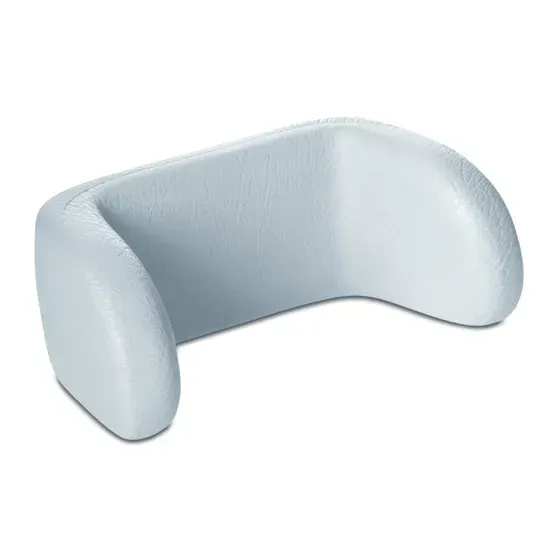

Head support no. 2

Wider head support with deep sides. Well suited for users that need lateral support.
Button

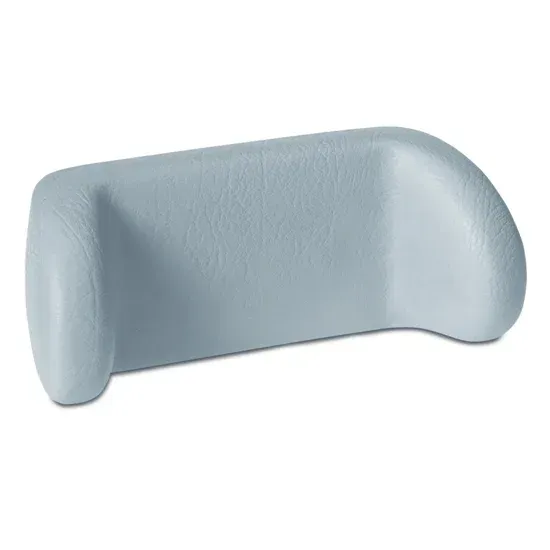

Head support no. 4

Wide head support with small sides for users with better head control. Especially used for neck support.
Button
Head support no. 3

Narrow head support with big sloping sides. Well suited for users who need comprehensive head support.
Button

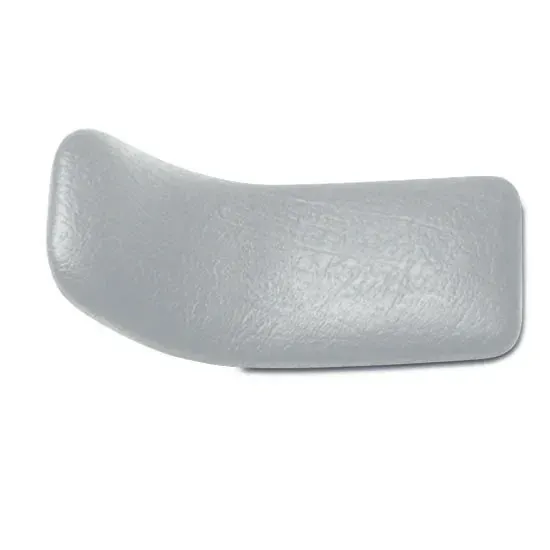

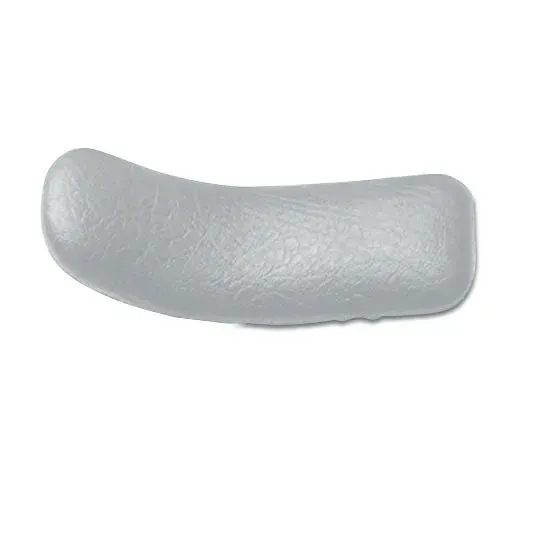

Curved cushion no.1

The curved cushions are used when sideways and forward support is needed.
Button

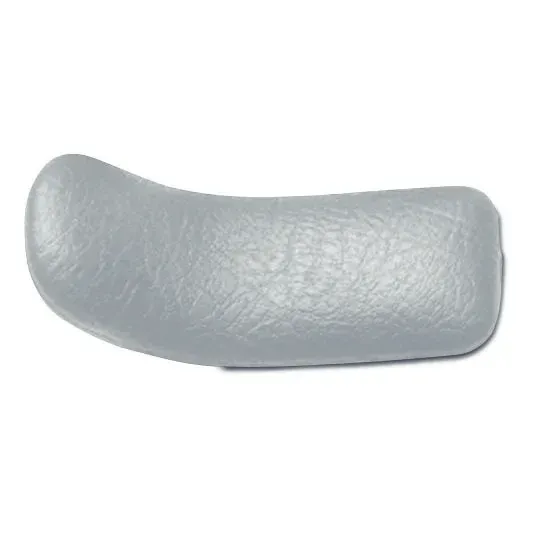

Curved cushion no.2

The curved cushions are used when sideways and forward support is needed.
Button
Curved cushion no.3

The curved cushions are used when sideways and forward support is needed.
Button

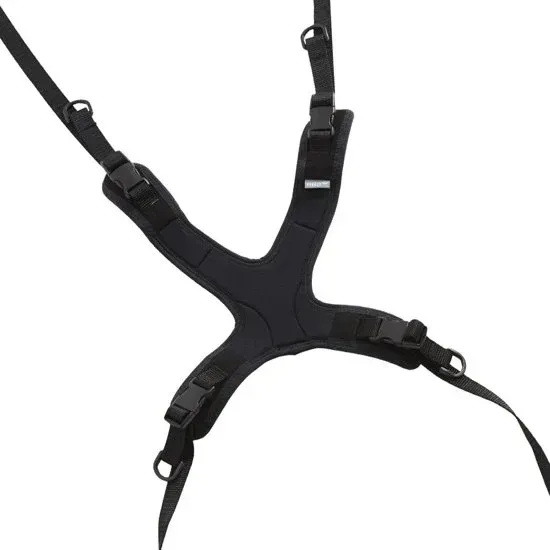

Torso vest

Supports the upper body and provides a firm and flexible hold against the chest.
Button

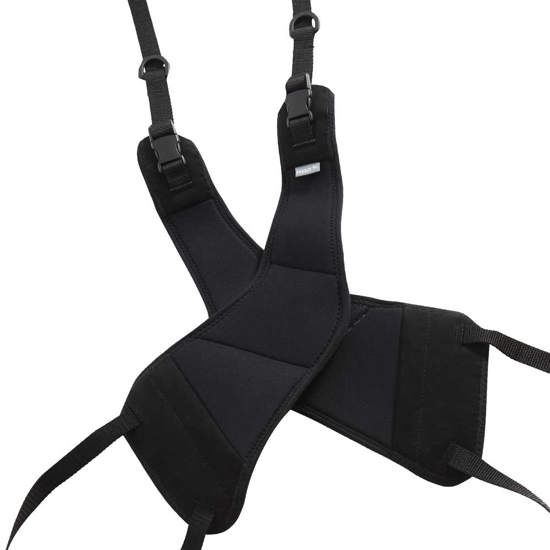

Cross vest

Supports the upper body and provides a firm and flexible hold against the chest and the sides of the trunk.
Button

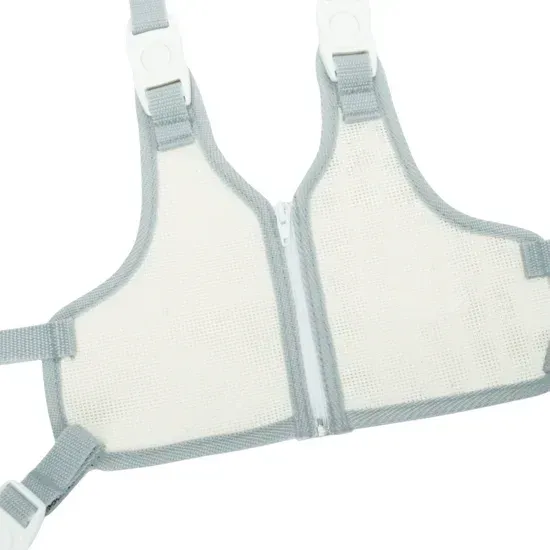

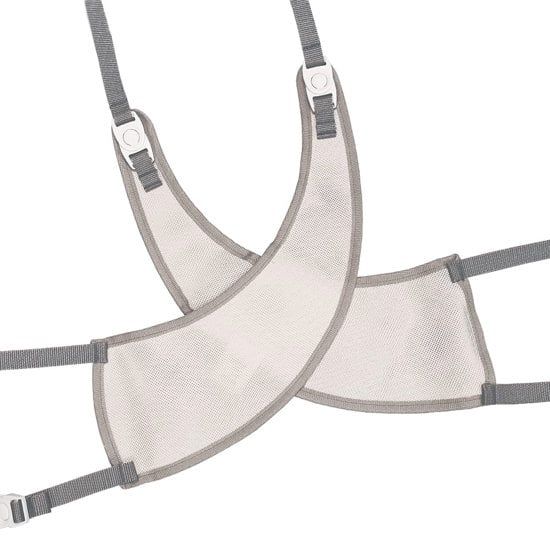

Net cross vest

Supports the upper body and provides a firm and flexible hold against the chest and the sides of the trunk. Suitable for bath and toileting situations
Button
Net vest

Supports the upper body and provides a firm and flexible hold against the chest and the sides of the trunk. Suitable for bath and toileting situations
Button

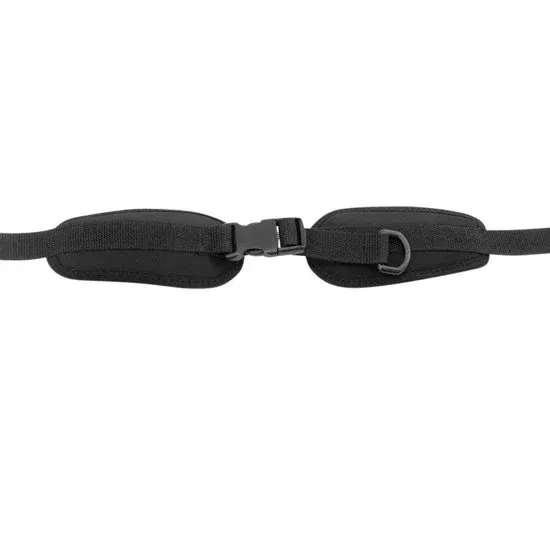

Neoprene hip belt

Supports the pelvis and provides a pull down and/or back.
Button
Y-hip belt

Supports the pelvis and provides a pull down and back.
Button

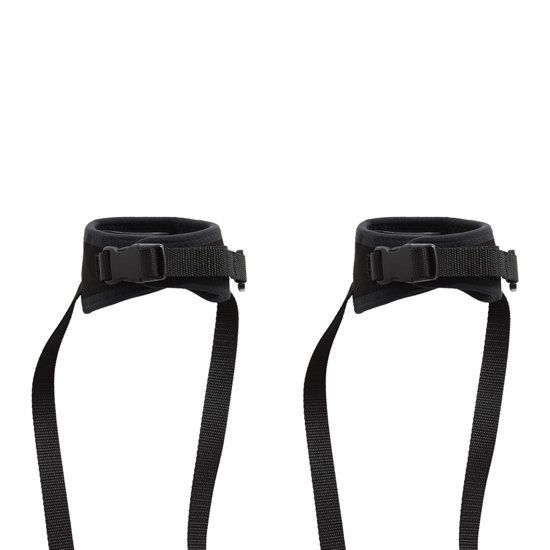

Ankle straps

Helps limit movement of the feet and legs and postion the feet.
Button

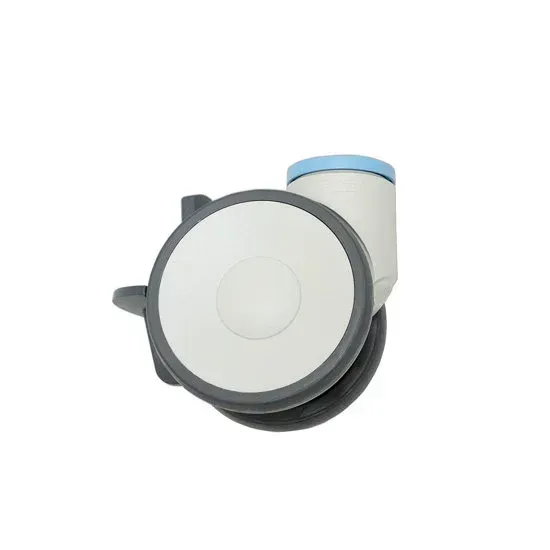

100 mm castors

A kit of four 100 mm castors giving the possibility of reducing the floor to seat height by 40 mm.

Button

VARIANTS

Hydraulic

Item number: 880505-01
Back width, top of backrest (mm): 290
Backrest angle (°): (-10)-30
Backrest height (mm): 555-625
Effective seat depth (mm): 450
Effective seat width (mm): 550
Length (mm): 710
Lower leg length (mm): 400-560
Mass device (kg): 28
Maximum rated load (kg): 130
Maximum user mass (kg): 100
Minimum turning diameter (mm): 900
Overall height (mm): 1080-1350
Overall width (mm): 6700
Seat plane angle (°): (-5)-25
Seat surface height at front edge (mm): 510-780
Static stability downhill (°): 10
Static stability sideways (°): 5
Static stability uphill (°): 10

Power

IItem number: 880505-01EL
Back width, top of backrest (mm): 290
Backrest angle (°): (-10)-30
Backrest height (mm): 555-625
Effective seat depth (mm): 450
Effective seat width (mm): 550
Length (mm): 710
Lower leg length (mm): 400-560
Mass device (kg): 31
Maximum rated load (kg): 163
Maximum user mass (kg): 130
Minimum turning diameter (mm): 900
Overall height (mm): 1130-1350
Overall width (mm): 6700
Seat plane angle (°): (-5)-25
Seat surface height at front edge (mm): 510-780
Static stability downhill (°): 10
Static stability sideways (°): 5
Static stability uphill (°): 10
