M1

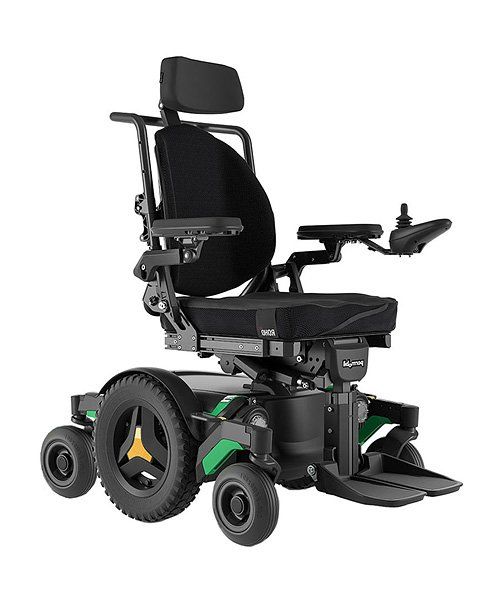

M1 Power Wheelchair

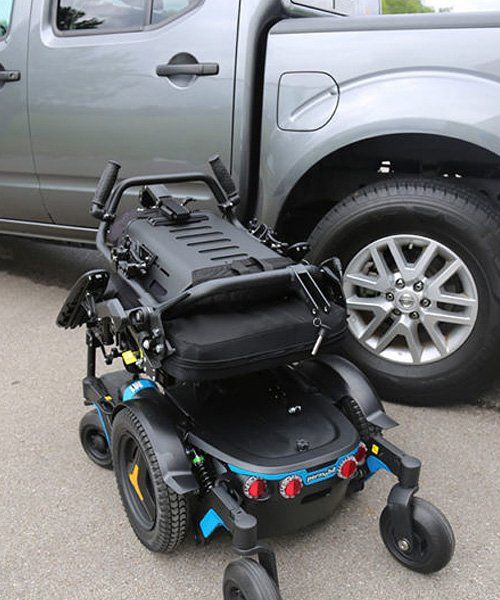

Transport friendly features including standard crash tested transport brackets, optional EZ fold backrest and a lower overall chair weight of 319 lbs with batteries, expands available travel options.

REQUEST PRODUCT INFO

M1 Brochure

Features

  • Adaptable Seating & Positioning – Open and sleek design with 1” diameter rigid tubular backrest frame allows mounting of virtually any seating and positioning solution. You can now select from a variety of positioning options from a simple curved back to custom molded seating – all with minimum loss of seat depth.
  • Durability You Can Feel – You can feel confident that your chair can withstand the rigors of an active lifestyle. The M1 features locking, flip back arm rests with two points of contact for added security. Center mount and swing-away legrest options designed for durability and ease of use.
  • Proven Technology – Reliability comes standard with proven drive unit technology also found in the M3 and F3 power series. The unique suspension geometry and linear spring design provides a more stable chassis while the vibration dampening FlexLink™ ensures a smooth ride over a variety of terrain.

Specifications

  • Maximum user weight: 300 lbs
  • Maximum speed: 5 mph
  • Range: 16 miles
  • Base width: 24″
  • Base length: 35.5″
  • Minimum turning radius: 20.5″
  • Ground clearance: 3″
  • Recommended battery type: Group 34
  • Weight including batteries: 319 lbs
  • Drive electronics: VR2 PM 90 (Advanced) or PM 70
  • Seat-to-floor height: 16”, 17”, 18”

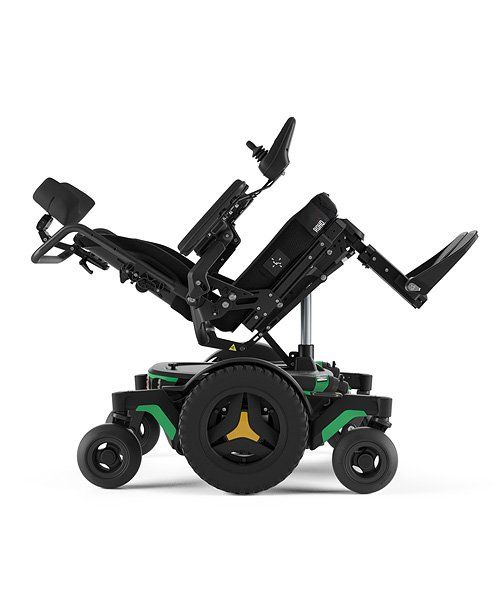

  • Tilt options: 0° – 50°

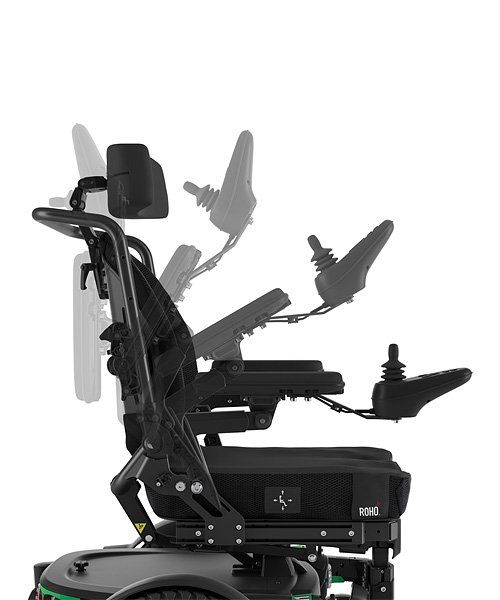

  • Recline options: 85° – 110° (manual)
  • Backrest height: 18” – 29” (by 1” incr.)
  • Seat depth: 14″ – 22″ (by 1” incr.)
  • Seat width: 14″ – 22″ (by 2” incr.)
  • Armpad options: 2″x10″, 2″x14”, 4″x10”, 4″x13″
