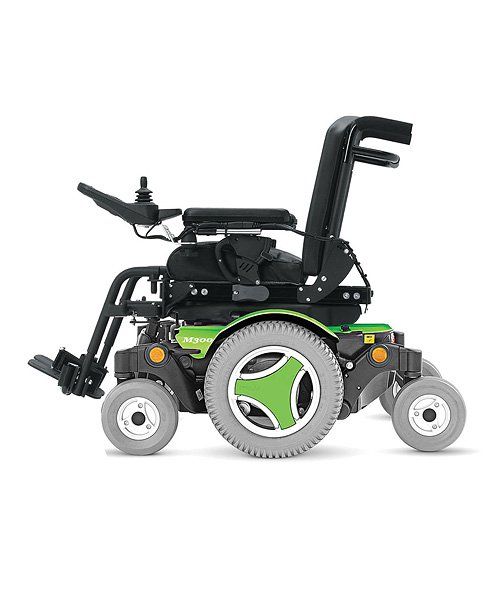

M300 PS Jr.

Adventure awaits…indoors or out!


The Permobil M300 PS Jr. combines the capabilities of our M300 base with the versatility of the PS Jr. seating system for the perfect pediatric chair. With a tight turning radius, you’ll be able to maneuver through your home with ease, while our innovative CATLink (Climbing and Traction Linkage) System increases capability to get over obstacles and helps prevent high-centering. The expandable seat pan allows for a custom fit, so the chair can grow with the child. Plus, the PS Jr. is designed with convenient flip-back armrests, making transfers a breeze. And thanks to the UniTrack, standard on the PS Jr., you can have a variety of adjustments and accessories for added comfort.

REQUEST PRODUCT INFO

M300 User manual

City skyline

Climbing and Traction Link System (Catlink)

Specifications

Maximum User Weight: 165 lbs (75 kg)

Maximum Speed Options: 6 MPH , 7.5 MPH (10 km/h, 12 km/h)

Driving Range (1): 13 mi (21 km)

Base Width: 24” (615 mm)

Base Length: 36.5” (925 mm)

Minimum Turning Radius: 20” (510 mm)

Ground Clearance: 3” (75 mm)

Optional Seat Elevator: 8” (200 mm)

Battery Type: Group 24, Group 34

Drive Electronics: 120A R-net

Maximum Slope (2): 9° Up / 9° Down

Seat to Floor Height:

  • (ELEVATOR) 17” (430 mm)
  • (SEAT TUBE) 17”, 17.75”, 18.5” (430, 450, 470 mm)

Tilt Options:

  • (POWER) 0° — 45°
  • (MANUAL) 0° — 45°

Recline Options:

  • (POWER) No Power Option
  • (MANUAL) 85° — 125°

Legrest Elevation:

  • (FIXED) 70°
  • (CENTER MOUNT) 90° — 150°

Armrest Pad Lengths: 10”, 13” (260, 335 mm)

Seat Widths: 11” — 16” (280 — 410 mm)

Seat Depths: 10” — 18” (260 — 460 mm)

Backrest Heights: 16.5” — 22.5” (420 — 570 mm)
