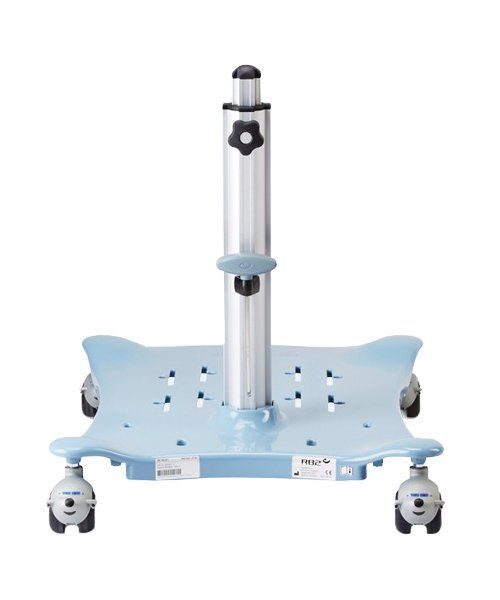

Meerkat Standing Frame

Meerkat Standing Frame

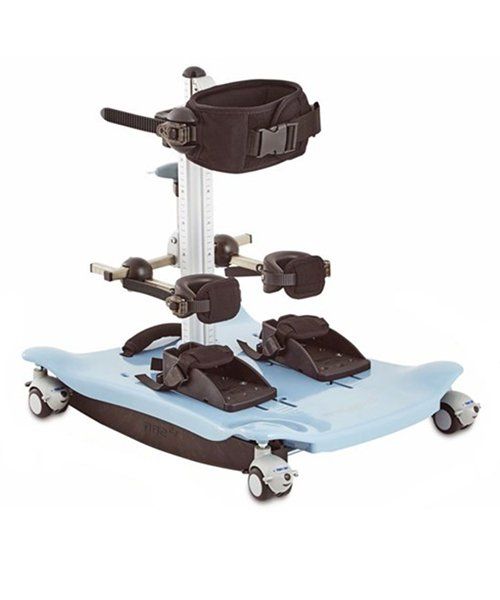

The Meerkat is a dynamic standing frame designed to support an upright standing position for children with varying needs.

As a standing aid, the Meerkat features a centre column that can be positioned either in front of or behind the child, providing ample space for movement and exploration. One of the key benefits of the Meerkat is its modular design, allowing for quick and easy adjustments to meet the individual needs of each user. The Meerkat's modular accessories can be easily clicked on and off, providing optimal flexibility and adaptability.

Additionally, the Meerkat is specifically designed to facilitate learning through movement. A rocker can be easily mounted under the base plate and positioning is supported while encouraging movement and exploration.

Available in three sizes, the Meerkat is suitable for children ranging from approximately 700 mm to 1800 mm in height. With a maximum user weight capacity of 90 kg, the Meerkat is a suitable and durable standing frame suitable for a range of users.

In summary, the R82 Meerkat is a versatile and flexible standing frame suitable for children with varying needs. Its modular design, combined with its ability to facilitate movement and learning, make it a valuable addition to any therapy or home environment.

REQUEST PRODUCT INFO

Meerkat User Manual

City skyline

Photo By: John Doe
Button
Birthday Sparks

Photo By: John Doe
Button
Fashion Magazine

Photo By: John Doe
Button

Features

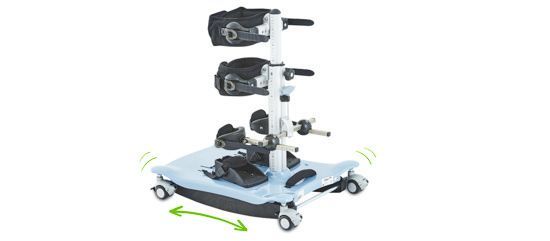

Dynamic standing

The child’s freedom of movement is encouraged with minimal support, pure product design and the innovative rocker.
Button

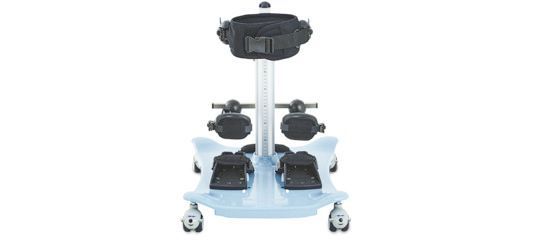

Simple and intuitive

All supports are intuitively easy to use and adjust, making life easier for parents and carers. The low entrance height ensures easy transfer.
Button

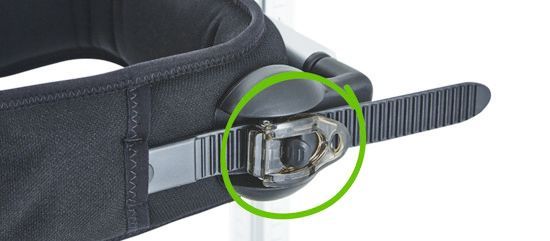

Easy adjustments

The ratchet system offers quick and secure adjustment in small increments and without any tools required.
Button

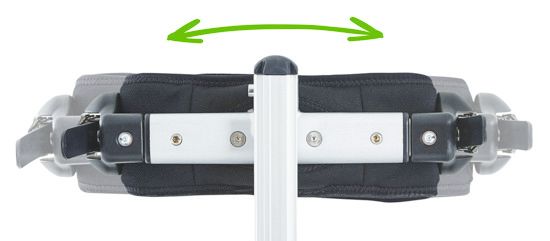

Growth adjustable accessories

Growth opportunity and increased reuse possibilities.
Button

Options

Base plate colour

Available in 3 colours.

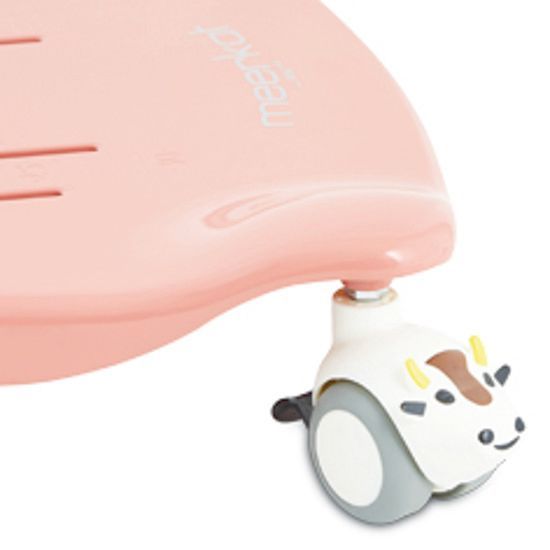

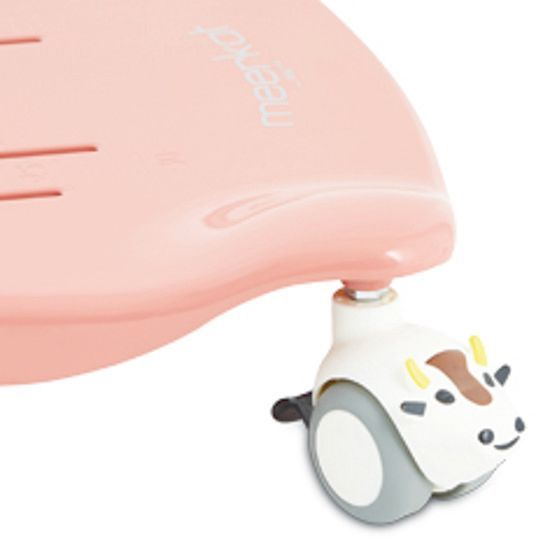

Strawberry ice base plate with cow castors
Button

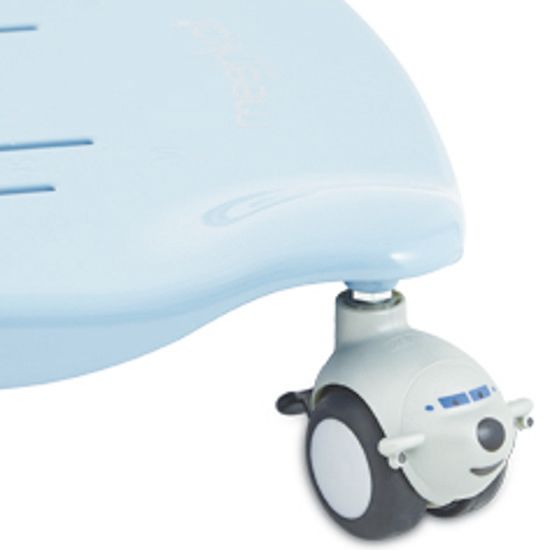

Pastel blue base plate with airplane castors
Button

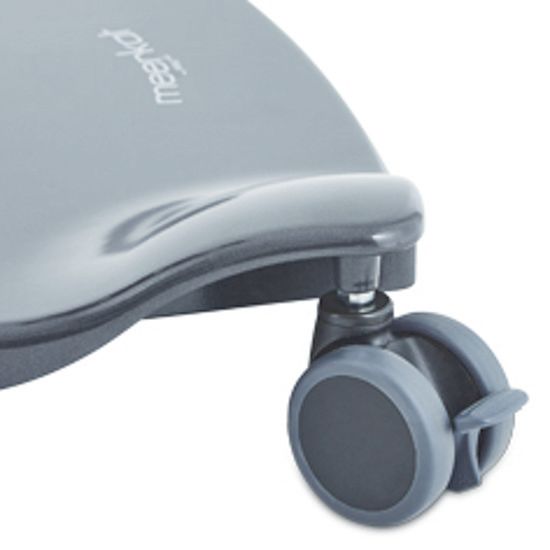

Anthracite base plate with standard castors
Button

Back recline adjustment

Use the easily accessible handle to recline the back.

Built in growth
Button

Accessories

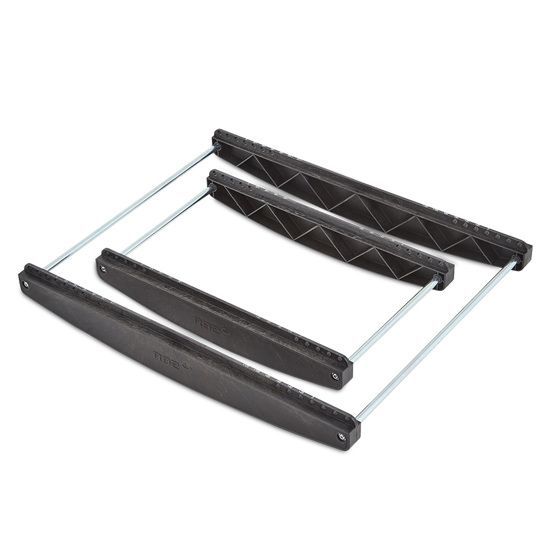

Rocker

It enables the child to move forward/backwards in a rocking motion. Easy to mount under the base plate – also with a child standing in the frame.
Button

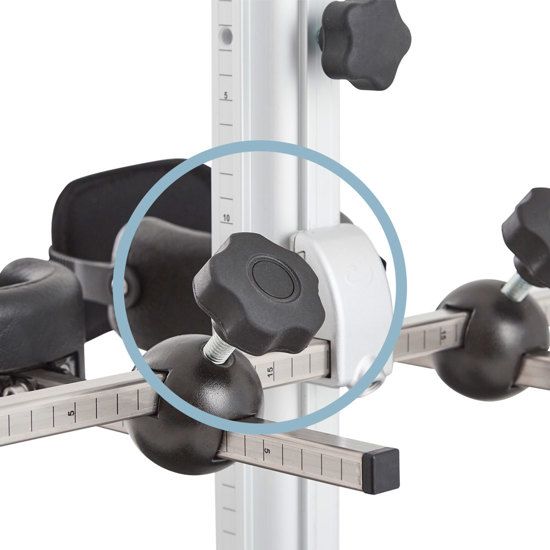

Daily adjustment kit

An option if you prefer handles instead of screws = easy tool-free adjustment. Applicable on knee supports. Two handles in a bag.
Button

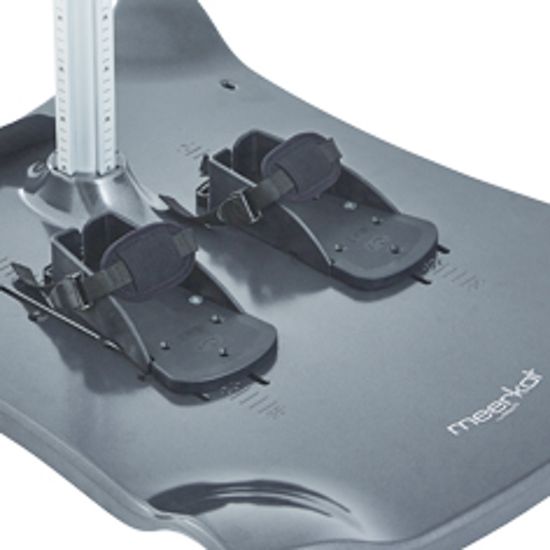

Sandals

Can be fixed or adjusted using an allen key at the back of the sandal – also with a child in the frame.
Button

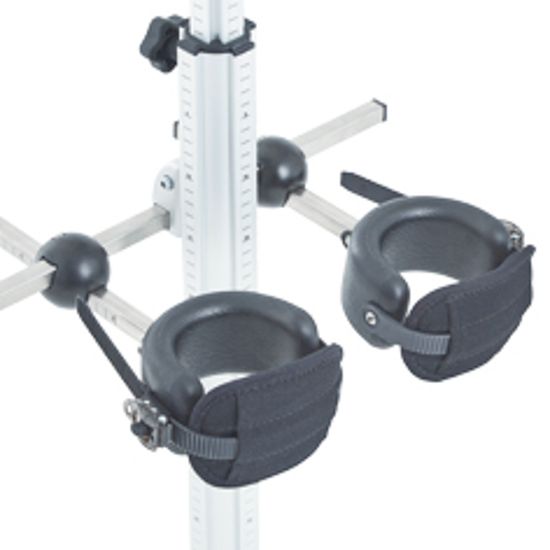

Knee supports

Adjustable in width, height and depth. Easy adjustments with the ratchet system. Available in 3 sizes
Button

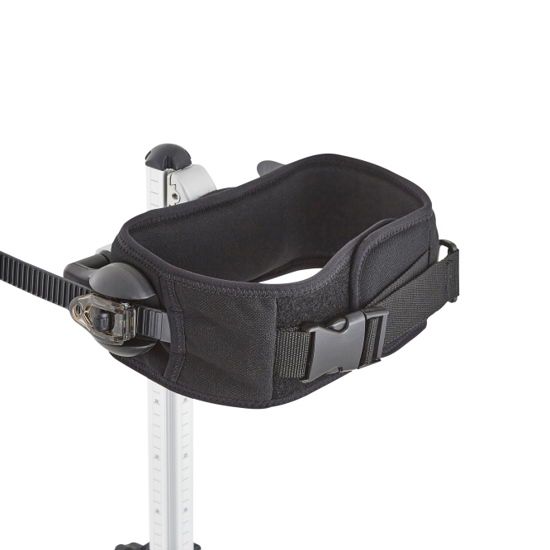

Pelvic support

With a padded strap the pelvic support gives a firm and soft support of the pelvic. Unattended opening of the support is secured with a buckle in front, and with a ratchet system it’s easy to adjust and work with having the user standing in the Meerkat. It is available in 5 sizes.
Button

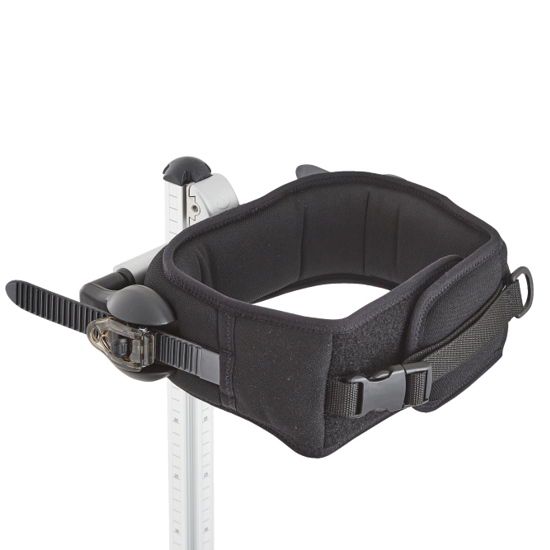

Chest support

With a padded strap the chest support gives sturdy support of the chest area. Unattended opening of the support is secured with a buckle in front, and with a ratchet system. It’s easy to adjust and work with having the user standing in the Meerkat. It is available in 5 sizes.
Button

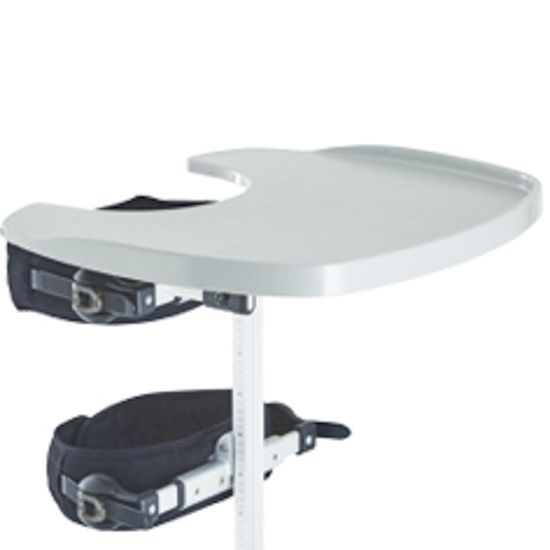

Tray (only for anterior use)

Can only be used for anterior standing.
Button

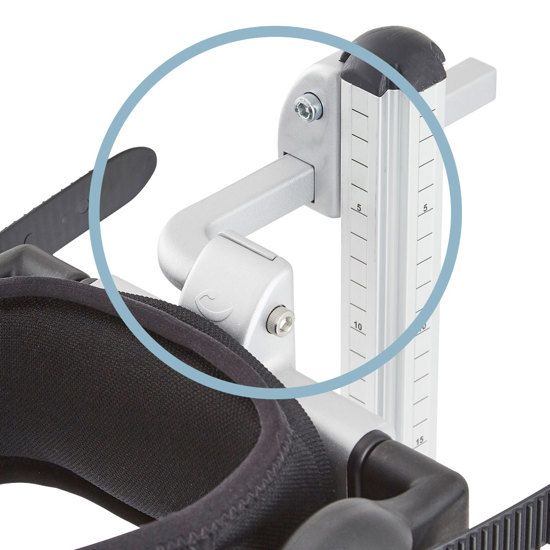

Displacement kit

Option to adjust the alignment between pelvic and chest support on the R82 Meerkat.
Button

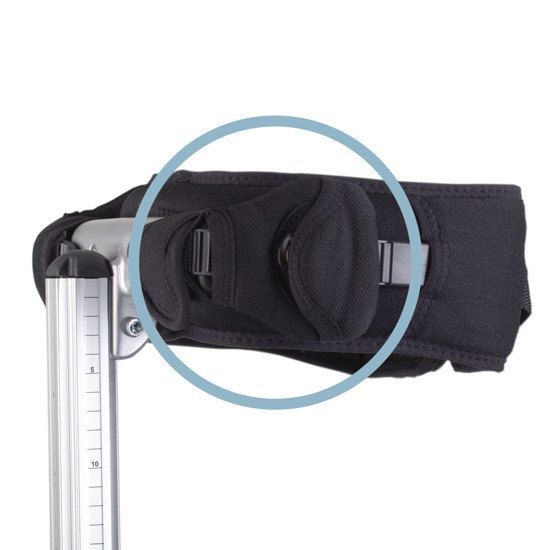

Padding for ratchet straps

Padding for ratchet straps on Meerkat chest and pelvis support.
Button

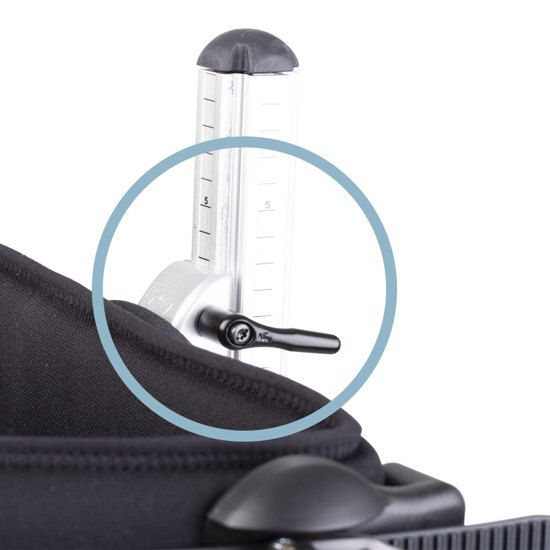

Daily height adjustment kit

An Italian handle that can be used for easy adjustment of the knee, chest and pelvis support.
Button

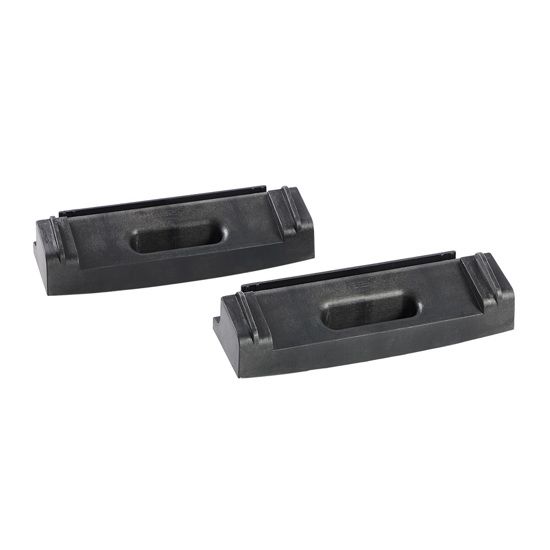

Sideways rocker

The sideways rocker allows for weight shifting from one leg to the other by rocking to the sides, the weight distribution between the legs will shift towards the side the child rocks to.
Button

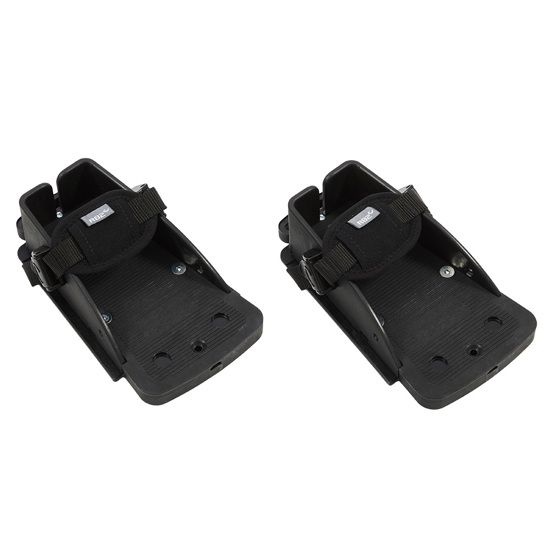

Sandals

Width adjustable sandals for the R82 Meerkat compatible with Pondus plates.
Button

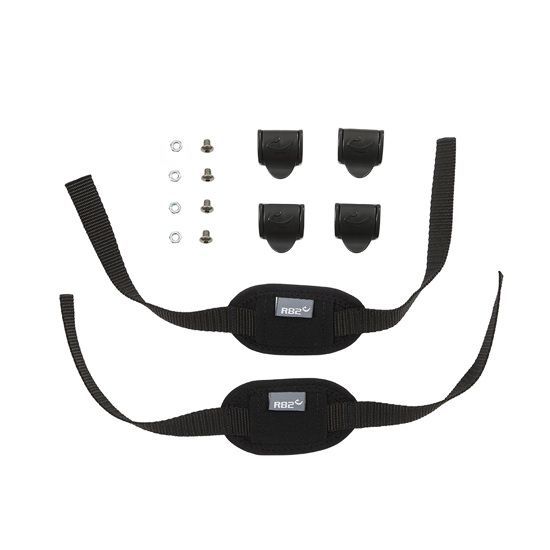

Kit with additional straps and fixlocks
Button

VARIANTS SPECIFICATIONS

Size 1

Item number: 870011-x
Length (mm): 595
Mass device (kg): 9
Maximum rated load (kg): 31
Maximum user mass (kg): 20
Overall height (mm): 375-750
Overall length (mm): 640
Overall width (mm): 525
Static stability downhill (°): 10
Static stability sideways (°): 10
Static stability uphill (°): 10
User height: floor to axil (mm): 400-750
Width (mm): 445

Size 2

Item number: 870022
Length (mm): 800
Mass device (kg): 15.25
Maximum rated load (kg): 82.25
Maximum user mass (kg): 6590
Overall height (mm): 500-1000
Overall length (mm): 860
Overall width (mm): 780
Static stability downhill (°): 10
Static stability sideways (°): 10
Static stability uphill (°): 10
User height: floor to axil (mm): 720-1000
Width (mm): 670

Size 3

Item number: 870023
Length (mm): 800
Mass device (kg): 15.75
Maximum rated load (kg): 107.75
Maximum user mass (kg): 90
Overall height (mm): 650-1300
Overall length (mm): 860
Overall width (mm): 780
Static stability downhill (°): 10
Static stability sideways (°): 10
Static stability uphill (°): 10
User height: floor to axil (mm): 840-1300
Width (mm): 670

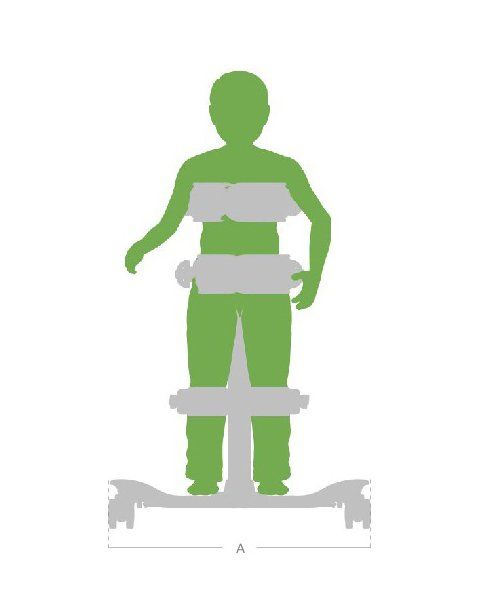

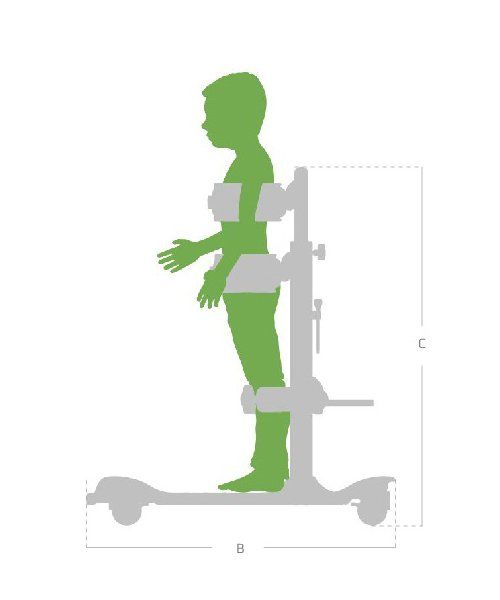

Size 1 (mm)

Effective width (A): 525
Effective lengh (B): 640
Effective height (C): 375-750
Total mass: 9 kg
Max load: 20 kg
Hip circumference: 450-600
Chest cirumference: 450-600
Static stability sideways: 10°
Static stability downhill: 10°
Static stability uphill: 10°

Size 2 (mm)

Effective width (A): 780
Effective lengh (B): 860
Effective height (C): 500-1000
Total mass: 15 1/4 kg
Max load: 65 kg
Hip circumference: 600-740
Chest cirumference: 600-740
Static stability sideways: 10°
Static stability downhill: 10°
Static stability uphill: 10°

Size 3 (mm)

Effective width (A): 780
Effective lengh (B): 860
Effective height (C): 650-1300
Total mass: 15 3/4 kg
Max load: 90 kg
Hip circumference: 700-950
Chest cirumference: 700-950
Static stability sideways: 10°
Static stability downhill: 10°
Static stability uphill: 10°
