Permobil Atlas Hybrid

Permobil Atlas Hybrid

The Atlas is a non-powered, self-adjusting mattress that utilizes equalization technology to provide maximum pressure redistribution for the prevention and treatment of pressure injuries.


Starting at the head, the convoluted high resiliency foam improves client upper body mobility. Next is a cool climate visco gel swirl foam top layer at the torso and middle section for immersion and heat dissipation, followed by a 5-degree sloped foot section made with Serene™ foam to help transfer excess pressure from the heels. Beneath the top layer, interconnected chambers provide pressure redistribution, and there are 4” wide firm borders to ensure a solid transfer edge.


The Atlas is also convertible to a powered air surface that uses Alternating Pressure Therapy (APT) with the addition of the digital pump that is sold separately.


For surfaces sized 48” - 60”, the Domus 4 pump is required to provide the APT.


When the pump is not being used, a valve closure kit is recommended and can be used to adjust the softness/firmness.

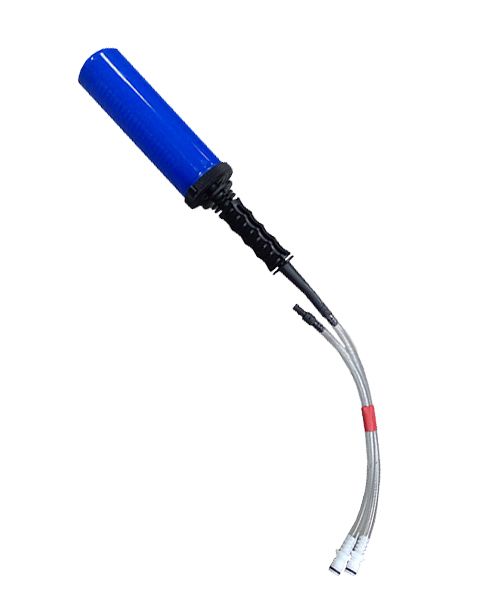

A manual air pump can also be used to set the firmness of the chambers. Both the closure kit and manual pump come included with the Atlas.

REQUEST PRODUCT INFO

Atlas Brochure

Features

Atlas Hybrid Therapeutic Surface features:

  • Suitable for vulnerable clients at risk for pressure injuries
  • Interconnected chambers and valves for pressure redistribution
  • Converts to a powered air surface with APT
  • Sloped foot section helps reduce pressure
  • from heels
  • 4” wide firm borders for safe transfers
  • Startex fluid-resistant, four-way stretch cover

Powered Air Surface with the addition of a digital pump (Sold separately)

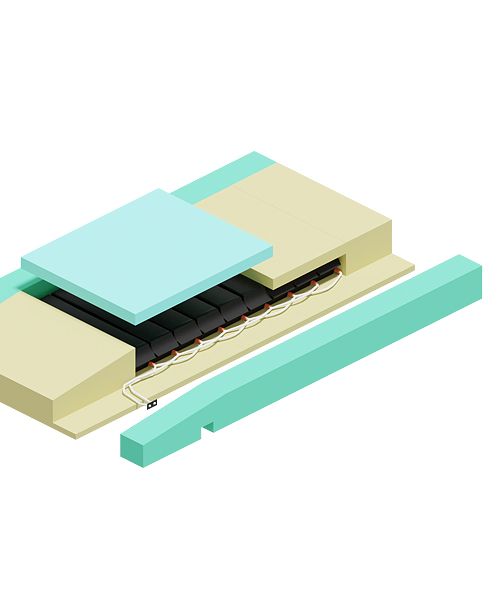

  • The 4” high interconnected chambers offer great pressure redistribution under the 2” high visco gel swirl foam and 1” standard foam top layers
  • These chambers measure 30” wide by 52” long and fit within the cutout starting under the head area, continuing under the full torso, and stopping at the foot section
  • When attached to the pump, you can see the alternating therapy provided by the foam/air chambers
  • Chambers are held in place with a PU fabric and the tubing for the pump runs along the side
  • A valve closure kit can be used to keep the system closed when not attached to the digital pump
  • The entire mattress is encased in a fire barrier sock fabric to meet fire retardant standards, and then a Startex cover to protect the foam from fluids

Specifications

Length: 80” & 84”

Width: 35”, 39”, 42”, 48”, 54” & 60”

Height: 7”

Weight Capacity: 700 lbs
