• 50 degree of tilt
• Lower standard seat-to-floor height
• Easy, unmatched adjustment and durability
• Maintains center of gravity shift
• Available in 12 back shroud colors

Model:

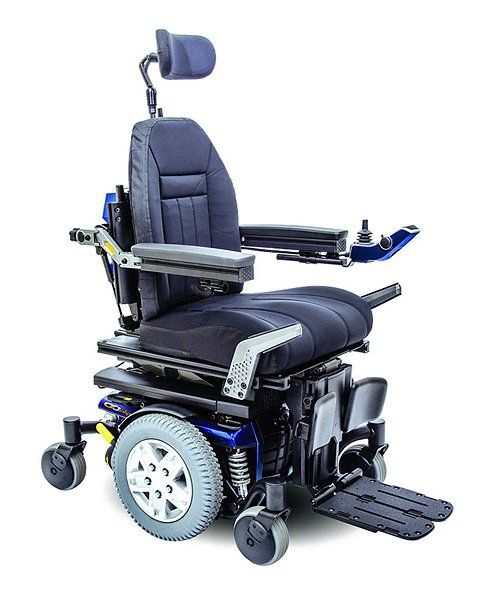

• Q6 Edge 2.0

Drive Wheels:

• 14” Solid
• Optional: 14” Pneumatic

Caster Wheels:

• Front: 6” Solid
• Rear: 6” Solid

Maximum Speed:

• Up to 6 mph

Ground Clearance:

• 2.7” (battery tray)

Turning Radius:

• 20.5”

Overall Length:

• 35.5 without foot riggings

Base Width:

• 24.4”

Seating Sizes:

• TRU-Balance® 3
• Synergy®/Static: W: 10-22” D: 10-22”
• Power Tilt: W: 12-22” D: 12-22”
• Lift & Tilt: W: 16-22” D: 14-22”

Seat-to-Floor Heights:

• TRU-Balance®
• Synergy®/Static®: 16.5-18.5”
• Power Tilt®: 17.5-19.5”
• Lift & Tilt®: 17.5-19.5”

Manual Tilt/Recline:

• Yes

Battery Size:

• NF-22 (2)

Battery Weight:

• 38 lbs.

Available Electronics:

• 75A Q-Logic 2 NE
• 75A Q-Logic 2 NE+
• 100A Q-Logic 2 EX

Battery Charger:

• 8A Off-board

Motor Packages:

• 2-pole Mid-Wheel 6®

Weight Capacity:

• 300 lbs.

Base Weight:

• 138.6 lbs.

Medicare Code Coverage:

• Group 3:
• Standard (K0848/K0849)
• Single Power (K0856)
• Multiple Power (K0861)
