Quantum Q4

Quantum Q4

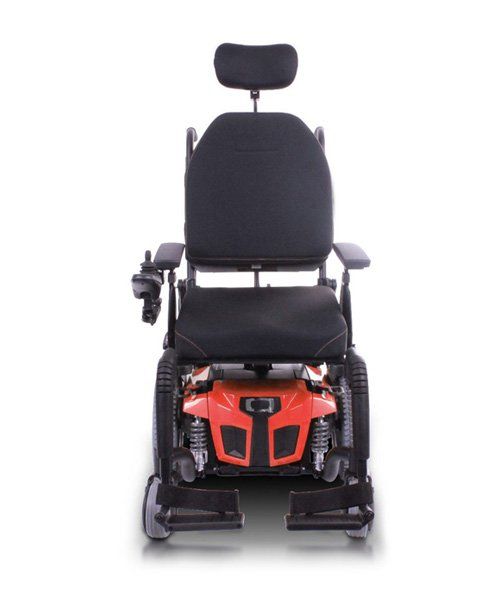

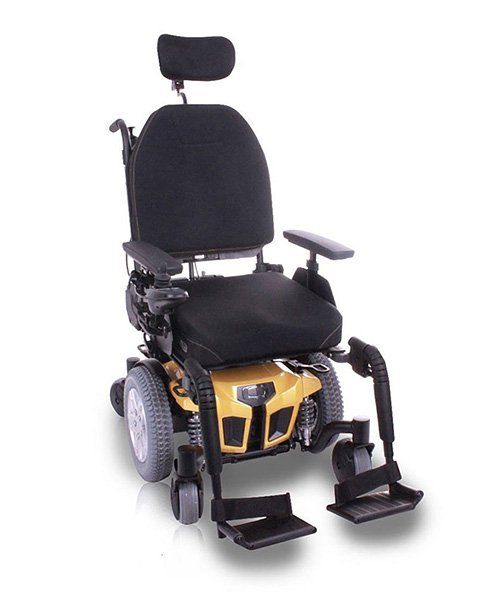

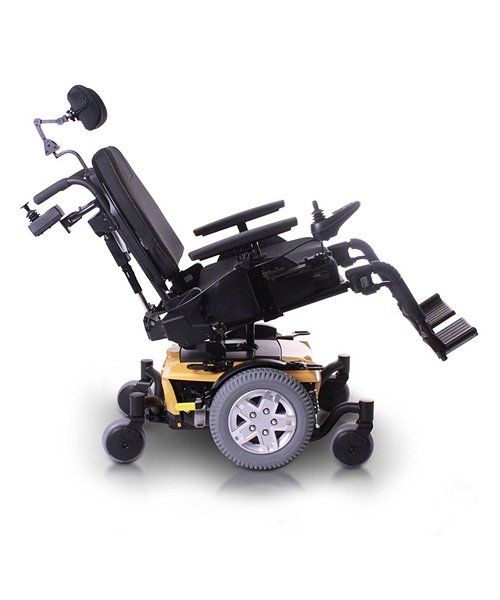

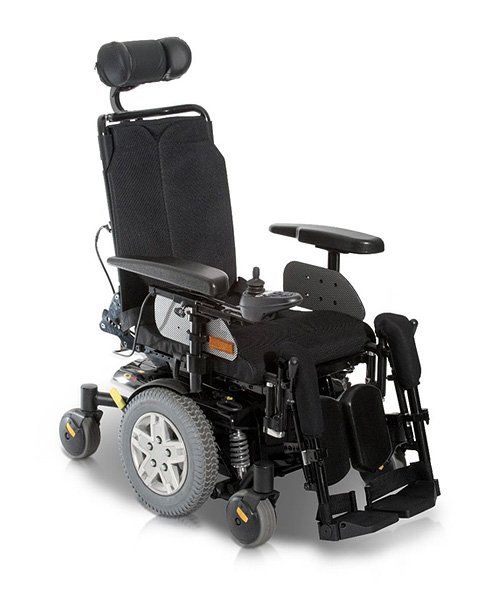

The Quantum® Q4 is a compact 4mph Mid-Wheel Drive power chair, designed for indoor and outdoor use. The Q4 has been specifically designed with the new ION Seat, which features two individual seat sizes.



The Q4 features mid-wheel 6 design, which enables tight turning radius and outstanding performance making the Q4 an excellent choice for the demands of the most active client.


REQUEST PRODUCT INFO

Q4 Brochure

Features

  • Standard 6 mph motors offer advanced performance, precise control and responsiveness
  • Bold aesthetics
  • Q-Logic 2 NE+ electronics standard
  • High-back seat
  • ATX Suspension (Active-Trac® with extra stability) incorporates front OMNI-Casters and semi-independent rear caster beam for enhanced performance over more varied terrain

Specifications

  • Weight Capacity: 21 Stone 6 lbs (136 kg)
  • Maximum Speed: 4 mph (6 km/h)
  • Ground Clearance: 7.62 cm (3″)
  • Overall Length: 90.17 cm (35.5″)
  • Overall Width: 61 cm (24.01″)
  • Turning Radius: 50.8 cm (20″)
  • Standard Controls: PG VR2
  • Total Weight (without batteries): 62 kg (136 lbs)
  • Battery Requirements: Two 12-volt, deep cycle (standard) Size: 2x 50-55 AH Weight: 17.24 kg (38 lbs) each
  • Seating: ION Seating – 40.64 cm x 40.64 cm (16″ x 16″) or 45.72 cm x 42.72 cm (18″ x 18″) TB FLEX seating: 15″ x 15″ to 22″x 20″
  • Tyres: Front castors: 15 cm (6”) solid Rear castors: 15 cm (6”) solid Drive: 35.56 cm (14”) pneumatic or solid available
