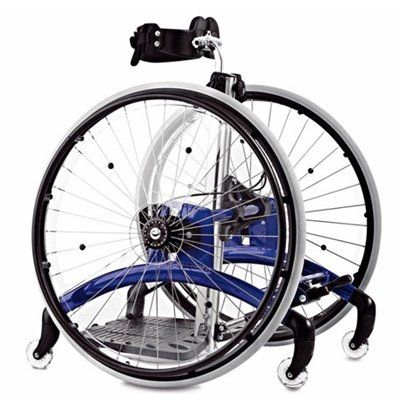

The Rabbit Up is an adaptive standing frame suitable for children with varying needs. This standing frame supports and upright or prone standing position, providing optimal flexibility and adaptability for the child's needs.



The Rabbit Up offers users the freedom and opportunity to explore and move about using its two optional driving wheels. This feature allows the child to be an active participant, stimulating their senses and promoting independence.

Designed specifically for paediatric use, the Rabbit Up is available in four sizes, making it suitable for children ranging from approximately 870 mm to 1800 mm in height. With a maximum user weight capacity of 70 kg, this standing frame is durable and suitable for a range of users.


The Rabbit Up is a valuable tool for therapy and home environments, providing support and assistance for children with varying needs. Its adaptable design and optional driving wheels make it a popular choice for parents and therapists alike.


In summary, the R82 Rabbit Up is a versatile and adaptive standing frame suitable for paediatric use. Its ability to support an upright or prone standing position, as well as its optional driving wheels make it an excellent choice for children with varying needs.

REQUEST PRODUCT INFO

Rabbit Up User Manual

Features

Options

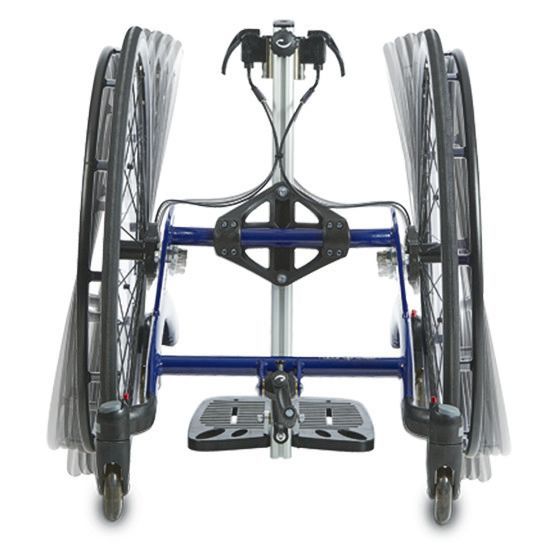

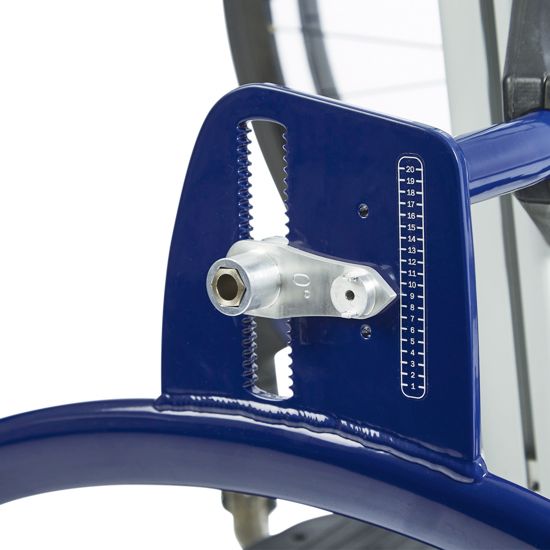

Camber angle for driving wheels

Standard camber angle: Size 1: 8°, Size 2+3: 6°, Size 4: 4°

Available to choose standard camber angle +3°, +6°, -3°, -6°

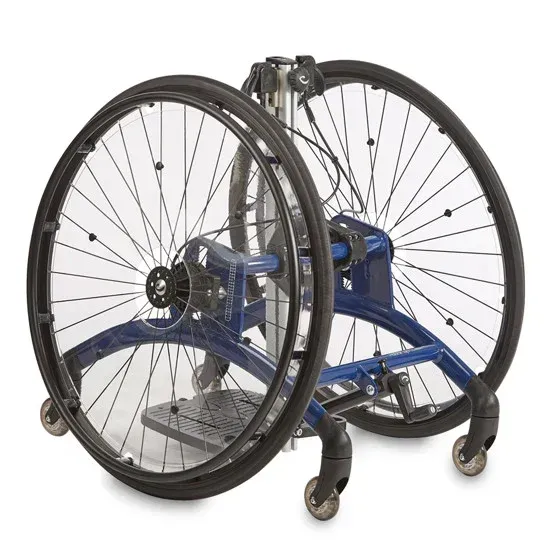

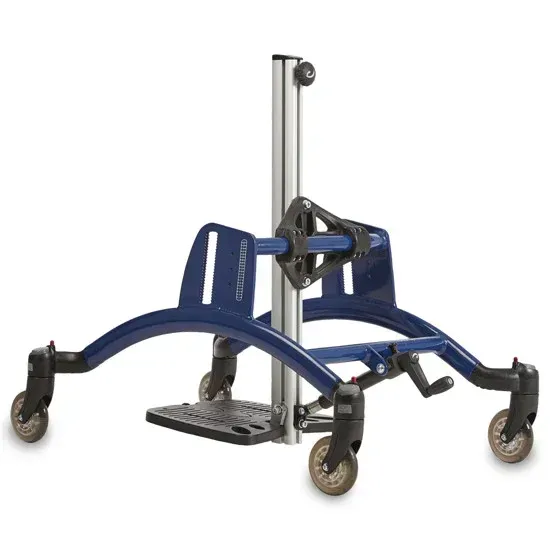

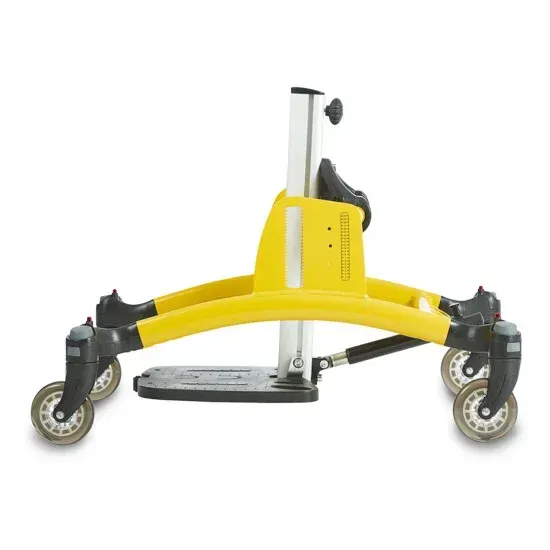

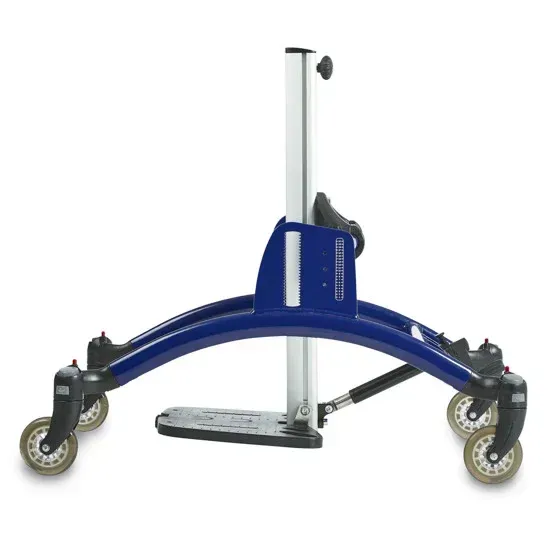

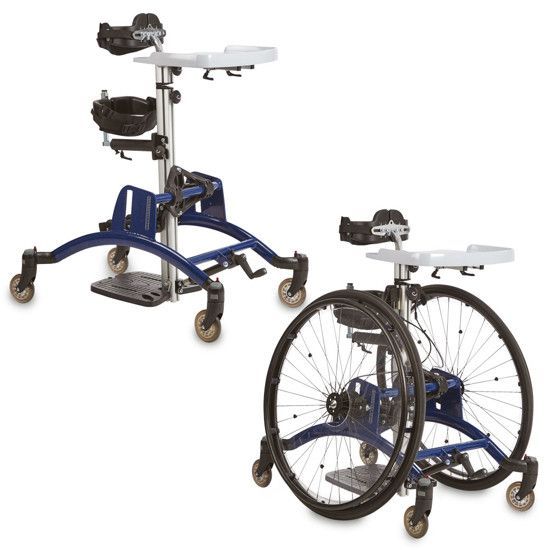

Stander or Mobile stander

Choose between a stander or mobile stander with big driving wheels.

Sizes and frame colour

Rabbit Up is available in 4 sizes with 4 different frame colours.

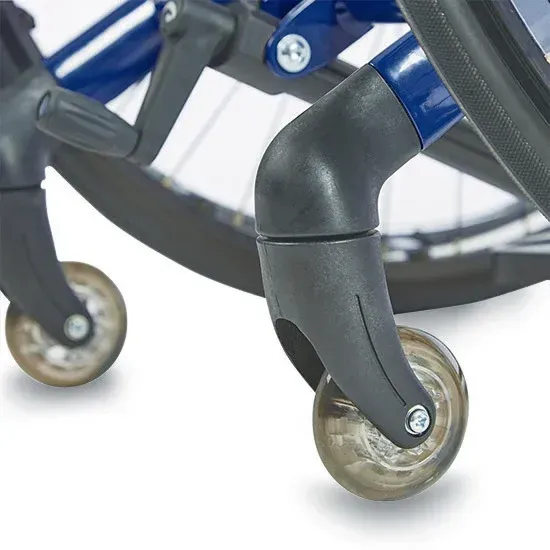

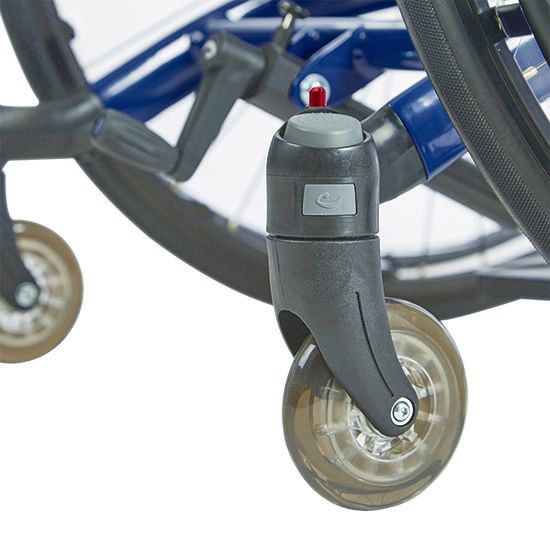

Castors

Two choices of castors are available

Angling

Two choices of angle adjustment are available

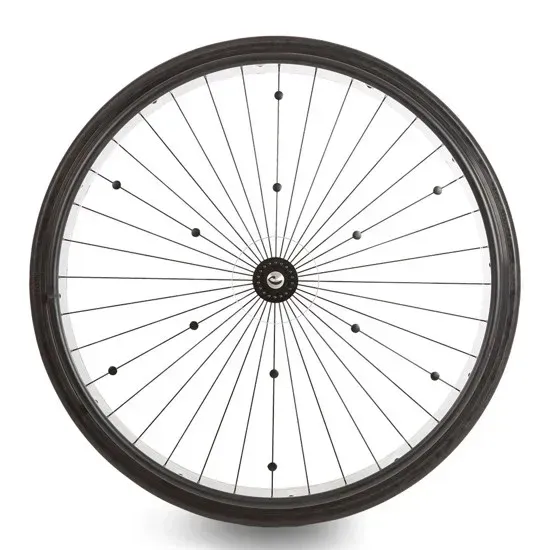

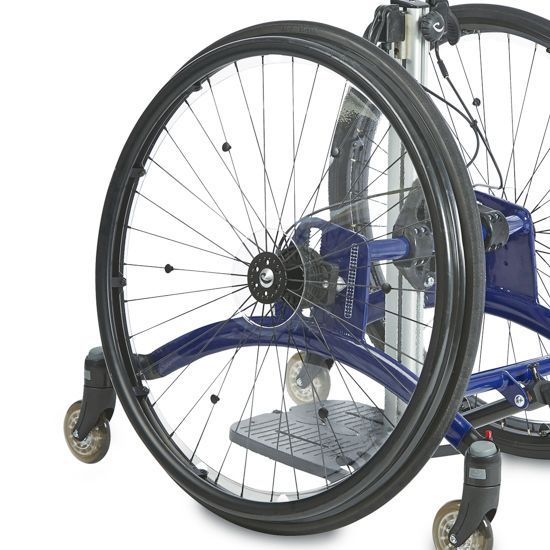

Driving wheel

Available in 22”, 24”, 26”, 29”, 32”, 36”

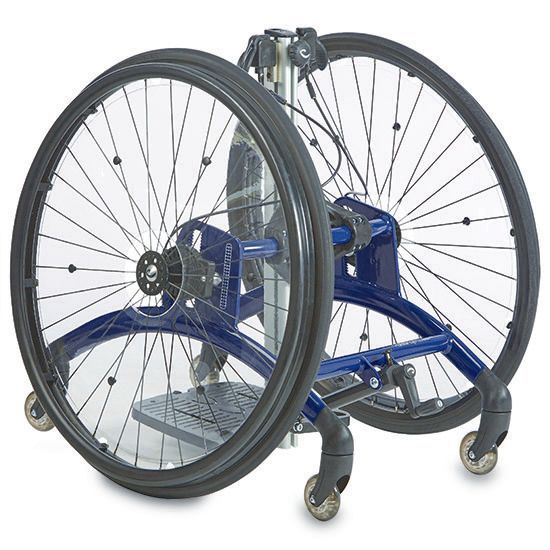

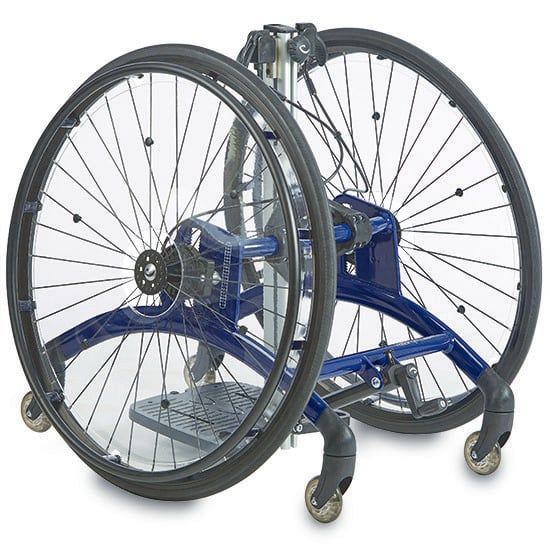

Pushrims

Two choices of pushrims are available

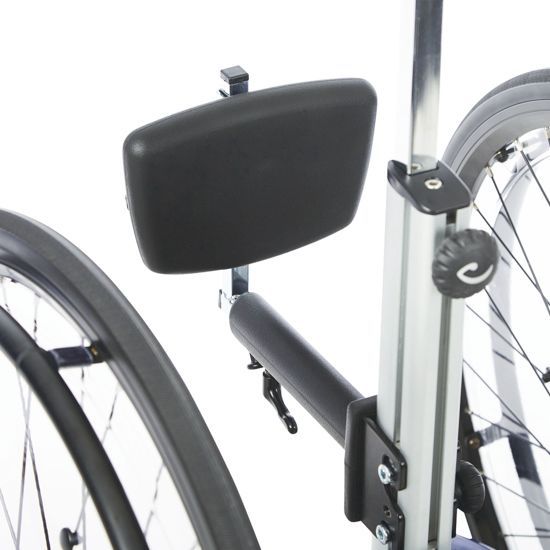

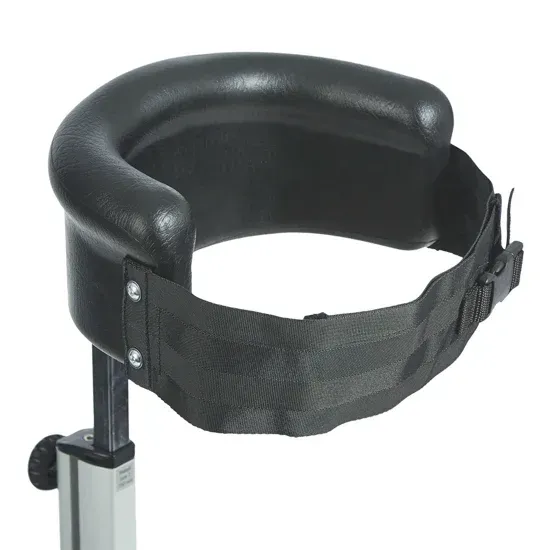

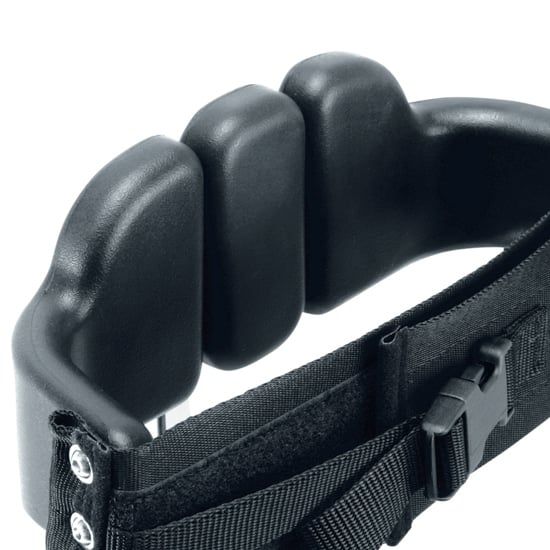

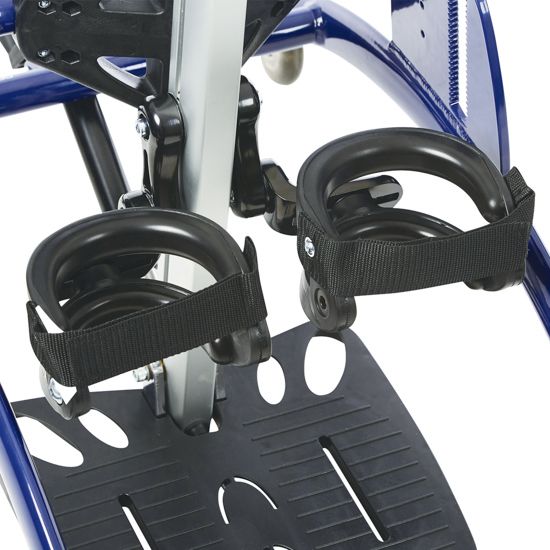

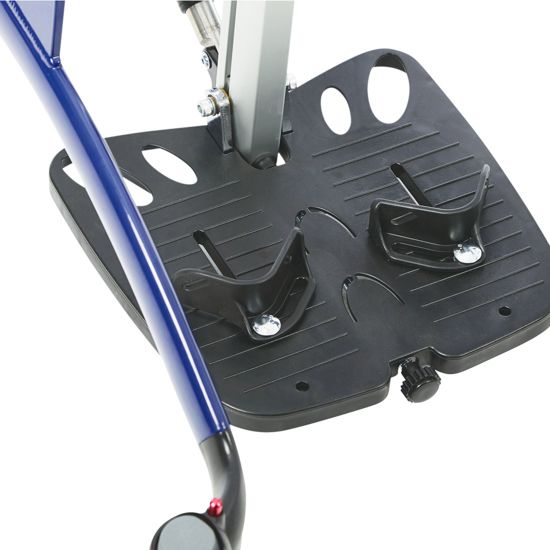

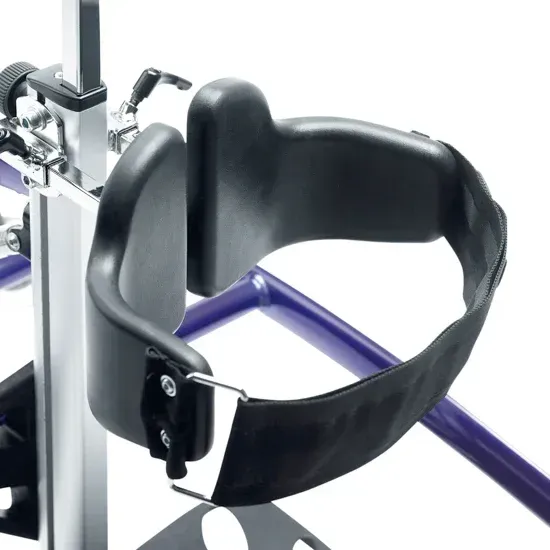

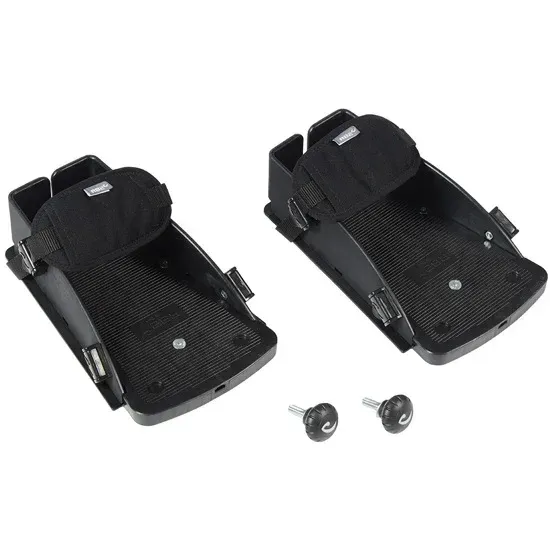

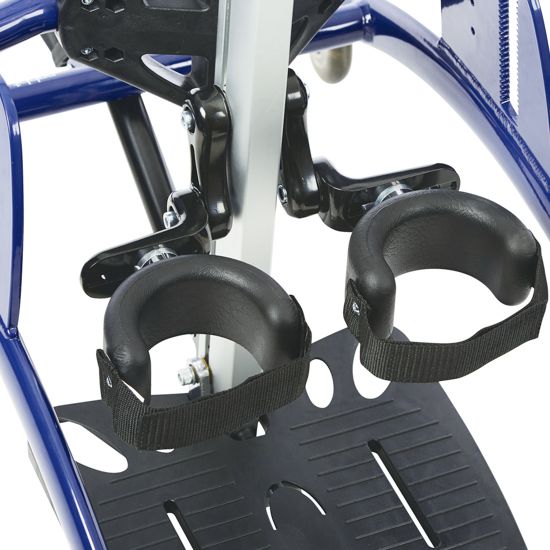

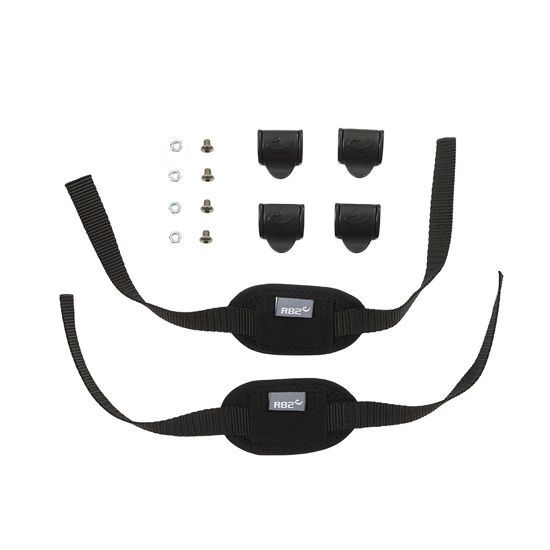

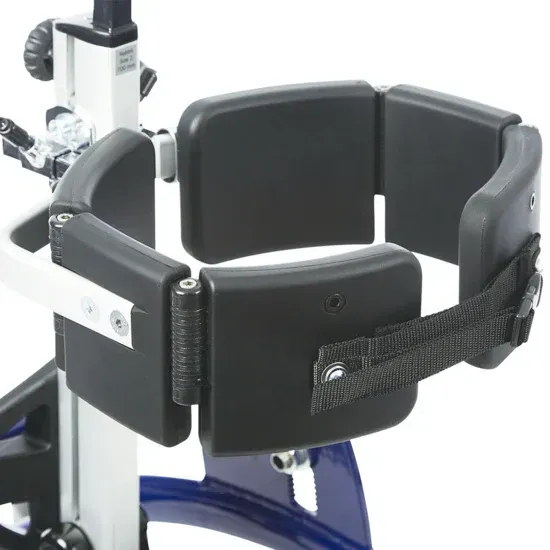

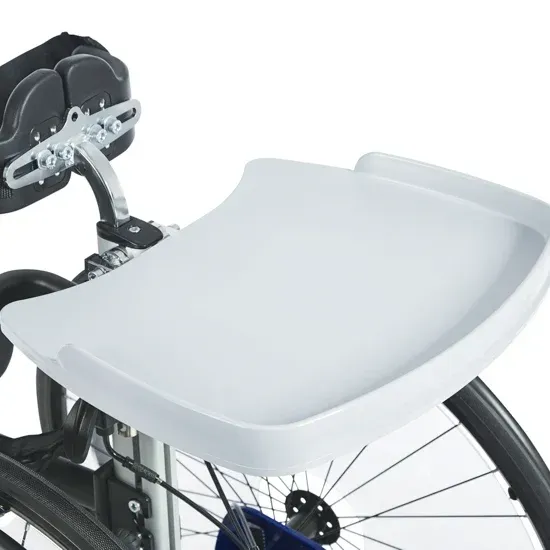

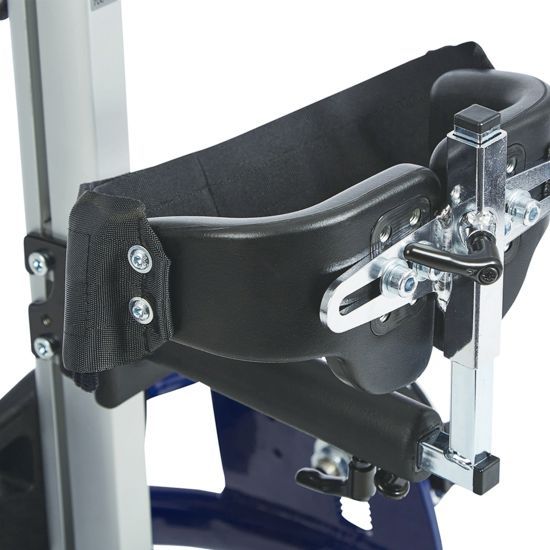

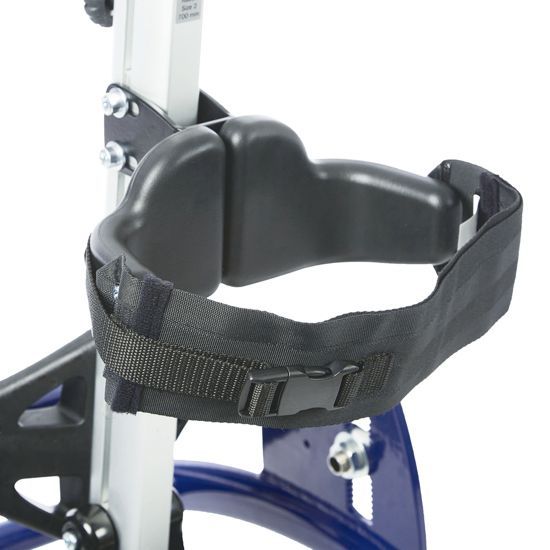

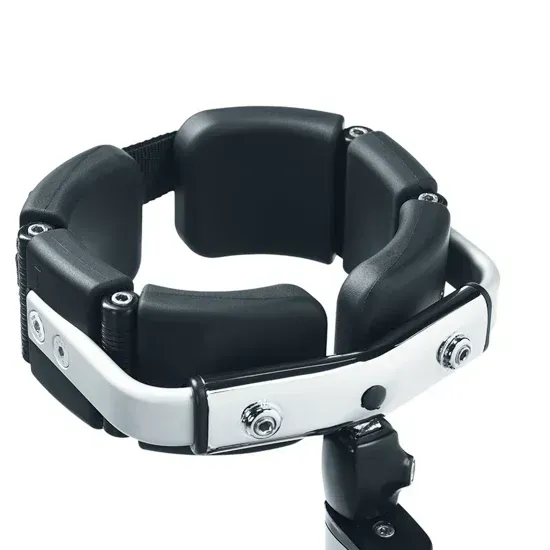

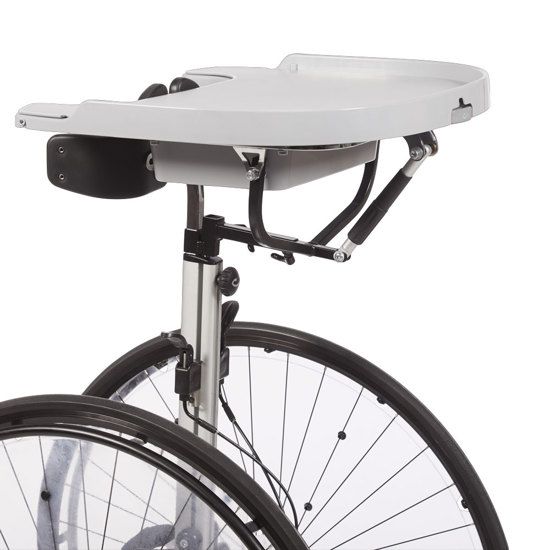

Accessories

Overview

The standing position enables the child to be an active participant, while stimulating senses and giving the child more independence. An accessible and simple design ensures the user maximum mobility in the standing position.

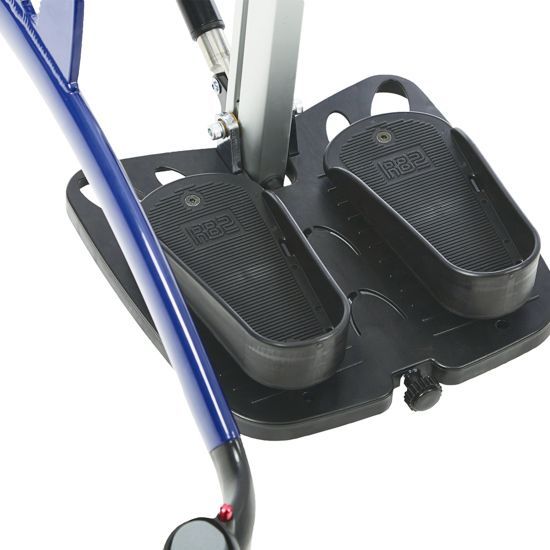

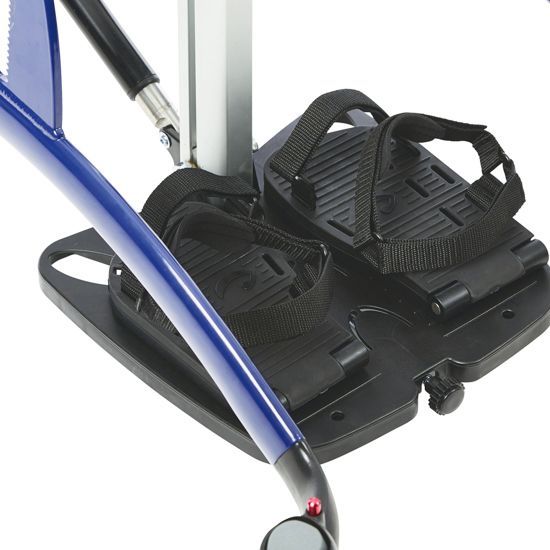

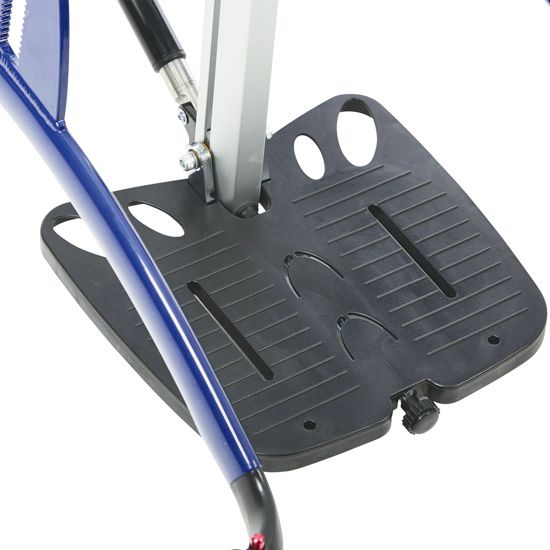

Positioning the footplate closer to the floor ensures easy placement and positioning of the child. The child is at the same level as their play mates.


The Rabbit comes in four sizes and is suitable for children between the age of 1 to 18 years. Not all children are alike – that is why it is important to use the measuring chart to find the correct size for your child.

Features

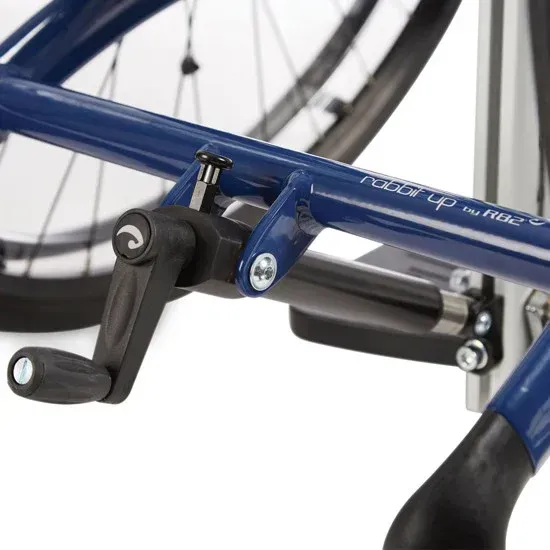

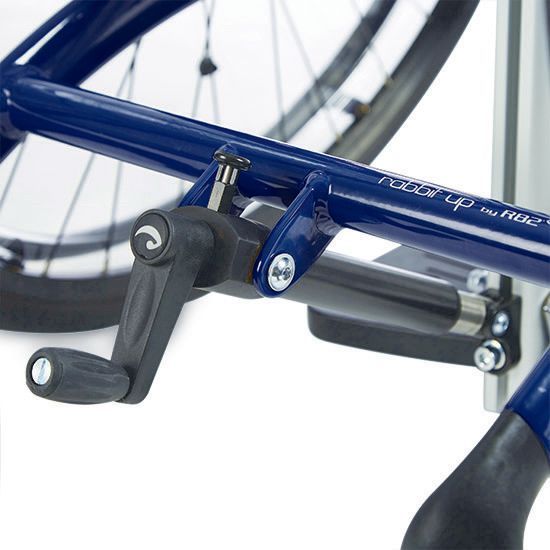

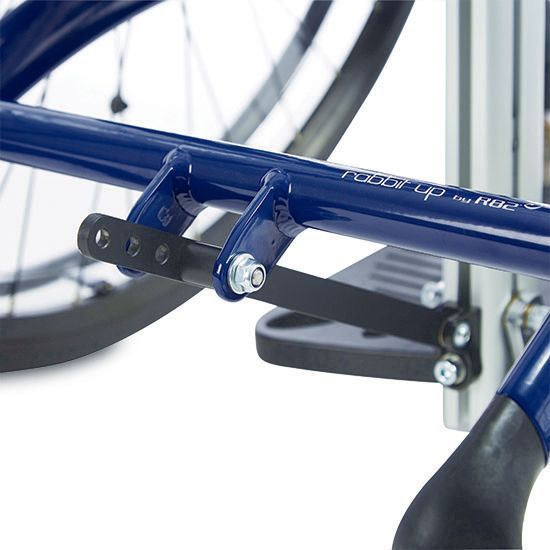

  • Angle adjustable center bar: The Rabbit has a simple, easy to use and controlled angle adjustment, making it possible to obtain the best standing position
  • Central lock: User operated lock system which locks the wheels for steady and secure transfer

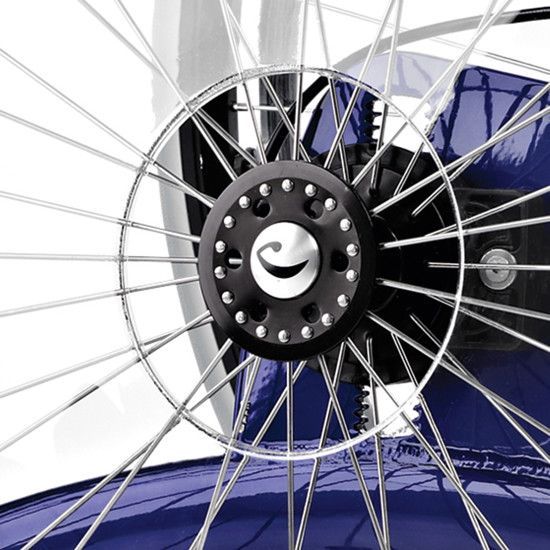

  • Quick release wheels: The two driving wheels are equipped with quick release for easy mounting. The wheels are available in a variety of sizes for each size Rabbit

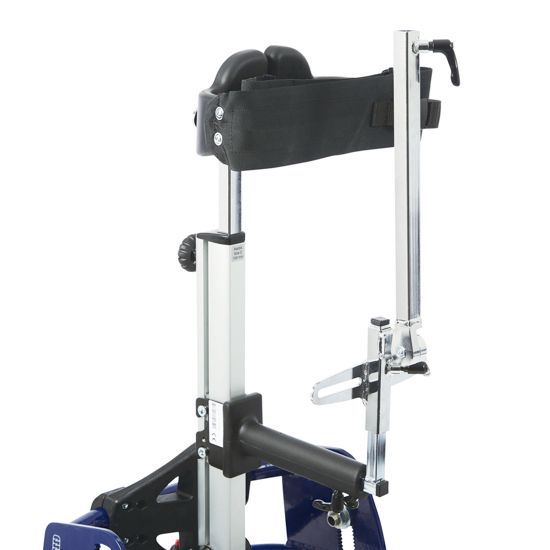

  • Prepared for accessories: All sizes of Rabbit can be equipped with all sizes of accessories. The Rabbit is designed with slots in the center bar for mounting the accessories

Size 1

  • Item number: 86212xx-00
  • Angle of the centre bar (°): 0-30
  • Camber angle (°): 8
  • Floor to foot plate (mm): 60
  • Height, vertical (mm): 620
  • Inside width (mm): 325
  • Length (mm): 500
  • Mass device (kg): 13.5
  • Maximum rated load (kg): 55.5
  • Maximum user mass (kg): 40
  • Maximum user weight (kg): 40
  • Minimum turning diameter (mm): 850
  • Overall height (mm): 670-1000
  • Overall width (mm): 635
  • Static stability downhill (°): 10
  • Static stability sideways (°): 10
  • Static stability uphill (°): 10
  • User height: floor to axil (mm): 550-740

Size 1 without driving wheels

  • Item number: 86212XX-00
  • Angle of the centre bar (°): 0-30
  • Camber angle (°): -
  • Floor to foot plate (mm): 60
  • Height, vertical (mm): 700
  • Inside width (mm): 325
  • Length (mm): 500
  • Mass device (kg): 9
  • Maximum rated load (kg): 51
  • Maximum user mass (kg): 40
  • Maximum user weight (kg): 40
  • Minimum turning diameter (mm): 850
  • Overall height (mm): 670-1000
  • Overall width (mm): 515
  • Static stability downhill (°): 10
  • Static stability sideways (°): 10
  • Static stability uphill (°): 10
  • User height: floor to axil (mm): 550-740

Size 2

  • Item number: 8622xx-00
  • Angle of the centre bar (°): 0-30
  • Camber angle (°): 6
  • Floor to foot plate (mm): 60
  • Height, vertical (mm): 750
  • Inside width (mm): 375
  • Length (mm): 700
  • Mass device (kg): 15.5
  • Maximum rated load (kg): 67.5
  • Maximum user mass (kg): 50
  • Maximum user weight (kg): 50
  • Minimum turning diameter (mm): 950
  • Overall height (mm): 850-1180
  • Overall width (mm): 680
  • Static stability downhill (°): 10
  • Static stability sideways (°): 10
  • Static stability uphill (°): 10
  • User height: floor to axil (mm): 750-1080

Size 2 Without driving wheels

  • Item number: 86222XX-00
  • Angle of the centre bar (°): 0-30
  • Camber angle (°): -
  • Floor to foot plate (mm): 60
  • Height, vertical (mm): 796
  • Inside width (mm): 375
  • Length (mm): 700
  • Mass device (kg): 10.5
  • Maximum rated load (kg): 62.5
  • Maximum user mass (kg): 50
  • Maximum user weight (kg): 50
  • Minimum turning diameter (mm): 950
  • Overall height (mm): 6850-1180
  • Overall width (mm): 550
  • Static stability downhill (°): 10
  • Static stability sideways (°): 10
  • Static stability uphill (°): 10
  • User height: floor to axil (mm): 750-1080

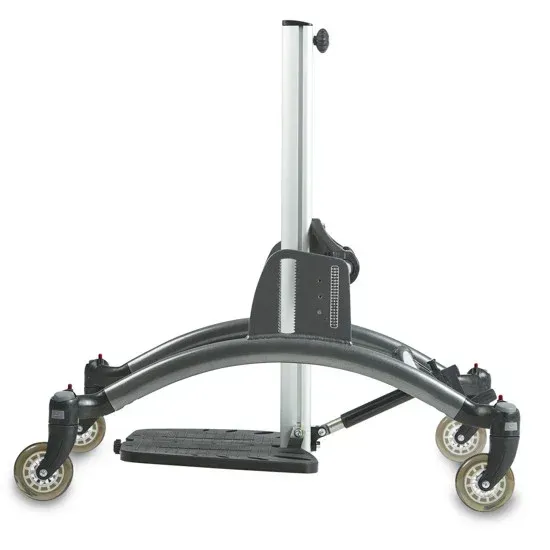

Size 3

  • Item number: 8632xx-00
  • Angle of the centre bar (°): 0-30
  • Camber angle (°): 6
  • Floor to foot plate (mm): 60
  • Height, vertical (mm): 800
  • Inside width (mm): 425
  • Length (mm): 800
  • Mass device (kg): 16
  • Maximum rated load (kg): 78
  • Maximum user mass (kg): 60
  • Maximum user weight (kg): 60
  • Minimum turning diameter (mm): 980
  • Overall height (mm): 990-13110
  • Overall width (mm): 730
  • Static stability downhill (°): 10
  • Static stability sideways (°): 10
  • Static stability uphill (°): 10
  • User height: floor to axil (mm): 830-1190

Size 3 without driving wheels

  • Item number: 86232XX-00
  • Angle of the centre bar (°): 0-30
  • Camber angle (°): -
  • Floor to foot plate (mm): 60
  • Height, vertical (mm): 796
  • Inside width (mm): 425
  • Length (mm): 800
  • Mass device (kg): 11
  • Maximum rated load (kg): 73
  • Maximum user mass (kg): 60
  • Maximum user weight (kg): 60
  • Minimum turning diameter (mm): 980
  • Overall height (mm): 990-13110
  • Overall width (mm): 600
  • Static stability downhill (°): 10
  • Static stability sideways (°): 10
  • Static stability uphill (°): 10
  • User height: floor to axil (mm): 830-1190

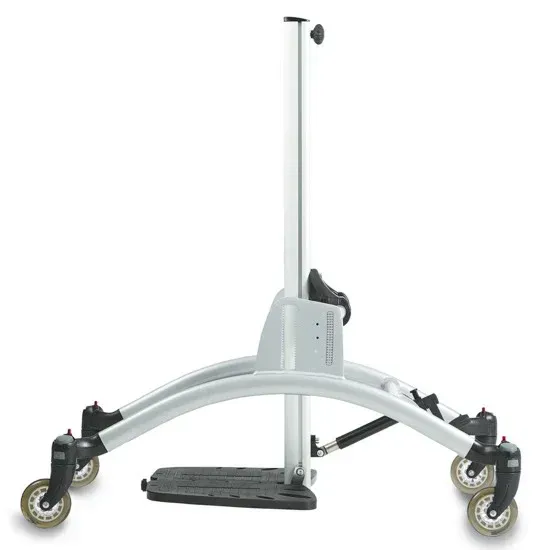

Size 4

  • Item number: 8642xx-00
  • Angle of the centre bar (°): 0-30
  • Camber angle (°): 4
  • Floor to foot plate (mm): 60
  • Height, vertical (mm): 900
  • Inside width (mm): 425
  • Length (mm): 1000
  • Mass device (kg): 18.5
  • Maximum rated load (kg): 90.5
  • Maximum user mass (kg): 70
  • Maximum user weight (kg): 70
  • Minimum turning diameter (mm): 1085
  • Overall height (mm): 1200-1530
  • Overall width (mm): 720
  • Static stability downhill (°): 10
  • Static stability sideways (°): 10
  • Static stability uphill (°): 10
  • User height: floor to axil (mm): 960-1420

Size 4 without driving wheels

  • Item number: 86242XX-00
  • Angle of the centre bar (°): 0-30
  • Camber angle (°): -
  • Floor to foot plate (mm): 60
  • Height, vertical (mm): 926
  • Inside width (mm): 425
  • Length (mm): 1000
  • Mass device (kg): 13.5
  • Maximum rated load (kg): 85.5
  • Maximum user mass (kg): 70
  • Maximum user weight (kg): 70
  • Minimum turning diameter (mm): 1085
  • Overall height (mm): 1200-1530
  • Overall width (mm): 600
  • Static stability downhill (°): 10
  • Static stability sideways (°): 10
  • Static stability uphill (°): 10
  • User height: floor to axil (mm): 960-1420
