Mobile Shower Commode Chair


RAZ Mobile Shower Commode Chairs — Designed and manufactured to the highest standards of the discerning healthcare professional.

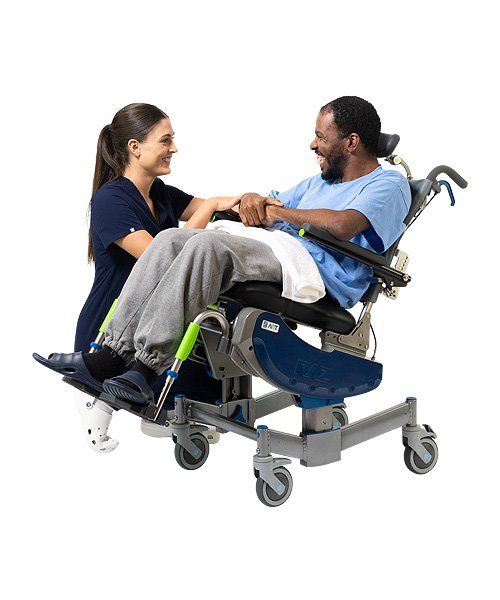

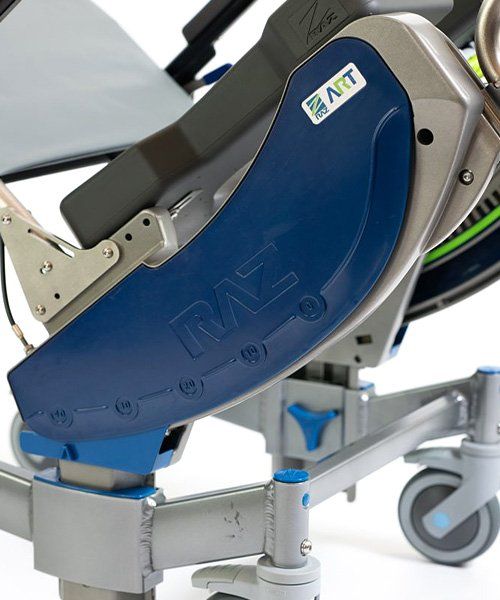

The RAZ-ART (Attendant Rotational Tilt) mobile shower commode chair tilts up to 40° to provide extra pressure reduction and comfort. The unique frame design utilizes a patented, dual-arc, orbital tilt system that allows for the smallest footprint and lowest tilt effort of any chair on the market. Unique, aluminum frame design provides two ranges of tool-less height adjustment (20”-23” and 24”-27”). Patent-pending tilt-locking system of the RAZ-ARTeliminates cable “looping,” which is prevalent on other designs


The RAZ-ART mobile shower commode chair comes standard with the Ischial & Pelvic Alignment System (IPAS), adjustable-tension back upholstery, molded headrest and fixture, 5” dual-locking casters, flip-up padded armrests, and a commode pan. The easy-to-clean, aluminum frame fits over most toilets and is designed for easy side and front access by the user or attendant.

REQUEST PRODUCT INFO

RAZ-ART Standard Features

Tilt Function


  • seat frame tilts for extra pressure reduction and comfort
  • locking pneumatic springs provide infinite adjustment up to 40°
  • pressurized springs also help lift seat frame to an upright position
  • conveniently located tilt triggers provide smooth tilt control


Moulded Seat


  • contoured for pressure reduction and pelvic stability
  • soft integral-skin foam for comfort and durability
  • available with open or bridged front
  • available sizes: 18″Wx16″D, 18″Wx19″D

Adjustable Footrests


  • removable for transfers and cleaning
  • swing in and out easily
  • flip-up footplate
  • adjust for leg length without tools
  • available in regular length 16″-20½” and extended length 18″-22½”

Ischial Pelvic Alignment System


  • provides 2” of fore/aft adjustment so the seat can be aligned with the pelvis
  • allows centering of the aperture (opening) around the users’ ITs
  • seat locks in place for transfers
  • removes easily for cleaning
  • optional spacers for anterior or posterior seat angle adjustment [Z491]

Fixed Back


  • molded, flexible vinyl upholstery – suitable for infection control environments
  • includes flip-up, angle-adjustable arms
  • available in 17” and 20” back heights
  • locking armrest upgrade available [Z710]

Headrest (small, standard)



  • headrest size is approximately 10” W x 4” H
  • integral skin foam headrest is easy to clean
  • headrest is shaped to cradle the head and can be adjusted to fit looser or tighter
  • headrest support can be adjusted infinitely forward and backwards within a 5½” range, and vertically within a 11½” range
  • headrest angle can be adjusted for comfort
  • headrest – small and mounting fixture are included with Raz-AT (Z300) and Raz-AT600 (Z360) chairs and optional on all other Raz models

Commode Pan


  • Injection-molded pan is designed for function
  • Includes a lid for splash and odor control
  • Wide handle angled at 45 degrees provides better ergonomics
  • Sloped front of pan moves contents toward the handle to reduce offset load, thereby making it easier to carry
  • Receiver brackets under seat are visible from the rear of the chair, making it easier to slide the pan into place
  • Fits in a standard autoclave and Arjo Tornado Washer

Raz-ART Brochure
