Spark

Spark


A unique pediatric wheelchair,


Spark is designed to be used with virtually any clinically prescribed seating system.

REQUEST PRODUCT INFO

Spark Brochure

Spark Technical Manual

Spark Technical Manual

FORM ADDS FUNCTION

The unique contour of the Spark's backrest increases the useable depth of the seating system by allowing the seat to move underneath the back by an extra 2". This innovative design also comes with 32° of built-in angle adjustability and the ability to change the depth by 4", in 1" increments.

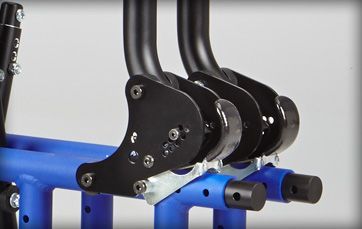

EASIER ON THE EYE

The Spark uses an aesthetically pleasing frame extender to keep the length of the frame shorter and stronger while allowing for up to 4" of depth adjustability when you need it. This keeps the frame manageable for the rider and the caretaker.

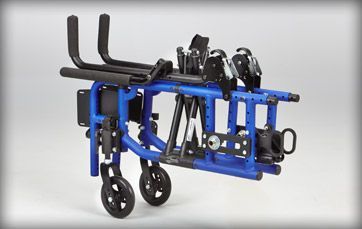

SIMPLICITY IS CATCHING

With the clean, ergonomic, easy-to-release latch, the chair folds up into an incredibly small package and opens again with a snap.


UP-IN-ARMS

The Flip-Up arm is angle, height, and length adjustable giving unmatched flexibility when setting up a seating system.

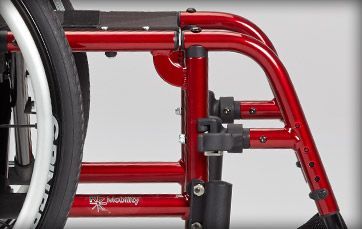

FRONT FRAME STYLES

Spark offers the option of a swing away front end featuring our patented footrests or 70° or 80° fixed frames. The swing away hangers come in 4 bends (60°, 70°, 80° & 90°) are light and easy to use and so strong we offer a lifetime warranty.

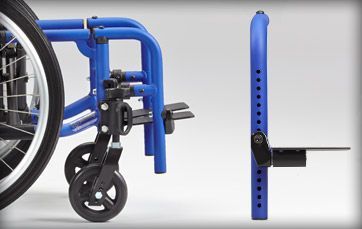

90° EXTENDED LENGTH HANGER

The 90° hanger has been redesigned to allow for very short lengths. With a minimum footrest length of 3 3/4" and adjustability in 1/2" increments, the best hanger in the industry works great for kids!

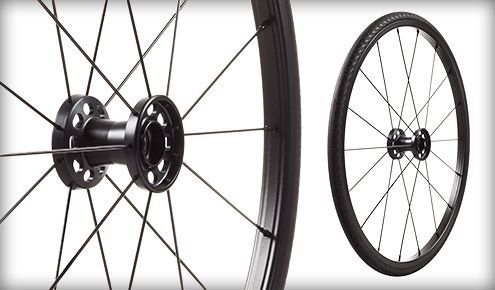

MAXX SPOKE

Maxx is our new spoke wheel that offers performance and style without a high price tag. It features eighteen radial spokes and a high flange hub that result in increased rigidity for a more responsive, better performing wheel. The heightened level of responsiveness combined with a lightweight design give the rider the most from every push. Constructed with a 6061 series aluminum rim and straight steel spokes with a durable black satin finish for a look and feel that is anything but standard.

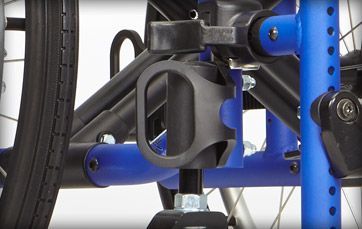

TRANSIT APPROVED

Transit tested and approved for added safety and securement during transport.

COLORS

MATTE FINISH


GLOSS FINISH


HYDROGRAPHICS


Specifications

  • Transport Weight *: 17.5 lbs (8 kg)
  • Standard Weight: 19 lbs (8.6 kg)
  • Seat Width: 10” - 16” (25 - 41 cm)
  • Seat Depth: 12” - 18” (31 - 46 cm)
  • Front Seat Height: 13” - 21” (33 - 53 cm)
  • Rear Seat Height: 11” - 18.5” (28 - 47 cm)
  • Top Frame Tubing Size: 1” (2.54 cm)
  • Bottom Frame Tubing Size: 1” (2.54 cm)
  • Camber: 0°, 2°, 4°
  • Weight Capacity: 165 lbs (75 kg)
  • Transit Approved: YES

* 12”x12” Frame with Stroller Handle Back Posts, and 5” Poly Casters. Armrests, Footrest and Rear Wheels removed.
