Stingray

Stingray

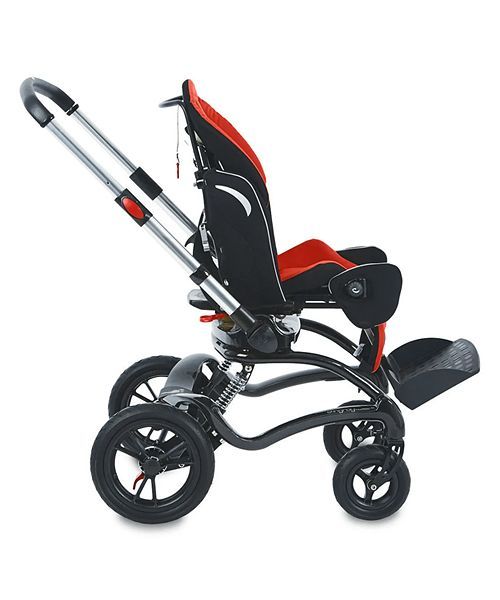

Stingray is a superbly stylish buggy with tool free adjustment of postural support and unique swivel action for forward/rearward facing options.



The carbon frame with its trendsetting design encourages any family to go out together. The Stingray is in a league of its own.

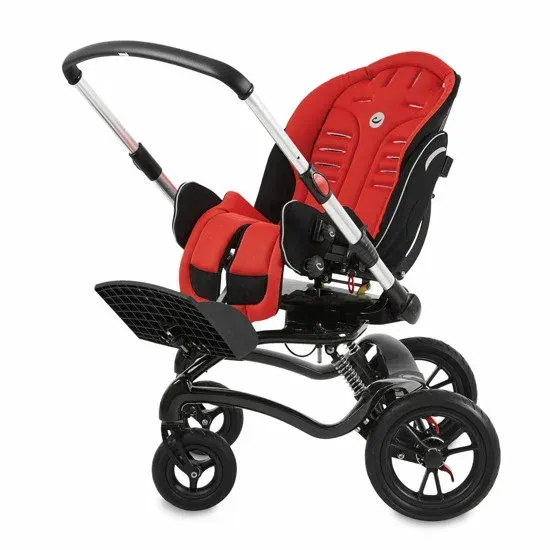

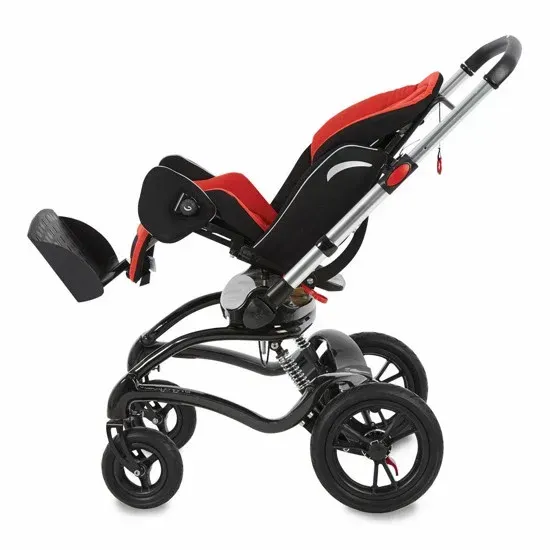

Adjustments, comfort and lightness of steering are keywords for this buggy. The Stingray makes it possible to change from forward to rearward facing with its 180° turnable seat when a child is seated. The child is always comfortably seated, whilst the various angle adjustments makes it easy to find exactly the position they need. The Stingray has supreme driving properties, fantastic suspension and with the safe and stable brakes, security always has pride of place.


The Stingray is available in 2 sizes.

REQUEST PRODUCT INFO

Stingray Frame User Manual

Stingray Seat User Manual

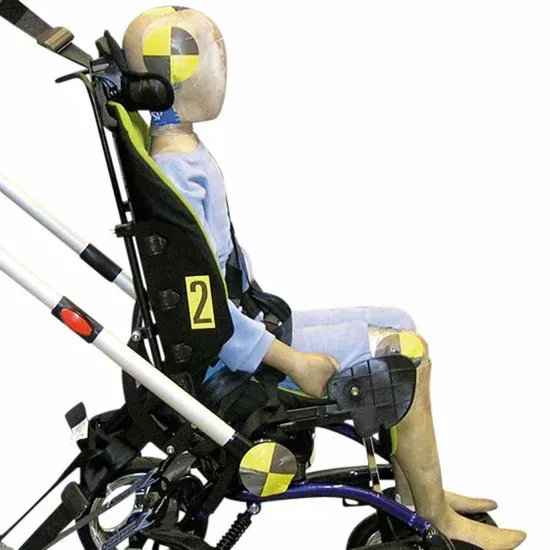

Features

Options

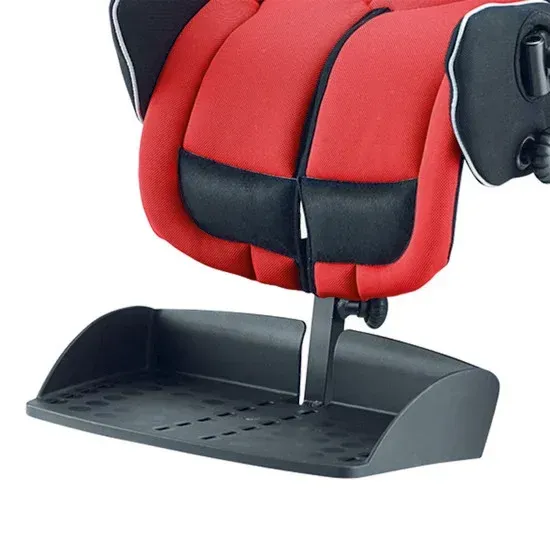

Foot rest

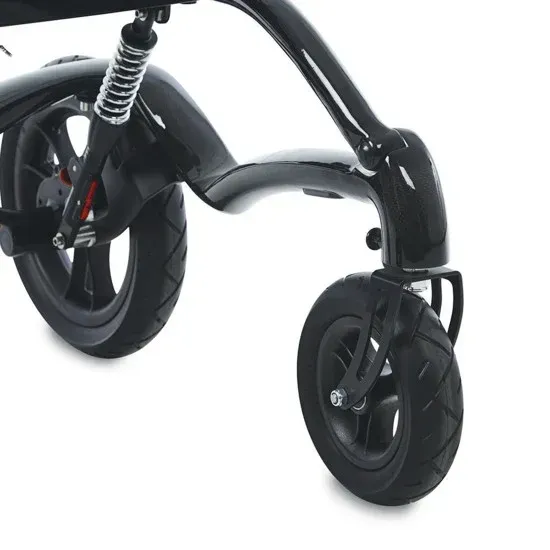

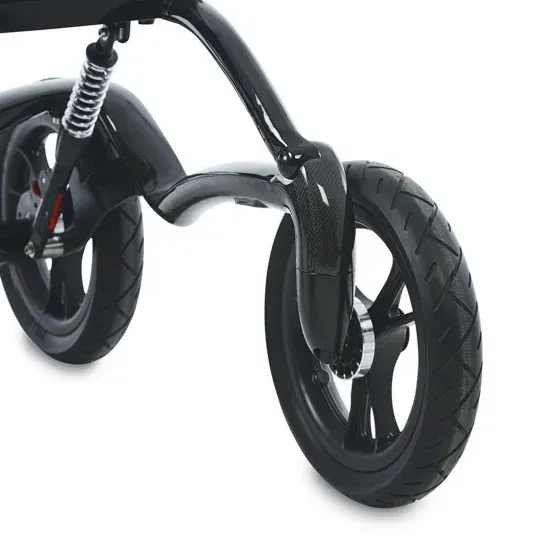

Front wheels

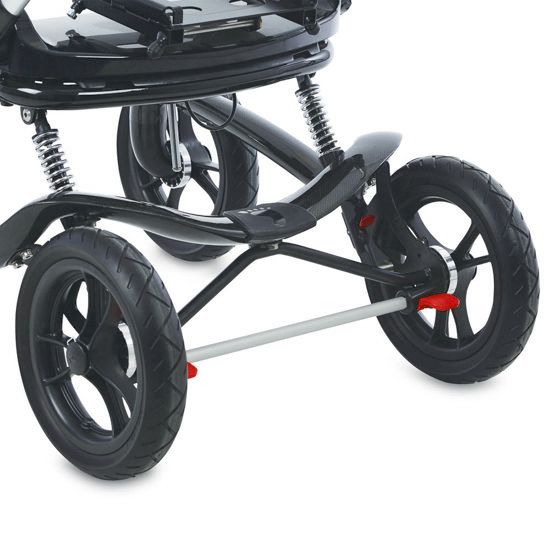

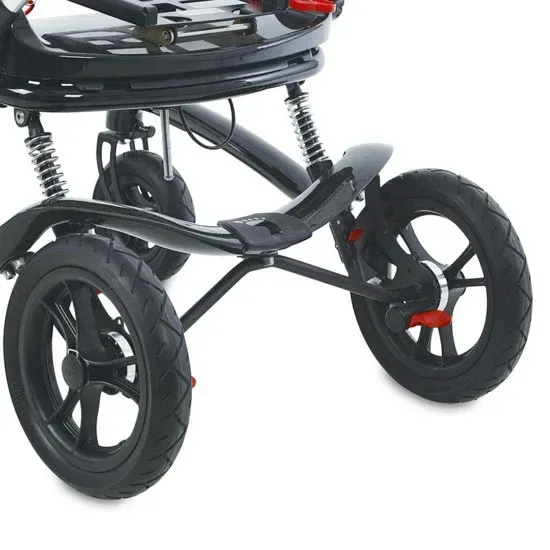

Foot brake

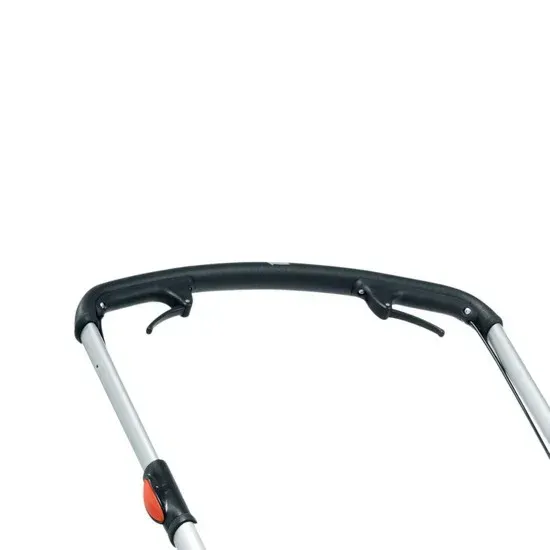

Hand brake

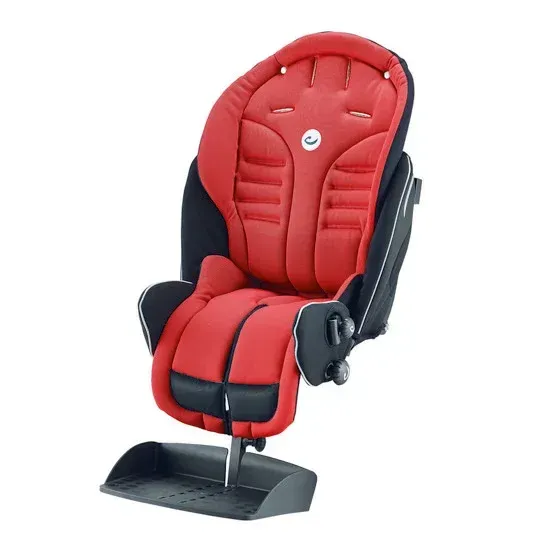

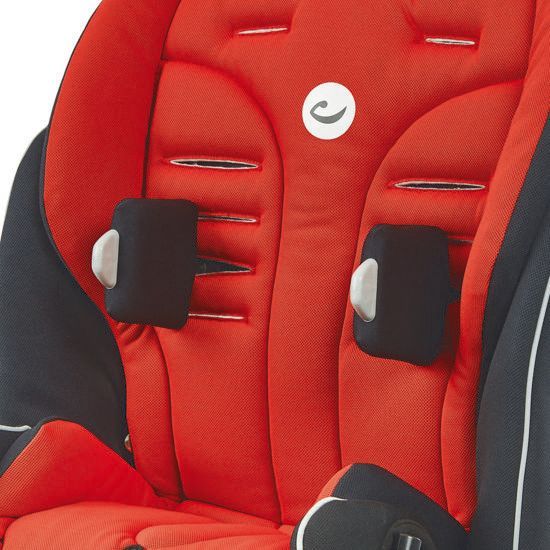

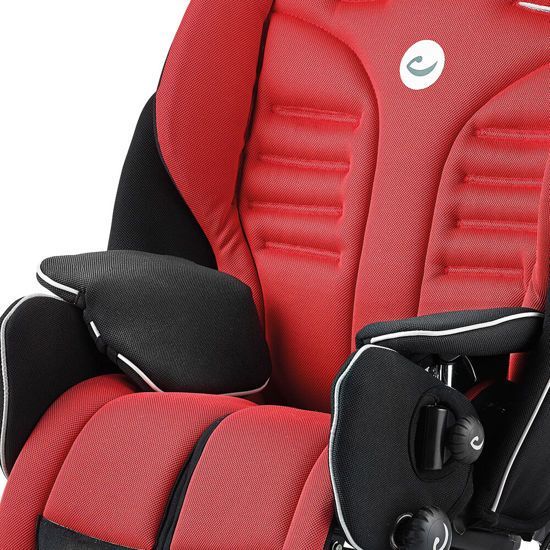

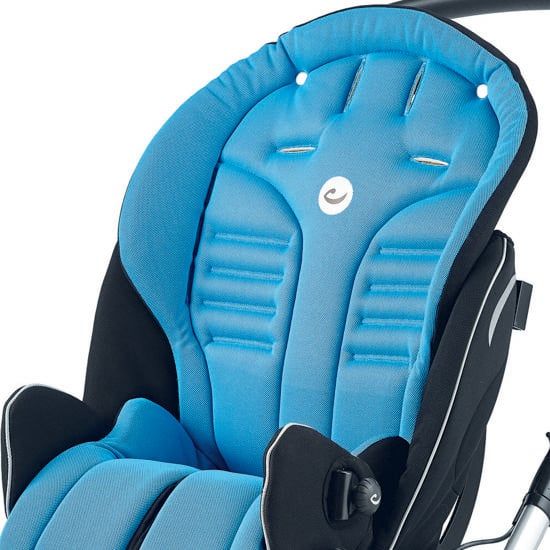

Seat

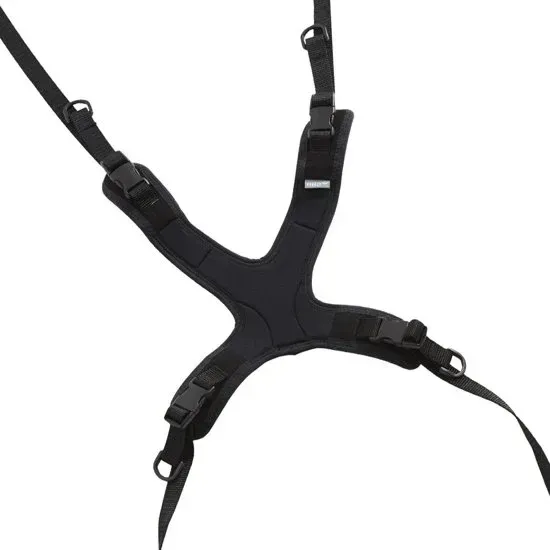

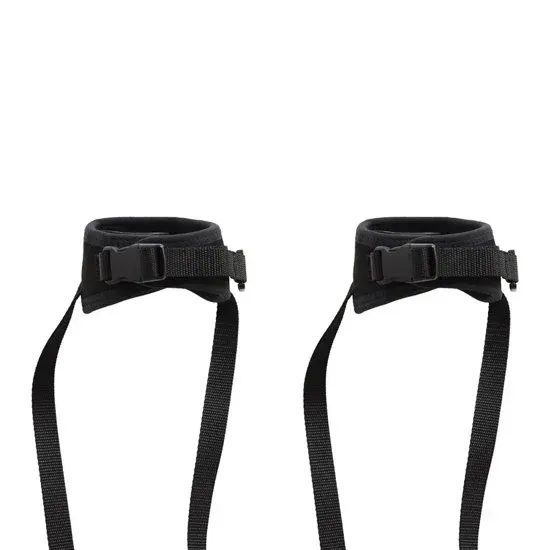

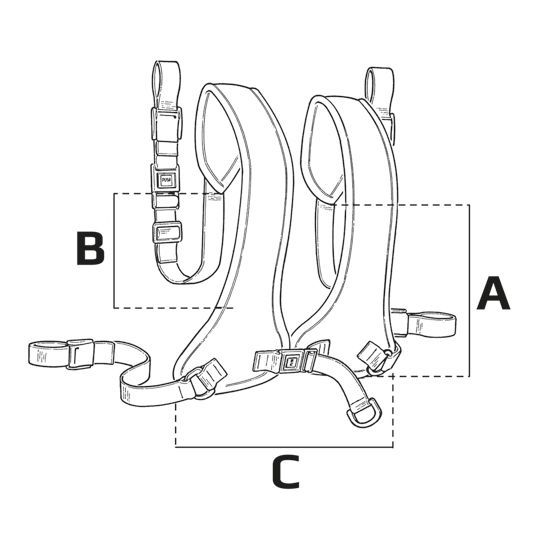

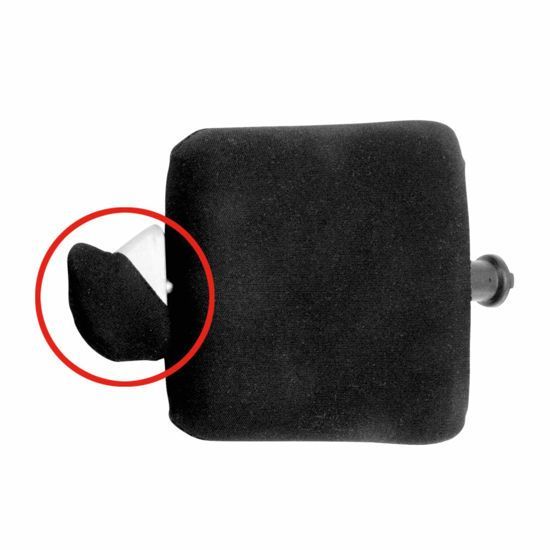

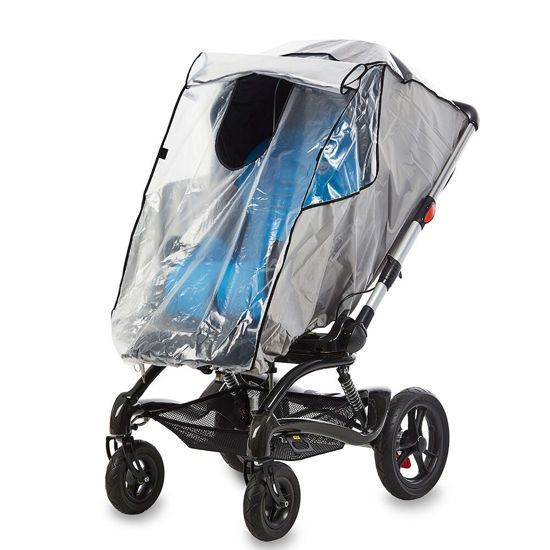

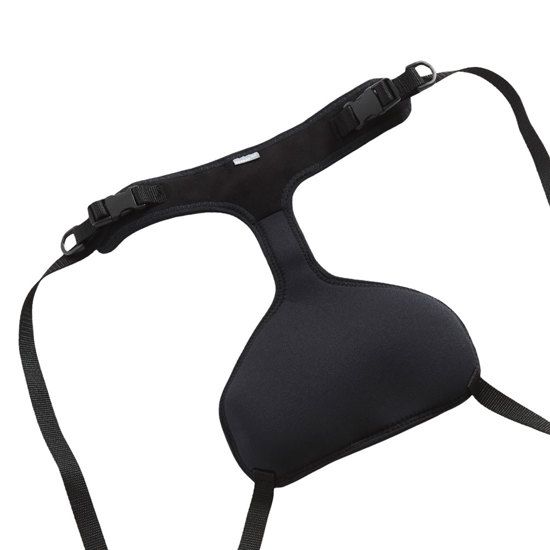

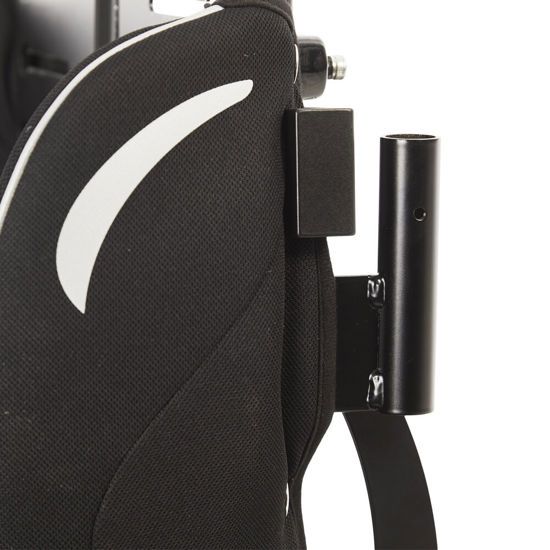

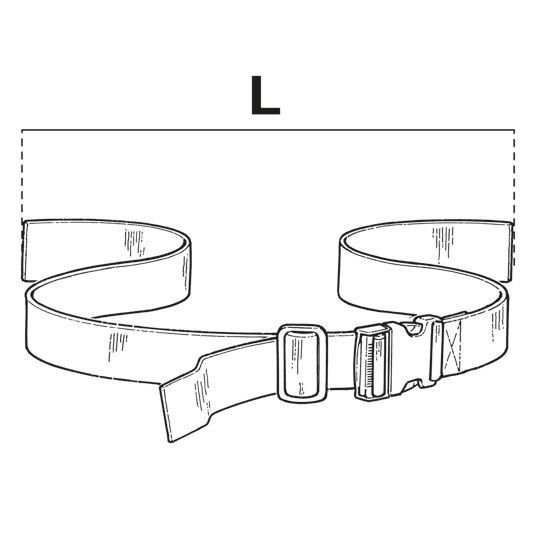

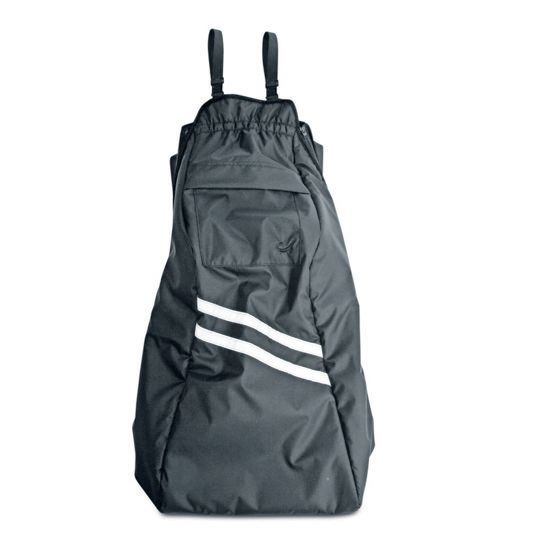

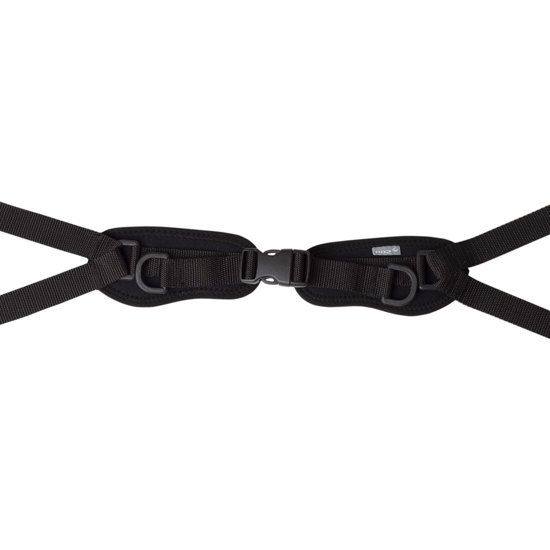

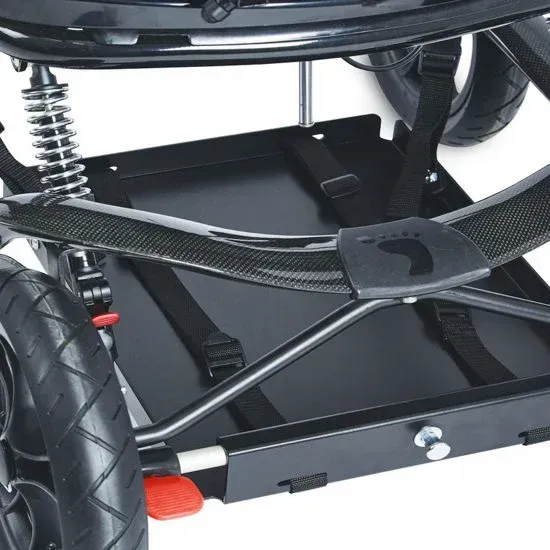

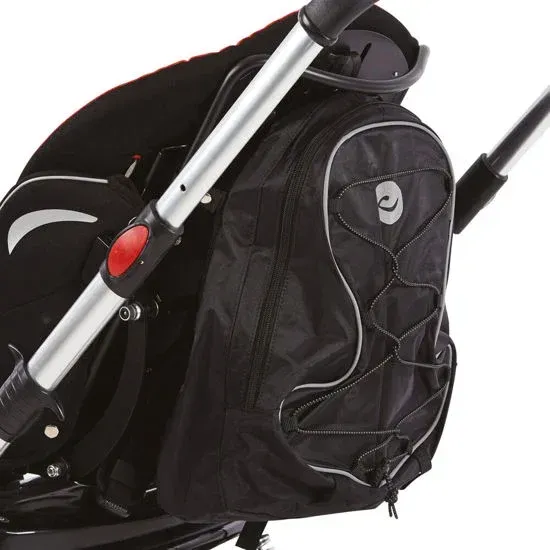

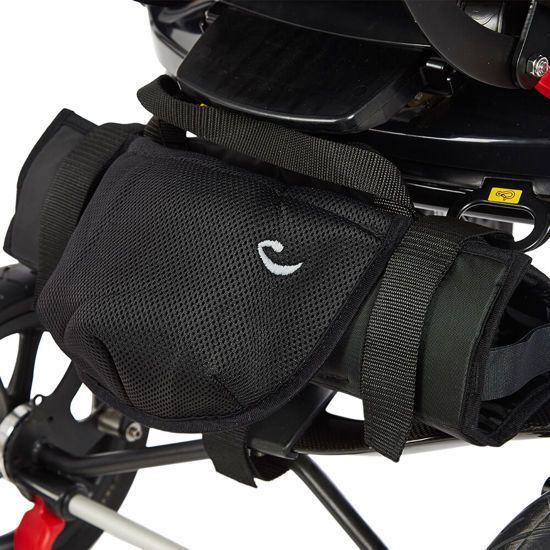

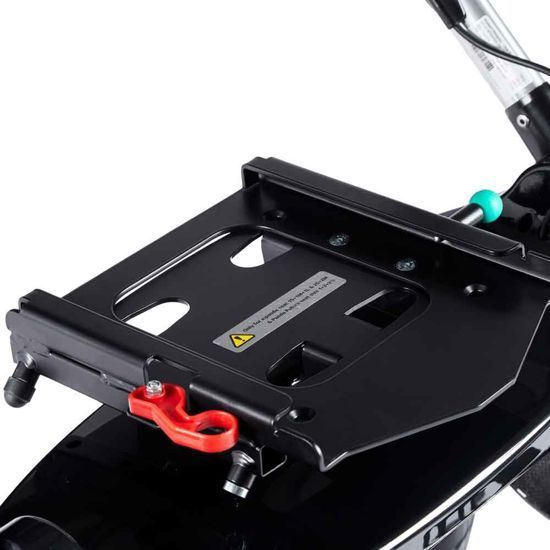

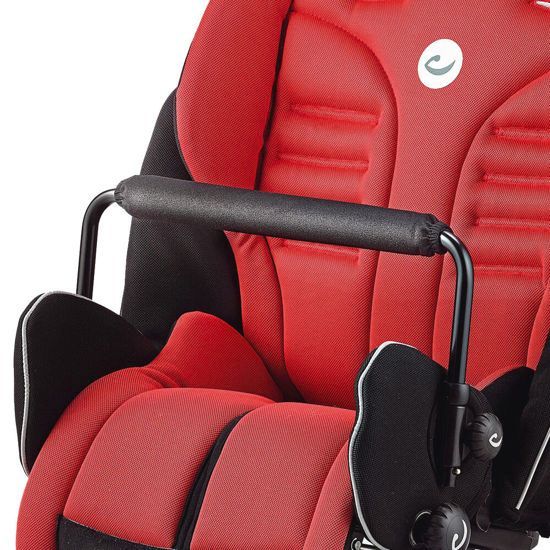

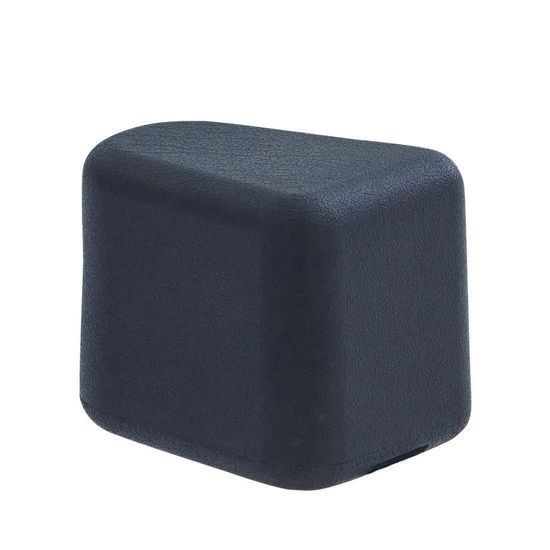

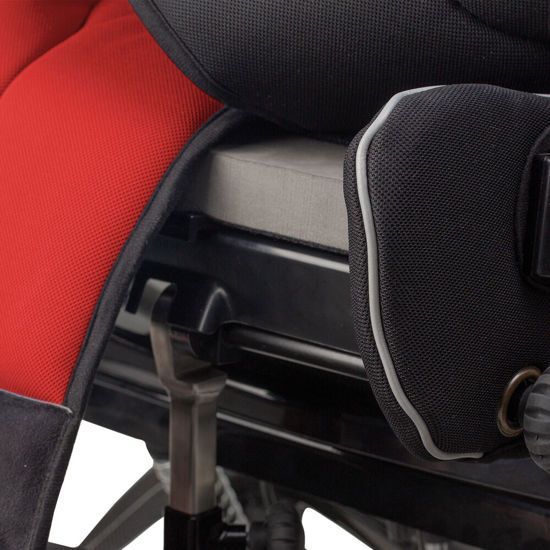

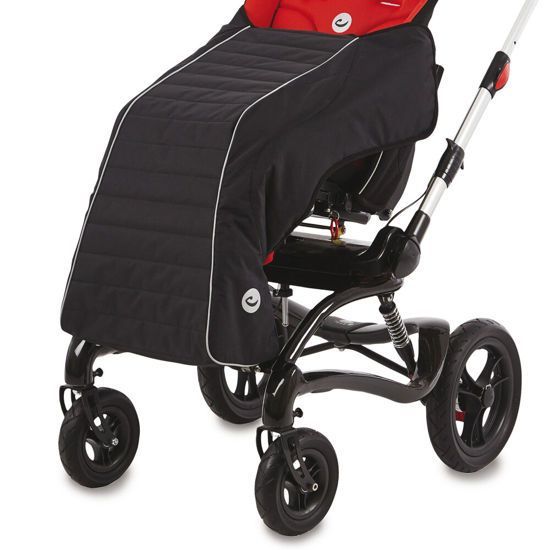

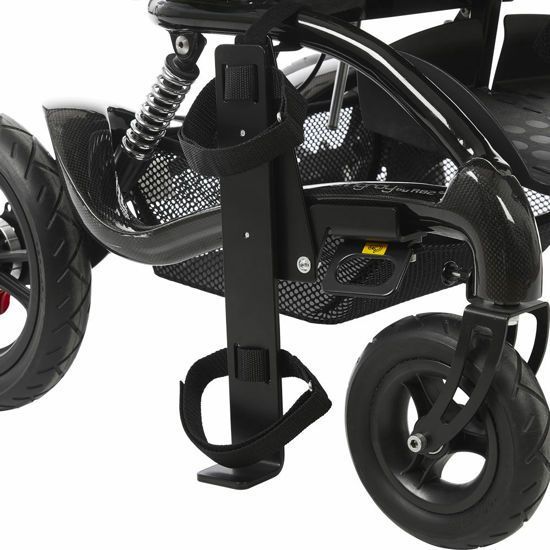

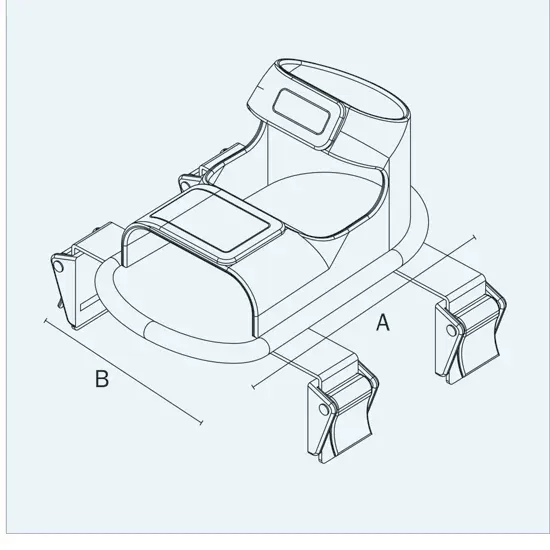

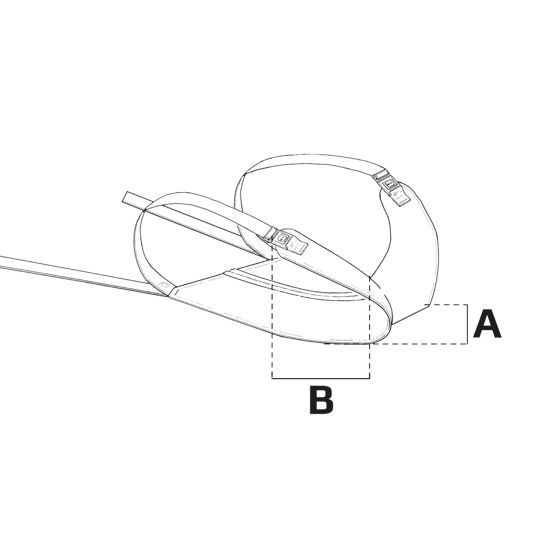

Accessories


Stingray seat Size 1

  • Item number: 8711x20
  • Back height at shoulders (mm): 270-410
  • Back width (mm): 450
  • Backrest angle (°): 170
  • Backrest height (mm): 410-550
  • Effective back width (mm): 300
  • Effective seat depth (mm): 180-300
  • Effective seat width (mm): 300
  • Folded height (mm): 285
  • Folded length (mm): 575
  • Folded width (mm): 420
  • Foot plate (width & depth) (mm): -
  • Footrest to seat distance (mm): 140-450
  • Leg to seat surface angle (°): (-30)-30
  • Length with large front wheels (mm): -
  • Length with turnable front wheels (mm): -
  • Mass device (kg): 5.5
  • Maximum rated load (kg): 47.5
  • Maximum user mass (kg): 40
  • Maximum user mass in transportation (kg): 40
  • Minimum turning radius (mm): -
  • Overall height, push brace 15° (mm): -
  • Overall width (mm): -
  • Seat plane angle (°): -
  • Seat surface height at front edge (mm): -
  • Static stability downhill (°): -
  • Static stability sideways (°): -
  • Static stability uphill (°): -

Stingray seat Size 2

  • Item number: 8712x20
  • Back height at shoulders (mm): 360-510
  • Back width (mm): 520
  • Backrest angle (°): 170
  • Backrest height (mm): 500-650
  • Effective back width (mm): 300
  • Effective seat depth (mm): 250-400
  • Effective seat width (mm): 350
  • Folded height (mm): 305
  • Folded length (mm): 575
  • Folded width (mm): 475
  • Foot plate (width & depth) (mm): -
  • Footrest to seat distance (mm): 140-450
  • Leg to seat surface angle (°): (-30)-30
  • Length with large front wheels (mm): -
  • Length with turnable front wheels (mm): -
  • Mass device (kg): 6.5
  • Maximum rated load (kg): 48.5
  • Maximum user mass (kg): 40
  • Maximum user mass in transportation (kg): 40
  • Minimum turning radius (mm): -
  • Overall height, push brace 15° (mm): -
  • Overall width (mm): -
  • Seat plane angle (°): -
  • Seat surface height at front edge (mm): -
  • Static stability downhill (°): -
  • Static stability sideways (°): -
  • Static stability uphill (°): -

Stingray frame one size

  • Item number: 872xxxx
  • Back height at shoulders (mm): -
  • Back width (mm): -
  • Backrest angle (°):  -
  • Backrest height (mm): -
  • Effective back width (mm): -
  • Effective seat depth (mm):  -
  • Effective seat width (mm): -
  • Folded height (mm): 490
  • Folded length (mm): 900
  • Folded width (mm): -
  • Foot plate (width & depth) (mm):310x200
  • Footrest to seat distance (mm): 140-450
  • Leg to seat surface angle (°): (-30)-30
  • Length with large front wheels (mm): 840
  • Length with turnable front wheels (mm): 740
  • Mass device (kg): 13.5
  • Maximum rated load (kg): 55.5
  • Maximum user mass (kg): 40
  • Maximum user mass in transportation (kg): 40
  • Minimum turning radius (mm): 1020
  • Overall height, push brace 15° (mm): 1000, 1030, 1060
  • Overall width (mm): 590
  • Seat plane angle (°): 45
  • Seat surface height at front edge (mm): 520
  • Static stability downhill (°): 10
  • Static stability sideways (°): 10
  • Static stability uphill (°): 10
