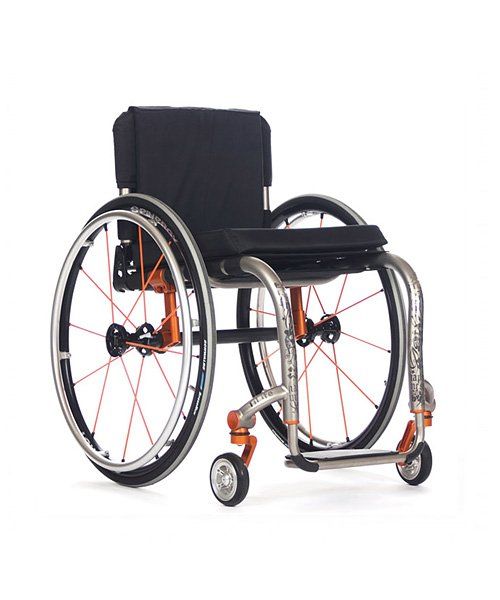

TiLite TRA

Imagine the best, then go beyond, and you will arrive at the TRA. With the power and style of its titanium dual-tube frame, TiFit precision, and full adjustability, the TRA has it all. The result is performance and comfort built around you.


The Tru-Fit System opens up the world of adjustability by incorporating an infinite adjustment mechanism. The Tru-Fit system allows you to fine tune the fit of your chair because you are not limited to a series of pre-set holes. Also, instead of bolting through frame-weakening holes, components clamp directly onto the frame. This eliminates one of the main stress points on today’s wheelchairs by reducing the number of holes in the frame.


Adjustable Camber Mount incorporates TiLite’s Tru-Fit system with up to 3.5″ of rear seat height adjustment.


Patented Speedloader Adjustable Front Caster Housing quickly and accurately adjusts fork angle in 1° increments.


Zero Play Camber Plugs give a much tighter feel to the chair like sport suspension in a car. CNC machined from billet aluminum to the highest tolerances, they remove any side to side movement from the rear wheels.


TiShaft Back Release Bar makes folding and unfolding the backrest easy from any angle.

REQUEST PRODUCT INFO

TiLite TRA Owners Manual

TiLite Colors

TiLite Warranty

Features

Full Adjust-ability

The Tru-Fit system opens up the world of adjustability by incorporating an infinite adjustment mechanism. The Tru-Fit system allows you to fine tune the fit of your wheelchair because you are not limited to a series of pre-set holes.


Swept-In Dual-Tube Frame

Imagine no wasted energy and fewer strokes throughout the day. Then introduce your imagination to the superior rigidity and optimal energy transfer of theswept-in dual-tube frame of the TRA. Want more? Then add ease of transport to rival that of any mono-tube frame.

  • The flowing lines of dual-tube geometry stiffens the wheelchair, transferring more of your push stroke directly to the ground.
  • No wasted energy means fewer strokes throughout the day.
  • Sweeping curve of the lower frame tube creates a unique look as the lower frame blends in and fades away.

TiFit. Personal Ergonomics

The difference between a TiFit chair and all other chairs is that a TiFit chair is a wheeled prosthetic: Every frame is made to measure. The optimized fit of a TiFit chair brings unparalleled performance and function. You will feel the difference in everything you do.


The Titanium Advantage

Titanium absorbs vibration, won’t break, and has the highest strength-to-weight ratio of any metal on Earth. That is why TiLite builds our highest performing wheelchairs from seamless, aerospace-grade titanium. If you want strength, durability, and a smooth roll, you want a titanium ride.

Specifications

Frame Type*: Rigid

Frame Style*: Dual-Tube

Frame Material*: Titanium

TiFit*: YES

Adjustability*: Full Adjustability

Growable*: N/A

Custom Configuration*: YES

Frame Options:

  • TRA Black Edition
  • SuperLite Edition
  • Power Adaptable Frame
  • Reinforced Frame

Transport Weight**: 11.1 lbs.

Seat Width: 12” – 20”

Seat Depth: 12” – 20”

Front Seat Height: 15” – 21”

Rear Seat Height: 13” – 21”

Camber: 0°, 2°, 4°, 6°, 8°, 12°, 15° or 18°

Front Frame Angle: 70°, 80°, 85° or 90°

Footrest Width Options:

  • Standard Taper
  • V-Front End

Seat Back Type:

Folding Seat Back

Adj. Height 8.5” – 21”

Adj. Angle 80° – 101°

Center of Gravity Adjustment: 5”

Weight Limit: 265 lbs.

Transit Options: N/A

Warranty:

  • Lifetime on Frame
  • One Year on TiLite Components

**Weight based on 16” x 16” wheelchair with all standard features except rear wheels. Rear wheels are not included due to the varying weights of the numerous wheel configurations offered by TiLite. For reference, a pair of standard 24” (540) rear wheels weighs 7.2 lbs.
