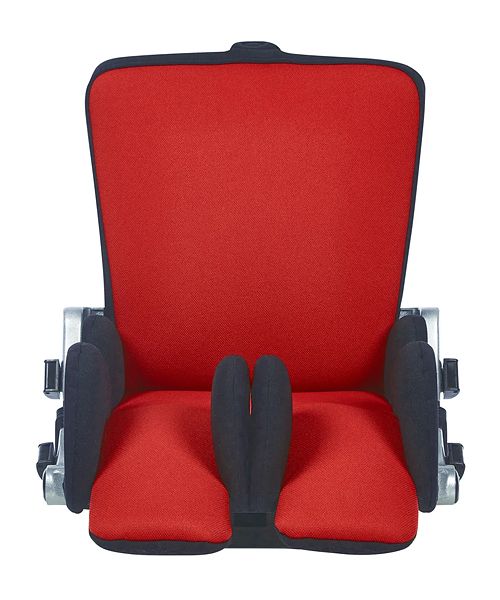

The x:panda is a multi-adjustable dynamic seat, developed to establish an ideal seating position for children and youngsters living with a disability.

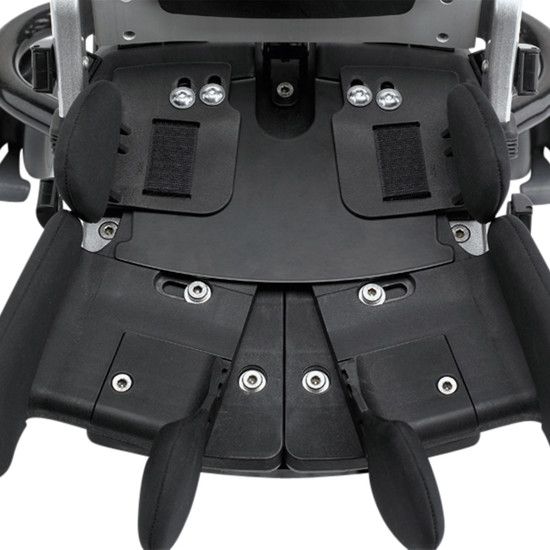

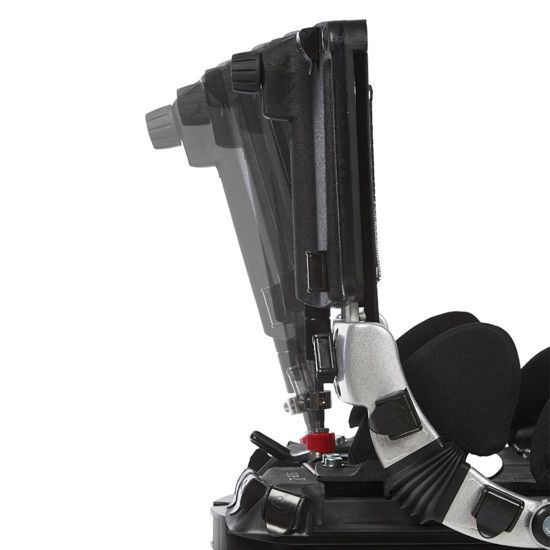

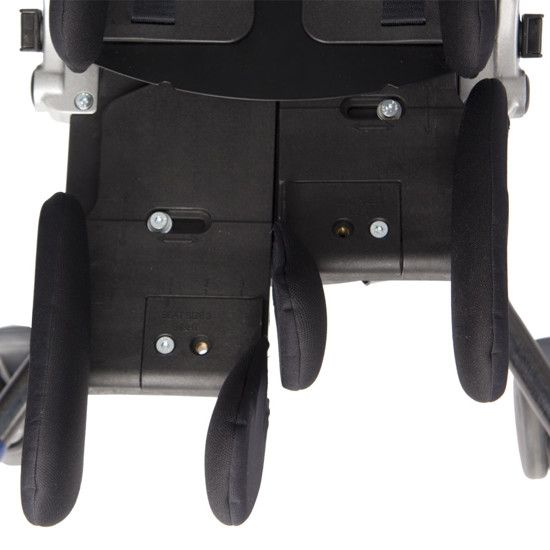

x:panda is a multi-adjustable dynamic seat, delivered in 4 different sizes - each seat with up to 12 cm in seat width and up to 20 cm of depth adjustment coupled with sliding back growth. The back is dynamic, making it possible for the child to extend and push back against relatively light resistance and then regain the desired sitting position. The back is lockable which could be preferred in feeding situations and required when being used in transportation. The back can also be angled to make it possible to seat the child with either an open or closed hip angle.


The x:panda seat complies with ISO 16840-4

REQUEST PRODUCT INFO

x:panda Brochure

x:panda Accessories

Features

Options

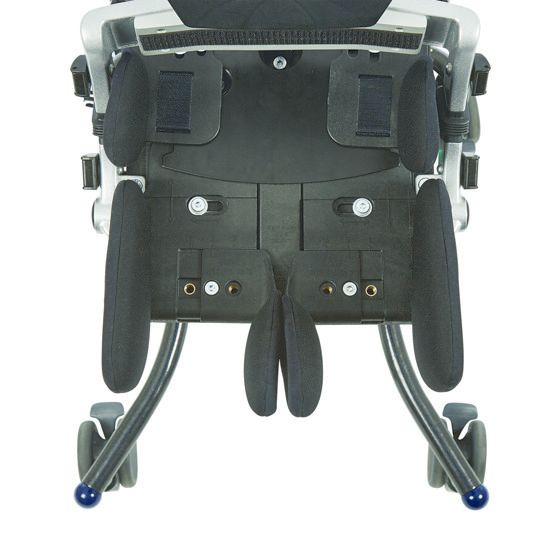

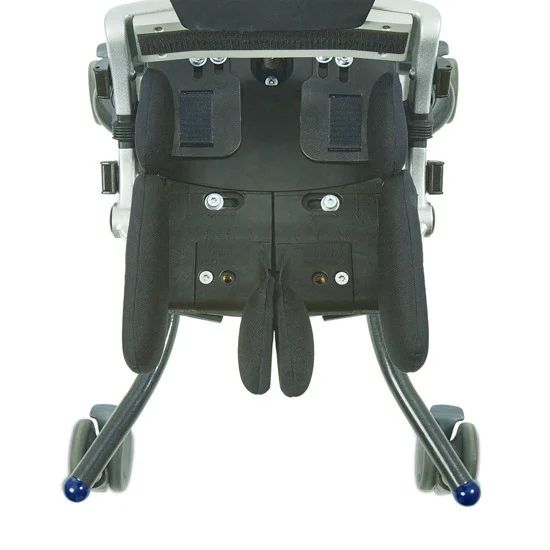

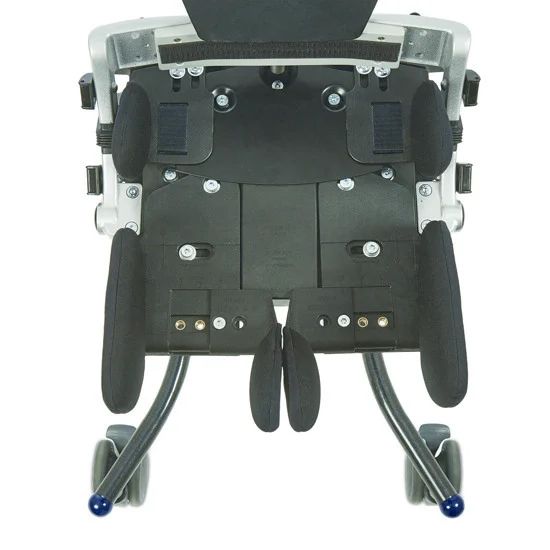

Seat width

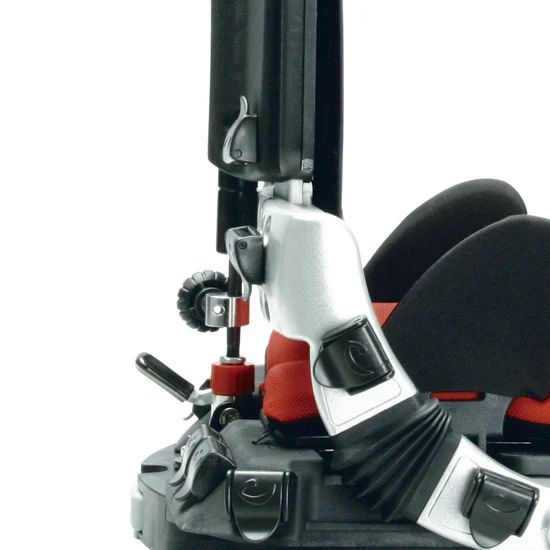

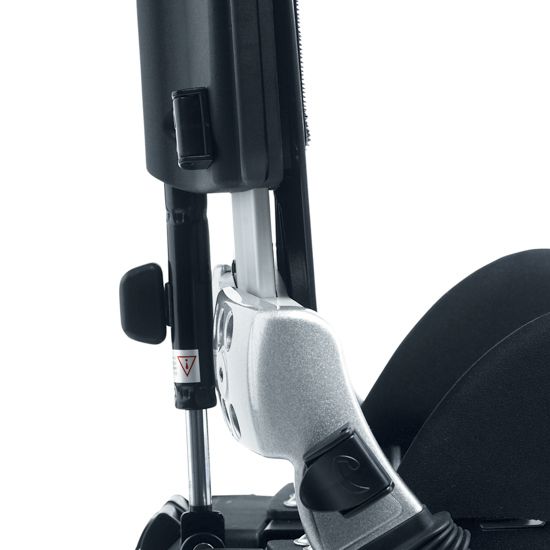

Gas spring

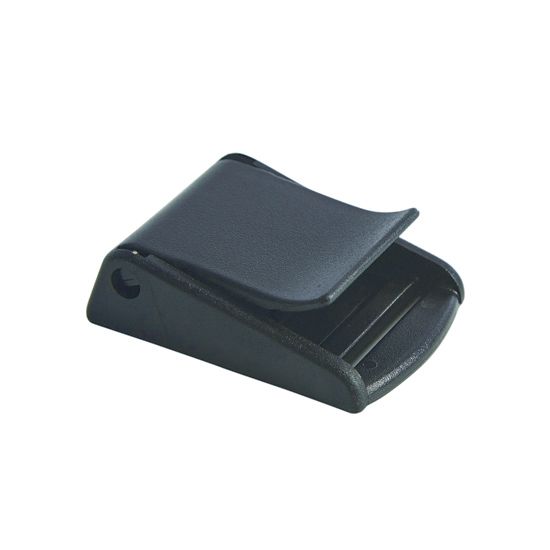

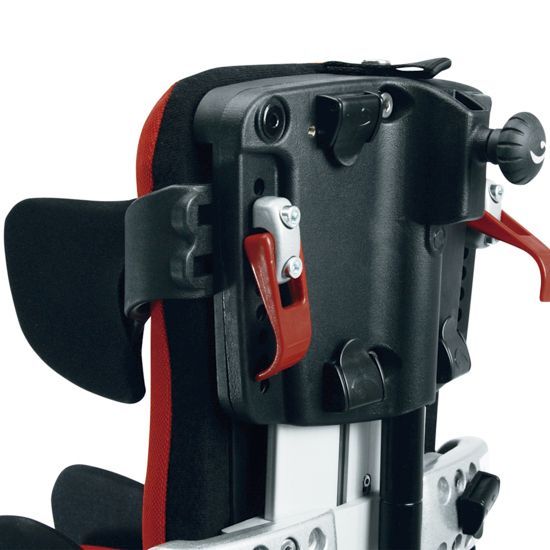

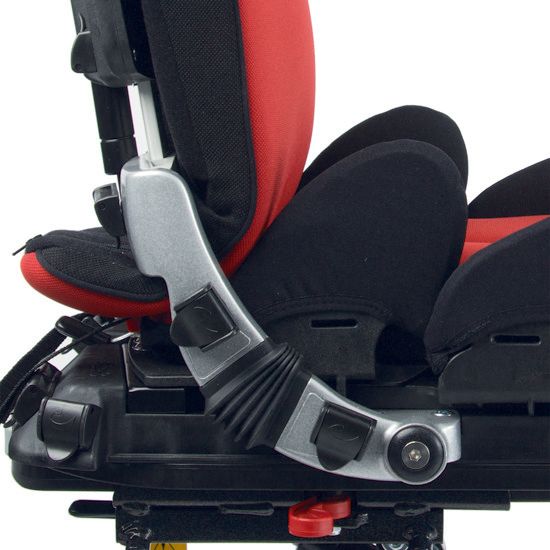

Fix locks

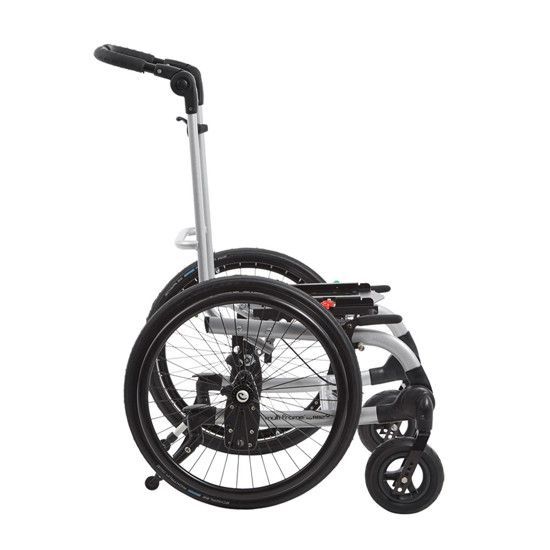

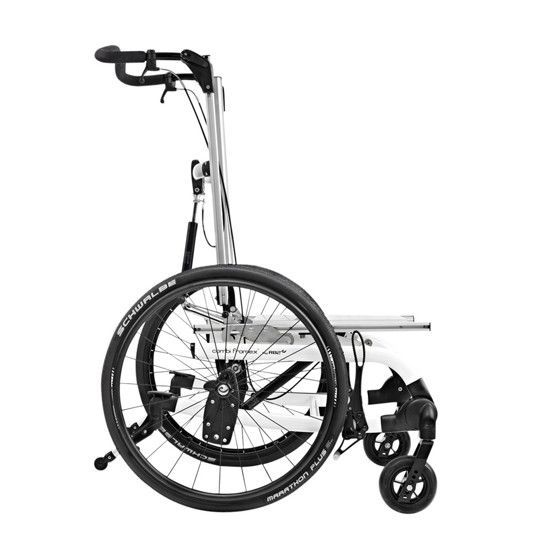

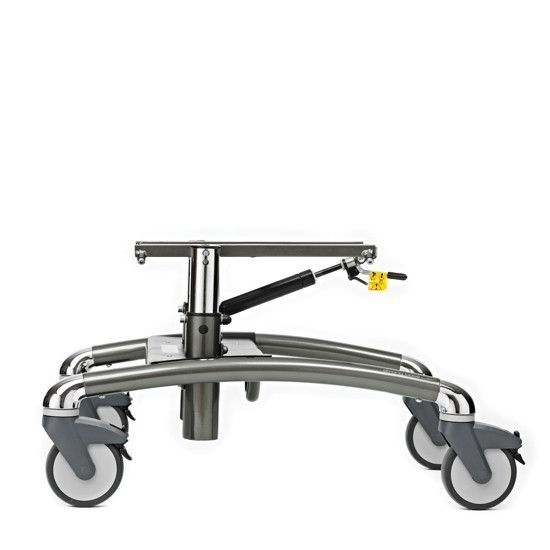

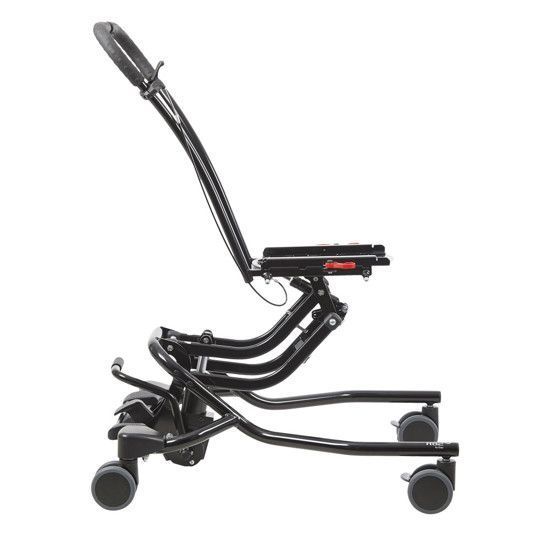

Frames suitable for x:panda

The x:panda can be mounted on different frames. Find our frame and seat combinations under documents for more information.

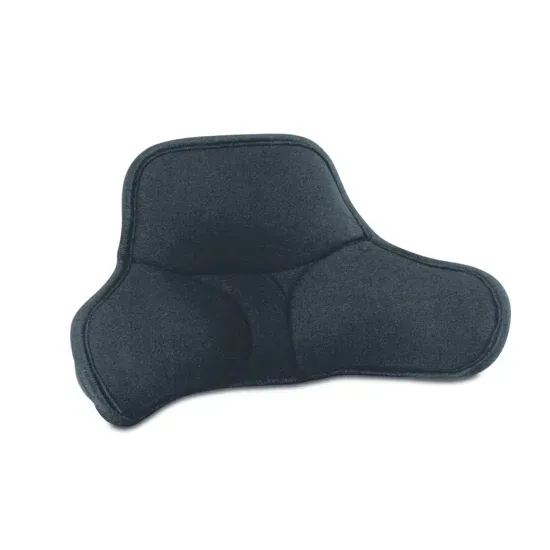

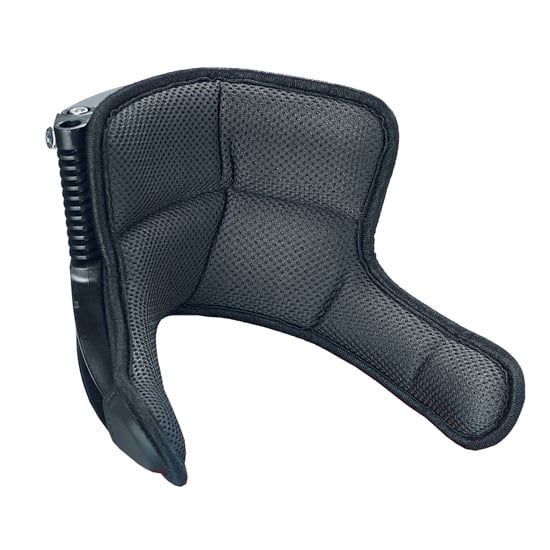

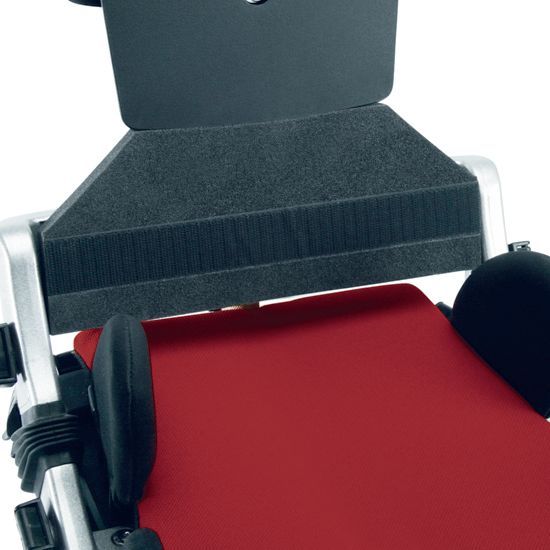

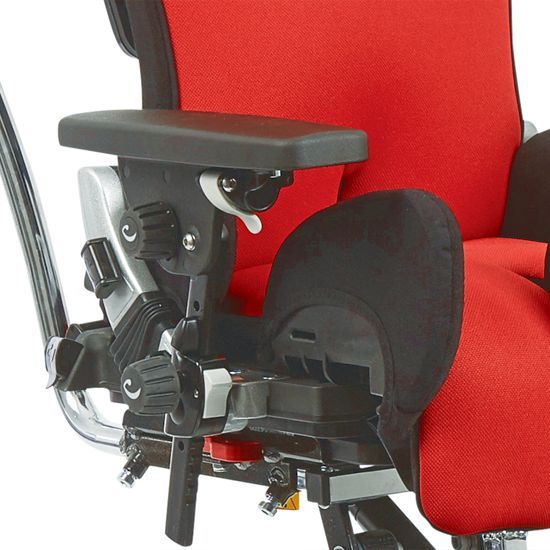

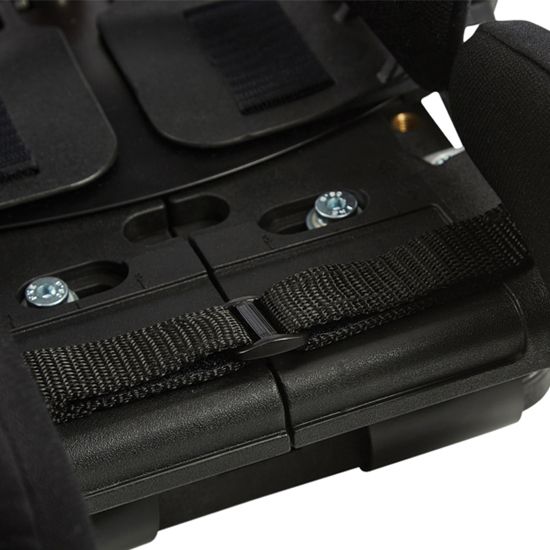

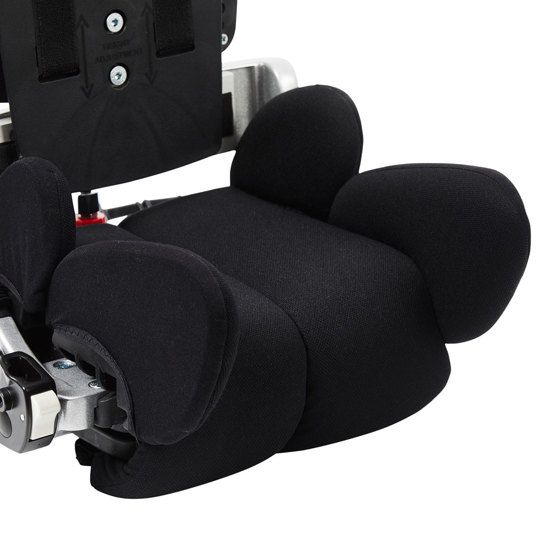

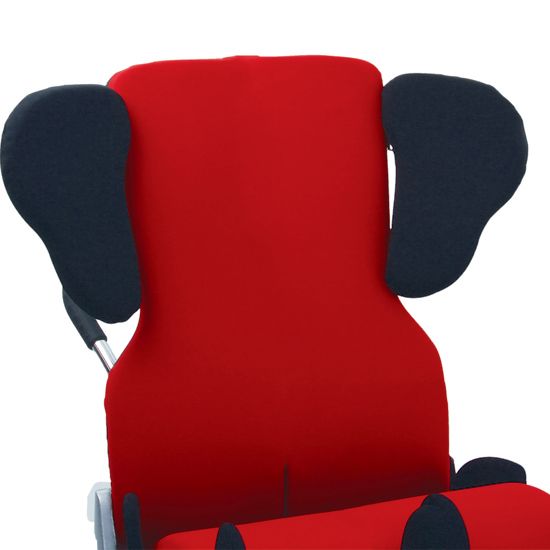

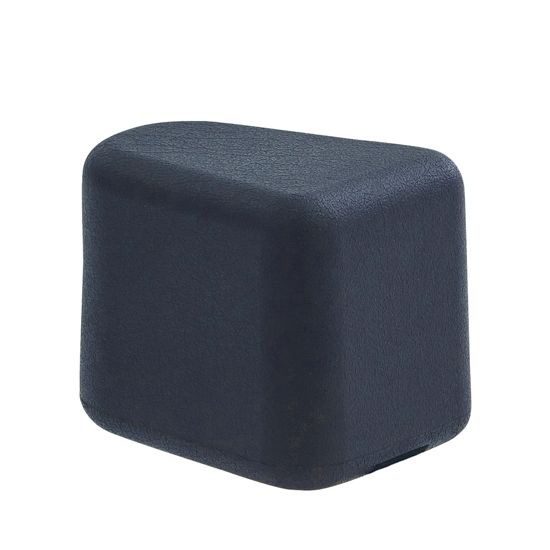

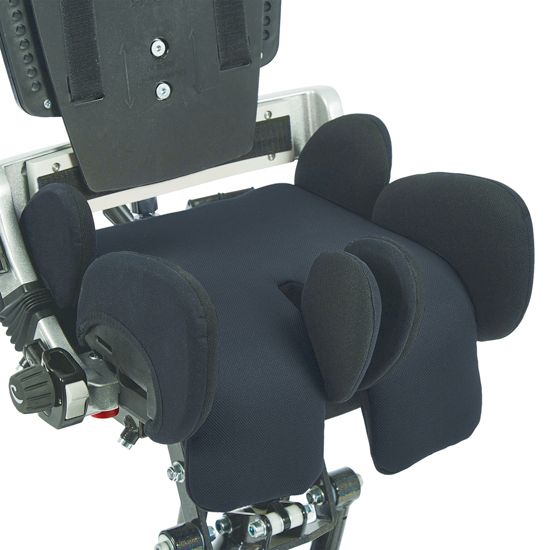

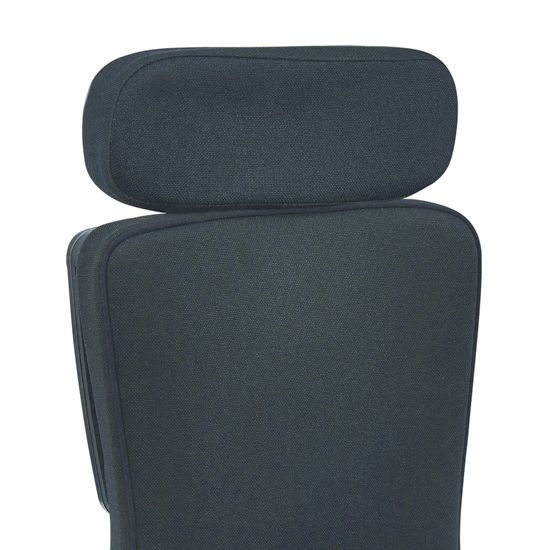

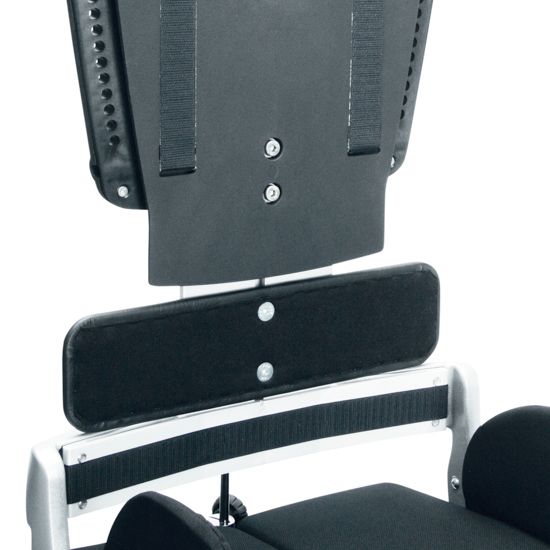

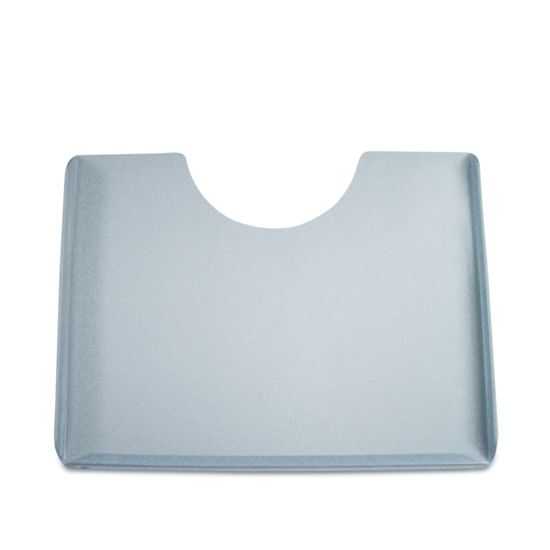

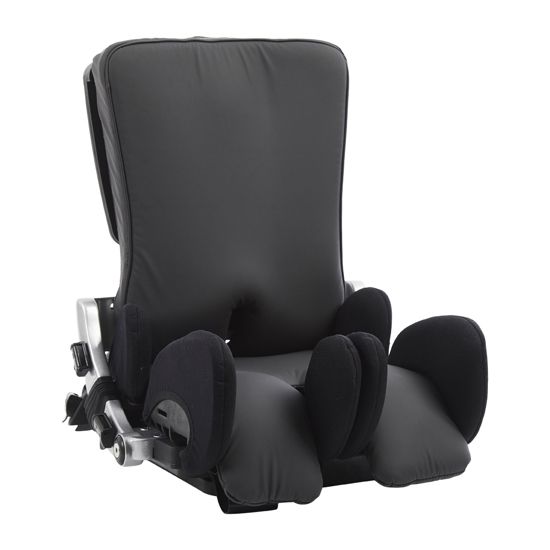

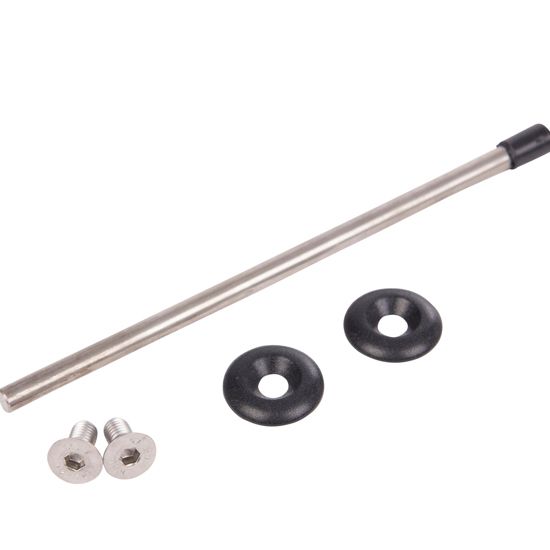

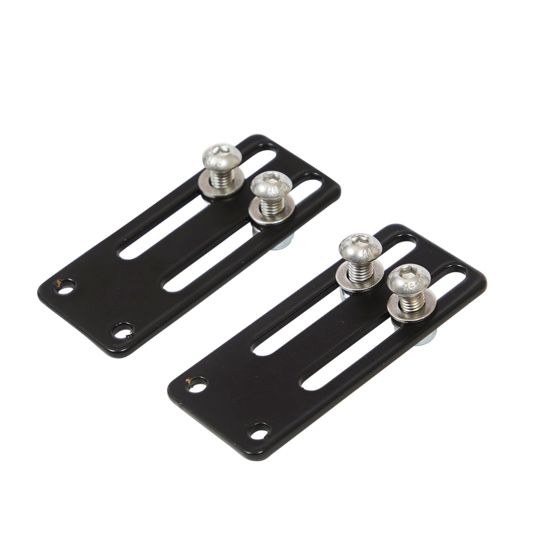

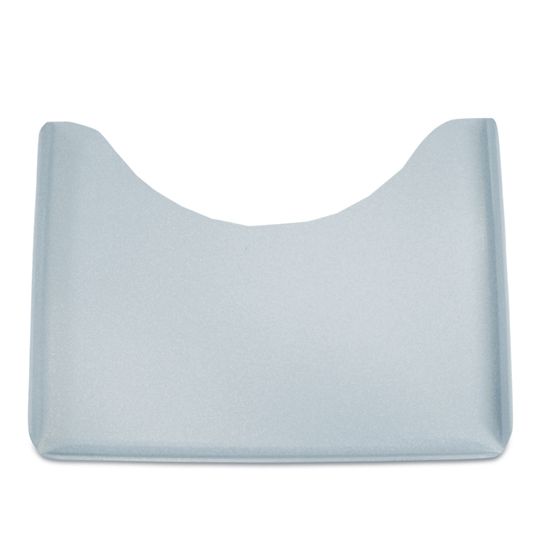

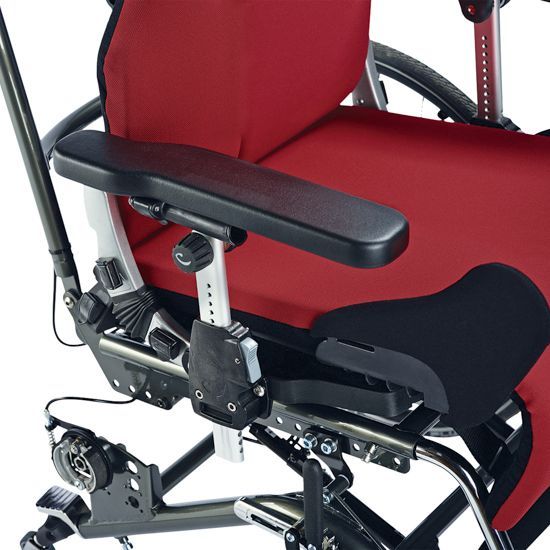

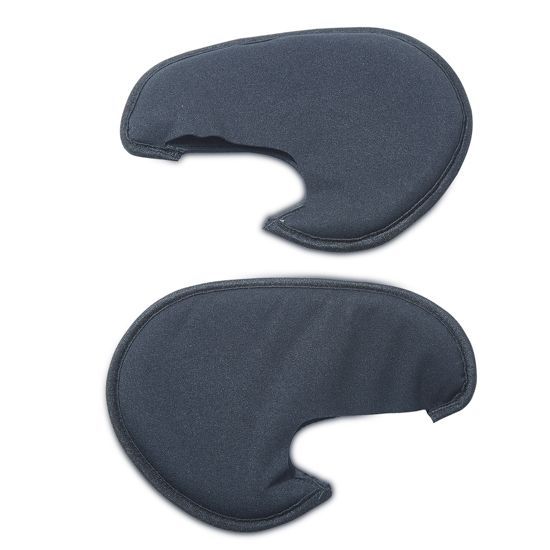

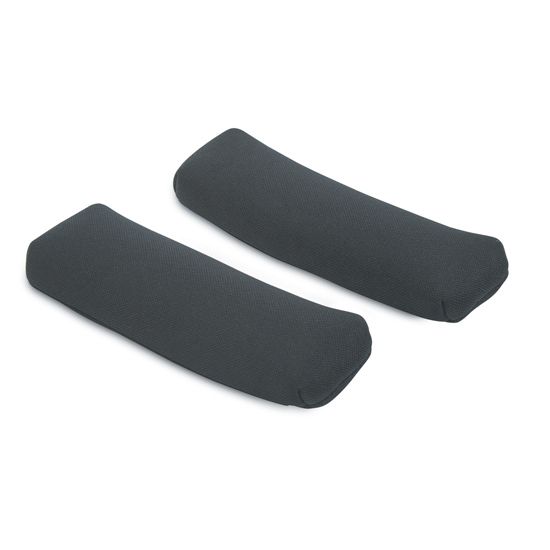

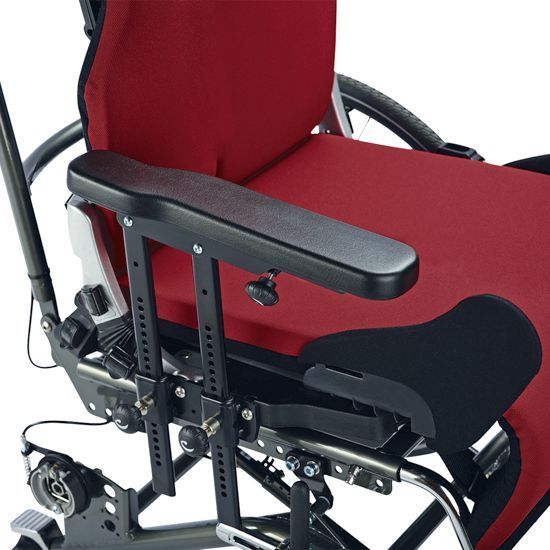

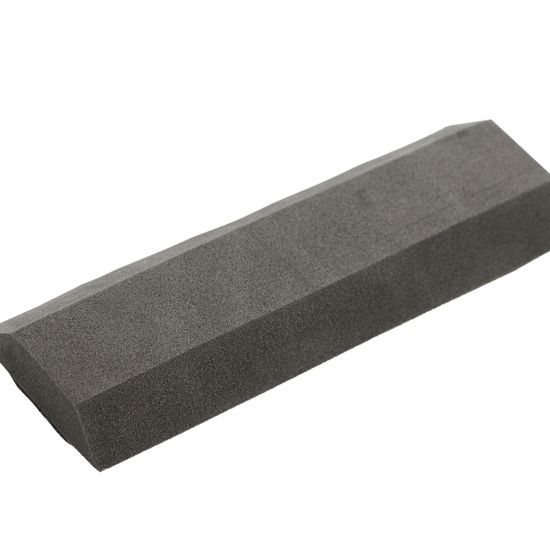

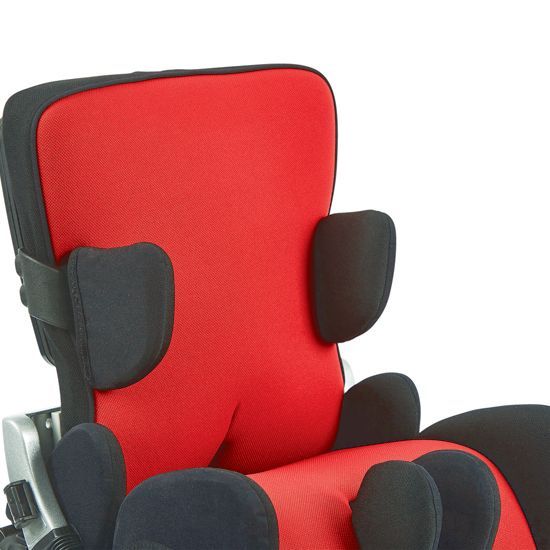

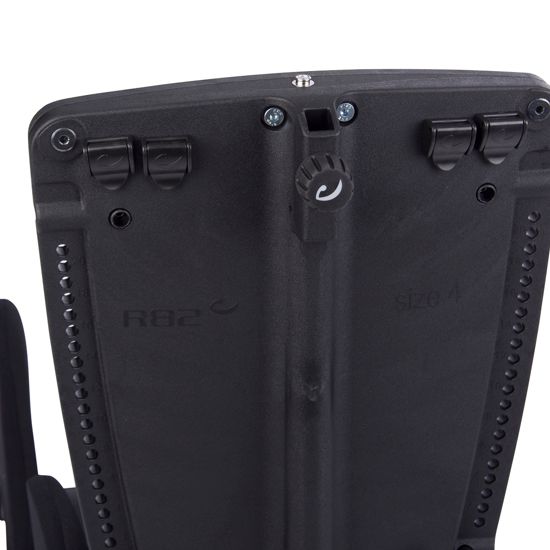

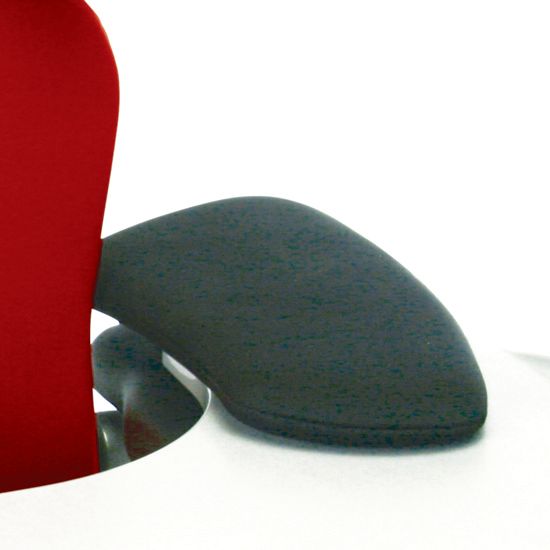

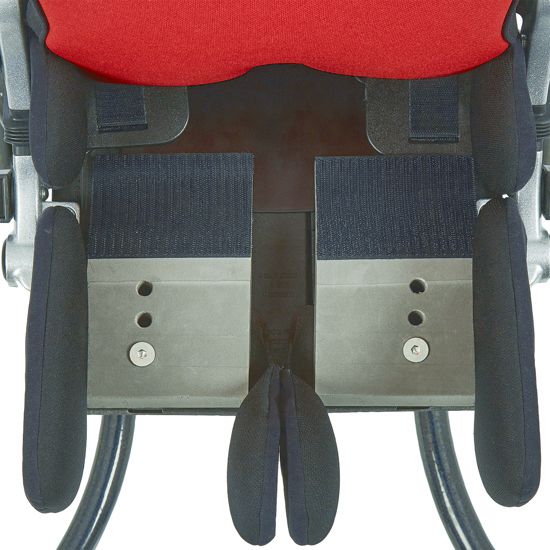

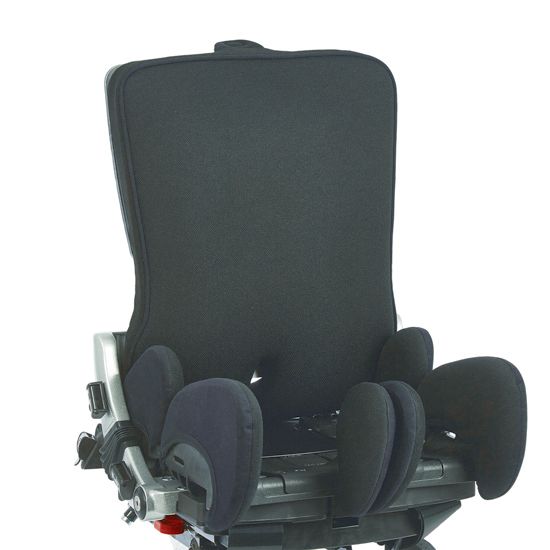

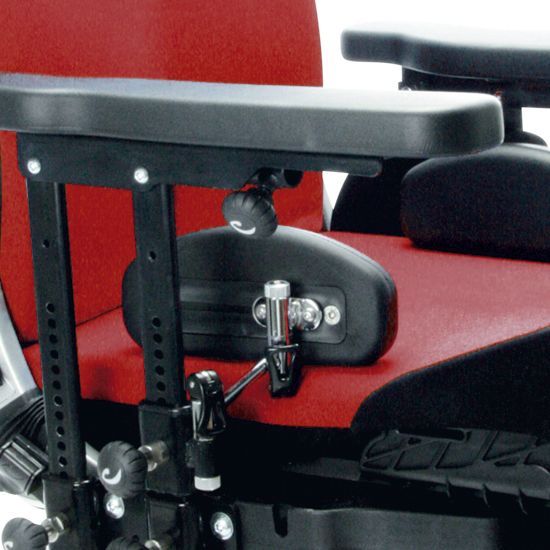

Accessories


Size 1

  • Item number: 891011x-01
  • Abduction angle each leg, size 1 in smallest position (°): 0 - 8
  • Abduction angle, each leg (°): 0 - 15
  • Armrest to seat distance (mm): 100-165
  • Back width, top of backrest (mm): 230
  • Backrest angle (°): (-5) - 30
  • Backrest height (mm): 270-370
  • Effective seat depth (mm): 160-260
  • Effective seat width (mm): 160, 200, 240
  • Front location of arm rest structure (mm): 140
  • Mass device (kg): 6.5
  • Maximum rated load (kg): 38.5
  • Maximum user height (mm): 1050
  • Maximum user mass (kg): 30
  • Maximum user mass in transportation (kg): 30
  • Minimum User Height (mm): 650
  • Width thighs (mm): 70, 90, 110

Size 2

  • Item number: 891012x-01
  • Abduction angle each leg, size 1 in smallest position (°): -
  • Abduction angle, each leg (°): 0 - 15
  • Armrest to seat distance (mm): 100-165
  • Back width, top of backrest (mm): 280
  • Backrest angle (°): (-5) - 30
  • Backrest height (mm): 320-420
  • Effective seat depth (mm): 220-330
  • Effective seat width (mm): 200, 240, 280
  • Front location of arm rest structure (mm): 140
  • Mass device (kg): 8.5
  • Maximum rated load (kg): 40.5
  • Maximum user height (mm): 1280
  • Maximum user mass (kg): 30
  • Maximum user mass in transportation (kg): 30
  • Minimum User Height (mm): 850
  • Width thighs (mm): 100, 120, 140

Size 3

  • Item number: 891013x-01
  • Abduction angle each leg, size 1 in smallest position (°): -
  • Abduction angle, each leg (°): 0 - 15
  • Armrest to seat distance (mm): 100-165
  • Back width, top of backrest (mm): 330
  • Backrest angle (°): (-5) - 30
  • Backrest height (mm): 350-470
  • Effective seat depth (mm): 260-390
  • Effective seat width (mm): 260, 310, 360
  • Front location of arm rest structure (mm): 180
  • Mass device (kg): 11
  • Maximum rated load (kg): 73
  • Maximum user height (mm): 1430
  • Maximum user mass (kg): 60
  • Maximum user mass in transportation (kg): 60
  • Minimum User Height (mm): 1000
  • Width thighs (mm): 120, 145, 170

Size 4

  • Item number: 891014x-01
  • Abduction angle each leg, size 1 in smallest position (°): -
  • Abduction angle, each leg (°): 0 - 15
  • Armrest to seat distance (mm): 100-165
  • Back width, top of backrest (mm): 350
  • Backrest angle (°): (-5) - 30
  • Backrest height (mm): 500-710
  • Effective seat depth (mm): 390-530
  • Effective seat width (mm): 340, 400, 460
  • Front location of arm rest structure (mm): 350
  • Mass device (kg): 13
  • Maximum rated load (kg): 95
  • Maximum user height (mm): 1800
  • Maximum user mass (kg): 80
  • Maximum user mass in transportation (kg): 75
  • Minimum User Height (mm): 1390
  • Width thighs (mm): 130, 190, 250

Abduction angle each leg for size 1 in the smallest position 0° - 8°.
