X:Panda Shape


The x:panda shape is created to make the best seat from where your child can live life to the fullest. It is designed to change shape as your child develops.


The x:panda shape is highly configurable and provides tailored support to fit the individual needs. It can be adjusted in seat width and depth, and back width and height to assure a tailored fit with a high level of comfort. That way, it always creates a stable seat from where the user can interact and participate in life as independently as possible. It can accommodate very complex seating positions with a high level of advanced and adjustable supports combined with adjustable dynamic back support; it can be a simple activity seat, and it can be everything else in between.

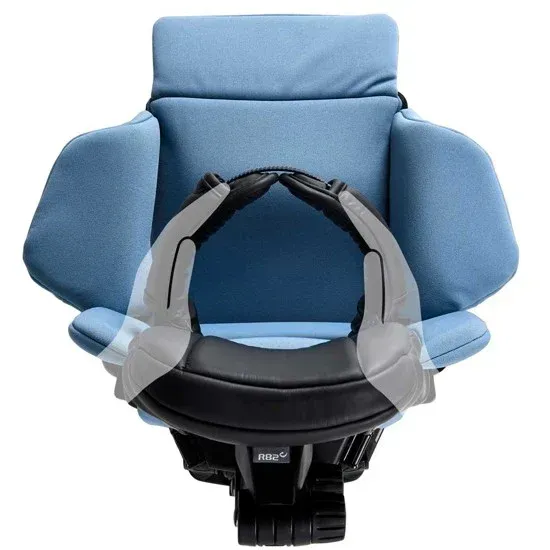

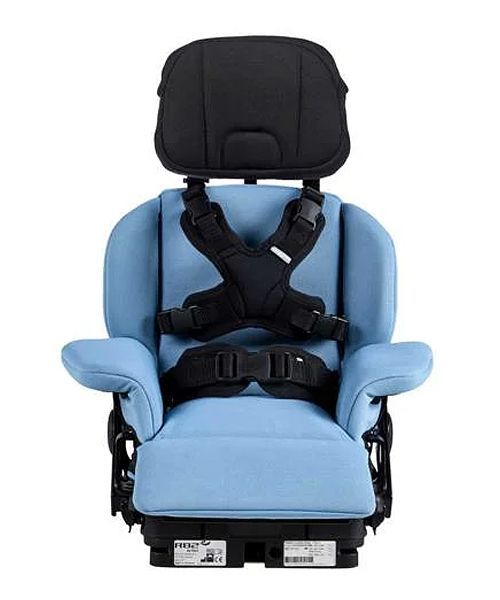

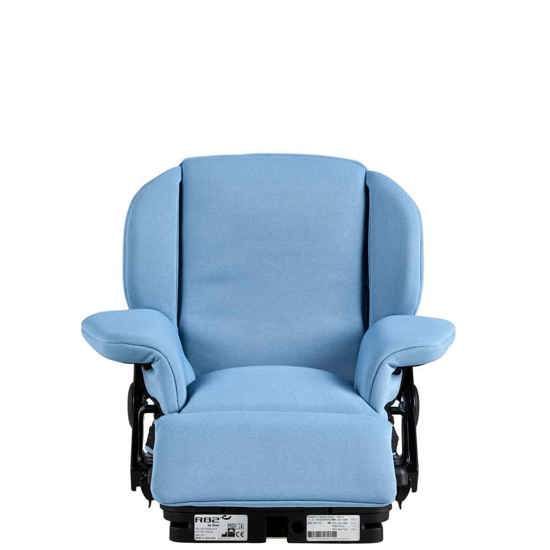

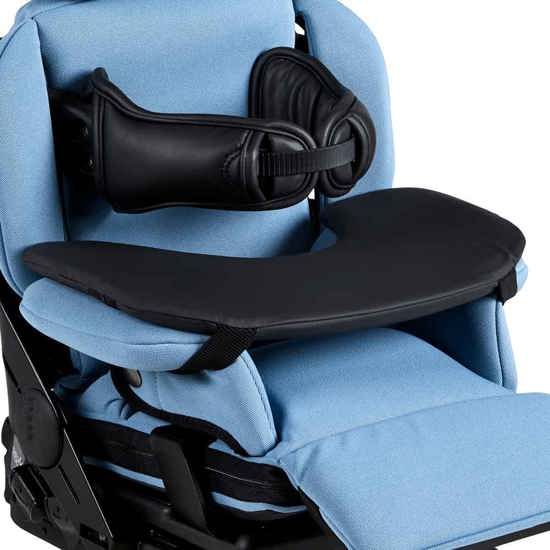

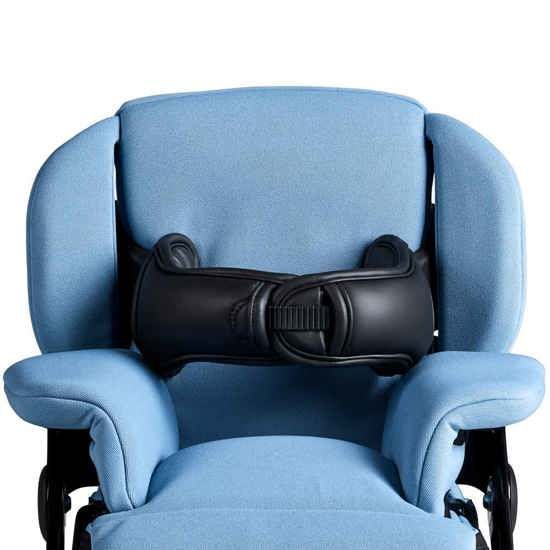

The infant seat provides supported seating for infants and thereby presents the opportunity for early intervention and facilitation of the child's participation and social interaction with parents, carers, and the environment.

REQUEST PRODUCT INFO

x:panda Shape User Manual

Features

Options

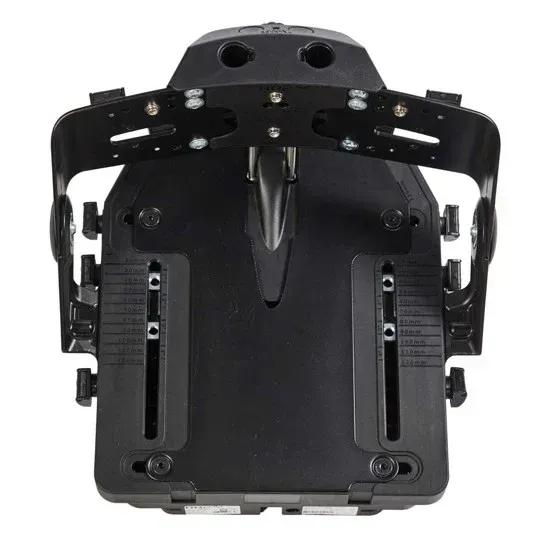

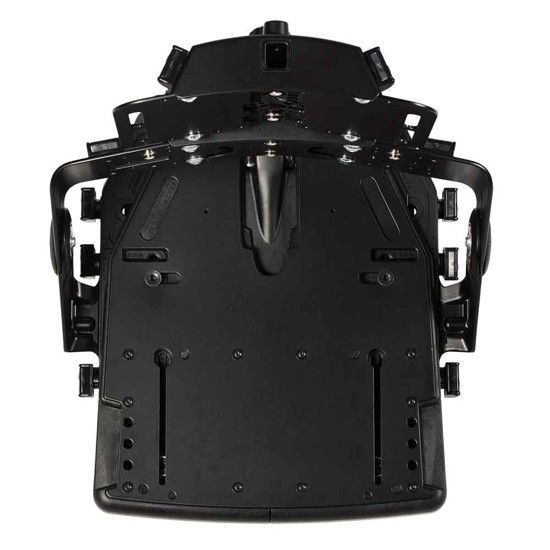

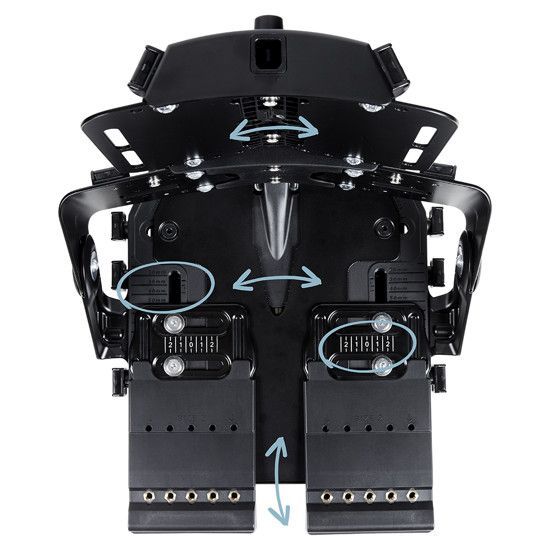

Seat base

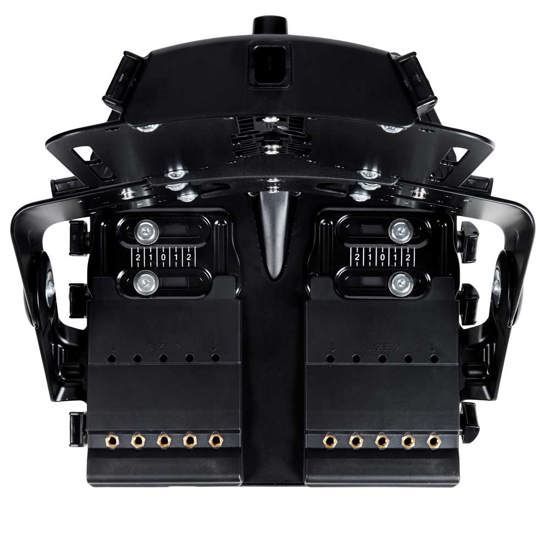

Seat plate

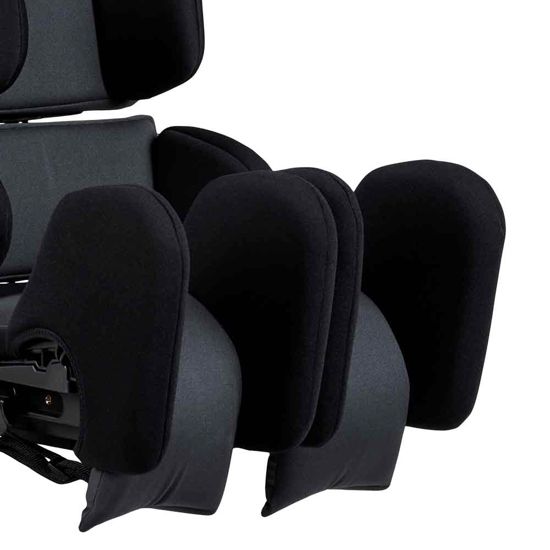

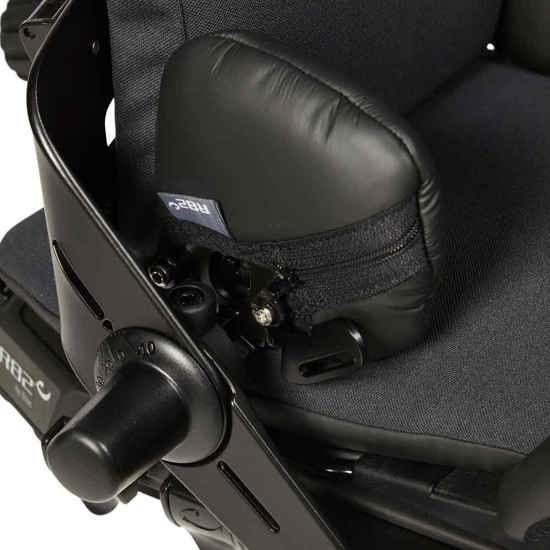

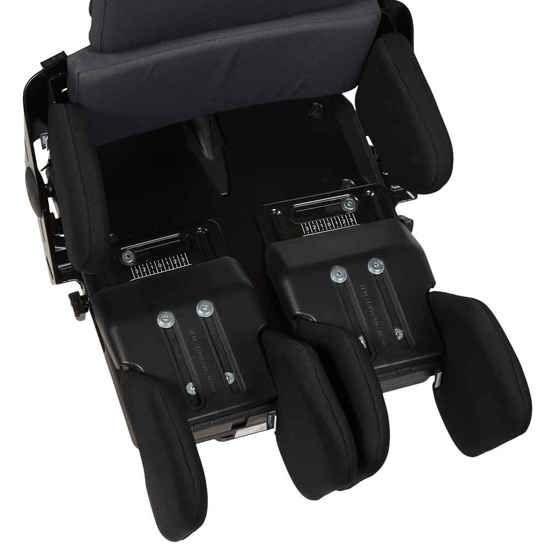

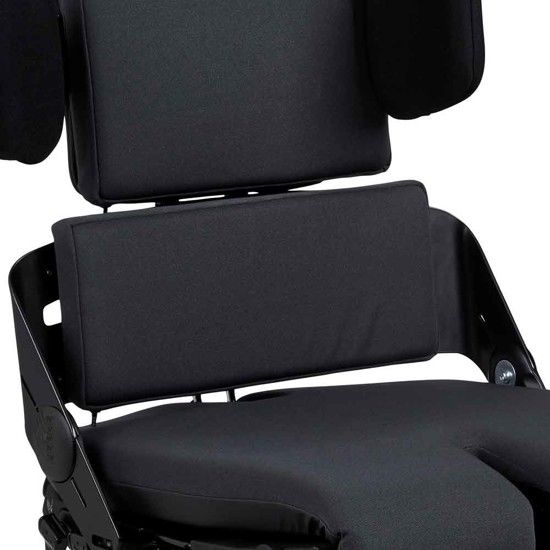

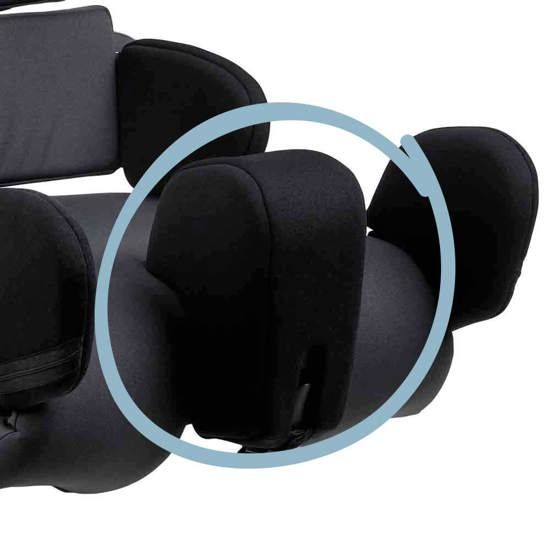

  • Hip supports

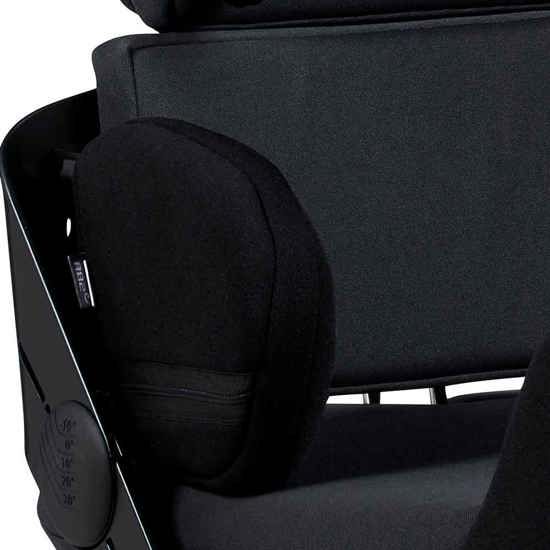

    When you choose hip or pelvis supports, the seat width is reduced with min. 40 mm. Choose covers under accessory. Width adjustable pelvis supports, mounted from the back, are available as accessories.

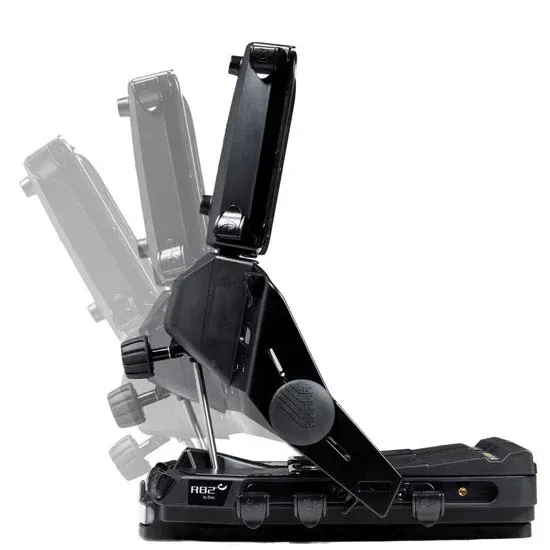

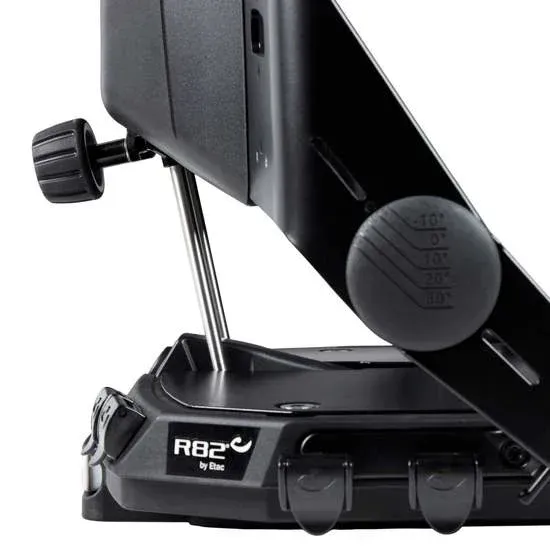

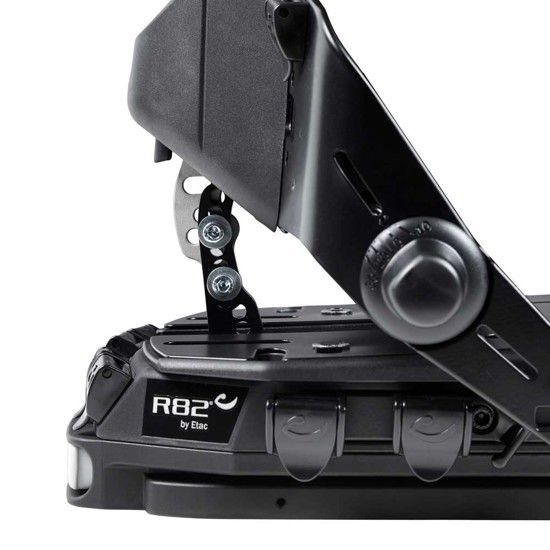

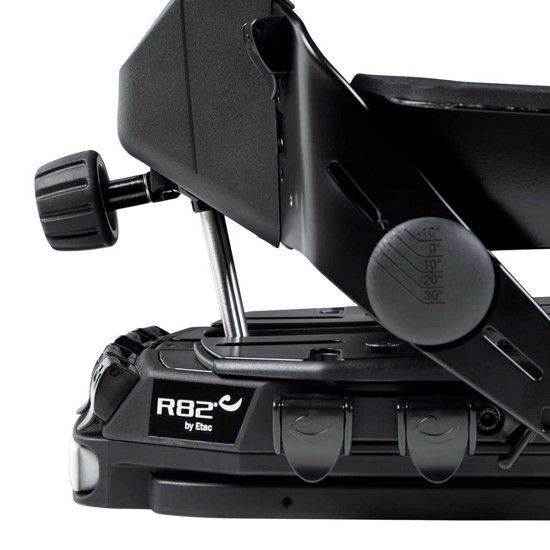

    Back recline

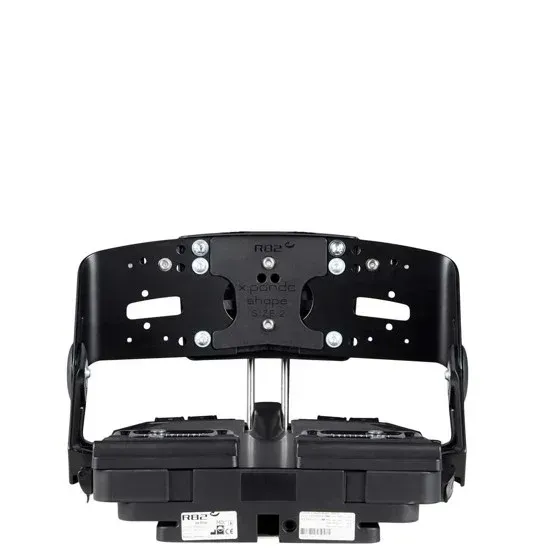

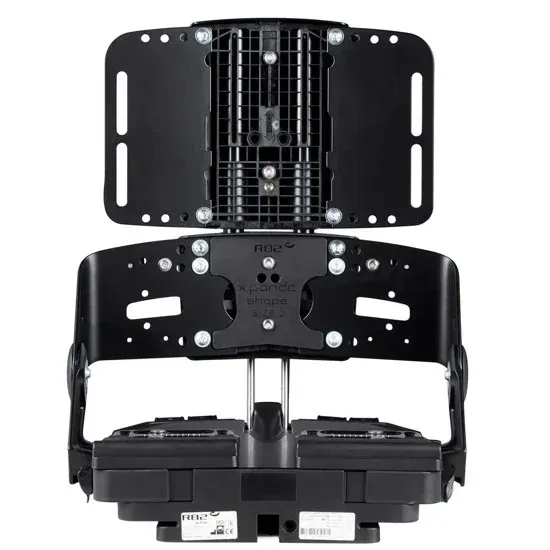

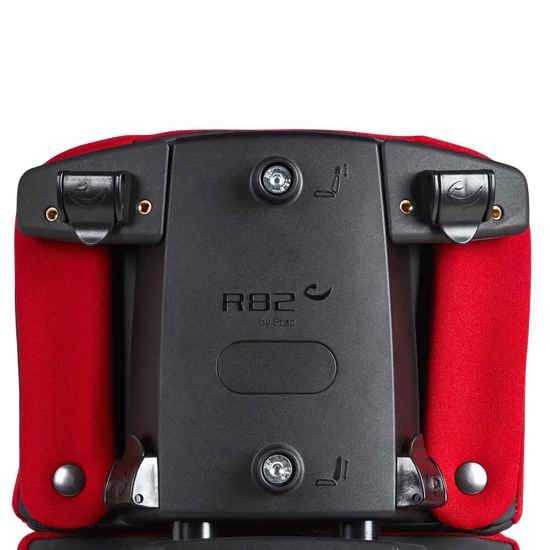

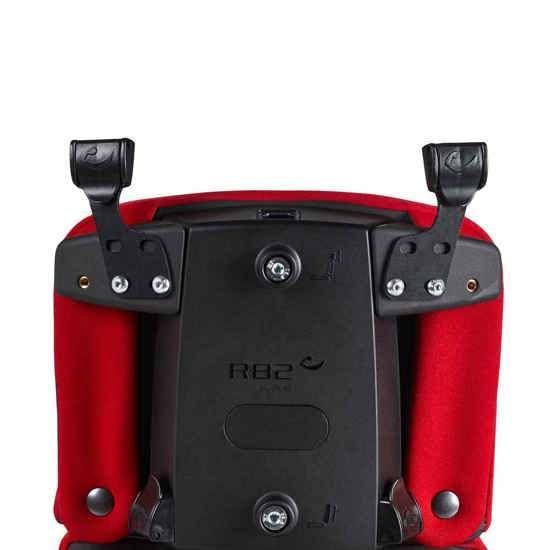

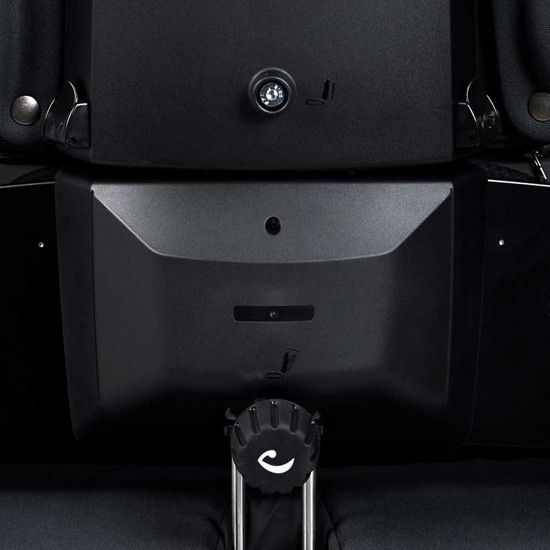

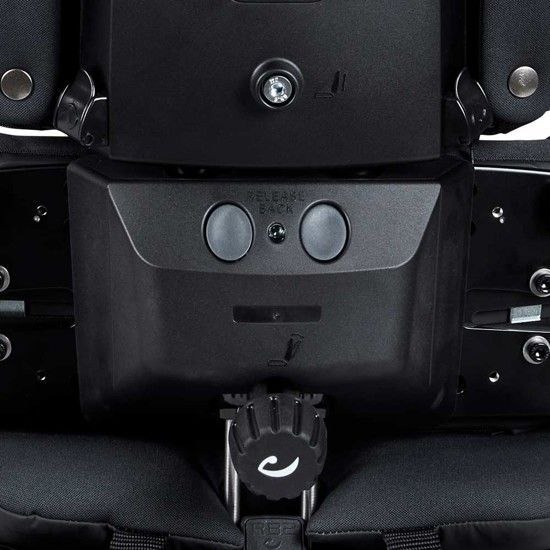

    Upper back mounting

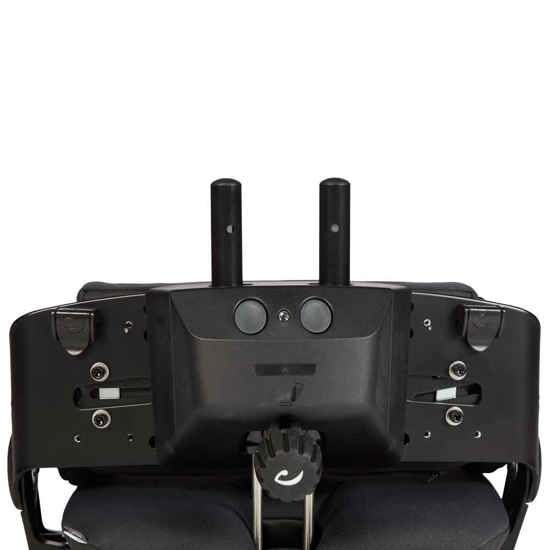

    Enables quick and easy removal of the upper back. Removal of the upper back allows the opportunity to challenge the postural control and balance of the upper body (head, arms, and trunk) and thereby facilitates the activation of the trunk and back muscles. Can be used with therapy kit tubes for 60 mm extra back height (accessory).

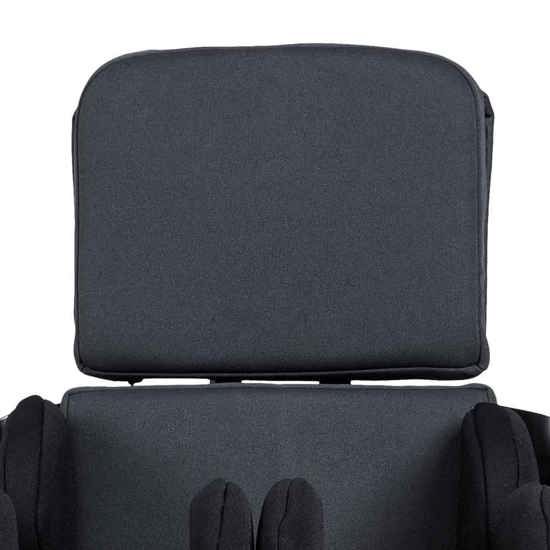

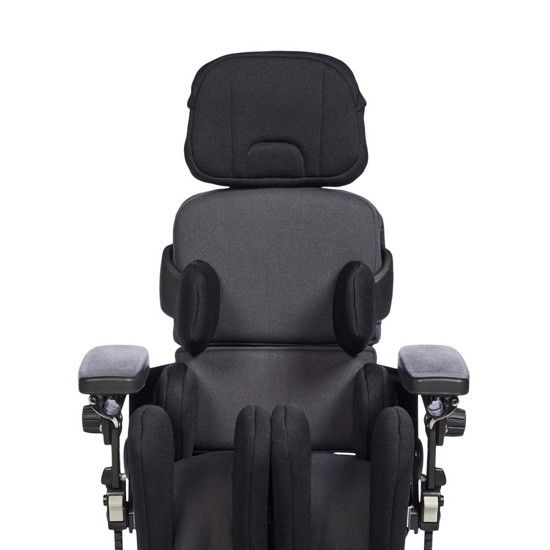

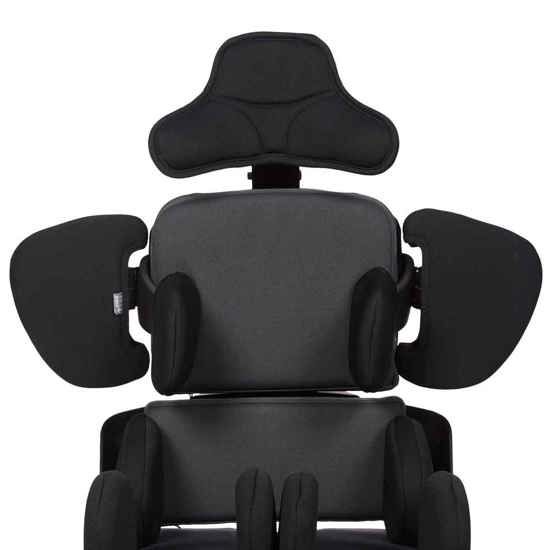

    Upper back

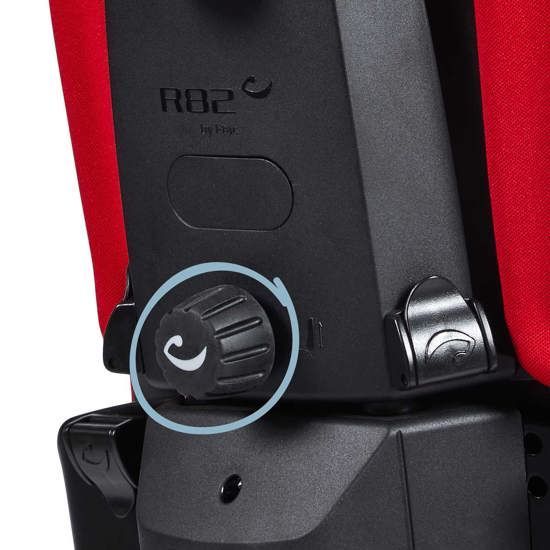

    Provides support for the upper back when the user is seated. The upper back grows in width and adjusts in height to accommodate the individual needs and secure the best fit as the user develops and grows.. Choose cushions under accessories. A kit for frequent and toolless height adjustment of the upper back is available as an accessory.

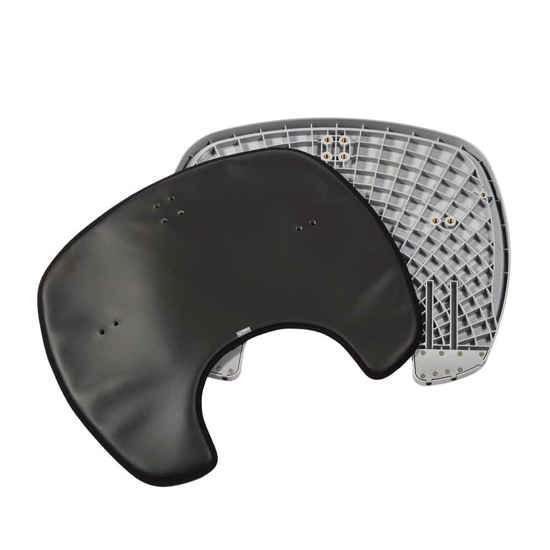

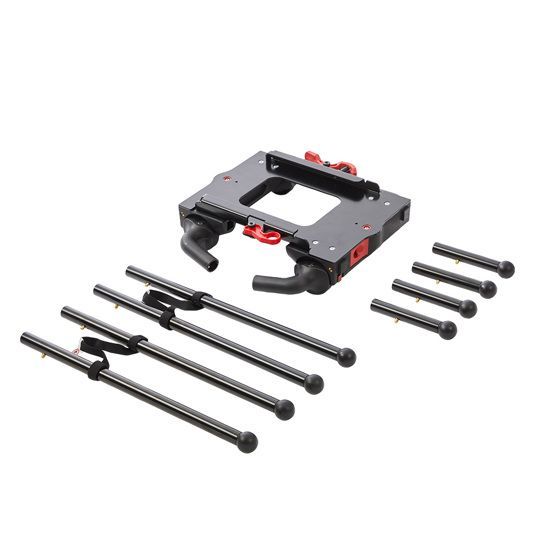

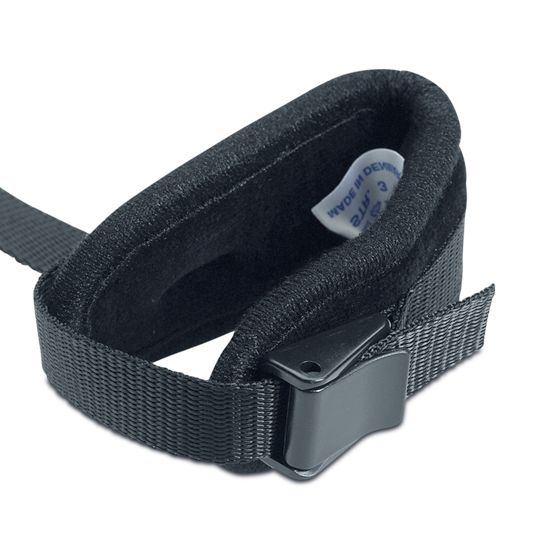

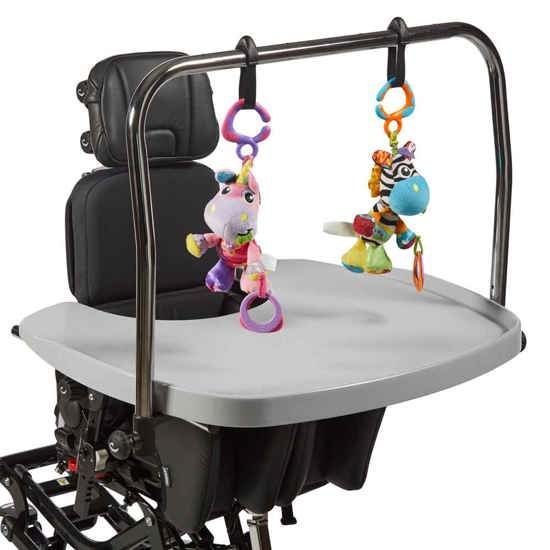

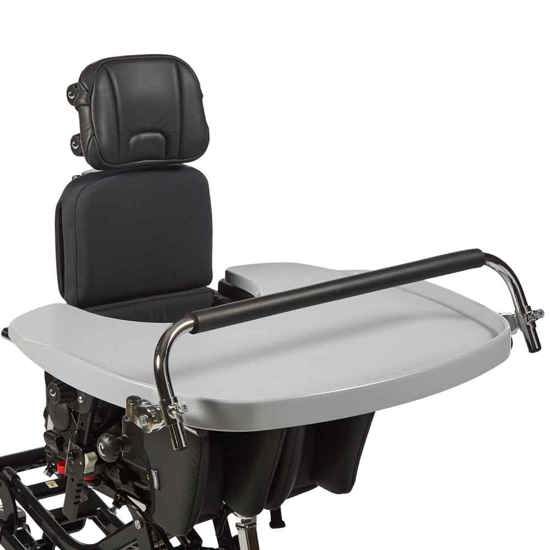

    Accessories

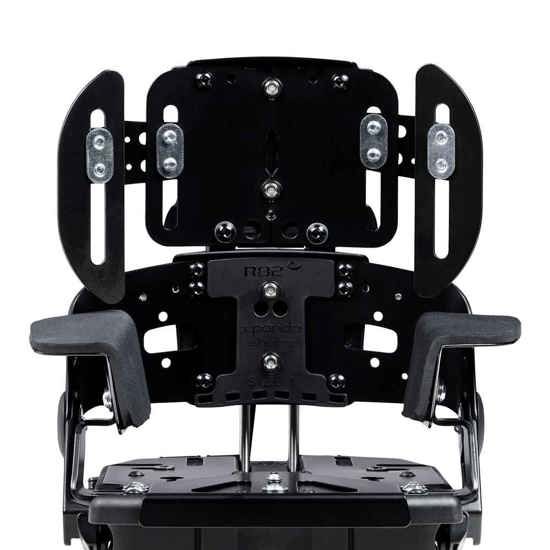

    Size 1, infant seating

    • Abduction angle, each leg (°): -
    • Adduction angle, each leg (°): 10°/20°
    • Armrest to seat distance (mm): 70-100
    • Back width, top of backrest (mm): 190
    • Backrest height (mm): 270-360
    • Backrest recline angle (°): (-10°)-(30°)
    • Effective seat depth (mm): 120-160
    • Effective seat width (without hip support) (mm): 220
    • Front location of arm rest structure (mm): 160-180
    • Mass device (kg): 6
    • Maximum rated load (kg): 43
    • Maximum user mass (kg): 350
    • Maximum user mass in transportation (kg): 35
    • Overall width, both legs in maximum abduction (mm): 2400
    • Seat width, minimum/maximum (with hip supports) (mm): 120-220
    • Width thighs (mm): -



    Size 1

    • Abduction angle, each leg (°): 10°/20-30°
    • Adduction angle, each leg (°): 10°/20°-30°
    • Armrest to seat distance (mm): 90-155
    • Back width, top of backrest (mm): 180/220/260/300/340
    • Backrest height (mm): 280-370/320-420/360-470
    • Backrest recline angle (°): (-10°)-(30°)
    • Effective seat depth (mm): 160-320
    • Effective seat width (without hip support) (mm): 220/260/300
    • Front location of arm rest structure (mm): 230
    • Mass device (kg): 6.5
    • Maximum rated load (kg): 43.5
    • Maximum user mass (kg): 35
    • Maximum user mass in transportation (kg): 35
    • Overall width, both legs in maximum abduction (mm): 300/400/500
    • Seat width, minimum/maximum (with hip supports) (mm): 120-180/160-220/200-260
    • Width thighs (mm): 70/92/115



    Size 2

    • Abduction angle, each leg (°): 15°/30°
    • Adduction angle, each leg (°): 15°/30°
    • Armrest to seat distance (mm): 100-165/100-220
    • Back width, top of backrest (mm): 180/220/260/300/340/380
    • Backrest height (mm): 340-440/380-490/430-560
    • Backrest recline angle (°): (-10°)-(30°)
    • Effective seat depth (mm): 240-420
    • Effective seat width (without hip support) (mm): 280/320/360/400
    • Front location of arm rest structure (mm): 290
    • Mass device (kg): 11
    • Maximum rated load (kg): 78
    • Maximum user mass (kg): 65
    • Maximum user mass in transportation (kg): 65
    • Overall width, both legs in maximum abduction (mm): 350/460/560/660
    • Seat width, minimum/maximum (with hip supports) (mm): 180-240/220-280/260-320/300-360
    • Width thighs (mm): 85/108/130/152



    Size 3

    • Abduction angle, each leg (°): 25°/30°
    • Adduction angle, each leg (°): 25°/30°
    • Armrest to seat distance (mm): 130-280
    • Back width, top of backrest (mm): 220/260/300/340/380/420
    • Backrest height (mm): 420-530/470-600/540-690
    • Backrest recline angle (°): (-10°)-(30°)
    • Effective seat depth (mm): 350-550
    • Effective seat width (without hip support) (mm): 380/420/460/500
    • Front location of arm rest structure (mm): 360-420
    • Mass device (kg): 14
    • Maximum rated load (kg): 106
    • Maximum user mass (kg): 90
    • Maximum user mass in transportation (kg): 90
    • Overall width, both legs in maximum abduction (mm): 600/700/740/780
    • Seat width, minimum/maximum (with hip supports) (mm): 280-340/320-380/360-420/400-460
    • Width thighs (mm): 100/122/145/168/190

    Mass device: The seat weight only (without accessories).

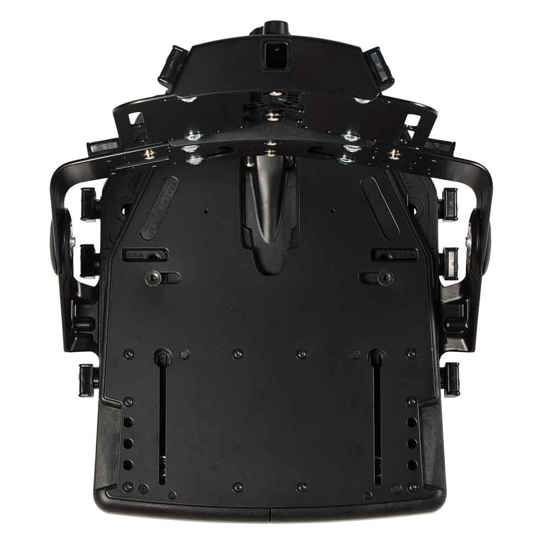

    All seat measurements for size 1,2 & 3 are for the Advanced seats. Seat measurements for the Simple seats, can be found in the user manual.
