XL5 ci

XL5 ci

Entirely customizable for a perfect adaptation to the user and…



The lowest seat-to-floor height on the market, 11 ½″! The XL5 offers lower seat heights and center of gravity adjustment to facilitate foot propelling.

REQUEST PRODUCT INFO

XL5 Brochure

XL5 User Manual

City skyline

Photo By: John Doe
Button

SEAT-TO-FLOOR HEIGHT

The XL5ci is truly distinctive in that it features a low starting seat-to-floor height of 11 ½″.

ALL-IN-ONE FOOTRESTS

  • Removable, height-adjustable swing-away footrests
  • Height- and angle-adjustable footplate
  • Folding strap for easy folding and storage

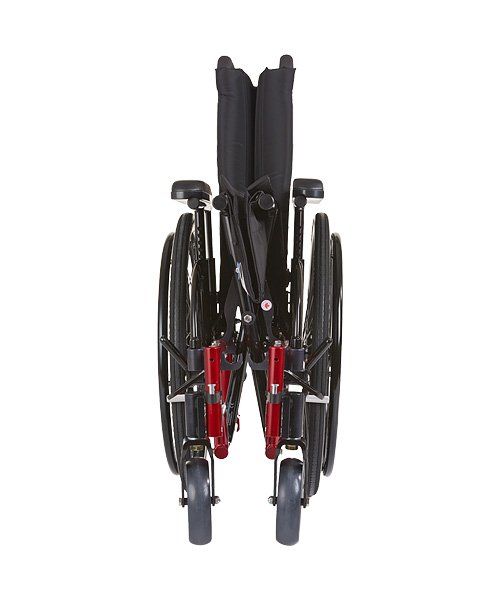

EASY STORAGE

Foldable into a minimal size that allows carrying and storing the chair with ease.

A MULTITUDE OF OPTIONS

  • Adjustable rear wheel depth
  • Axle plate offers adjustable seat height and centre of gravity
  • Anti-tippers with adjustable height and depth
  • Transit anchor points
  • Removable, height-adjustable swing-away armrests
  • Height-adjustable side guards for optimal comfort

AVAILABLE COLORS

Specifications

Frame Type: Folding

Frame Material: Aluminum

Seat depth: 14” to 22”

Seat width: 12” to 22”

Front seat-to-floor height: 11,5” to 19,5”

Rear seat-to-floor height: 11,5” to 19”

Front wheel diameter: 4”, 5”, 6”, 7” or 8”

Rear wheel diameter: 20”, 22”, 24” or 26”

Transport weight*: 27.6 lb

Weight limit: 350 lb

Backrest height: 13” to 26”

Adjustable backrest angle range: 85° to 115°

Armrest:

« U » Type: 8” to 13”

« U » Type lowered: 6” to 9”

« L » Type: 9” to 11”

« T » Type: 8” to 12”

Footrest: 60° – 70° – 90°

Legrest: Elevating/Articulating legrest 14” to 19”


*Weight based on 16” x 16” wheelchair with all standard components except for rear wheels. Rear wheels are excluded since there are multiple different weights for possible wheel configurations. Example, a pair of standard 22” rear wheels weighs 7.8 lb.
