Zing MPS1

Zing MPS

PA5520

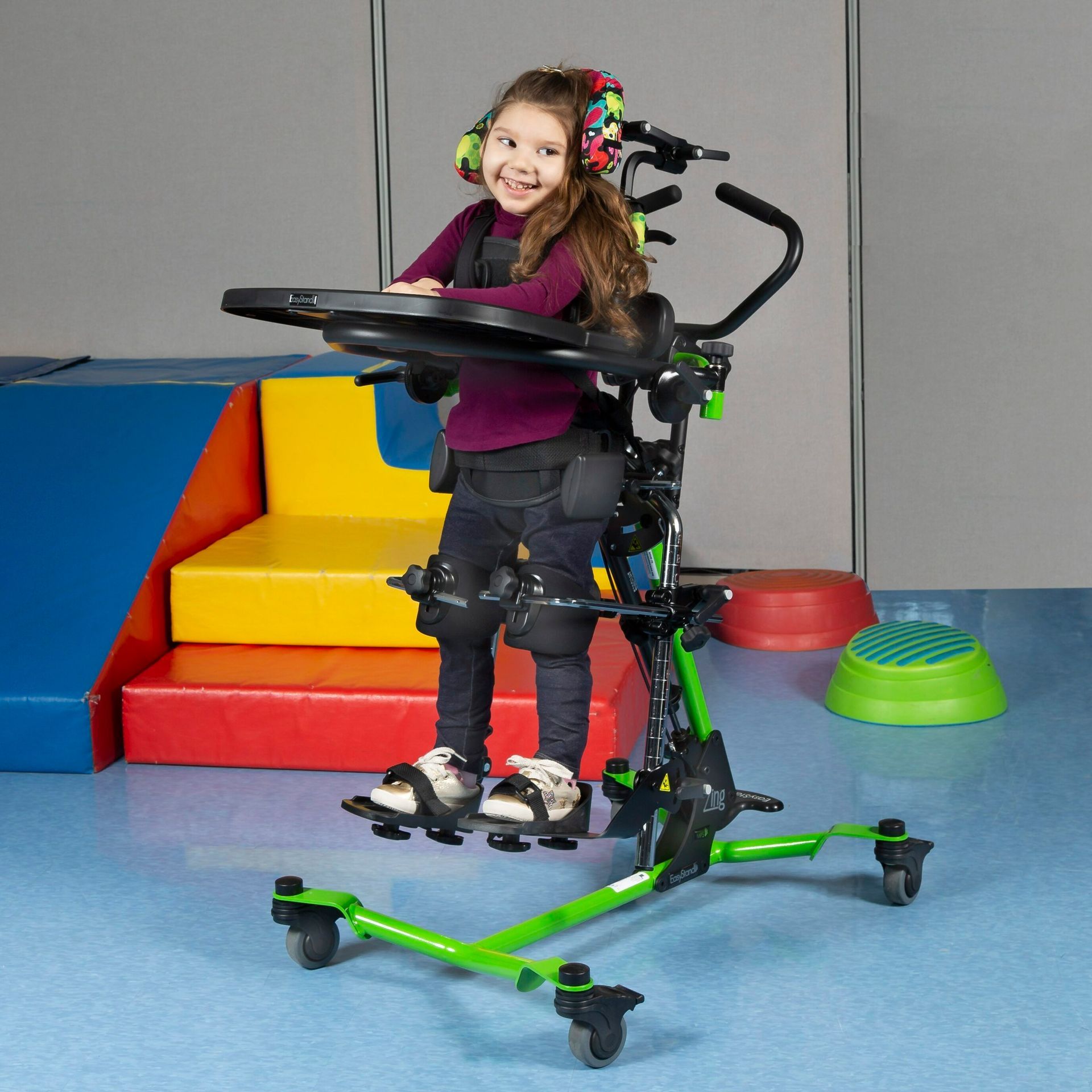

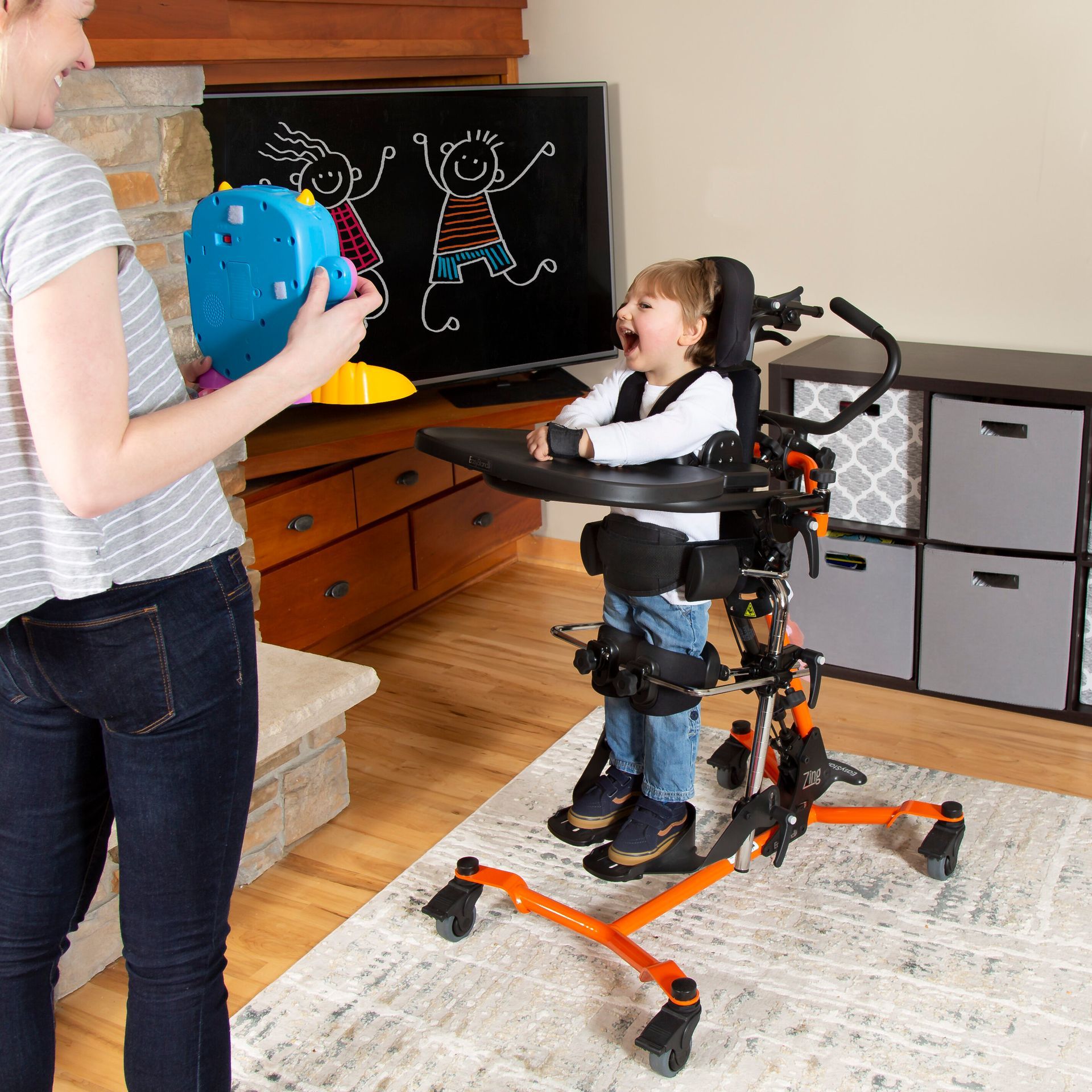

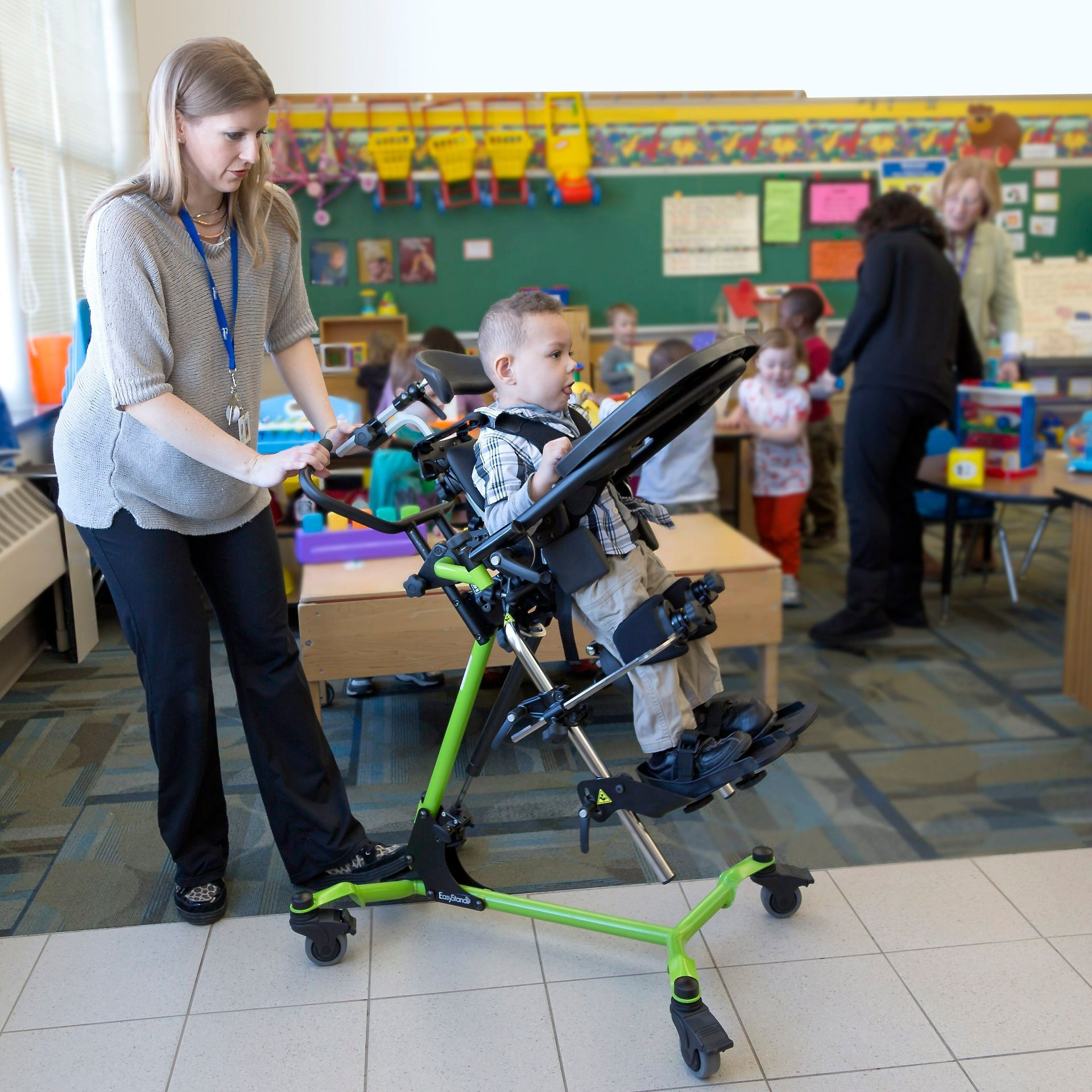

The Zing MPS is the only multi-position stander that pivots two directions, allowing the unit to go from flat-to-load supine to 20 degrees prone in one motion. There is no need to transfer the user in and out, flip pads, foot plates and trays. This ability provides a therapeutic opportunity not possible with other standing frames. It is also one of the few standers that provides the option of up to 30 degrees of independent leg abduction. Because the abduction pivot point is in alignment with the natural hip pivot of the user, the entire leg abducts eliminating the need to adjust foot plates or knee pads. Not only does this provide anatomically correct abduction, but rotating hip guides and only having to loosen a single knob per leg enables simple and intuitive standing in abduction.



Size 1 – infancy to 44″, 70 lb weight capacity
Size 2 –
 40-60″, 154 lb weight capacity
HCPCS Code
: E0641

REQUEST PRODUCT INFO

Zing Catalog

Parents Guide

Zing User Manual

Product Description


E0641: Standing frame/table system, multi-position (e.g. three-way stander), any size including pediatric, with or without wheels

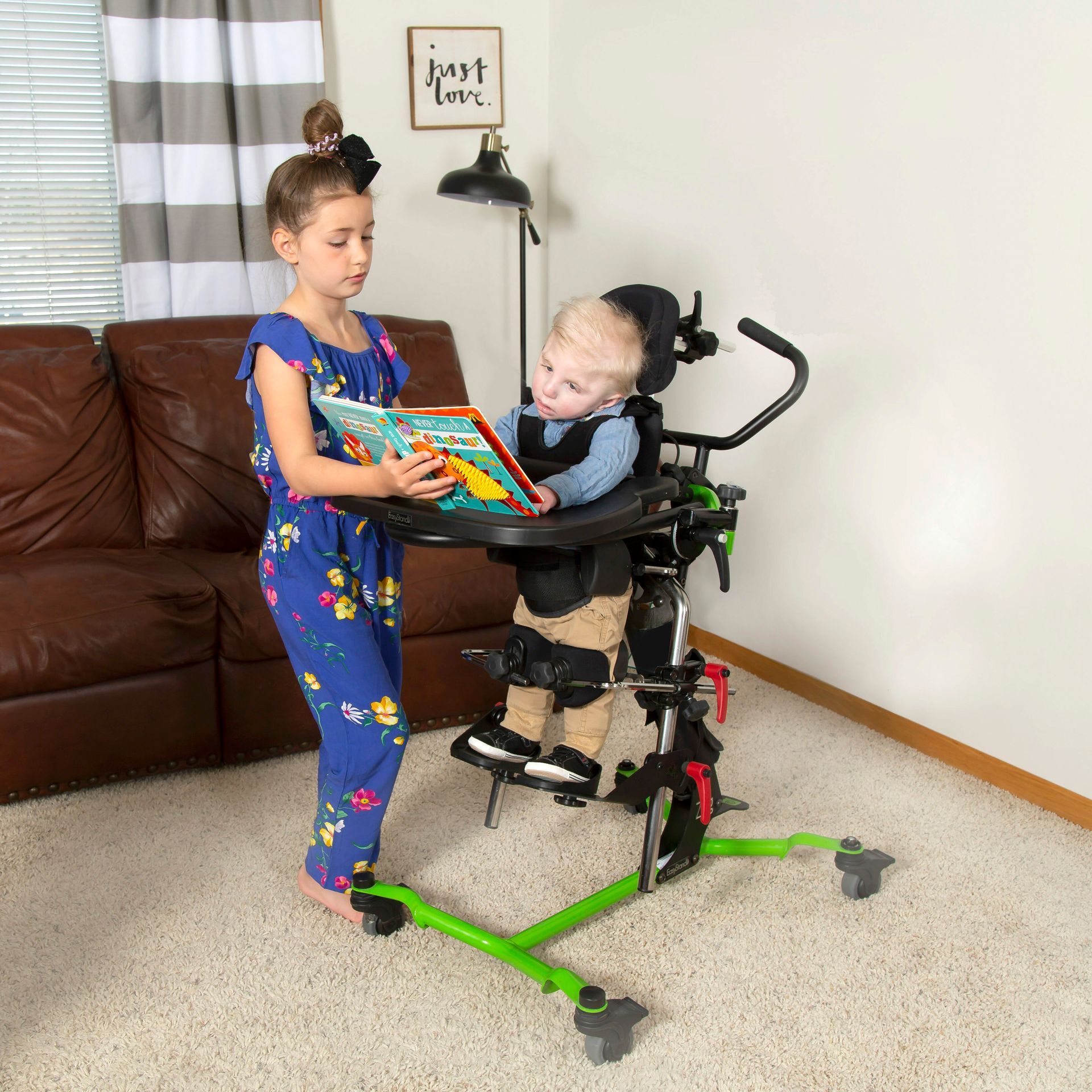

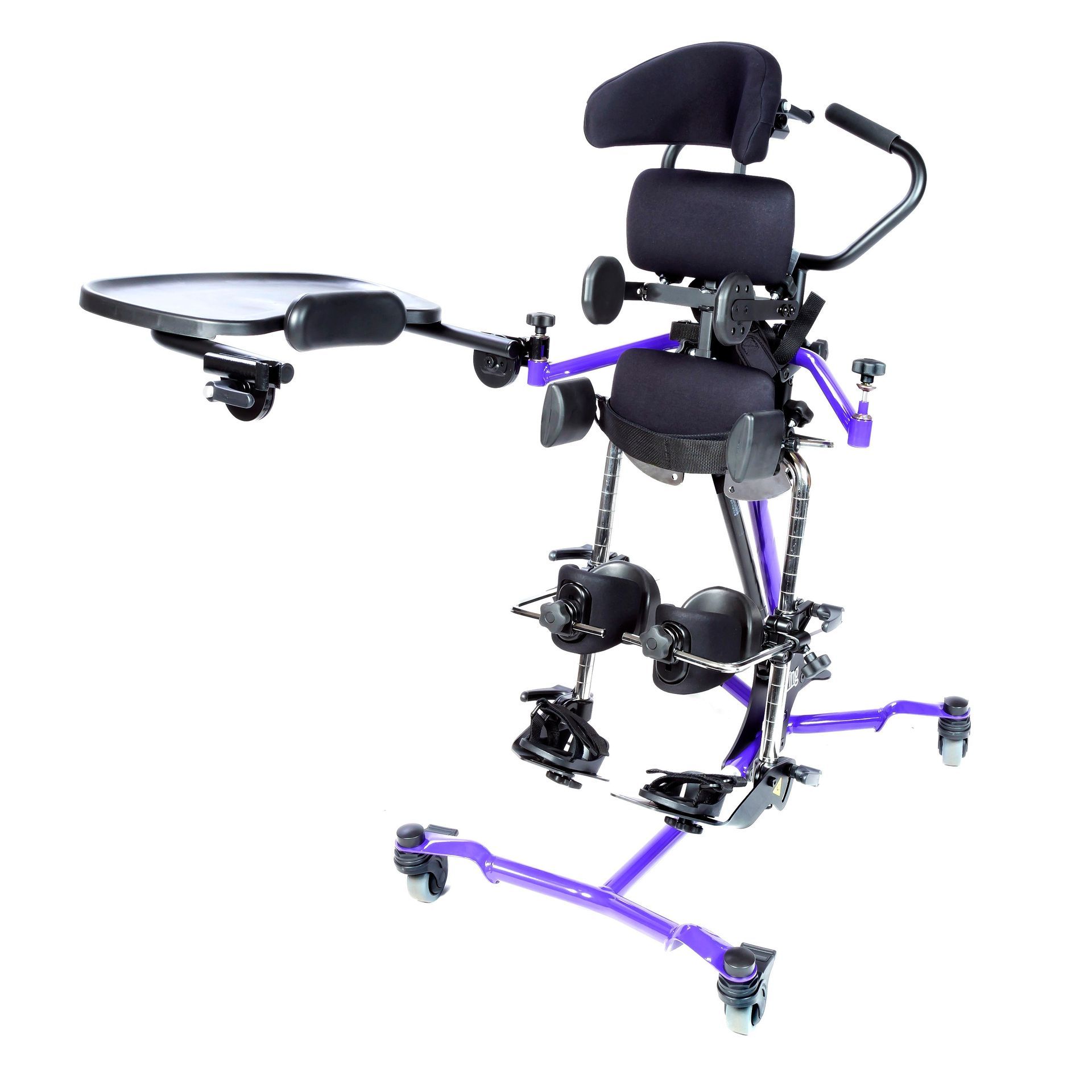

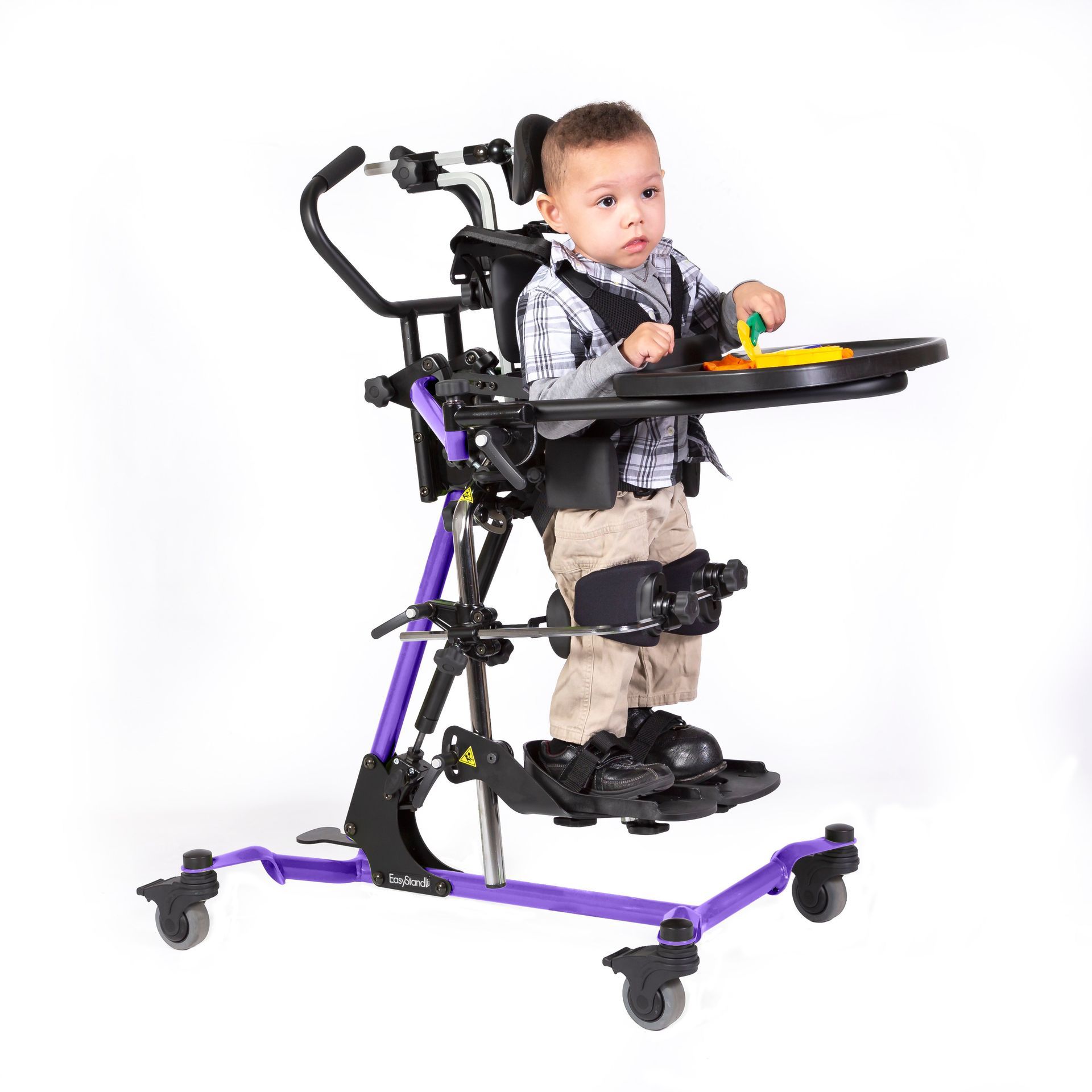

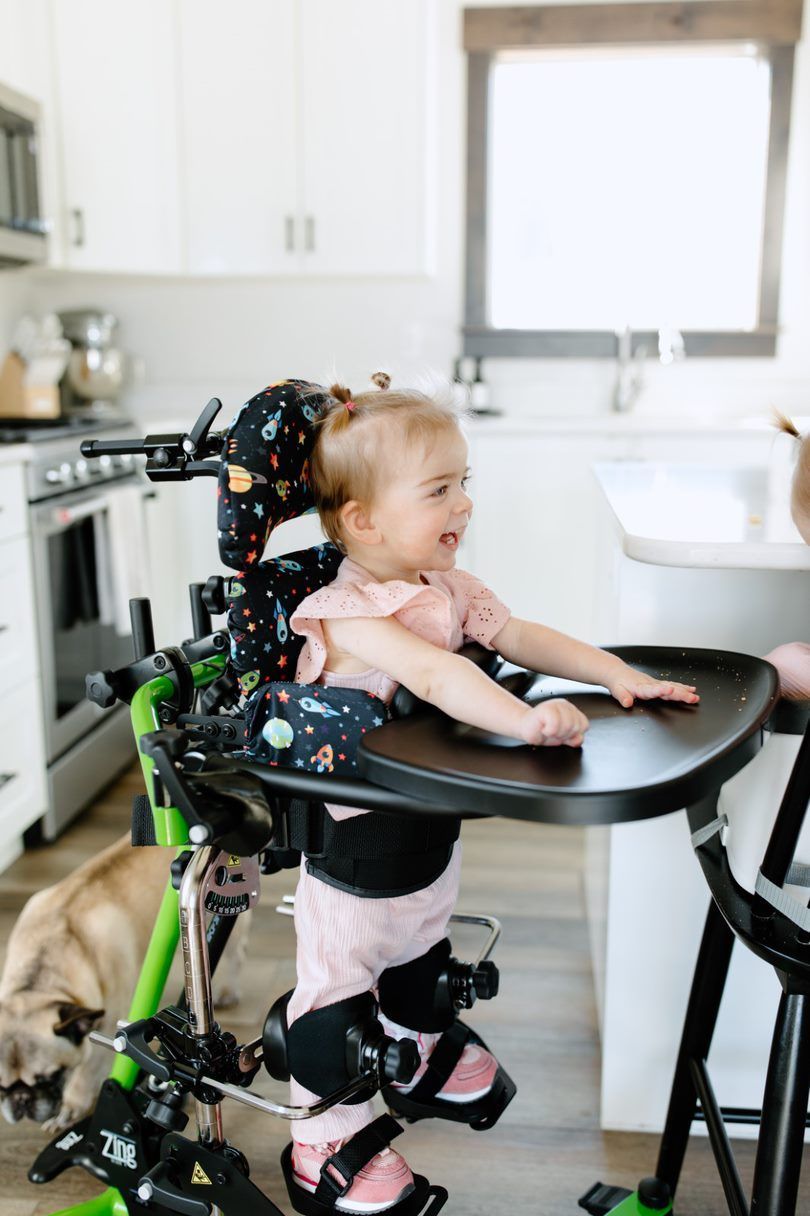

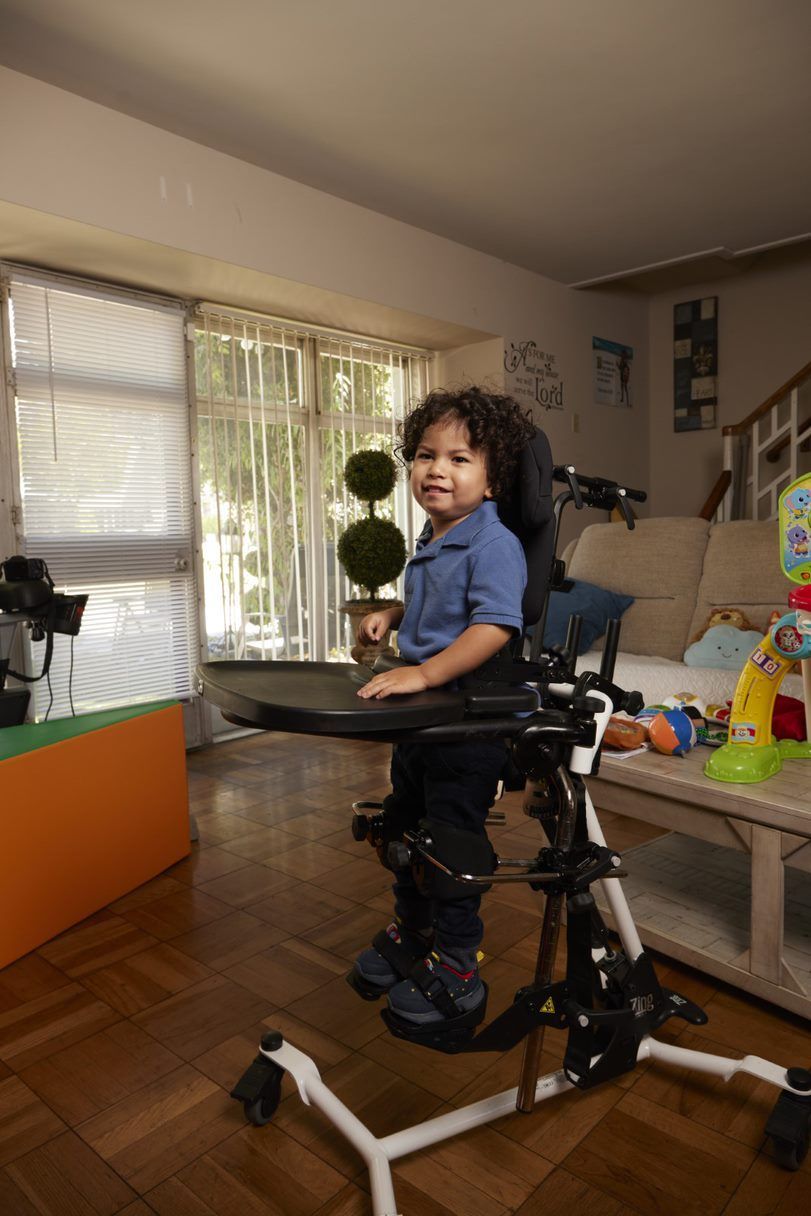

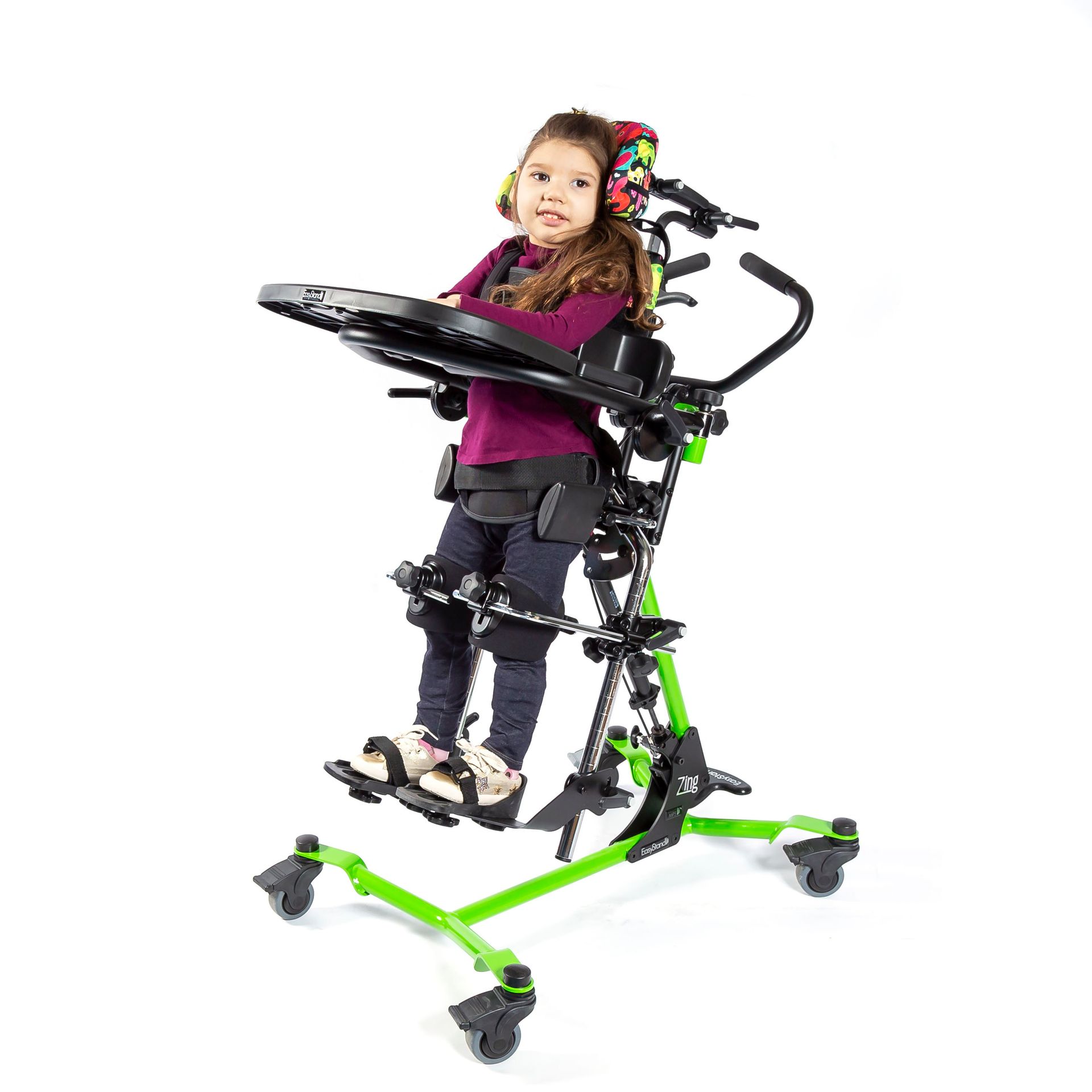

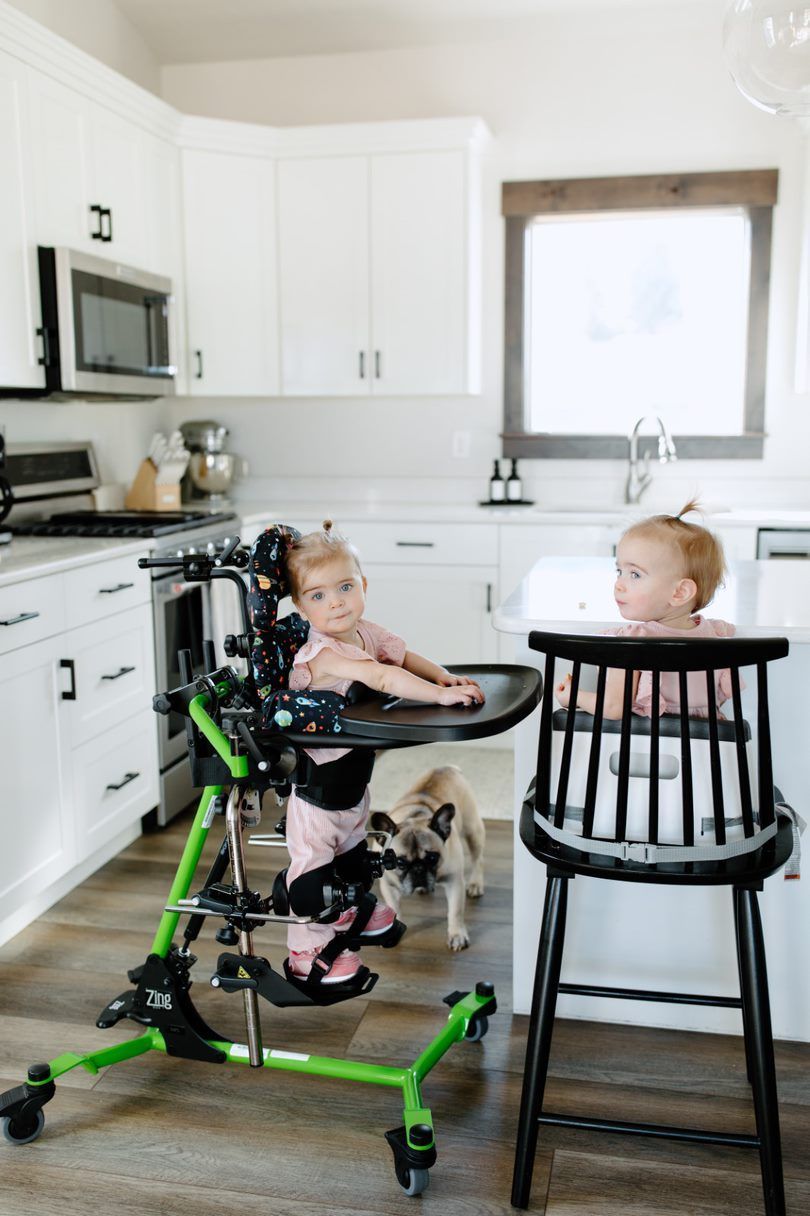

The Zing MPS Size 1 is the smaller version of the Zing MPS Size 2. The Zing MPS provides a new therapeutic opportunity to stand in supine, upright and prone without having to transfer the child in and out of the stander to switch between supine or prone standing. No need to flip pads, foot plates and trays to change positions. Tool-free adjustments and/or removal of support and positioning components adds to the ease of use.

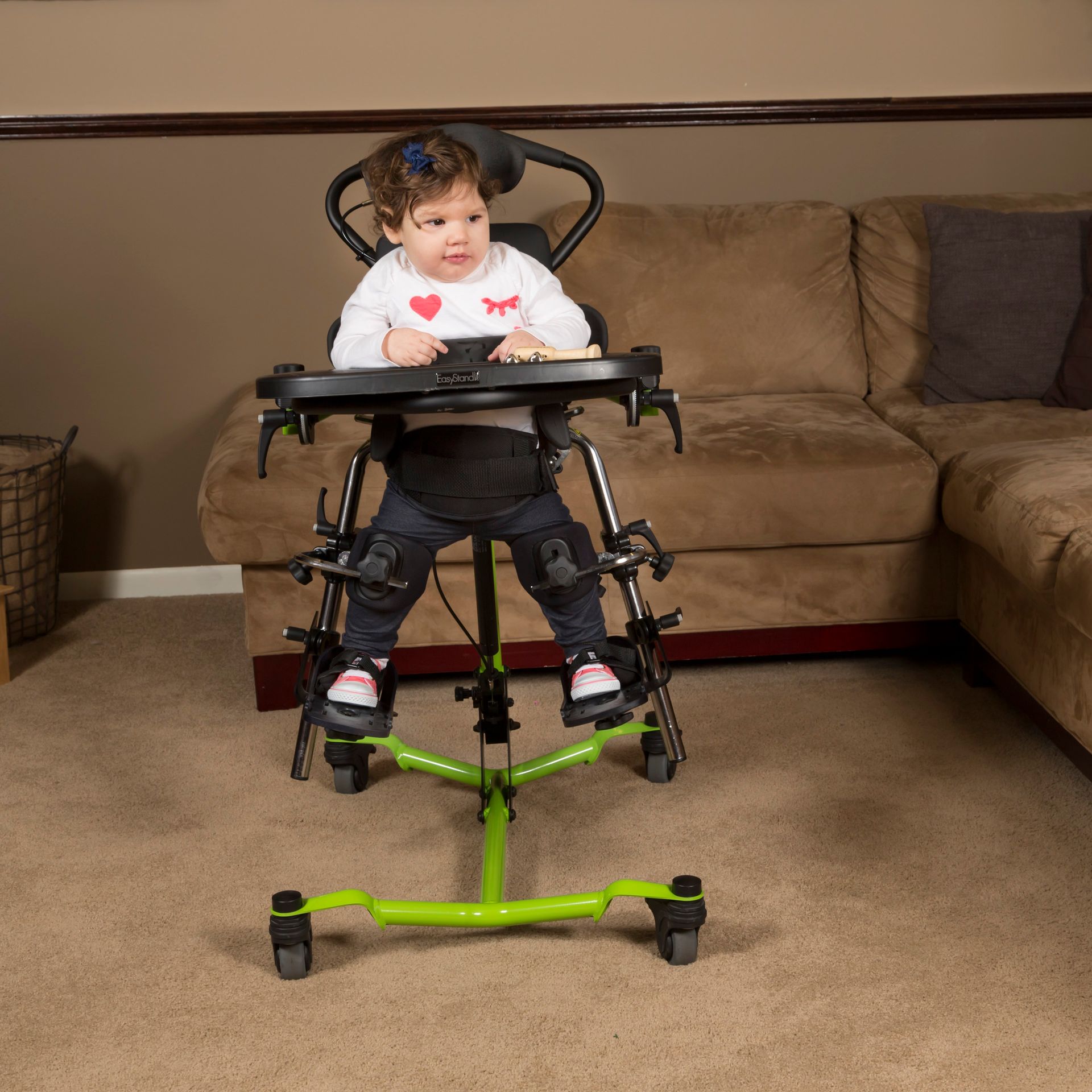

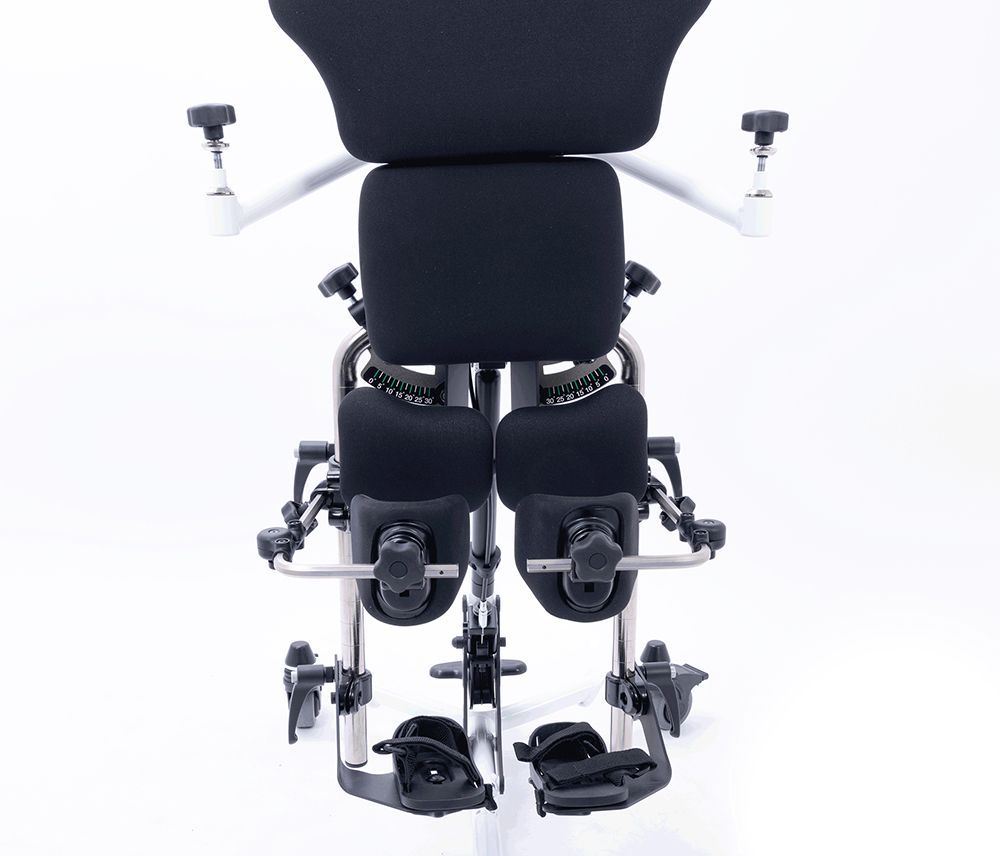

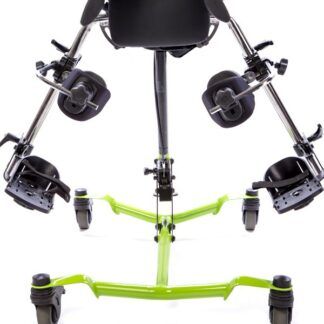

30 degrees of independent leg abduction (60 degrees bilaterally)

A simple knob allows the entire leg to abduct up to 30 degrees, no need to re-adjust the foot plates or knee pads.


Unique Lift Mechanisms

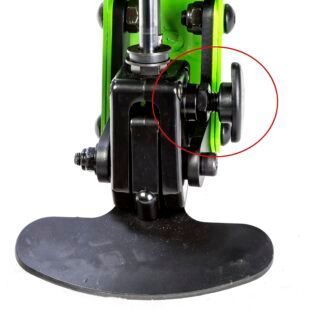

The base unit is equipped with a prone position lockout to prevent inadvertently going past vertical. A gas spring lift lockout is available to prevent any inadvertent position changes which can be useful if other children are present during standing sessions. The Dual Control enables position changes by foot pedal or hand control.

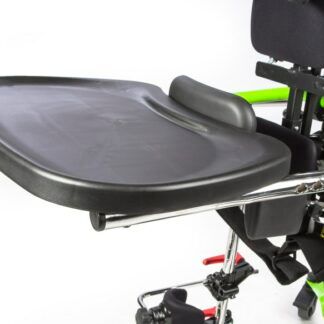

Swing-away Tray
Multi-adjustable tray can swing either direction while remaining attached to the unit or it can be removed completely. This tray, when swung away but attached on one side of the stander, is close and well within reach once a transfer has been completed. The transfer height of the Zing MPS Size 1 is a comfortable 31″ from the floor surface.


Remarkably Modular

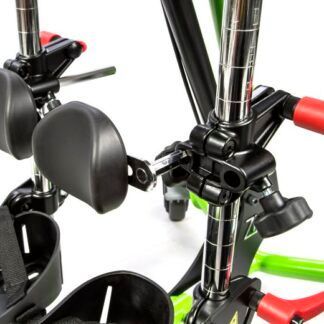

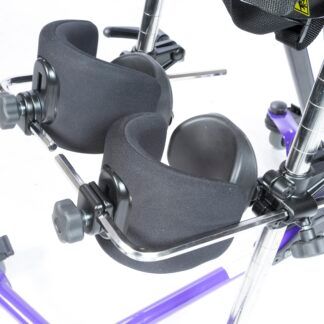

With 75 support and positioning components/accessories, it can be configured as a simple stander or fit a child with more complex needs. The support and positioning components available (independent and multi-adjustable foot plates, knee pads, calf pads and floating hip guides) make the Zing MPS one of the few multi-position standers that can accommodate contractures on one or both sides.

Options


Frame Color

Available in 4 colours.

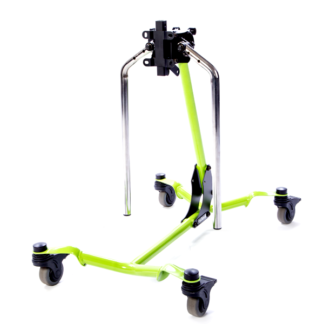

Mast

Lift Mechanisms

Caster

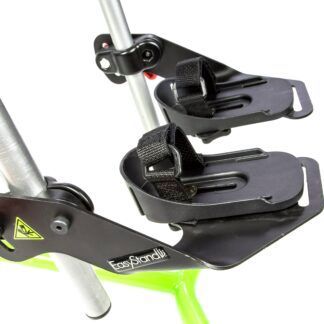

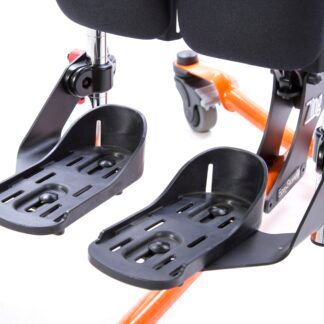

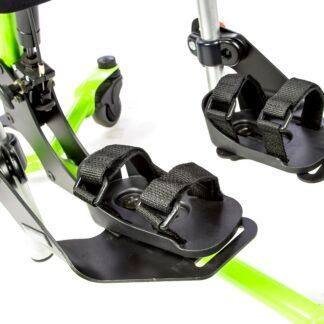

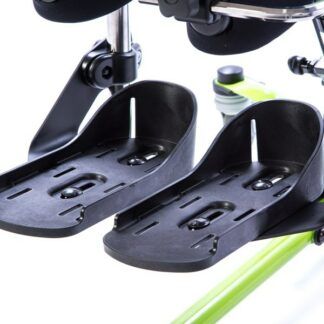

Foot Plates

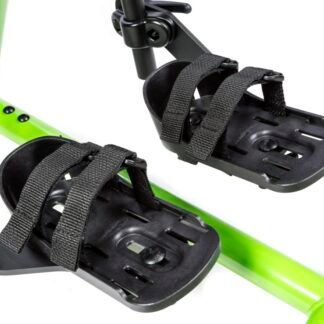

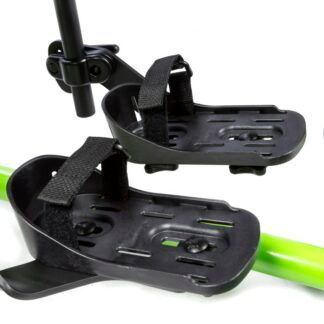

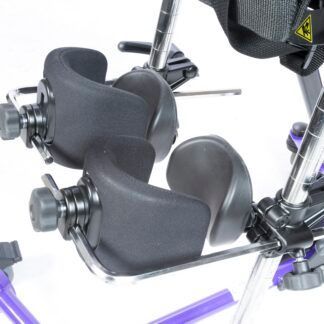

Foot Support Accessories

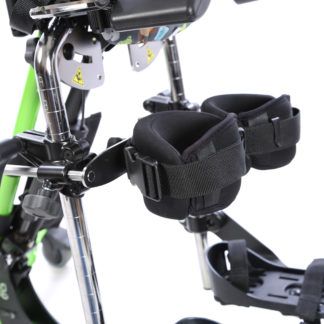

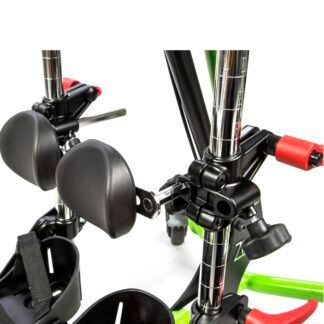

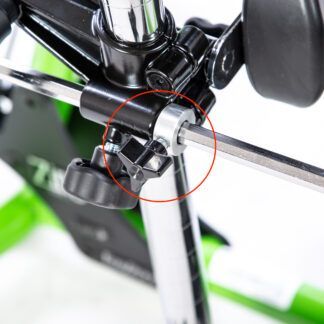

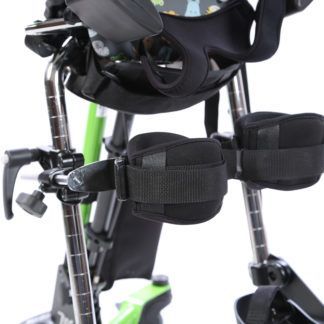

Knee Support & Accessories

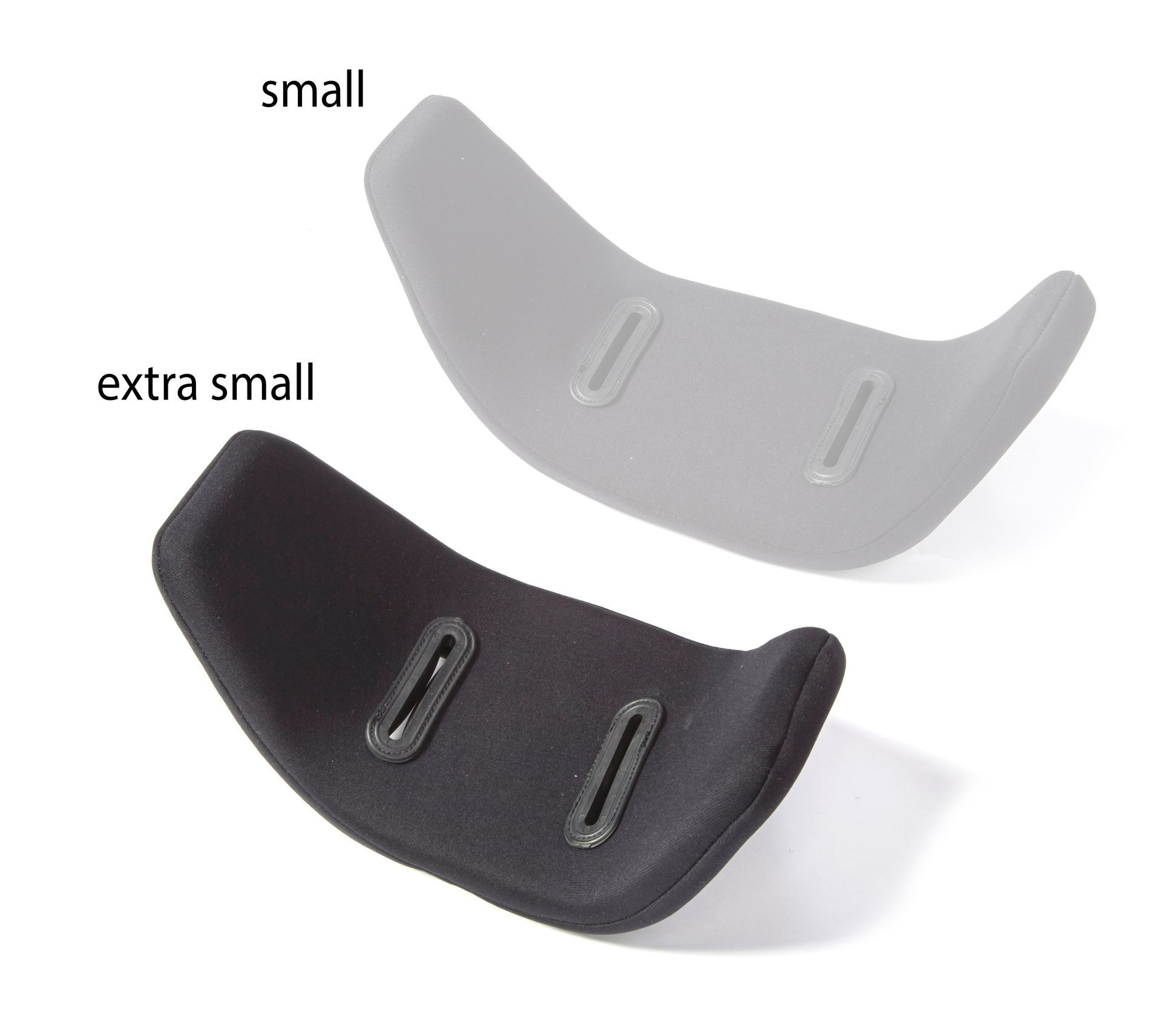

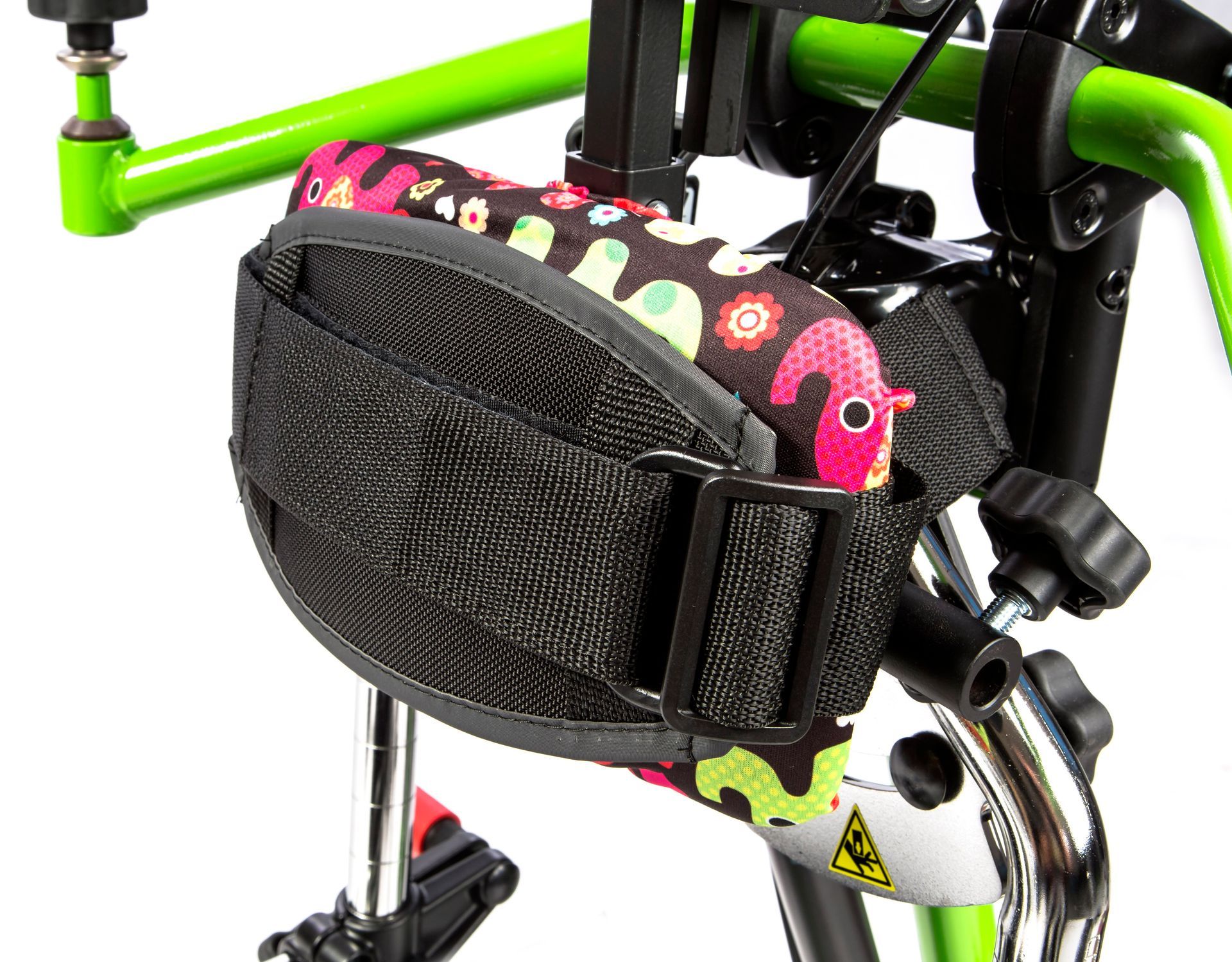

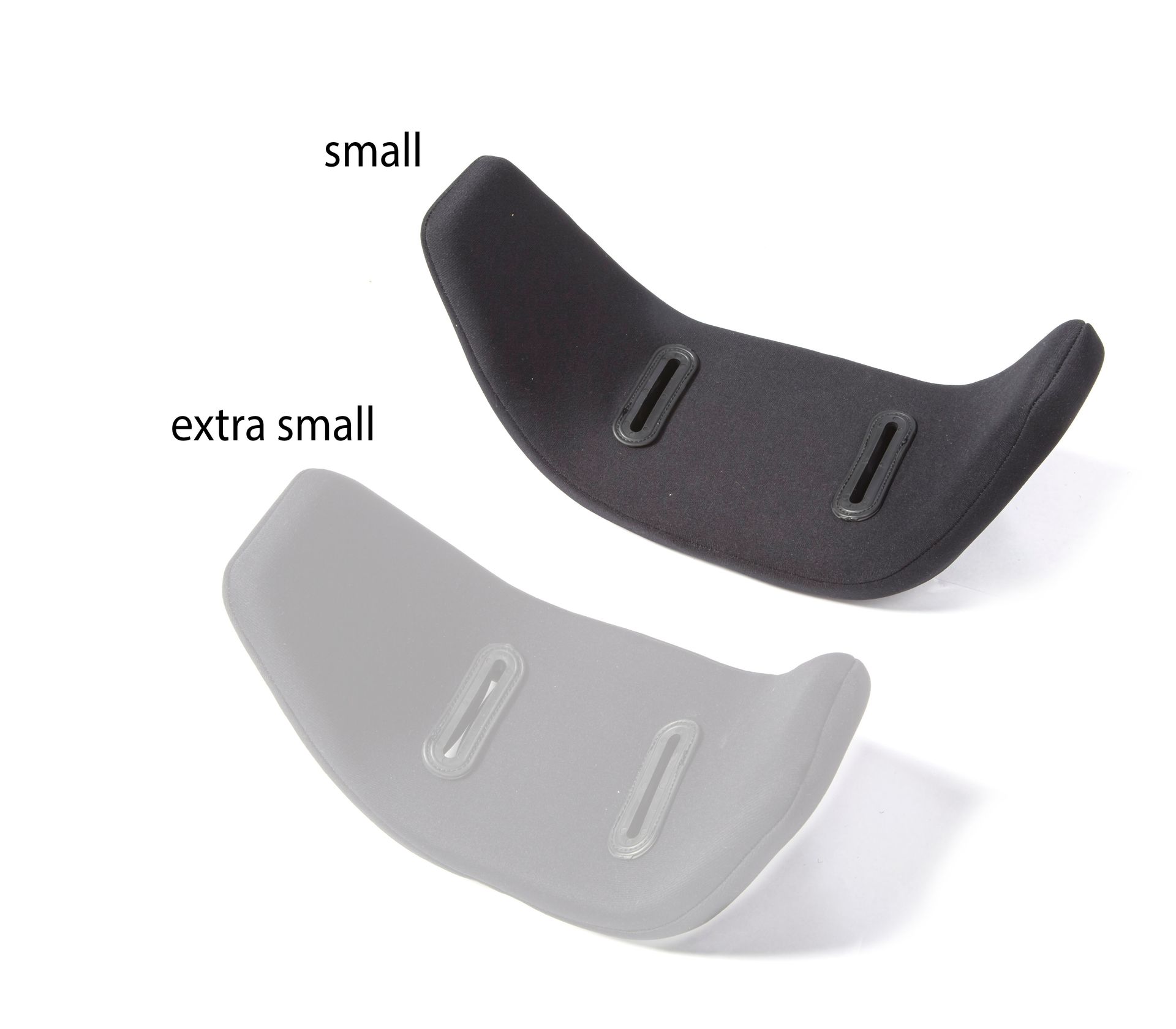

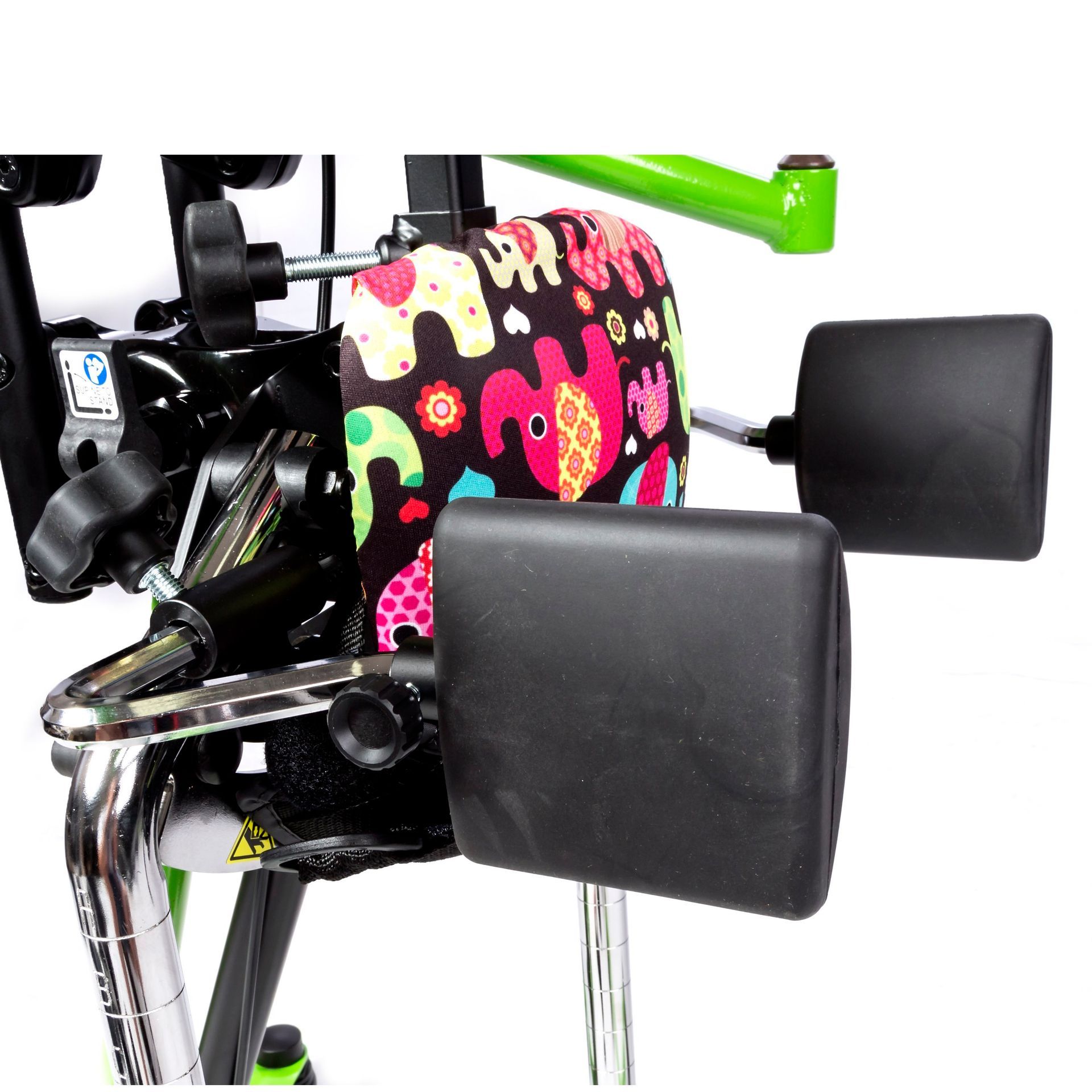

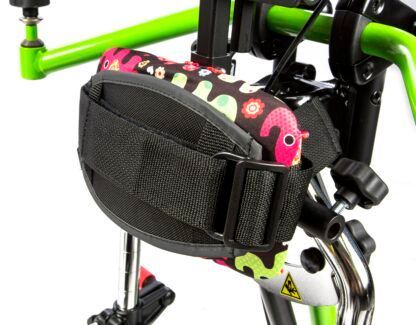

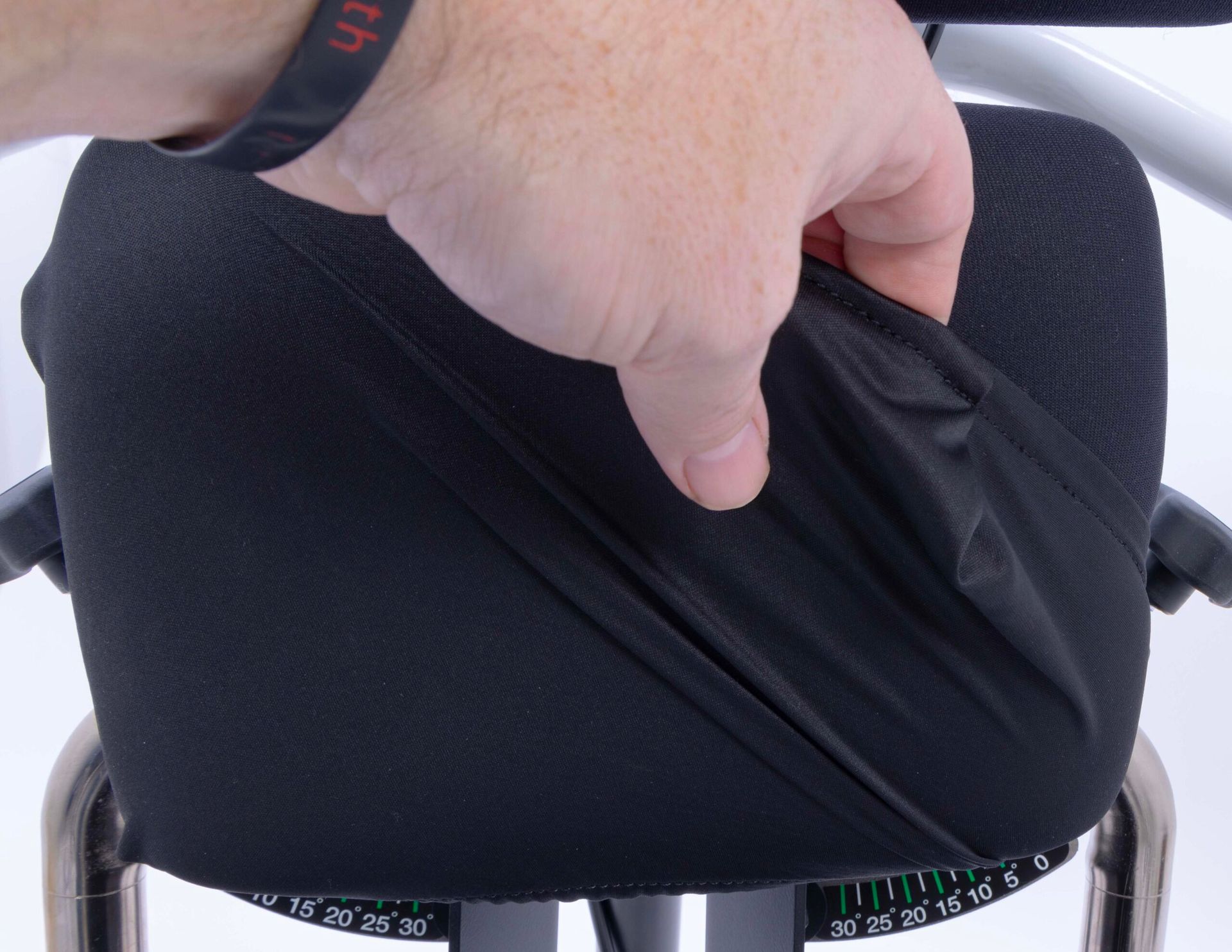

Pelvic Support and Accessories

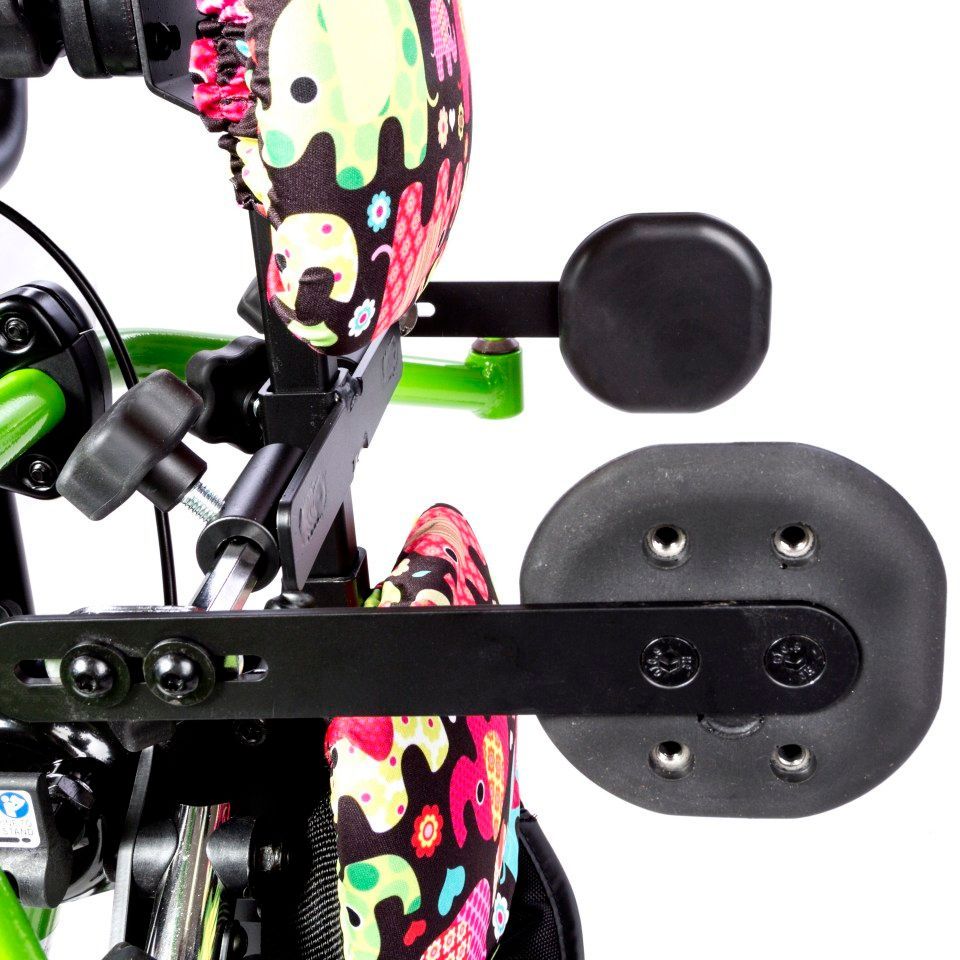

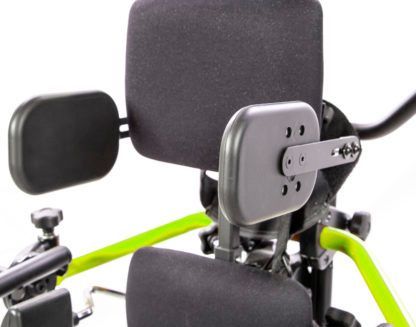

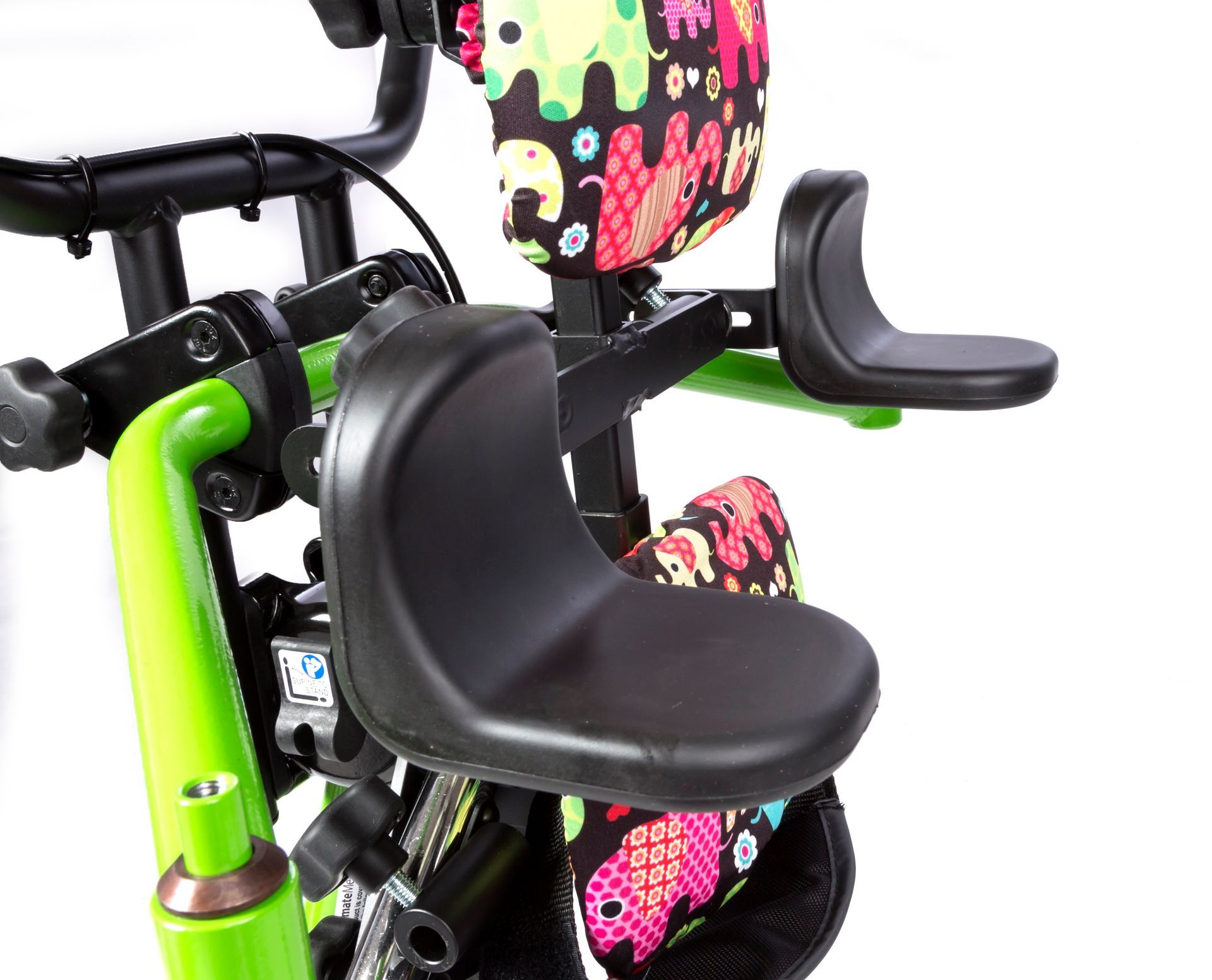

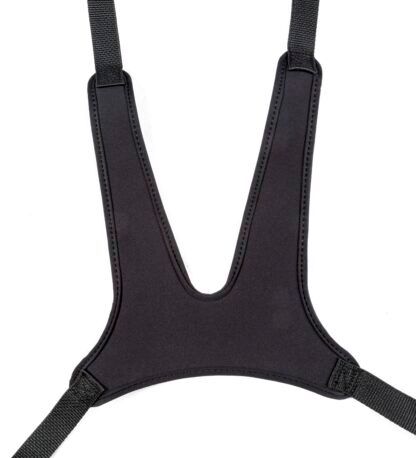

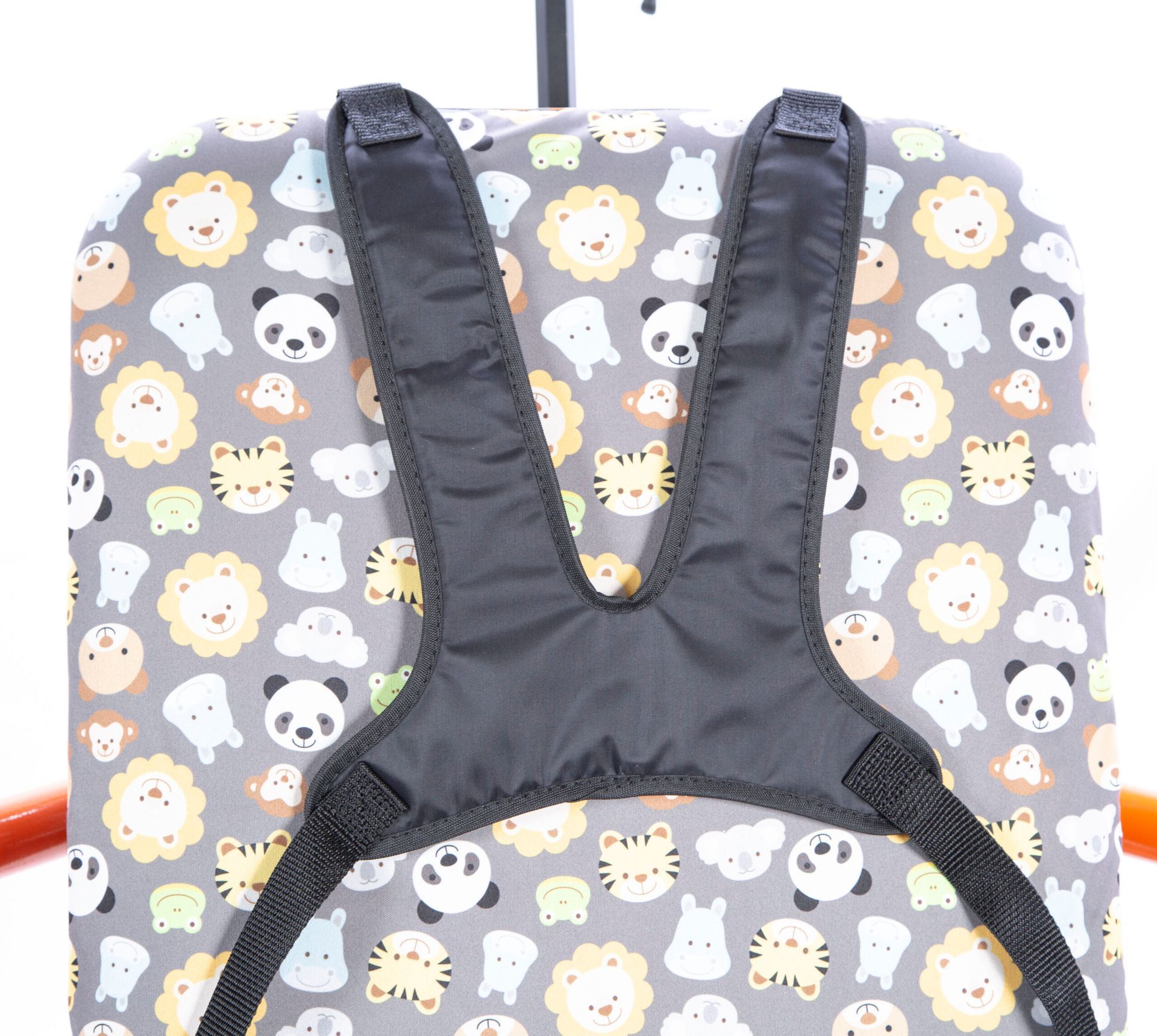

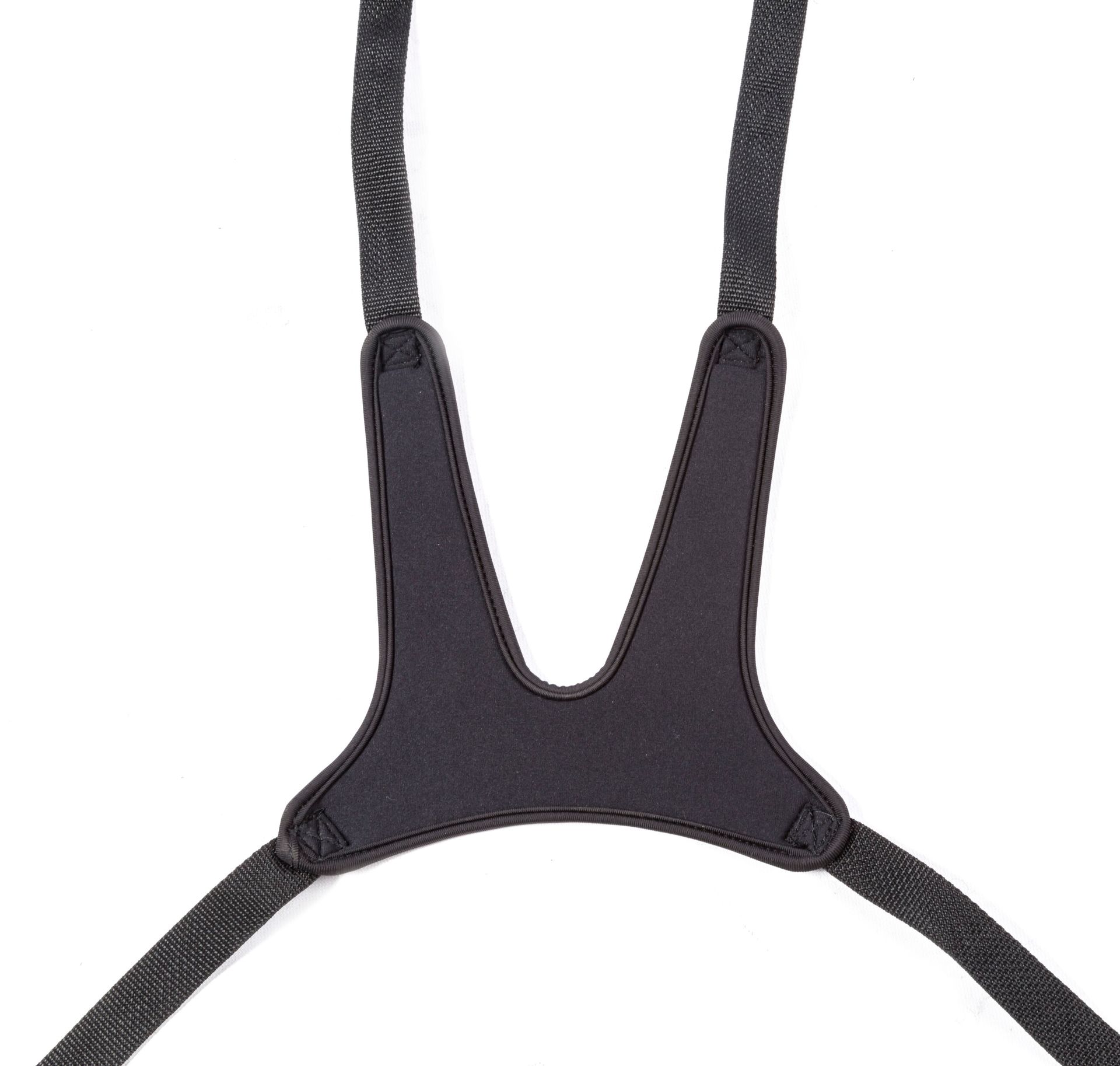

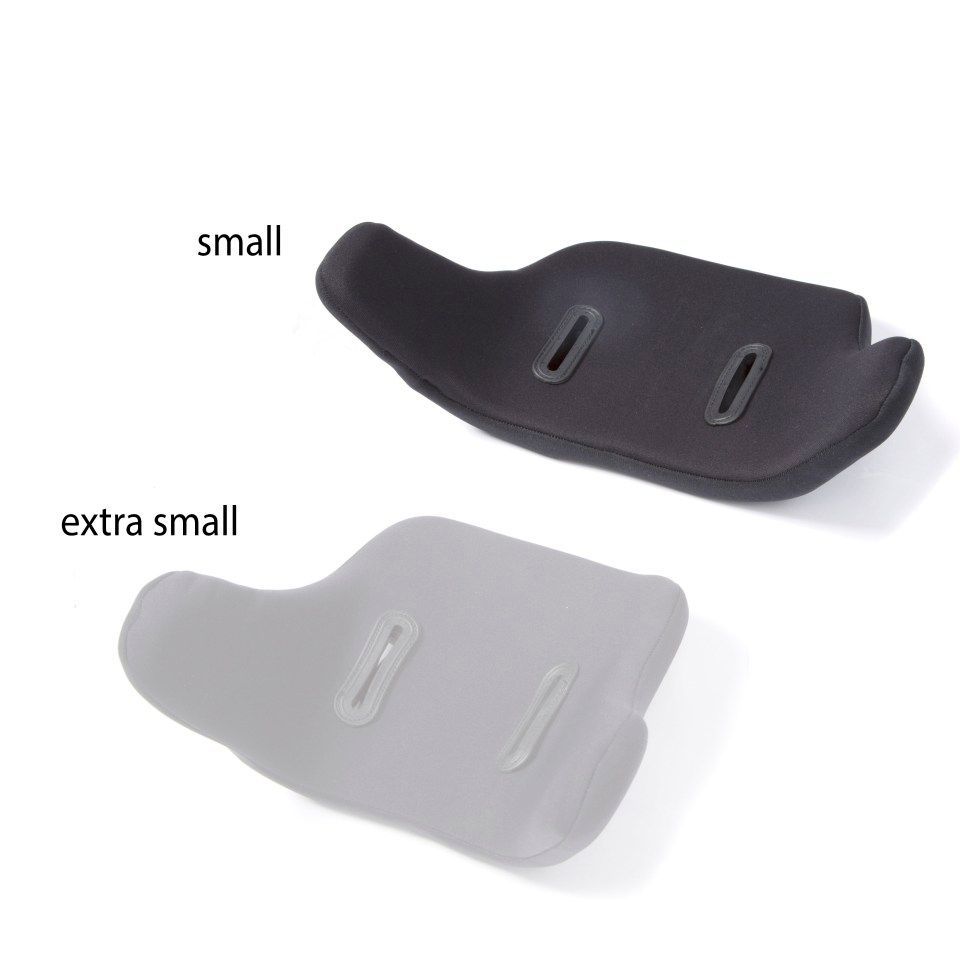

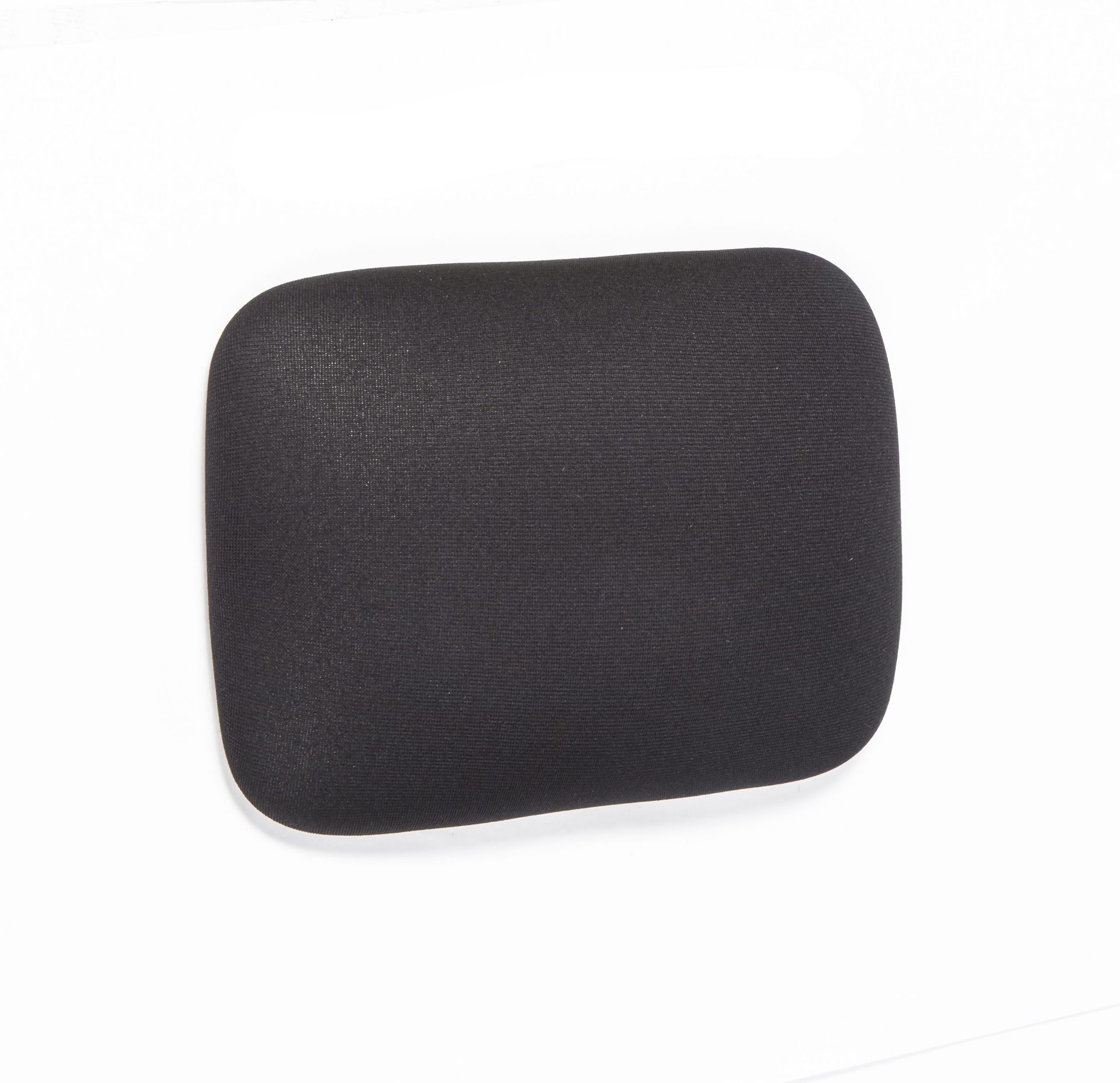

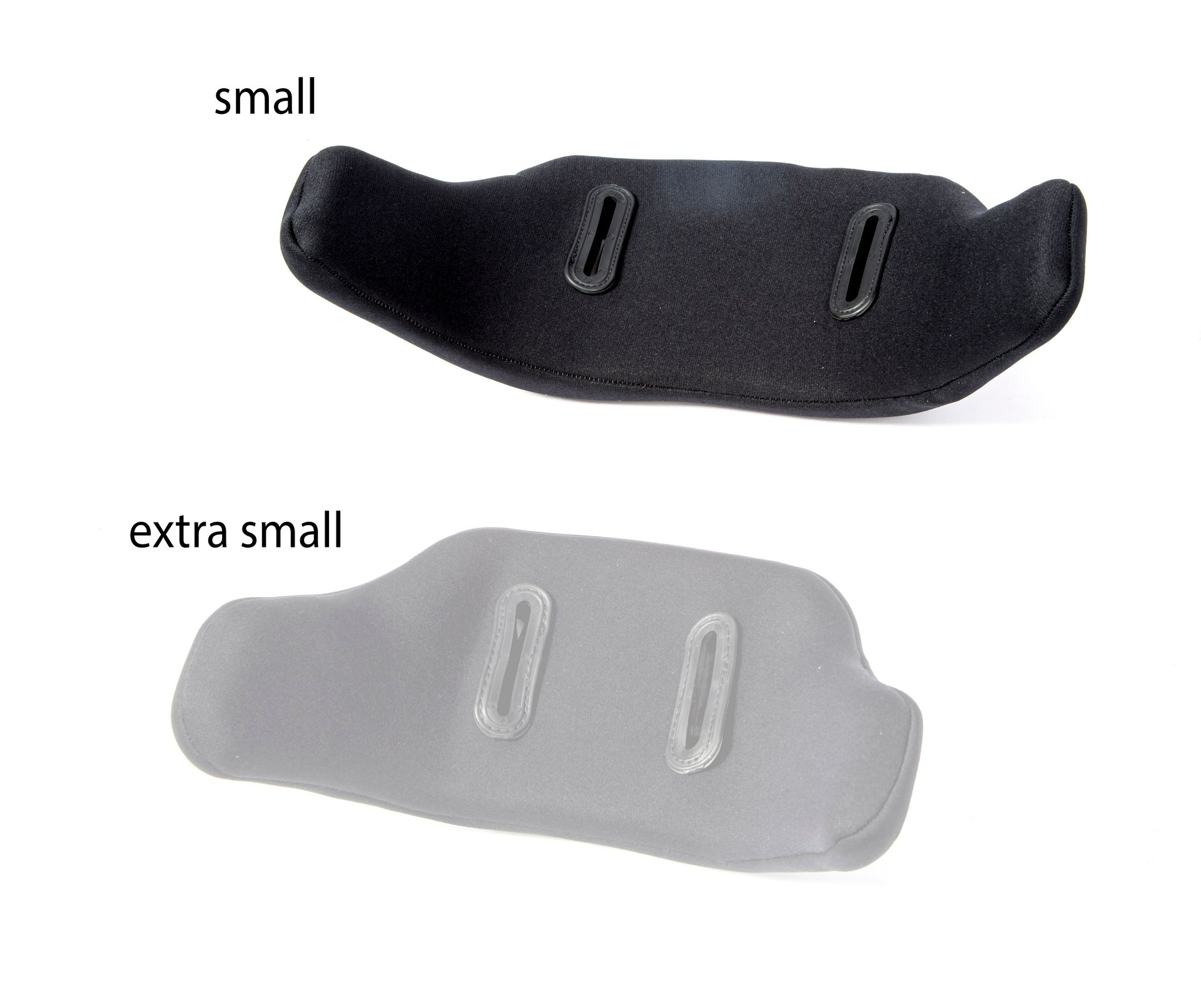

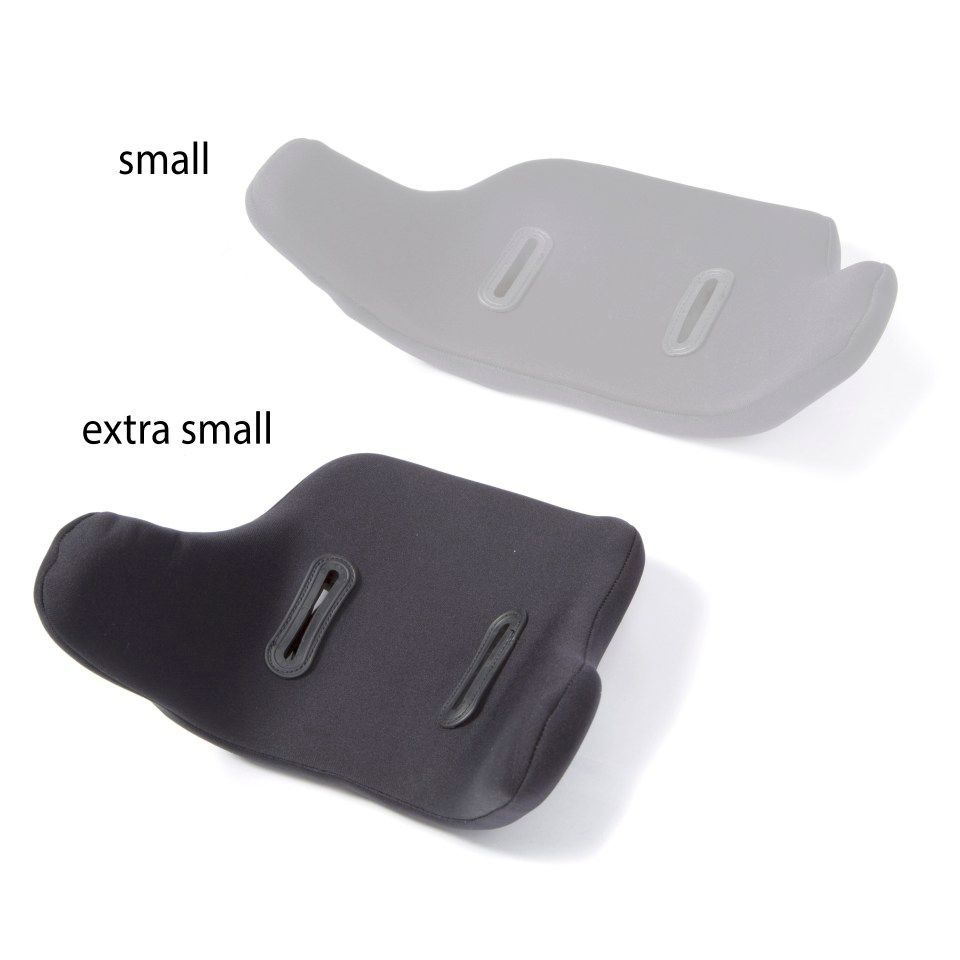

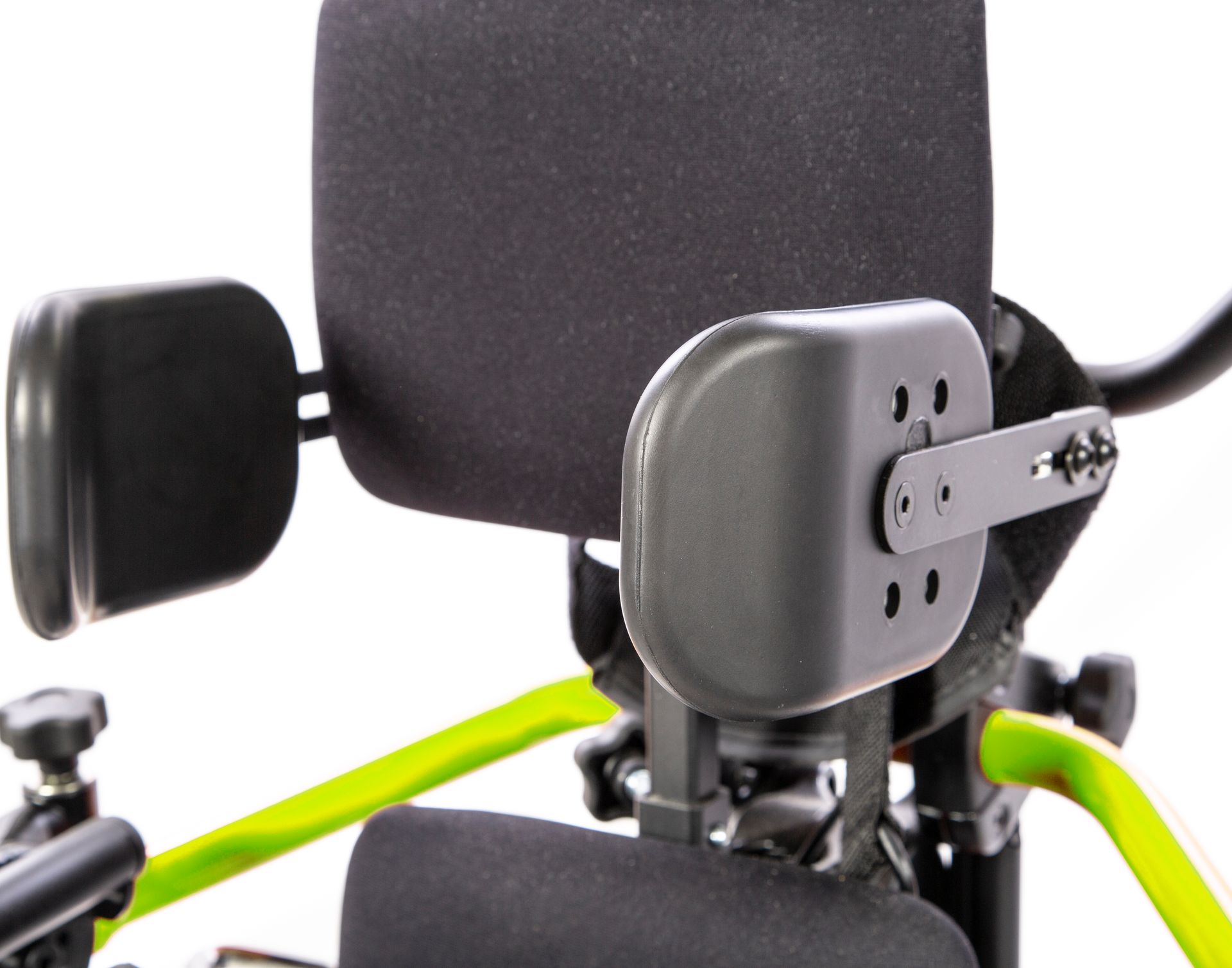

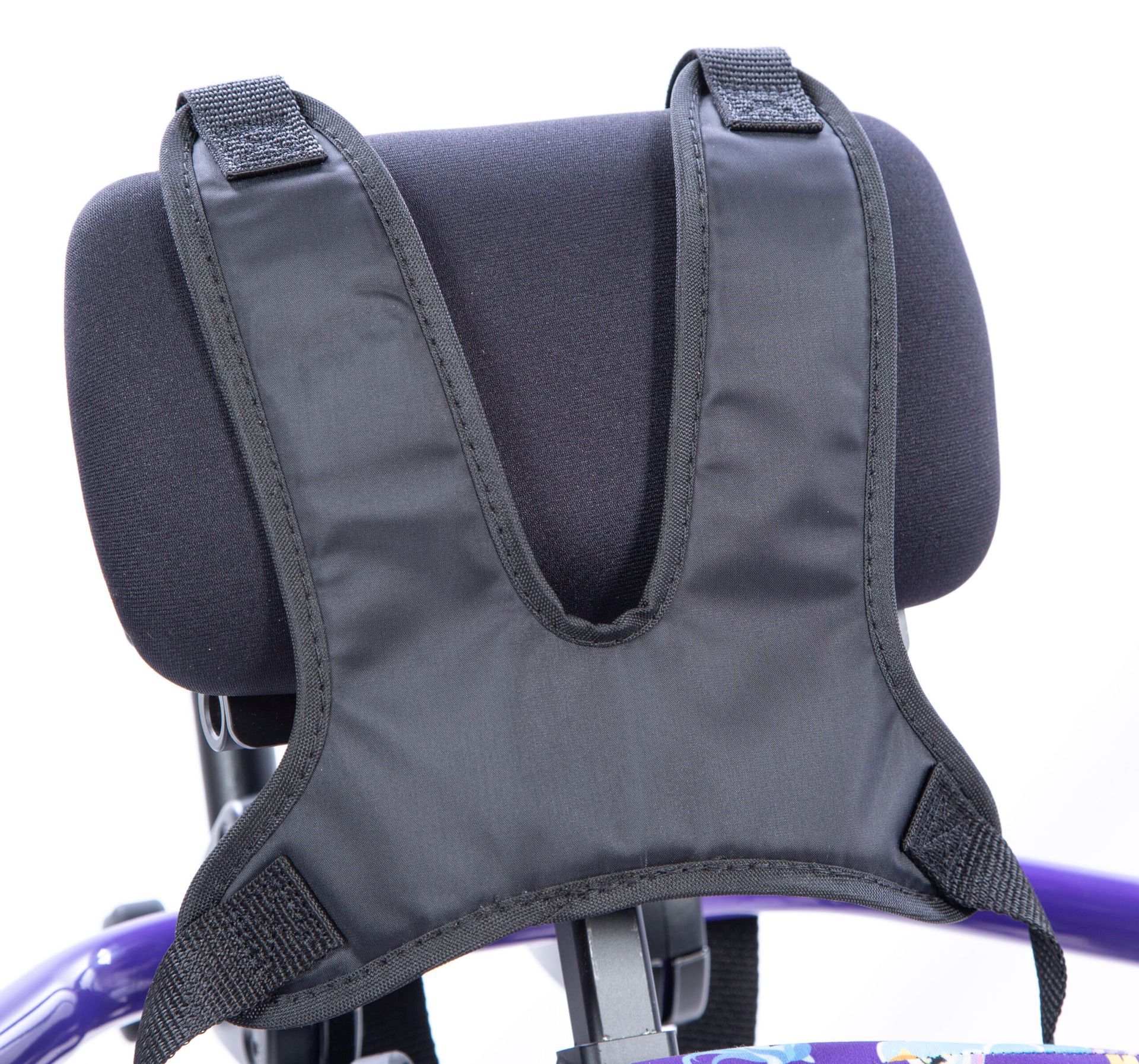

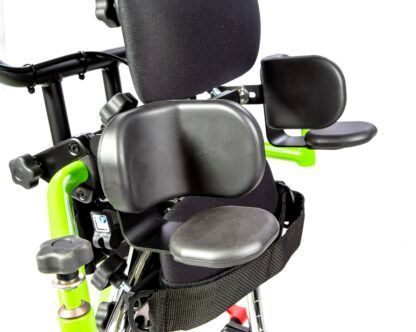

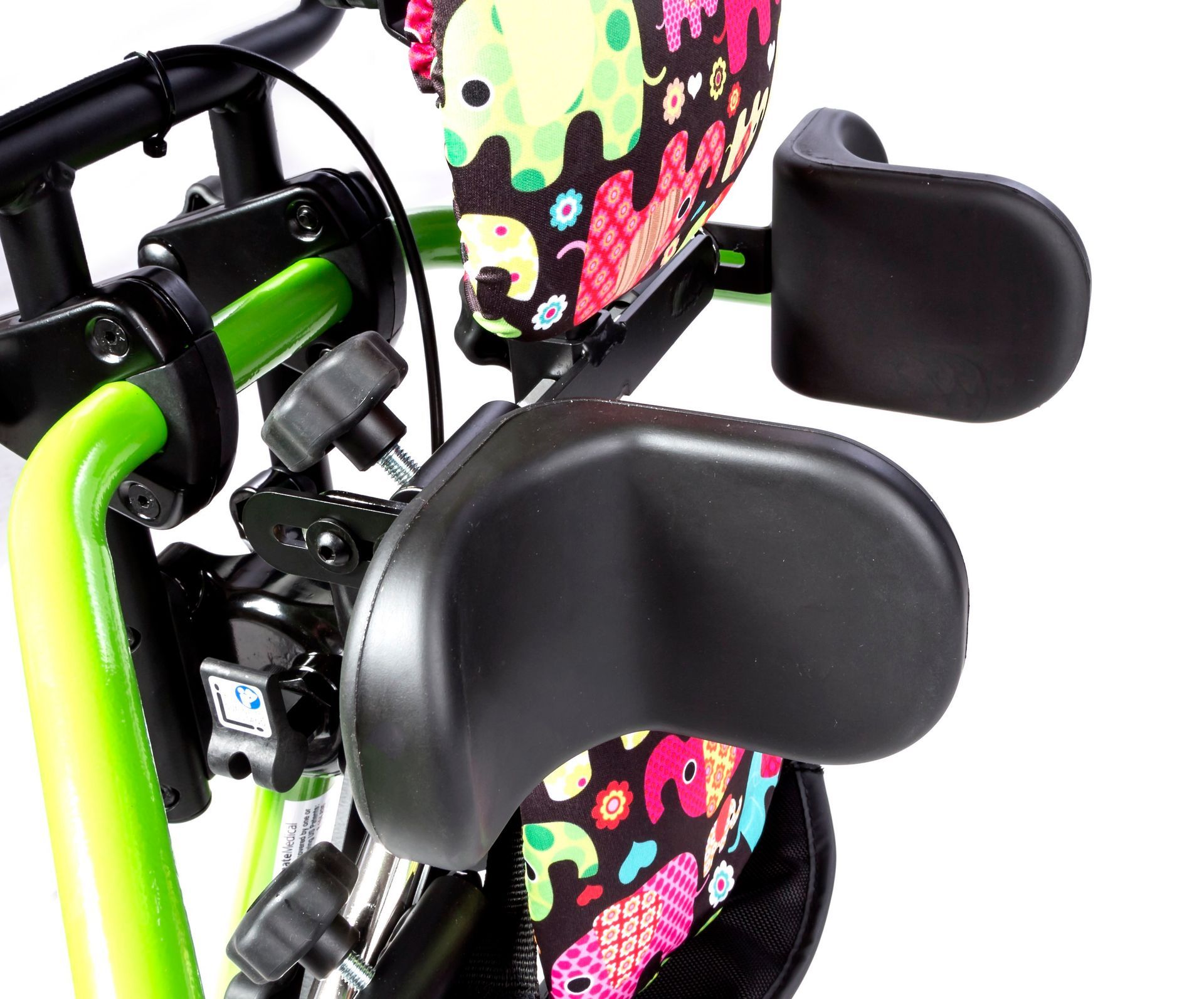

Upper Body Support Accessories

Head Support & Accessories

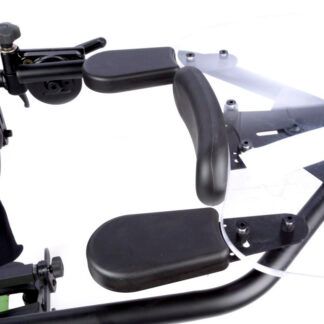

Tray & Accessories

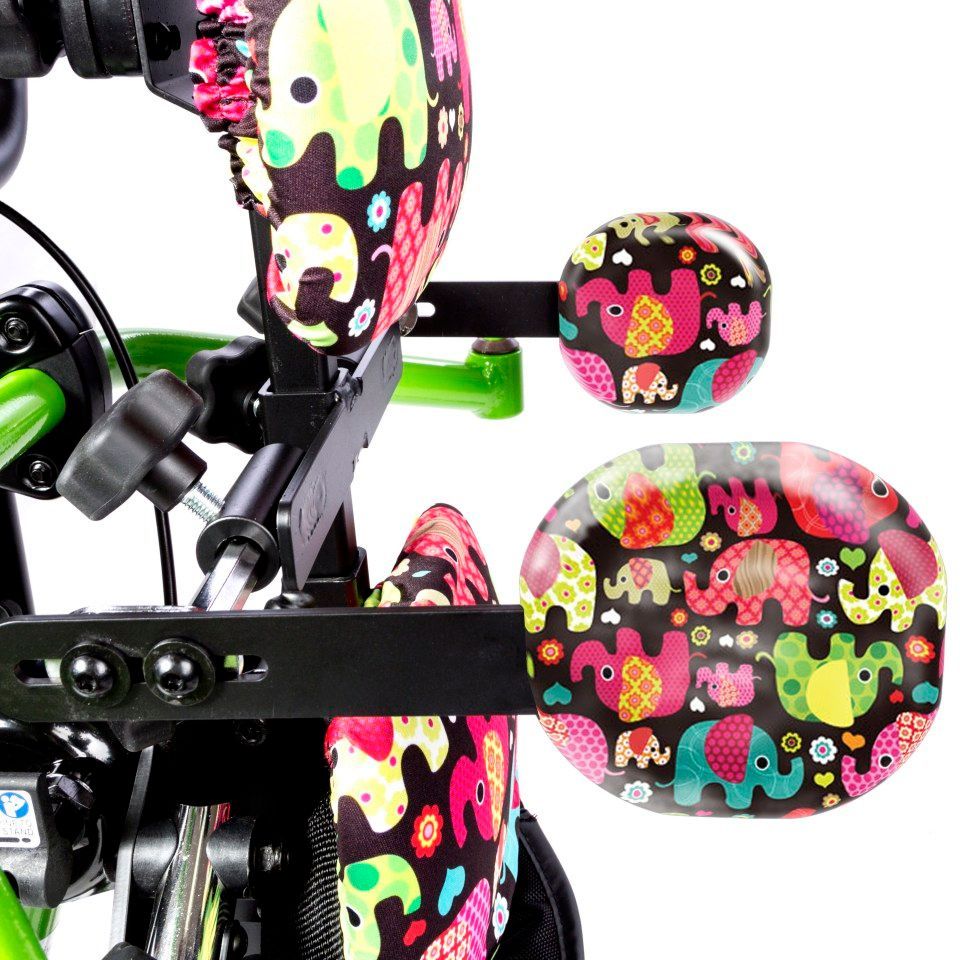

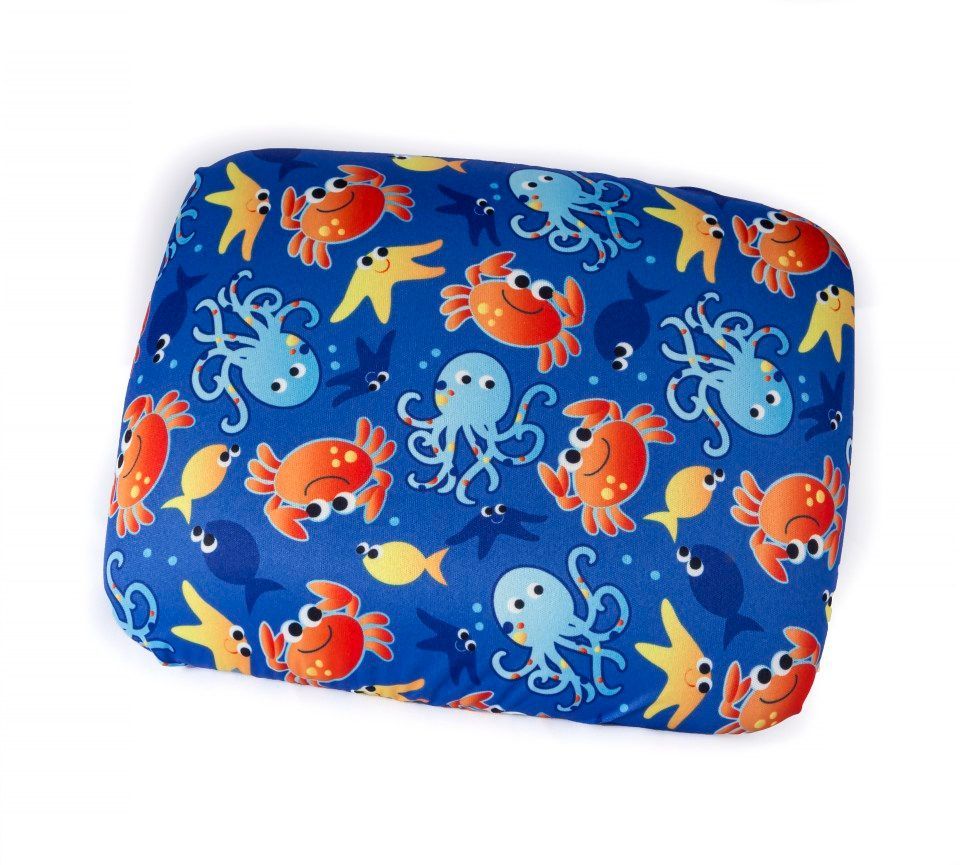

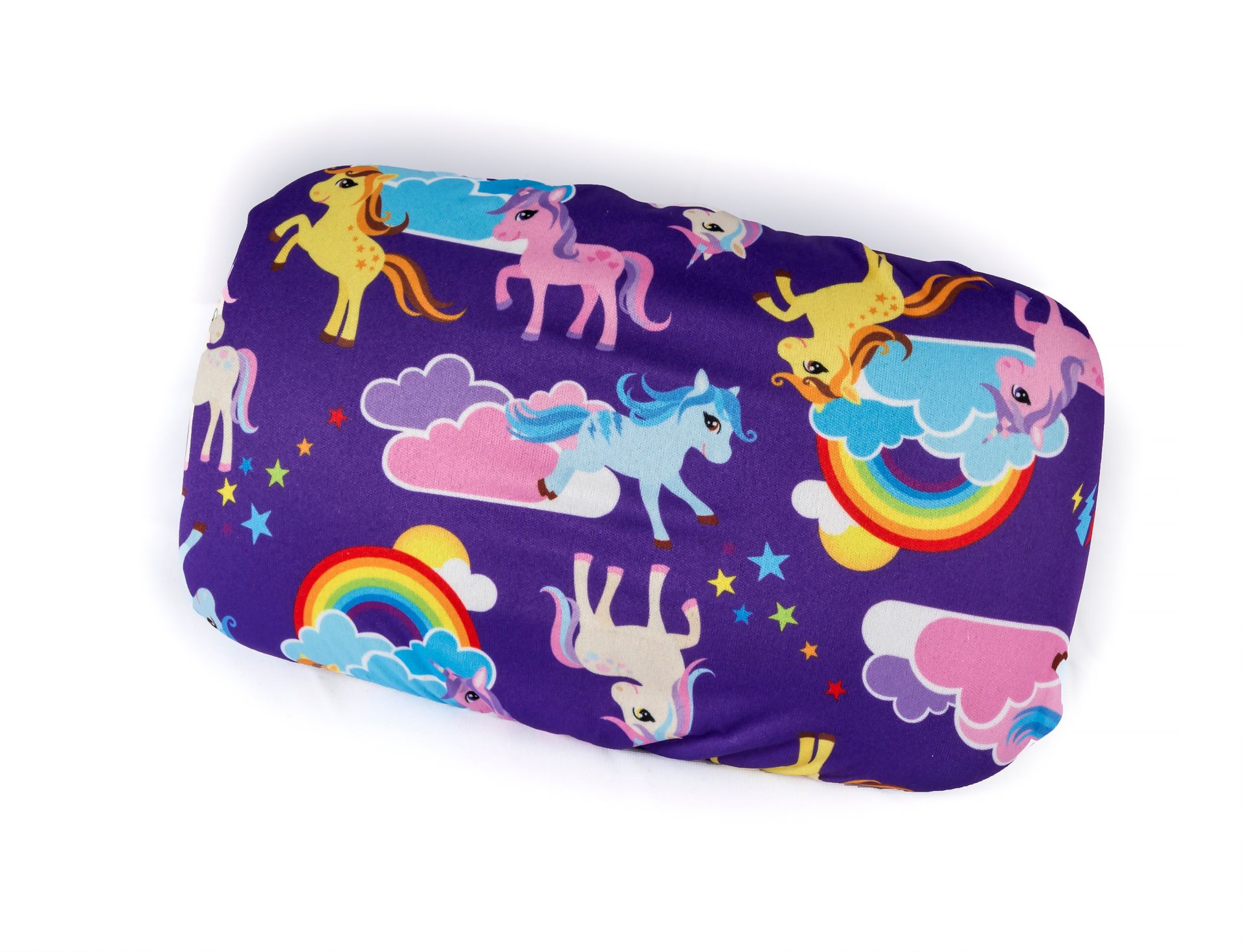

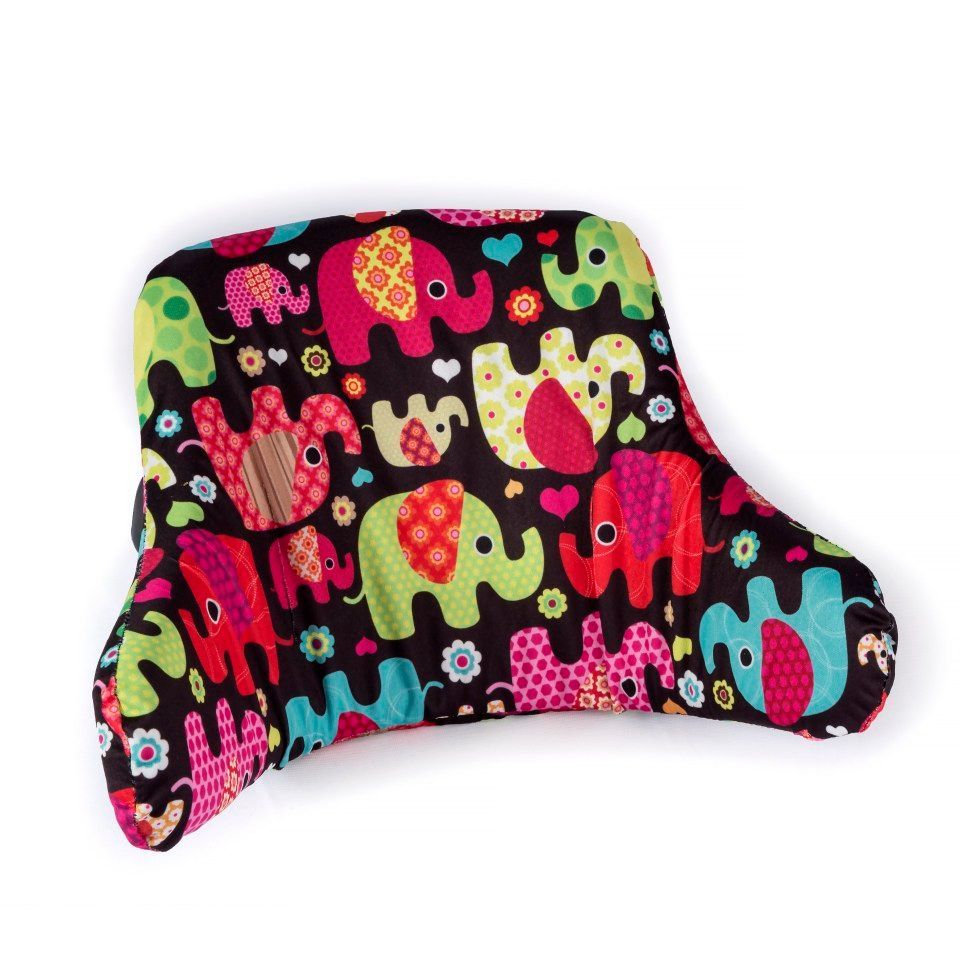

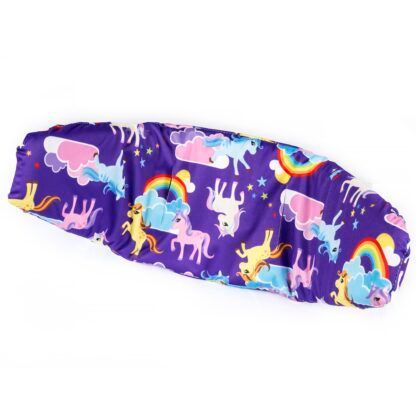

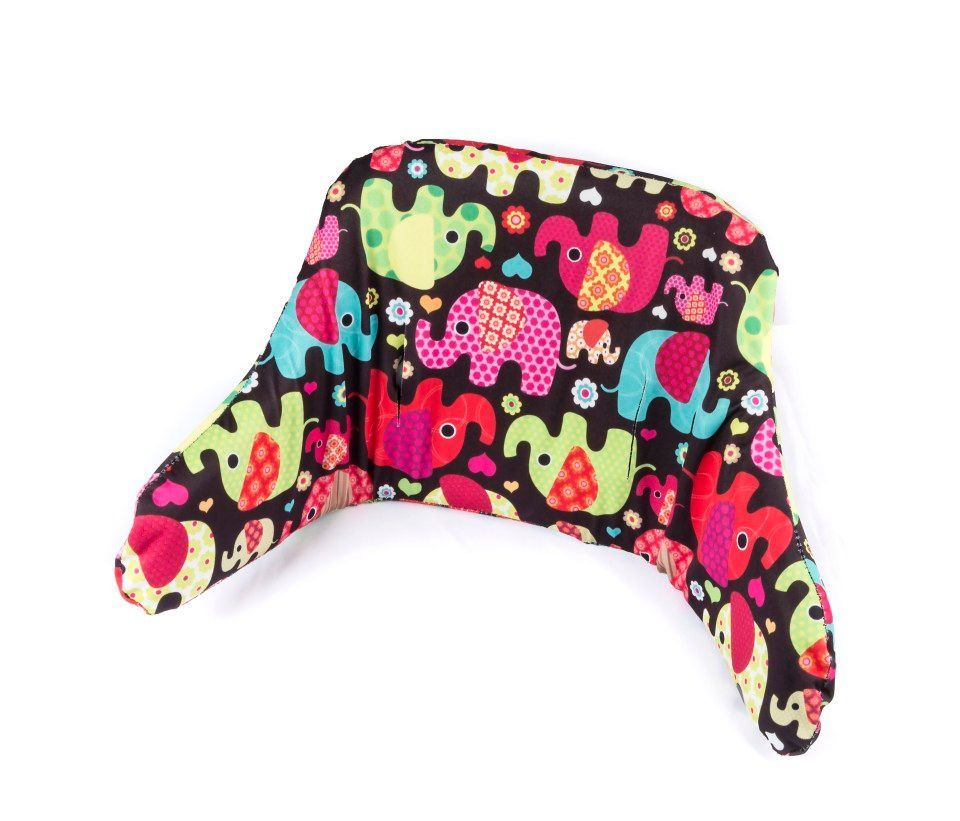

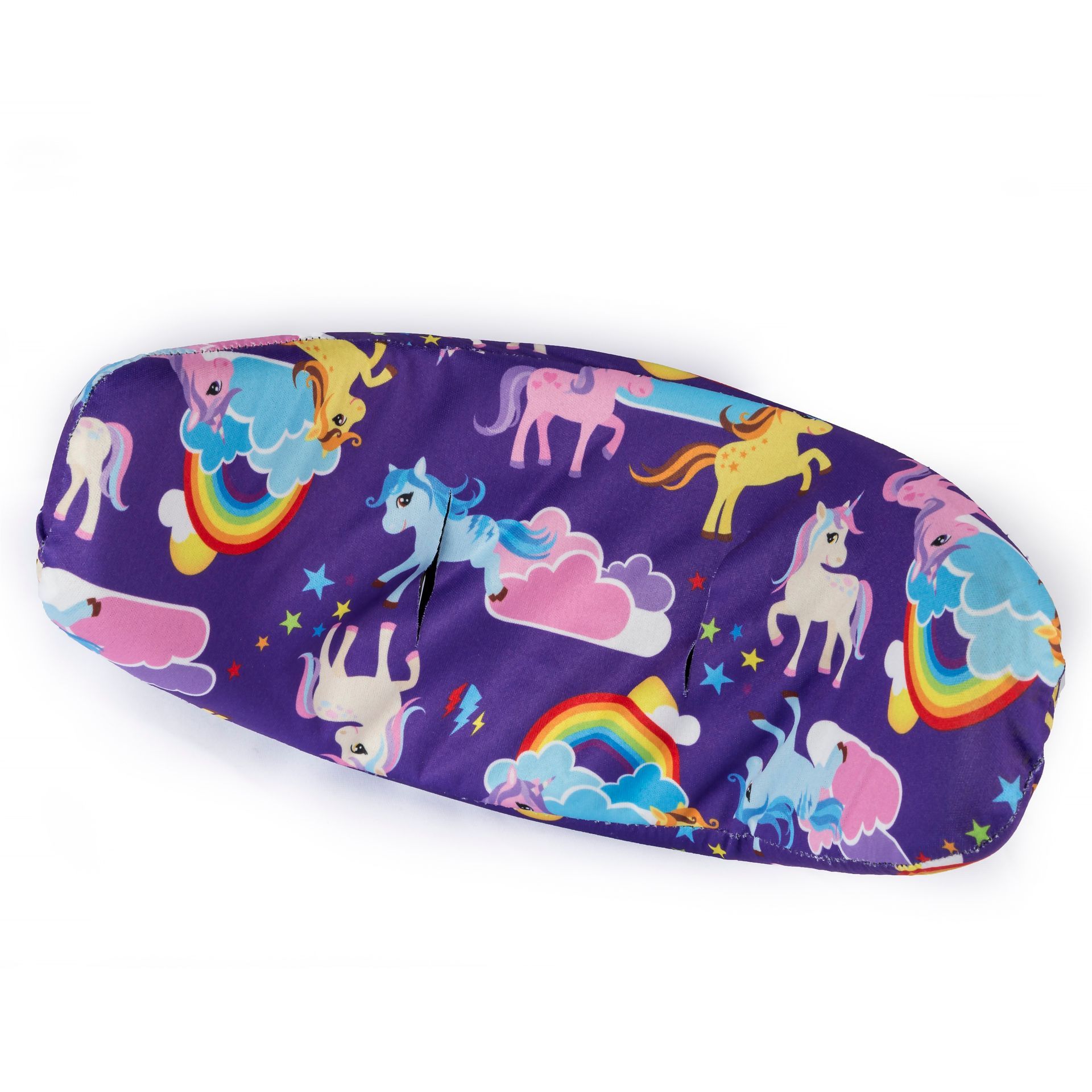

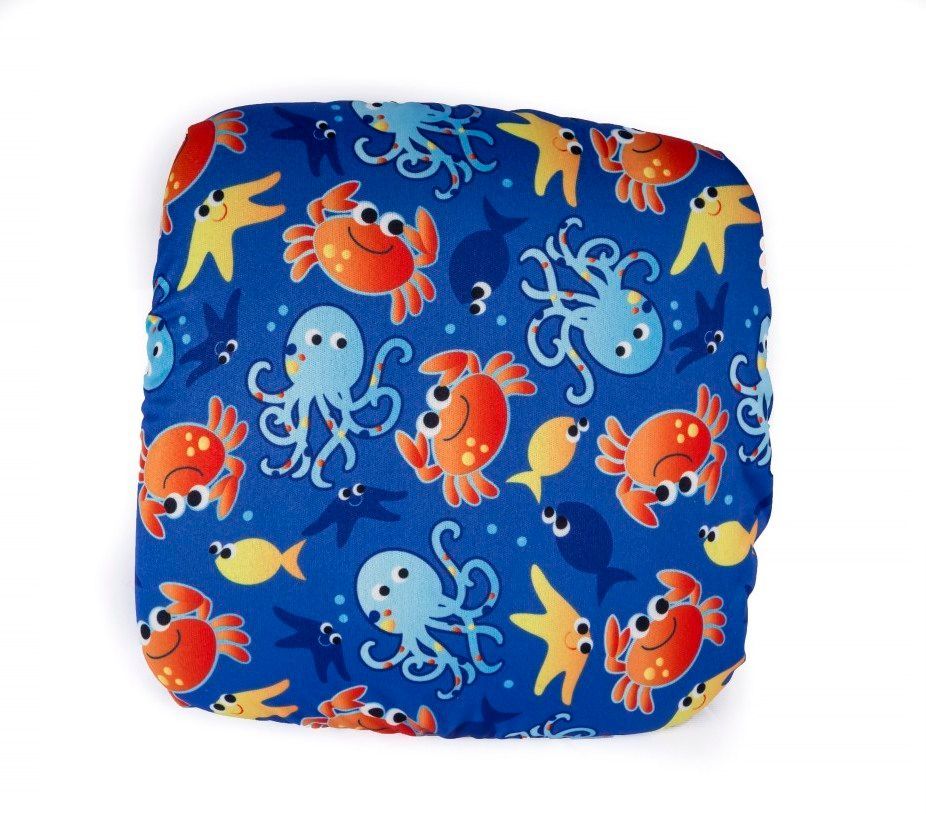

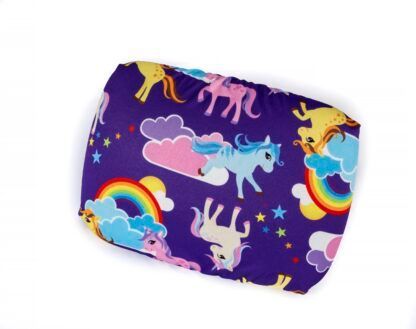

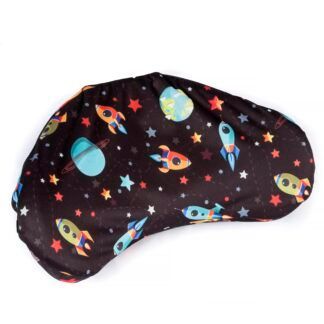

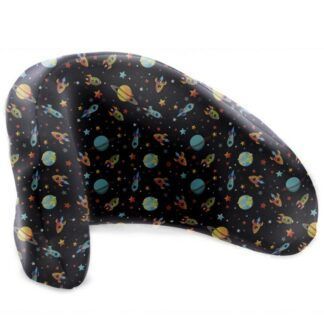

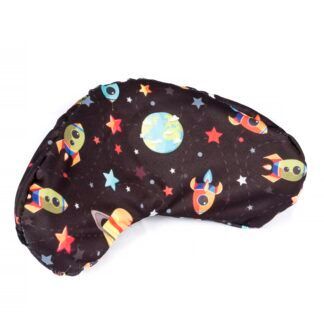

Hygienic Cover Patterns

Other


    • Height Range: up to 44”/up to 112 cm
    • Weight Limit: 70 lbs./32 kg
    • Transfer Height( Horizontal Position ): 32”/81 cm
    • Center of Pelvic Support to Footplate Range, may invert footplates as necessary: 7” – 22”/18 cm- 56 cm
    • Upper Body Support Height Range: 4”  /10 cm
    • Kneepad Depth Range: 5”/13 cm
    • Kneepad Inside Width: 2.5”, 3.25”, 4.25”, 5”/6cm, 8cm, 11cm, 13cm
    • Kneepad Dimensions:
    •  2.5/3.5”x4”/9 x 10 cm
    • 3.25/4”x4”/10 x 10 cm
    • 4.25/4.5”x5”/11 x 13 cm
    • 5.00/5”x6”/13 x 15 cm

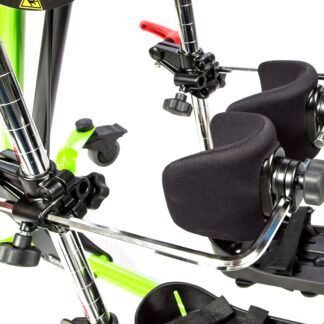

    • Multi-Adjustable Knee pads Width Range, Center-to-center:
    • 2.5/4”- 9”/10 – 23 cm
    • 3.25/4.5”- 9”/11 – 23 cm
    • 4.25/5” – 8”/13 – 20 cm
    • 5.00/6” – 7”/15 – 18 cm
    • Multi-Adjustable Knee pads Height Range: +/- 0.75”/2 cm
    • Weight of basic unit: 55 lbs./25 kg
    • Frame footprint, Caster-to-caster: 20” x 28”/51 x 71cm
    • Maximum Dimensions: 21.5 x 29.5/55 x 75cm
    • Upholstery: Black nylon/Neoprene or Molded Urethane

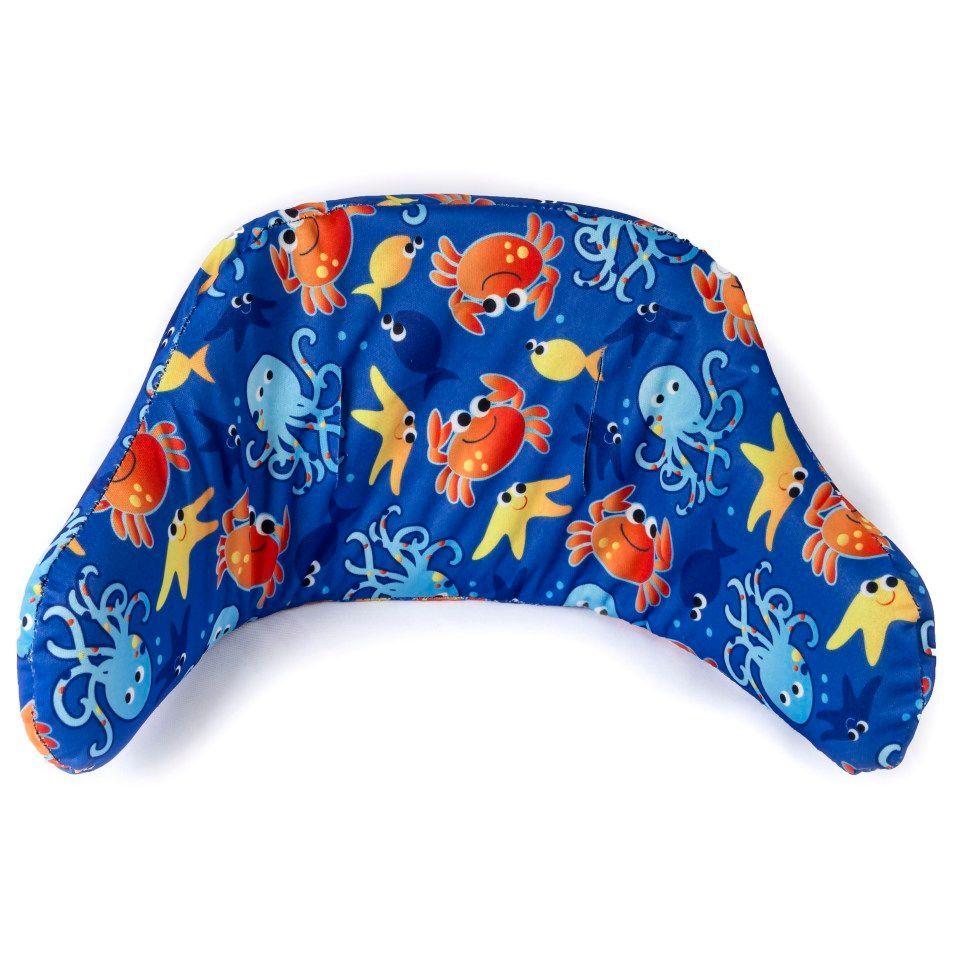

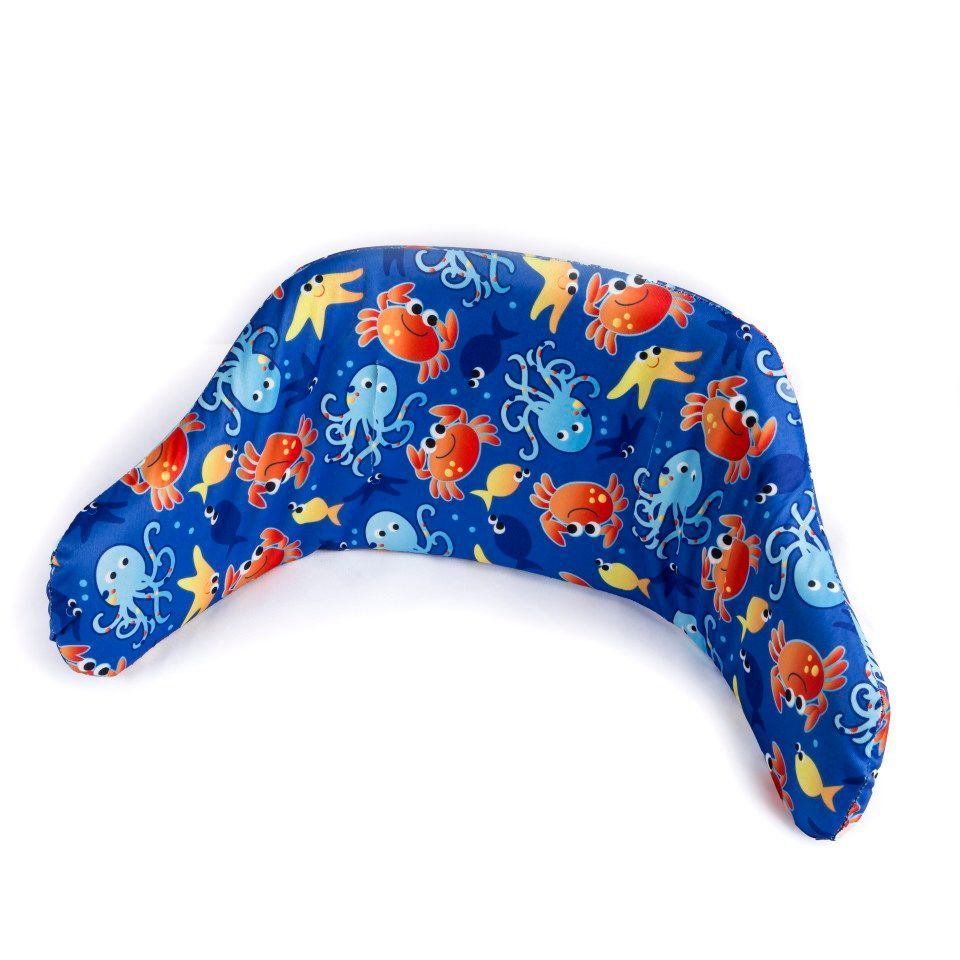

    • Hygienic Covers: Polyurethane Laminate ECO-PUL
    • Frame color: Green, Purple, Orange, or White
    • Casters and Wheels: 3’’ diameter/8cm diameter
    • Lifting mechanisms: Available/Gas Spring
    • Lift Options: Dual Control (hand lever) Lockout Knob
