Zing Prone

Zing Prone

PA5522

Fits Individuals from Infancy – 44″
Weight Limit: Up to 70lbs.

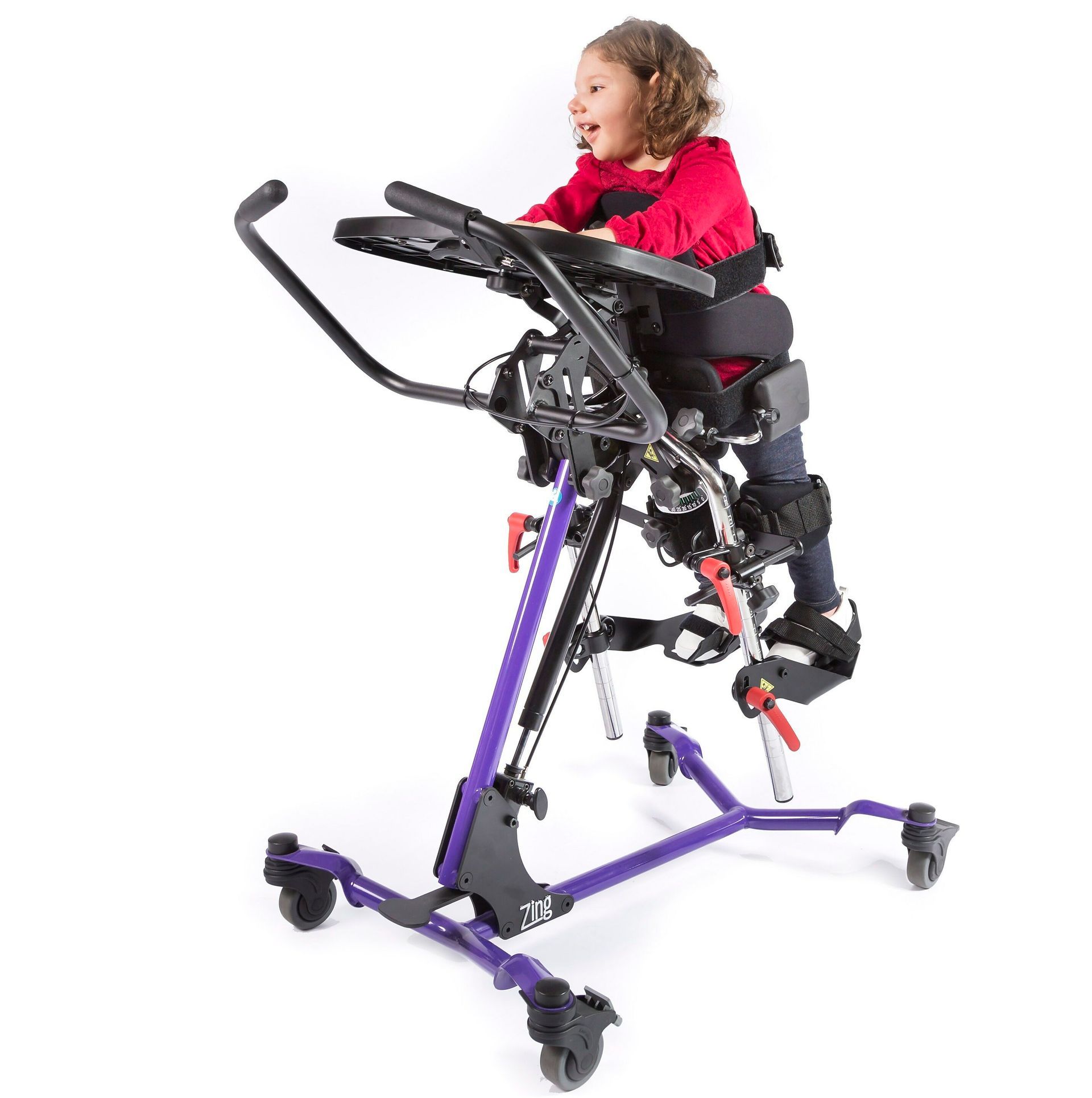

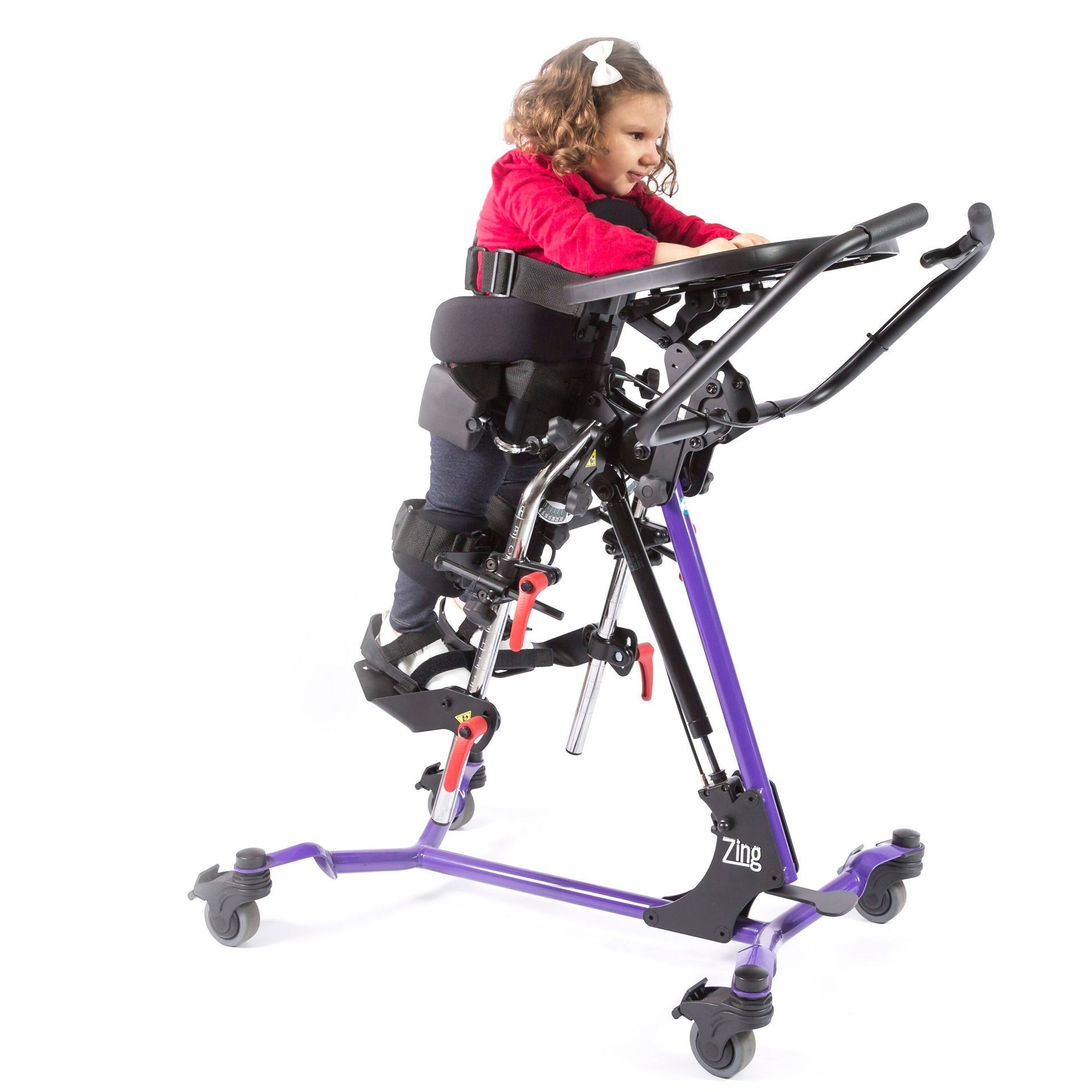

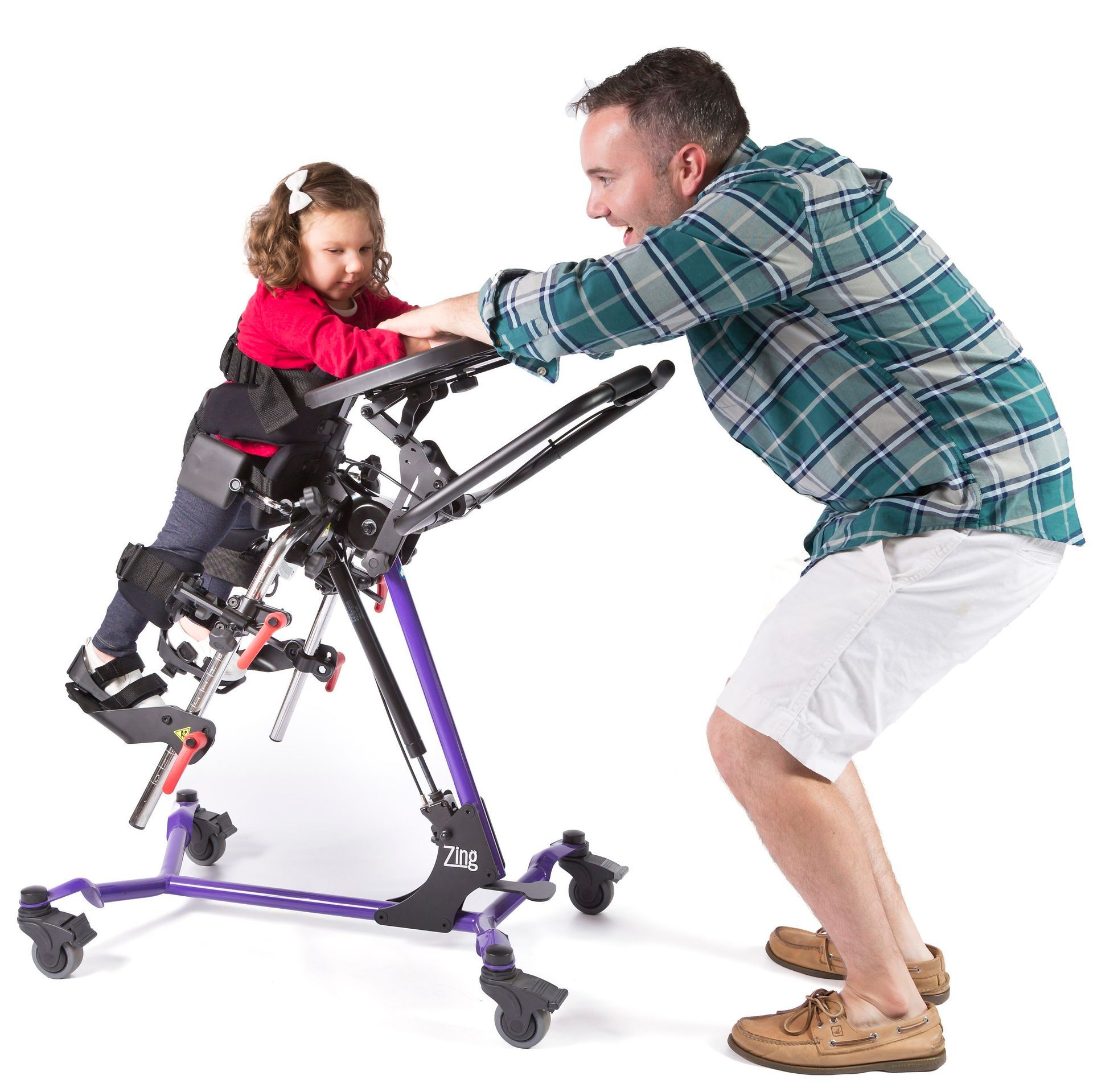

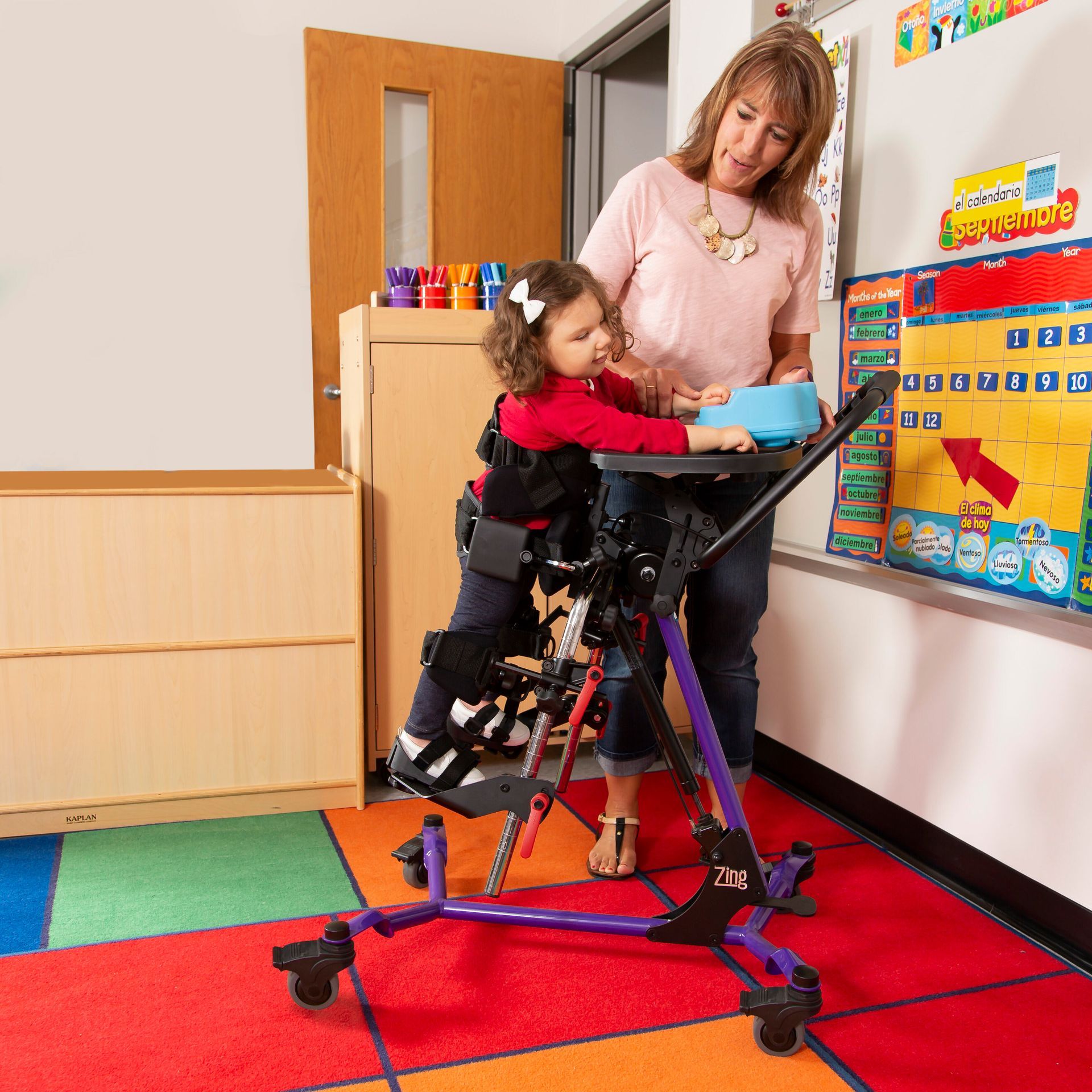

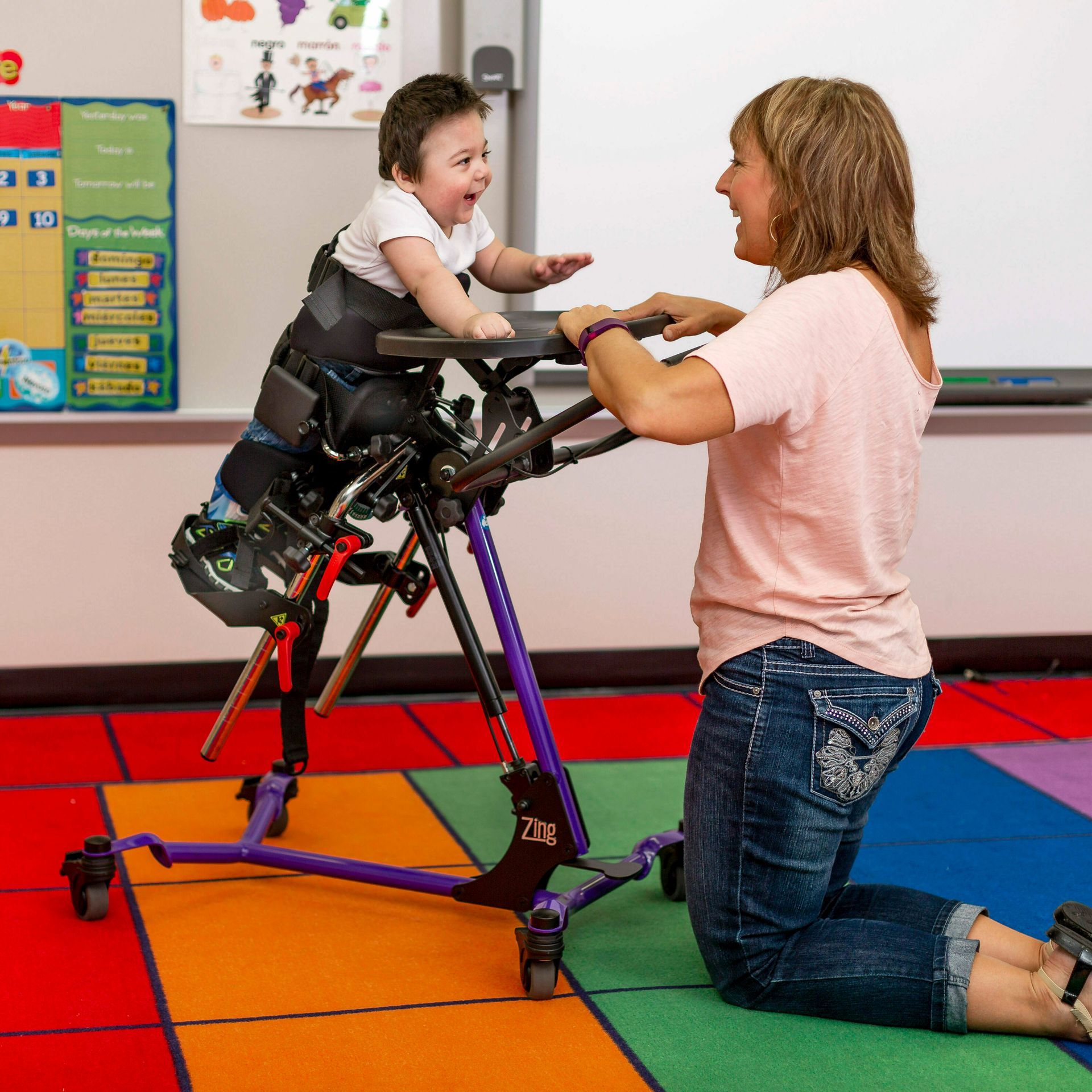

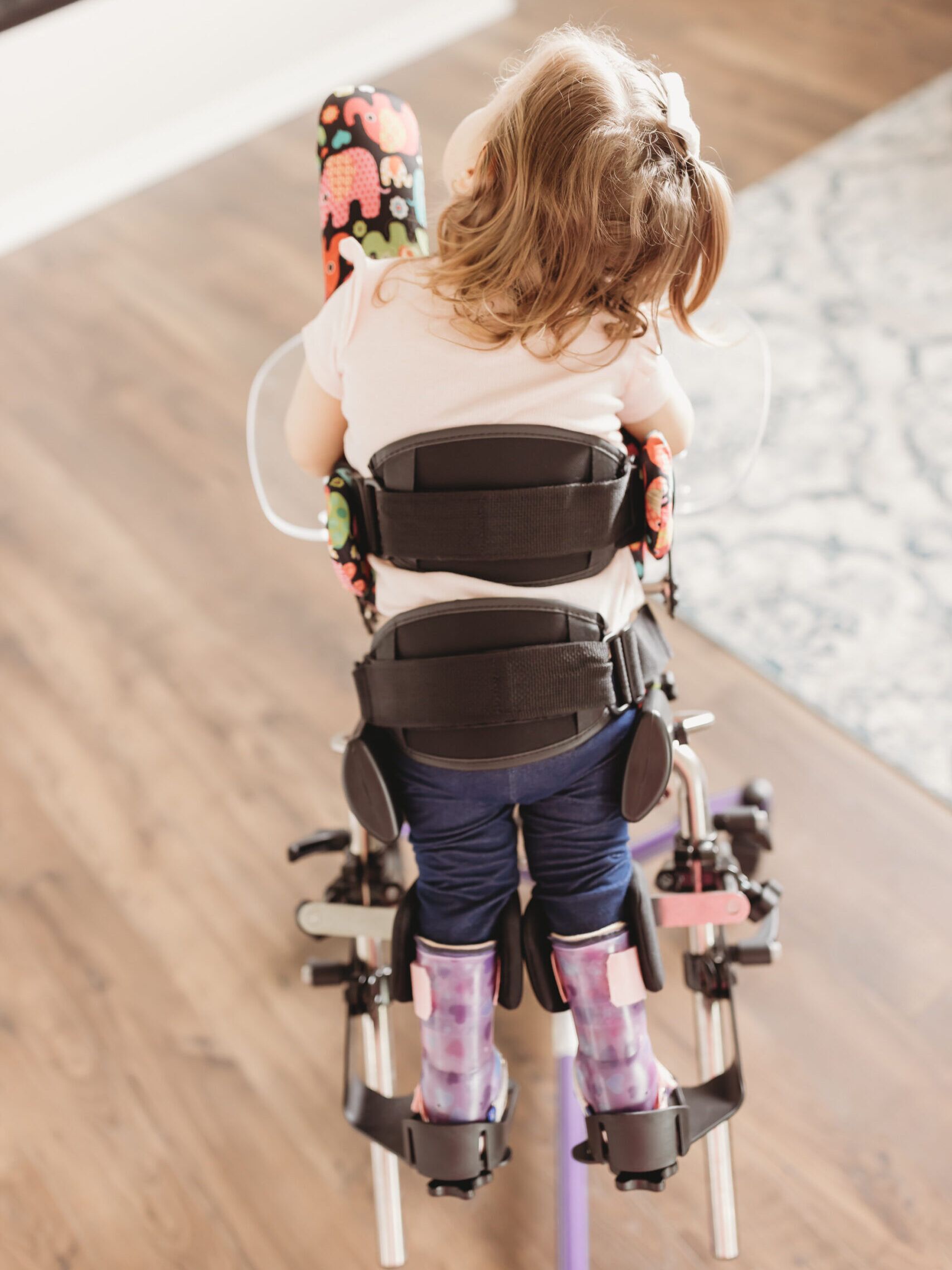

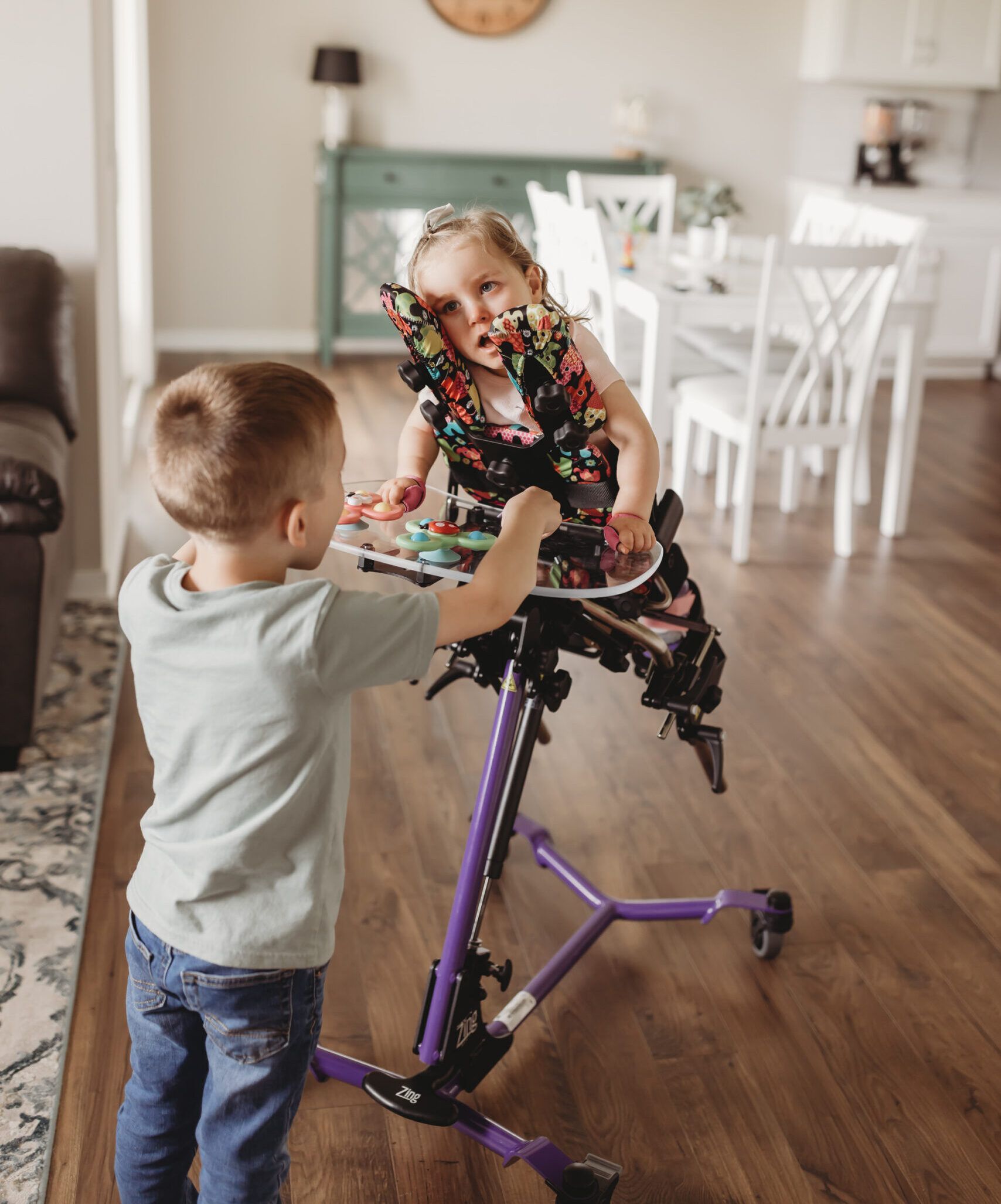

The Zing Prone is a single position stander but is one of the few to offer a flat-to-load transfer position at a comfortable height of 32″. Prone positioning from 0-90 degrees.

REQUEST PRODUCT INFO

Zing Supine Mini Catalog

Parents Guide

Zing Supine User Manual

Product Description


E0638: Standing frame/table system, one position (e.g. upright, supine or prone stander), any size including pediatric, with or without wheels


The Zing Prone is a single position stander but is one of the few to offer a flat-to-load transfer position at a comfortable height of 32″. Prone positioning from 0-90 degrees.

Options

Frame Color

Available in 4 colours.

Mast

Lift Mechanisms

Caster

Foot Plates

Foot Support Accessories

Knee Support & Accessories

    • Pelvic Support & Accessories

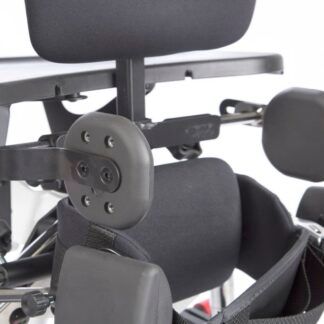

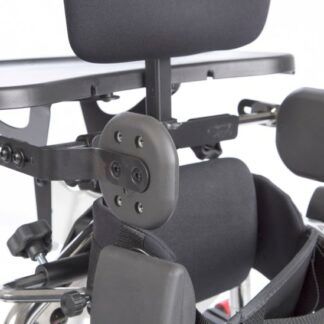

    • Upper Body Support & Accessories

    Head Support & Accessories

    • Tray & Accessories

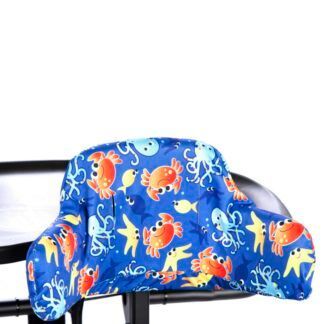

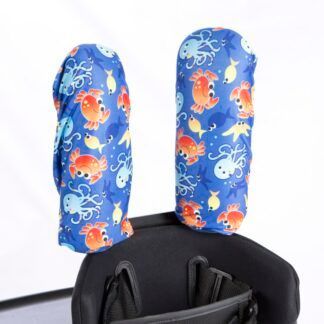

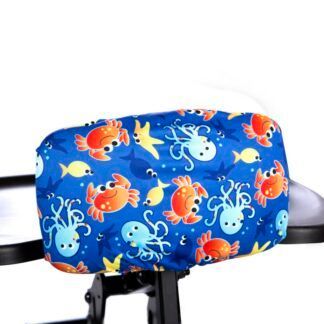

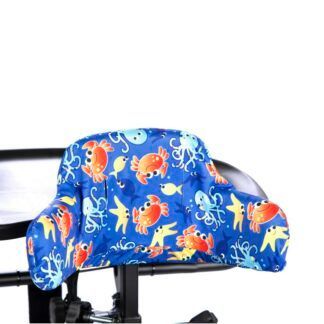

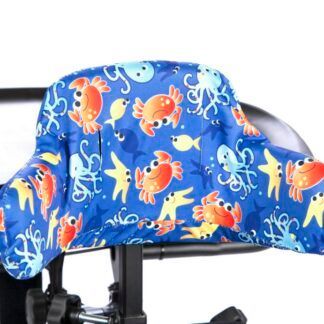

    Hygienic Cover Patterns

    Other


    • Height Range: up to 44” / up to 112 cm
    • Weight Limit: 70 lbs. /32 kg
    • Transfer Height( Horizontal Position ): 32” /81 cm
    • Center of Pelvic Support to Footplate Range, may invert footplates as necessary: 7” – 22” /18 cm- 56 cm
    • Upper Body Support Height Range: 4”  /10 cm
    • Kneepad Depth Range: 5” /13 cm
    • Kneepad Inside Width: 2.5”, 3.25”, 4.25”, 5” /6cm, 8cm, 11cm, 13cm
    • Kneepad Dimensions:
    • 2.5 /3.5”x4” /9 x 10 cm
    • 3.25 /4”x4” /10 x 10 cm
    • 4.25 /4.5”x5” /11 x 13 cm
    • 5.00 /5”x6” /13 x 15 cm

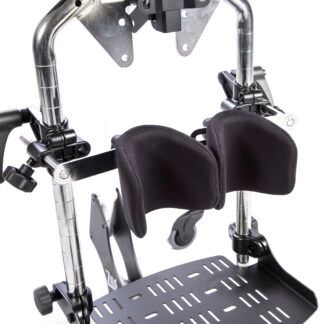

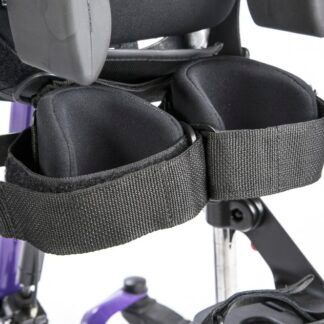

    • Multi-Adjustable Knee pads Width Range, Center-to-center:
    • 2.5 /4”- 9” /10 – 23 cm
    • 3.25 /4.5”- 9” /11 – 23 cm
    • 4.25 /5” – 8” /13 – 20 cm
    • 5.00 /6” – 7” /15 – 18 cm
    • Multi-Adjustable Knee pads Height Range: +/- 0.75” 2 cm
    • Weight of basic unit: 55 lbs. /25 kg
    • Frame footprint, Caster-to-caster: 20” x 28” /51 x 71cm
    • Maximum Dimensions: 21.5 x 29.5 /55 x 75cm
    • Upholstery: Black nylon/Neoprene or Molded Urethane
    • Hygienic Covers: Polyurethane Laminate ECO-PUL
    • Frame color: Green, Purple, Orange, or White
    • Casters and Wheels: 3’’ diameter /8cm diameter
    • Lifting mechanisms Available: Gas Spring

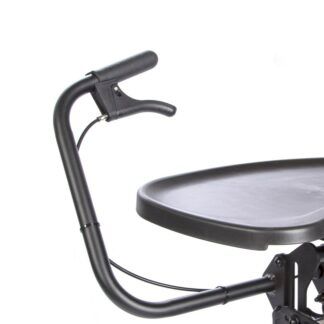

    • Lift Options: Dual Control (hand lever) Lockout Knob
    • Options and Accessories:
    • Supine positioning/ Prone-Forward positioning. Supine, MPS, TT: Supine 0-90 degrees/ Prone 0-20 degrees
    • Positioning, Prone Model: 90 (vertical) to 0 (horizontal)
    • Positioning, Vertical Model: 90 (vertical) only.  Fixed position.

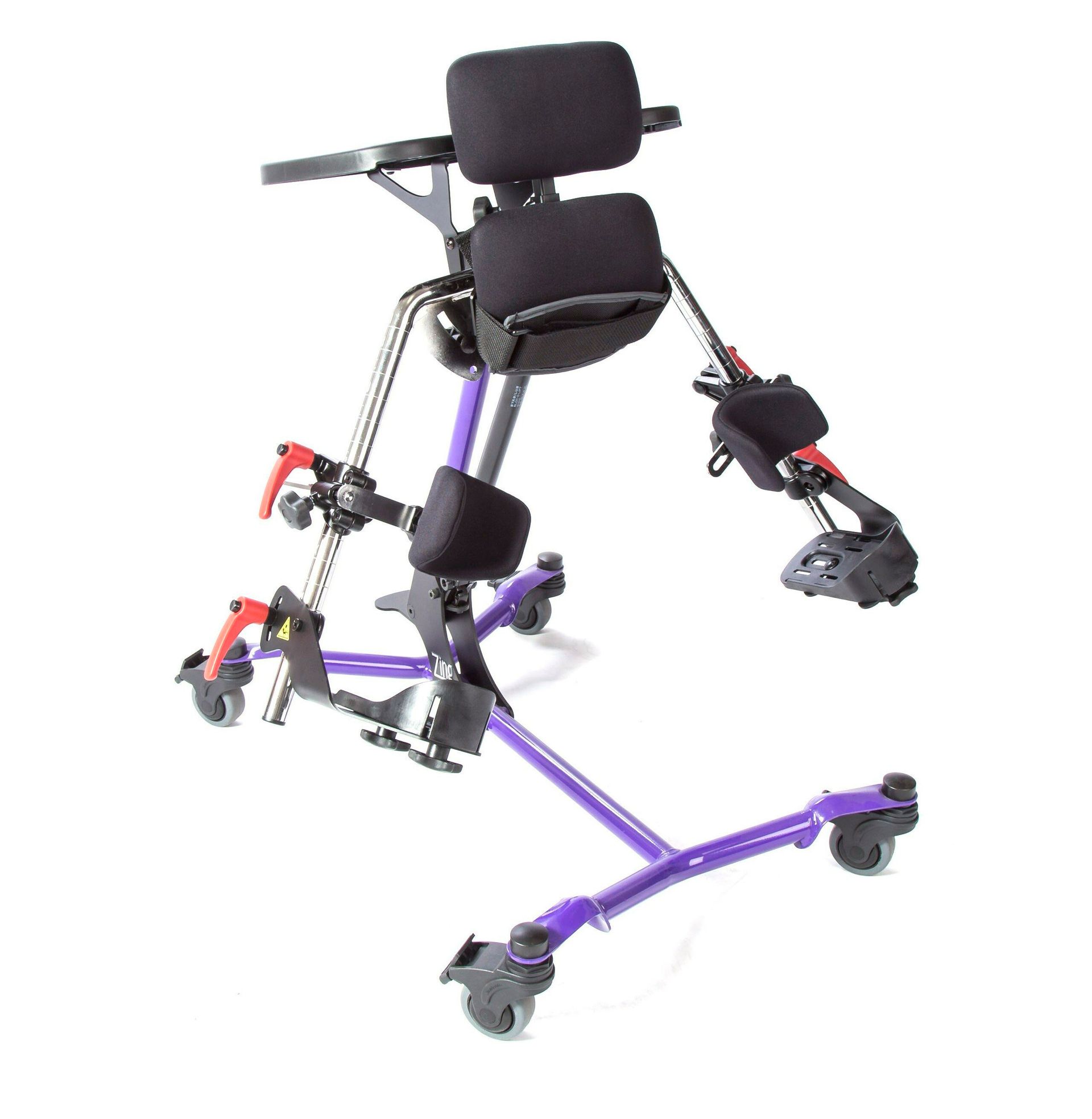

    • Leg Abduction: 30 degrees per side
    • Foot straps extra small – length over arch: 8” /20 cm - 10” /25 cm
    • Secure Foot straps – length over arch: Available in same lengths as regular foot straps
    • Footplate Options LxW:
    • 6.00” L x 3.00” W /15 cm L x 8 cm W
    • 7.75” L x 3.25” W /20 cm L x 9 cm W
    • 9.75” L x 4” W /25 cm L x 11 cm W

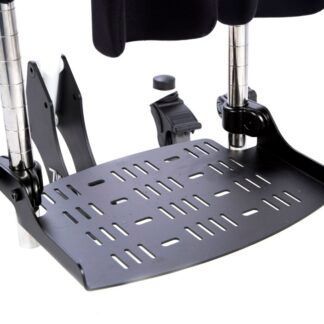

    • Footplate, platform style: 8”L x 12.00” W /20 cm L x 30 cm W
    • Multi-Adjustable footplates – Plantar/Dorsi: +/- 20 degrees /+/- 20 degrees
    • Multi-Adjustable footplates – Fore/Aft: +/- 0.75” /+/- 2 cm
    •  Multi-Adjustable footplates rotation: 30 degrees left/right
    • Single Calf Pad/Leg Rest: 4” x 13.5” /10 x 34 cm
    • Single Calf Pad Strap, Fits circumference: 24” /61 cm
    • Calf (Behind knee) Pad Option,Extra Small Pad Size, Small Pad Size, Fore/Aft Adjustment from seat plane: 3.5 x 3.5 inches, 4.5 x 4.5 inches, -1 to +4 inches /9 x 9 cm 11.5 x 11.5 cm -2.5 to +10 cm
    • Independent Planar Leg (Calf) Support Tilt Table (TT) Pads – 3 sizes: 4” x 6”, 6” x 6”, 8” x 6” /10 x 15 cm 15 x 15 cm 20 x 15 cm
    • Independent Planar Leg (Calf) Support Tilt Table (TT) Pad Strap – Fits circumference: Up to 15” /38 cm
    • Table Mount and Tray Options/Specs: Posterior Support Models (Supine, MPS, TT)

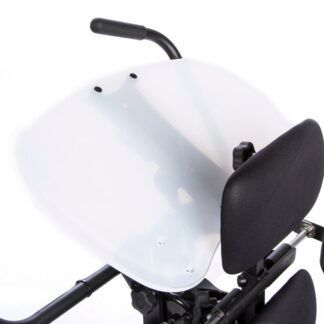

    • Shadow Tray size – Molded/Acrylic: 11”x19” /28 cm x 48 cm
    • Shadow Tray height range: 3” /8 cm
    • Shadow Tray Fore/Aft range (from posterior pad to chest pad): 0” – 10” /0–25 cm

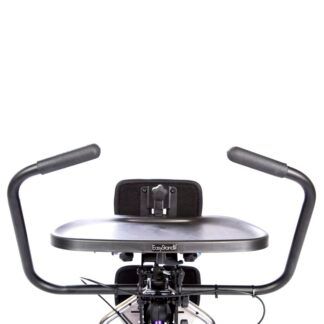

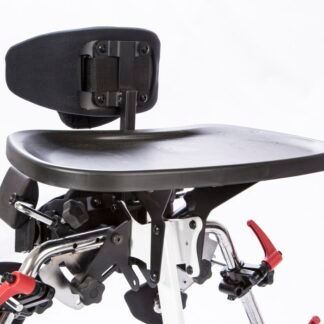

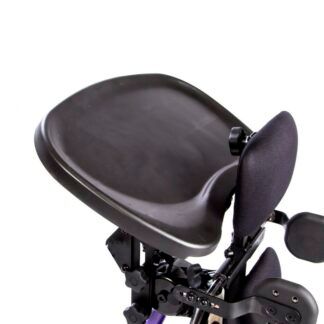

    • Swing-Away Tray size – Molded/Acrylic: 11”x19” /28 cm x 48 cm
    • Swing Away Tray Height Range: 3” /8 cm
    • Swing-Away Tray Fore/Aft Range (from posterior pad to chest pad): 4”- 9” /10 to 23 cm
    • Swing-Away Tray Angle Adjust Range: +40 degree inclines to -90 degrees (parallel to user when standing or in supine mode)
    • Upholstery/Positioning Options/Specs:
    • Hip support pad size: 3.5”H x 3.5”W /9cm x 9cm
    • Hip supports width range: 6” – 10” /15-25 cm

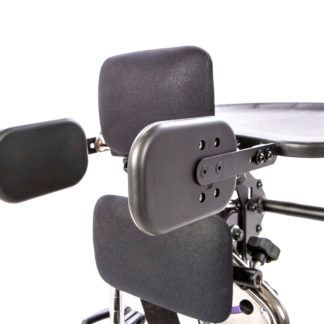

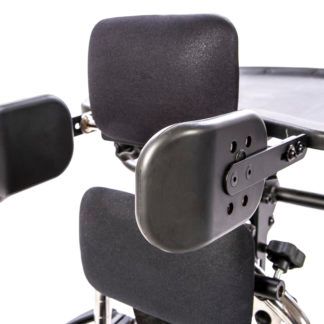

    • Lateral support pad size: 3.5”H x 3.5”W /9cm x 9cm
    • Lateral supports width range – 2 sizes: 4” to 8” /7” – 11” /10 to 20 /18-28 cm
    • Lateral supports height range: 3.5” /9 cm
    • Lateral supports Fore/Aft Range: 1” /3 cm
    • Pelvic Support Planar (2 sizes) All Configurations: 5×7”, 5×9” /13cm x 18cm, 13cm x 23cm
    • Pelvic Support, Form-to-Fit (2 sizes) Posterior support (Supine, MPS, TT): 5”x7”, 5”x9” /13cm x 18cm, 13cm x 23cm
    •  Pelvic Support Form-to-Fit (2 sizes) Anterior Support (Prone and Vertical): 5”x10”, 5”x12” /13cm x 25cm, 13cm x 30cm

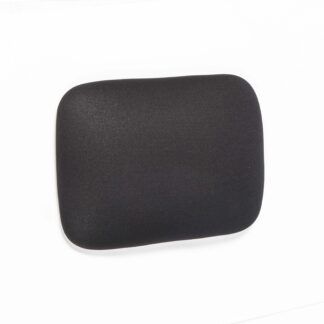

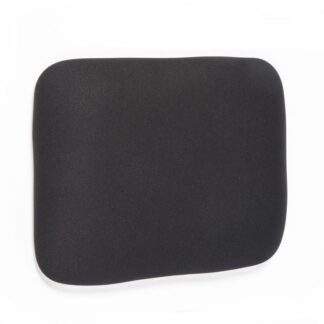

    • Upper Body Support Planar: 5”x5” (Anterior only), 5”x7”, 5”x9”, 7”x7”, 7”x9” /13cm x 13cm, 13cm x 18cm 13cm x 23cm, 18 x 18 cm, 18 x 23 cm

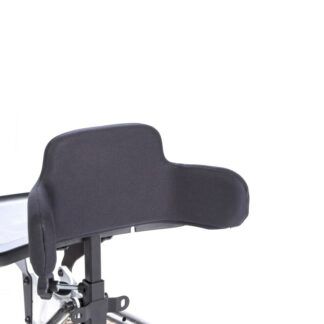

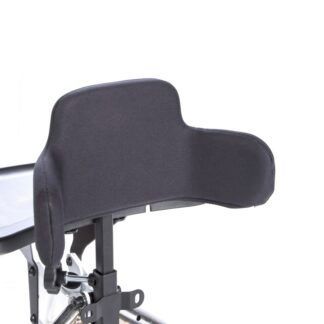

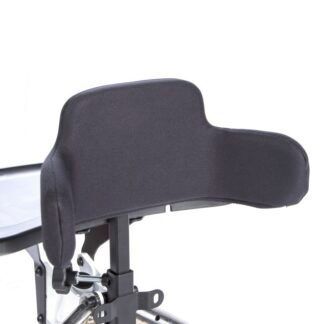

    • Upper Body Support Form-to-Fit: 5”H x 10”W, 5”H x 12”W, 7”H x 10”W, 7”H x 12”W /13cm x 25cm, 13cm x 30cm, 18cm x 25cm, 18cm x 30cm
    • Upper Body/Pelvic Tilt Table (TT) Pads – 3 sizes: 14”L x 14”W 16”L x 14”W 18”L x 14”W /36 x 36 cm 41 x 36 cm 46 x 36 cm
    • Chest Pad: 3”Hx8”W /8cm x 20cm
    • Chest Strap (pad size): 5”Hx8”W /13 x 20 cm
    • Chest Strap (approximate user circumference): Up to approx. 24” /Up to approx. 61 cm
    • Chest vest – X-Style: 9.5”Lx9”W /24 x 23 cm
    • Chest vest – X-Style: 11”Lx9.5”W /28 x 24 cm
    • Posterior Head Supports (Supine, MPS, TT)
    • Head support height range. (From top of upper body pad): 8” /20 cm
    • Head support depth range – from backrest: -2.5” to +1.5” /-6 to +4 cm
    • Head Support Size Extra-Small: 5” H x 8” W Cushion /13 cm H x 20 cm W
    • Head Support Size Small: 6” H x 10” W Cushion /15 cm H x 25 cm W

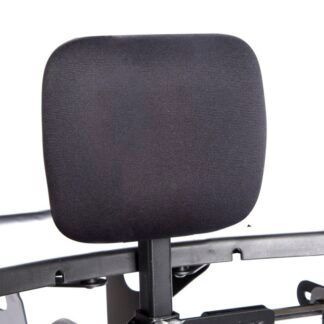

    • Flat Headrest: 5” H x 7” W /13cm x 18cm

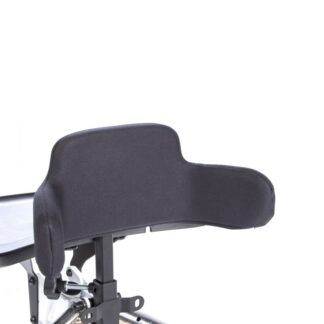

    • Form-to-Fit Head Support – Height, Width, variable up to approximately: 5”, 10” /13 cm 25 cm
    • TT Planar Head Support: 8” H x 8.5” W /20 cm H  x 22 cm W

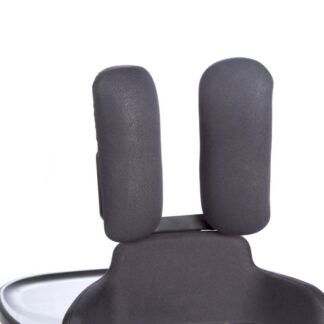

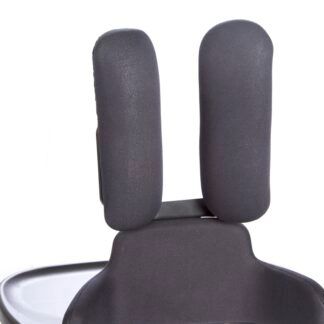

    • Anterior Head Supports (Prone, Vertical)
    • Face Aperture: 2 – 3 x 9” Pads /8cm x 23cm

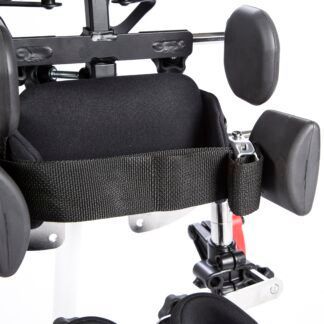

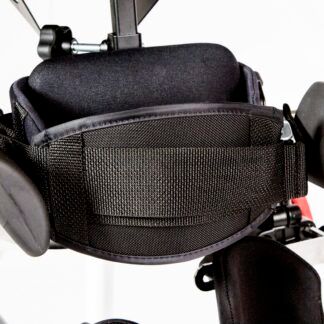

    • Positioning belt – hip circumference: Up to approx.. 24” /Up to approx.. 61 cm
    • Configurations Available:
    • Supine: Posterior Support Pads
    • MPS (Multi-positional Stander, w/Prone Forward)
    • TT (Tilt Table, larger upholstery surfaces)
    • Prone: Anterior Support Pads
    • Vertical (fixed position, no lift options available)
