Zing Supine

Zing Supine

PA5522

Fits Individuals from Infancy – 44″
Weight Limit: Up to 70 lbs.



The Zing Supine Size 1 is a single position stander but has all the features and positioning and support components available on the Zing MPS, minus prone positioning. The Zing Supine provides positioning opportunities from flat-to-load supine to vertical. It is also one of the few standers that provides the option of up to 30 degrees of independent leg abduction.

REQUEST PRODUCT INFO

Zing Supine Mini Catalog

Parents Guide

Zing Supine User Manual

Product Description


E0638: Standing frame/table system, one position (e.g. upright, supine or prone stander), any size including pediatric, with or without wheels


The Zing Supine provides positioning opportunities from flat-to-load supine to vertical. Tool-free adjustments and/or removal of support and positioning components adds to the ease of use.


30 degrees of independent leg abduction (60 degrees bilaterally)
A simple knob allows the entire leg to abduct up to 30 degrees, no need to re-adjust the foot plates or knee pads.


Unique Lift Mechanisms
A gas spring lift lockout is available to prevent any inadvertent position changes which can be useful if other children are present during standing sessions. The Dual Control enables position changes by foot pedal or hand control.

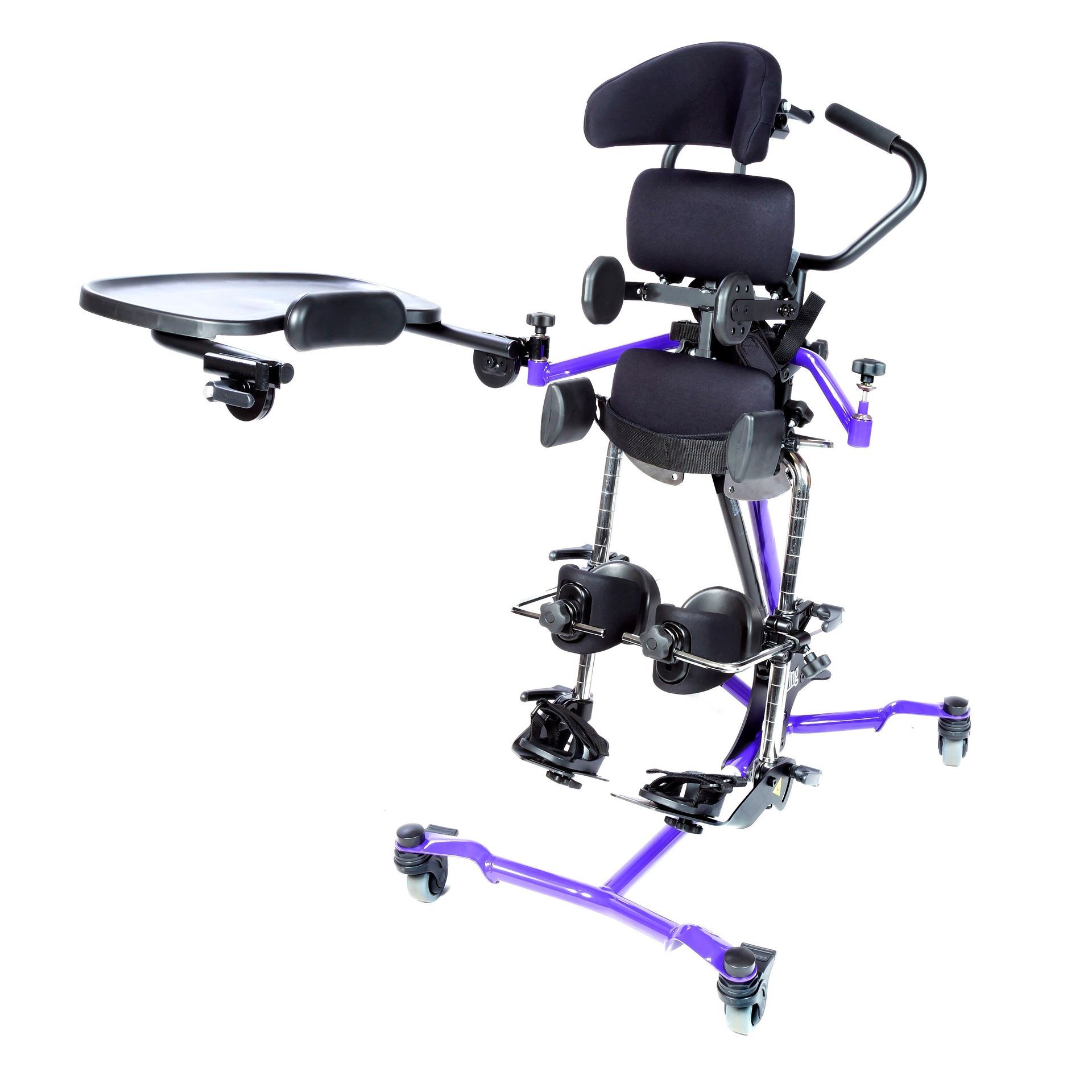

Swing-away Tray
Multi-adjustable tray can swing either direction while remaining attached to the unit or it can be removed completely. This tray, when swung away but attached on one side of the stander, is close and well within reach once a transfer has been completed. The transfer height of the Zing Supine Size 2 is a comfortable 31″ from the floor surface.


Remarkably Modular
With 75 support and positioning components/accessories, it can be configured as a simple stander or fit a child with more complex needs. The support and positioning components available (independent and multi-adjustable foot plates, knee pads, calf pads and floating hip guides) make the Zing Supine one of the few standers that can accommodate contractures on one or both sides.

Options

Frame Color

Available in 4 colours.

Mast

Lift Mechanisms

Caster

Foot Plates

Foot Support Accessories

Knee Support & Accessories

Pelvic Support & Accessories

Upper Body Support & Accessories

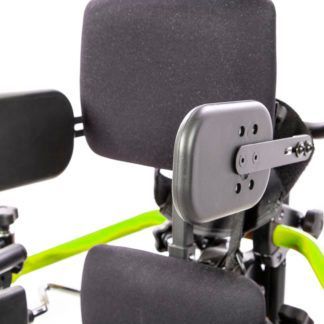

Head Support & Accessories

Tray & Accessories

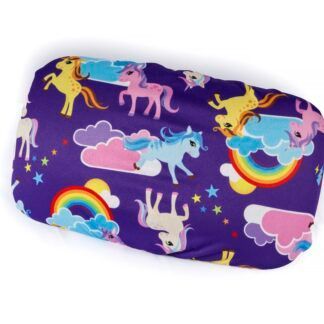

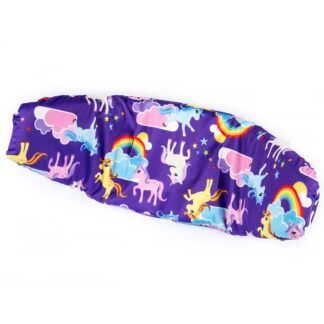

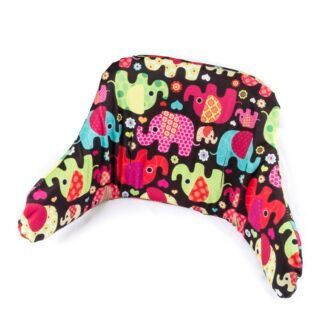

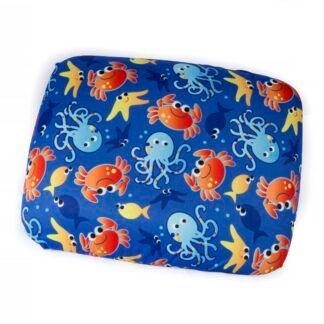

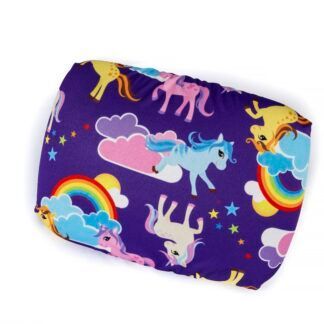

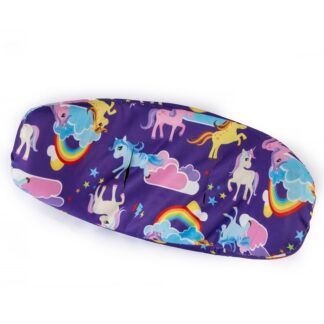

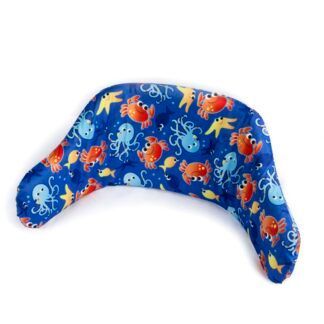

Hygienic Cover Patterns

Other


    • Height Range: up to 44” / up to 112 cm
    • Weight Limit: 70 lbs. / 32 kg
    • Transfer Height (Horizontal Position): 32” / 81 cm
    • Center of Pelvic Support to Footplate Range, may invert footplates as necessary: 7” – 22” / 18 cm- 56 cm
    • Upper Body Support Height Range: 4” / 10 cm
    • Kneepad Depth Range: 5” / 13 cm
    • Kneepad Inside Width: 2.5”, 3.25”, 4.25”, 5” / 6cm, 8cm, 11cm, 13cm
    • Kneepad Dimensions:
    • 2.5 / 3.5”x4” / 9 x 10 cm
    • 3.25 / 4”x4” / 10 x 10 cm
    • 4.25 / 4.5”x5” / 11 x 13 cm
    • 5.00 / 5”x6” / 13 x 15 cm
    • Multi-Adjustable Knee pads Width Range, Center-to-center:
    • 2.5 / 4”- 9” / 10 – 23 cm
    • 3.25 / 4.5”- 9” / 11 – 23 cm
    • 4.25 / 5” – 8” / 13 – 20 cm
    • 5.00 / 6” – 7” / 15 – 18 cm
    • Multi-Adjustable Knee pads Height Range: +/- 0.75” 2 cm
    • Weight of basic unit: 55 lbs. / 25 kg
    • Frame footprint, Caster-to-caster: 20” x 28” / 51 x 71cm
    • Maximum Dimensions: 21.5 x 29.5 / 55 x 75cm
    • Upholstery: Black nylon/Neoprene or Molded Urethane

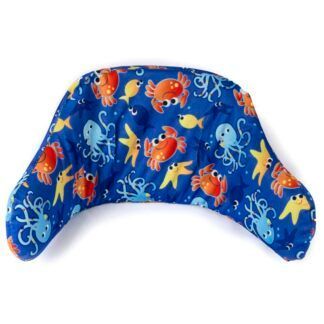

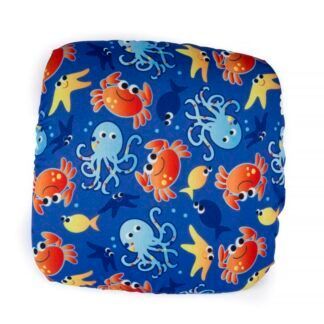

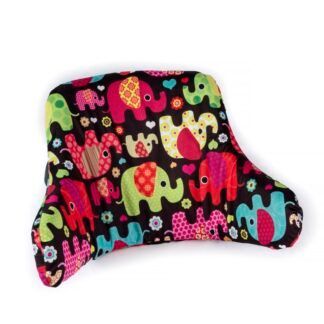

    • Hygienic Covers: Polyurethane Laminate ECO-PUL
    • Frame color: Green, Purple, Orange, or White
    • Casters and Wheels: 3’’ diameter / 8cm diameter
    • Lifting mechanisms Available: Gas Spring
    • Lift Options: Dual Control (hand lever) Lockout Knob
    • Options and Accessories:
    • Supine positioning/ Prone-Forward positioning. Supine, MPS, TT: Supine 0-90 degrees/ Prone 0-20 degrees
    • Positioning, Prone Model: 90 (vertical) to 0 (horizontal)
    • Positioning, Vertical Model: 90 (vertical) only.  Fixed position.
    • Leg Abduction: 30 degrees per side
    • Foot straps extra small – length over arch: 8” / 20 cm - 10” / 25 cm
    • Secure Foot straps – length over arch: Available in same lengths as regular foot straps
    • Footplate Options LxW:
    • 6.00” L x 3.00” W / 15 cm L x 8 cm W
    • 7.75” L x 3.25” W / 20 cm L x 9 cm W
    • 9.75” L x 4” W / 25 cm L x 11 cm W
    • Footplate, platform style: 8”L x 12.00” W / 20 cm L x 30 cm W
    • Multi-Adjustable footplates – Plantar/Dorsi: +/- 20 degrees / +/- 20 degrees
    • Multi-Adjustable footplates – Fore/Aft: +/- 0.75” / +/- 2 cm
    •  Multi-Adjustable footplates rotation: 30 degrees left/right / 30 degrees left/right
    • Single Calf Pad/Leg Rest: 4” x 13.5” / 10 x 34 cm
    • Single Calf Pad Strap, Fits circumference: 24” / 61 cm
    • Calf (Behind knee) Pad Option,Extra Small Pad Size, Small Pad Size, Fore/Aft Adjustment from seat plane: 3.5 x 3.5 inches, 4.5 x 4.5 inches, -1 to +4 inches / 9 x 9 cm 11.5 x 11.5 cm -2.5 to +10 cm
    • Independent Planar Leg (Calf) Support Tilt Table (TT) Pads – 3 sizes: 4” x 6”, 6” x 6”, 8” x 6” / 10 x 15 cm 15 x 15 cm 20 x 15 cm
    • Independent Planar Leg (Calf) Support Tilt Table (TT) Pad Strap – Fits circumference: Up to 15” / 38 cm
    • Table Mount and Tray Options/Specs: Posterior Support Models (Supine, MPS, TT)
    • Shadow Tray size – Molded/Acrylic: 11”x19” / 28 cm x 48 cm
    • Shadow Tray height range: 3” / 8 cm
    • Shadow Tray Fore/Aft range (from posterior pad to chest pad): 0” – 10” / 0–25 cm
    • Swing-Away Tray size – Molded/Acrylic: 11”x19” / 28 cm x 48 cm
    • Swing Away Tray Height Range: 3” / 8 cm
    • Swing-Away Tray Fore/Aft Range (from posterior pad to chest pad): 4”- 9” / 10 to 23 cm
    • Swing-Away Tray Angle Adjust Range: +40 degree inclines to -90 degrees (parallel to user when standing or in supine mode)
    • Upholstery/Positioning Options/Specs:

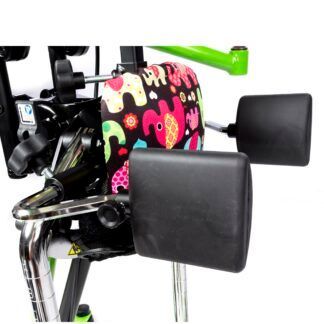

    • Hip support pad size: 3.5”H x 3.5”W / 9cm x 9cm
    • Hip supports width range: 6” – 10” / 15-25 cm

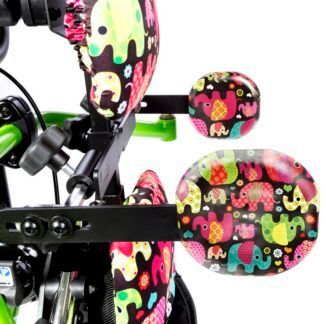

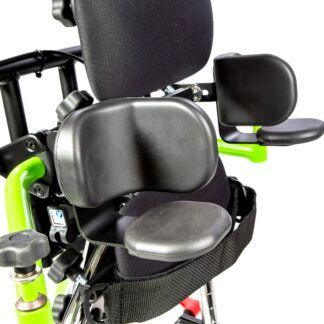

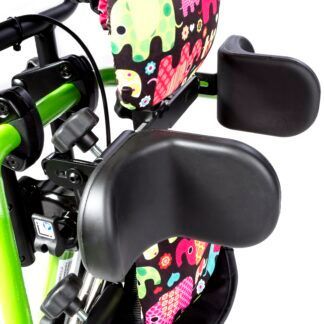

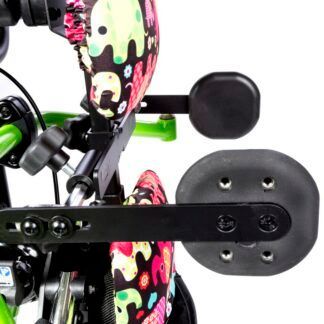

    • Lateral support pad size: 3.5”H x 3.5”W / 9cm x 9cm
    • Lateral supports width range: 7” – 11” / 10 to 20 / 18-28 cm
    • Lateral supports height range: 3.5” / 9 cm
    • Lateral supports Fore/Aft Range: 1” / 3 cm
    • Pelvic Support Planar (2 sizes) All Configurations: 5×7”, 5×9” / 13cm x 18cm, 13cm x 23cm
    • Pelvic Support, Form-to-Fit (2 sizes) Posterior support (Supine, MPS, TT): 5”x7”, 5”x9” / 13cm x 18cm, 13cm x 23cm
    • Pelvic Support Form-to-Fit (2 sizes) Anterior Support (Prone and Vertical): 5”x10”, 5”x12” / 13cm x 25cm 13cm x 30cm
    • Upper Body Support Planar: 5”x5” (Anterior only), 5”x7”, 5”x9”, 7”x7”, 7”x9” / 13cm x 13cm 13cm x 18cm 13cm x 23cm 18 x 18 cm 18 x 23 cm
    • Upper Body Support Form-to-Fit: 5”H x 10”W, 5”H x 12”W, 7”H x 10”W, 7”H x 12”W / 13cm x 25cm 13cm x 30cm 18cm x 25cm 18cm x 30cm
    • Upper Body/Pelvic Tilt Table (TT) Pads – 3 sizes: 14”L x 14”W 16”L x 14”W 18”L x 14”W / 36 x 36 cm 41 x 36 cm 46 x 36 cm
    • Chest Pad: 3”Hx8”W / 8cm x 20cm
    • Chest Strap (pad size): 5”Hx8”W / 13 x 20 cm
    • Chest Strap (approximate user circumference): Up to approx. 24” / Up to approx. 61 cm

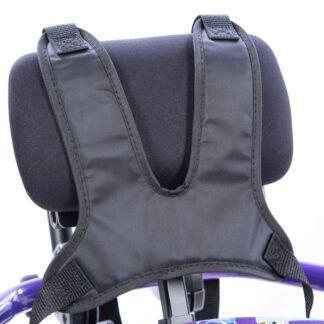

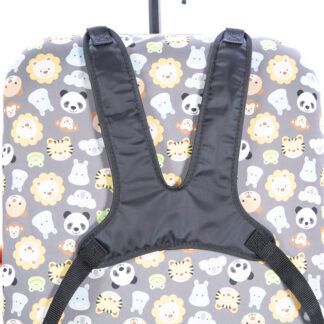

    • Chest vest – X-Style: 9.5”Lx9”W / 24 x 23 cm
    • Chest vest – X-Style: 11”Lx9.5”W / 28 x 24 cm
    • Posterior Head Supports (Supine, MPS, TT):
    • Head support height range. (From top of upper body pad): 8” / 20 cm
    • Head support depth range – from backrest: -2.5” to +1.5” / -6 to +4 cm
    • Head Support Size Extra-Small: 5” H x 8” W Cushion / 13 cm H x 20 cm W
    • Head Support Size Small: 6” H x 10” W Cushion / 15 cm H x 25 cm W
    • Flat Headrest: 5” H x 7” W / 13cm x 18cm
    • Form-to-Fit Head Support – Height, Width, variable up to approximately: 5”, 10” / 13 cm 25 cm
    • TT Planar Head Support: 8” H x 8.5” W / 20 cm H  x 22 cm W
    • Anterior Head Supports (Prone, Vertical)
    • Face Aperture: 2 – 3 x 9” Pads / 8cm x 23cm

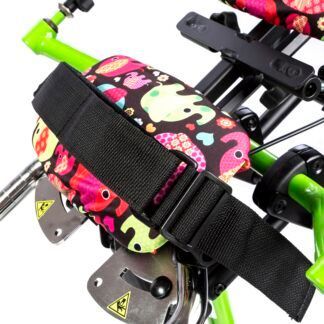

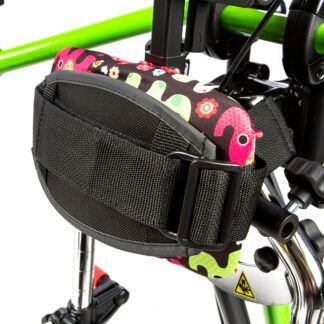

    • Positioning belt – hip circumference: Up to approx.. 24” / Up to approx.. 61 cm
    • Configurations Available:
    • Supine: Posterior Support Pads
    • MPS (Multi-positional Stander, w/Prone Forward)
    • TT (Tilt Table, larger upholstery surfaces)
    • Prone: Anterior Support Pads
    • Vertical (fixed position, no lift options available)
