45° Traditional Tilt Technology

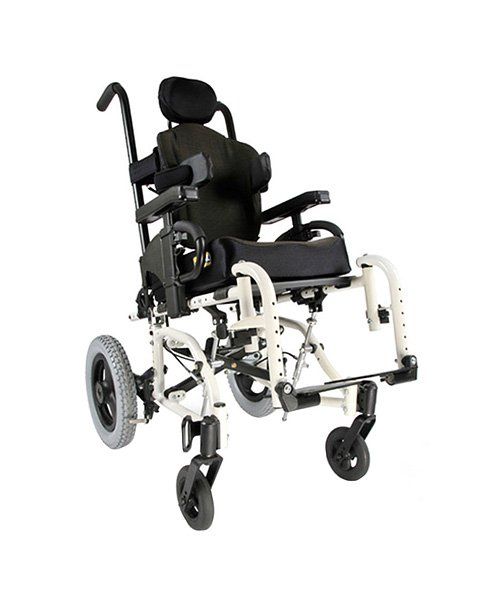

The original, premier pediatric tilt-in-space wheelchair, the TS features 45° of traditional tilt technology, meaning the tilt action occurs at a fixed pivot point. The Foot Release Tilt Actuator is easy to operate and eliminates tangles caused by exposed cables.

Folding and Rigid Frame Options

Because no two families are alike, the TS offers both folding and rigid frame options to accommodate a span of lifestyles and priorities. For families needing to store the chair in a vehicle or in tight spaces at home, the Folding TS compresses into a small package. The rigid frame involves fewer moving parts and offers a lower overall weight.

Growth Capabilities

The TS was designed to accommodate the changes your child may experience throughout the life of the chair. Up to 2″ of seat width and up to 5″ of seat depth adjustments allow the TS to grow, while adjustable components keep your child comfortable and properly positioned during development.

Technical

Frame Style: Rigid or Folding

Funding Information: WMK5QU005

Wheelchair Weight (Without Footrests if applicable): 29 lbs.

Frame Material: Aluminum

User Weight Capacity: 165 lbs.

TransitApproved: Transit Approved for Occupant

Reference Owner’s Manual for Complete Details

Tilt Capability: Yes

Frame and Feature Measurements

Overall Wheelchair Width: 18.25″ to 24.25″

Seat Widths: 10″ to 18″

Seat Depths: 13″ to 20″

Frame Angle: N/A

Front Seat-to-Floor Height: 15.5″ to 20″

Rear Seat-to-Floor Height: 14″ to 19″

Back Height: Fixed: 19″, 22″, 25″

Adjustable: 16″ to 22″, 19″ to 25″

Angle Adjustable Backrest Adjustment Range: -30° to 5°

Seat Angle Adjustment: N/A

Camber: N/A

Center of Gravity (COG) Adjustment: 0″

Tilt Range: 45°
