Growth Capabilities

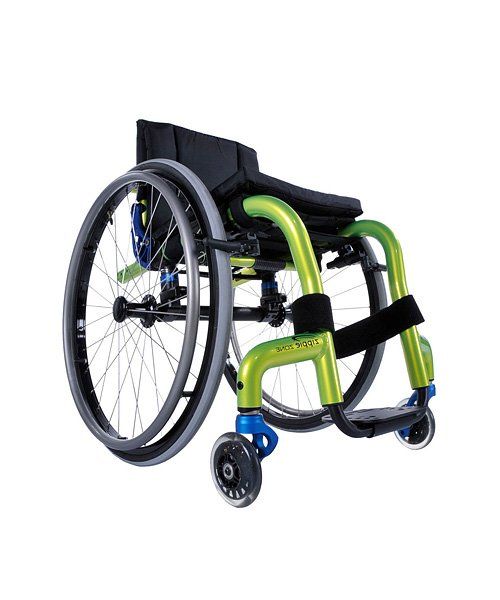

The Zone features 3″ of depth growth built right into the frame. An extra 2″ of growth is built into the sling upholstery. To expand frame width, simply replace a few parts, instead of the whole wheelchair frame.

Design Fit for Kids

With independence comes confidence. Every inch of the Zone was designed to give kids the best possible wheel access for efficient propulsion. With features such as the inset backrest, flip-up, angle adjustable footrest, and hub lock located on the seat rail, kids are able to independently access the wheels, transfer in and out of the wheelchair, and access the wheel locks without interference during propulsion.

Ultra Light-weight Aerospace Aluminum

When it comes to pediatric mobility, every pound holds more weight. That’s why we used 7000 series aerospace aluminum to make the Zone’s feather light frame. Combining this material, our ShapeLoc Technology heat-treating process,and ovalized tubing increases strength, allows for thinner tube walls, and decreases overall weight to create a chair that is lighter, just as strong, and more budget-friendly than titanium.

Colorful Options

Besides its elegant frame, the Zone also has color options such as Zebra and Bright Glow in the Dark colored frame, forks and plates of colored rotating shafts, wheels and colorful Spinergy spoke guards.

Technical

Frame Style: Rigid

Funding Information: WMK4QU040

Wheelchair Weight (Without Footrests if applicable): 14 lbs.

Frame Material: 7000 Series Aluminum

User Weight Capacity: 165 lbs.

TransitApproved:

• Transit Approved for Occupant
• Reference Owner’s Manual for Complete Details

Frame and Feature Measurements

Overall Wheelchair Width: 16” to 25”

Seat Widths: 8” to 16”

Seat Depths: 8” to 18”

Frame Angle: 80°

Front Seat-to-Floor Height: 14” to 19”

Rear Seat-to-Floor Height: 13” to 19”

Back Height: Adjustable: 6” to 8” through 15” to 18”

Angle Adjustable Backrest Adjustment Range: -8° to 17°

Seat Angle Adjustment: N/A

Camber: 0°, 3°, 6°

Center of Gravity (COG) Adjustment: 2.5”

Options and Accessories

Frame Type:

• Standard
• Flared

Special Packages:

• Z Performance Package:
• Single Sided Fork
• Ultra Lightweight Wheels
• Clear Zippie Spoke Guards
• Compact Wheel Locks

Tilt Release Options: N/A

Frame Inset: 0” or 1”

Caster Wheels:

• 3” Micro
• 4” Low Profile Polyurethane
• 4” Micro Lighted
• 4” x 1.5” Aluminum Soft Roll
• 5” Low Profile Polyurethane
• 5” Micro lighted
• 5” x 1.5” Semi-Pneumatic
• 5” Soft Roll (Grey)
• 5” x 1.5” Aluminum Soft Roll
• 6” Polyurethane
• 6” x 1.5” Semi Pneumatic

Caster Options:

• Multiple Position Fork
• Multiple Position Single Sided Fork
• Frog Legs Suspension Fork

Hangers: N/A

Footplates:

• Aluminum Tubular
• Aluminum Tubular w/ Snap-on Cover
• Aluminum Platform
• Angle Adjustable Flip Back

Footplate Options:

• Adaptive Platform Spacers (2”, 4”, 6”)
• High Mount Extension Tubes
• Leg Strap
• Gel Hanger Cover
• Neoprene Impact Guards
• Wear Pads

Axle: Quick Release Steel

Axle Plate: Adjustable

Rear Wheel Type:

• 18” Spoke
• 20” Mag
• 22” Mag
• 24” Mag
• 20” Lite Spoke
• 22” Lite Spoke
• 24” Lite Spoke
• 22” Ultra Lightweight Spoke Wheel 2.0
• 24” Ultra Lightweight Spoke Wheel 2.0
• 24” Spinergy SPOX Black Spokes
• 22” Spinergy LX Black Spokes
• 24” Spinergy LX Black Spokes

Rear Wheel Tire:

• Full Poly
• High Pressure Clincher
• Kik Mako Black
• Knobby V-TRAK by Kenda
• Pneumatic
• Pneumatic with Airless Insert
• Schwalbe Marathon Plus Evolution
• Schwalbe Speed
• Low Poly

Handrims:

• Aluminum Anodized
• Plastic Coated
• Natural Fit – Standard Grip
• Natural Fit – Super Grip
• Natural Fit LT – Standard Grip
• Natural Fit LT – Super Grip
• Spinergy Flex Rim

Hub Lock: Seat Frame Mounted

Backrest Type: Folding Lock-Down Angle Adjustable

Back Post Options:

• Integral
• Fold Down
• Telescoping
• Telescoping Tall

Backrest Options: Rear Backrest Extension (4”)

Back Upholstery:

• Standard
• Tension Adjustable Ballistic Nylon

Armrests:

• Padded Swing-Away
• T-Post
• Single-Post Height Adjustable

Arm Pads:

• Classic
• Contour

Wheel Locks:

• High Mount Push
• High Mount Pull
• Compact
• 6” Extension Handle Option

Seating:

• Ultra Seat Sling
• JAY Cushion

Anti-Tips: Rear

Side Guards:

• Plastic Standard
• Plastic Low
• Aluminum Folding
• Aluminum w/ Fender & Hub Lock

Side Guard Options: Frame color match for Aluminum

Head Support Options: Visit JAY Seating & Positioning Page for Options

Positioning Accessories:

• 1” Dual Pull Side Squeeze Padded
• 2” Aircraft Style
• 2” Aircraft Style Padded
• 1.5” Auto Style with Clamps
• 1” Comfort Fit

Accessories:

• Utility Backpack
• Seat Pouch
• Crutch Holder
• Tool Kit
• Black Spoke Guard
• Clear Spoke Guard
• Upper Extremity Support Tray (XS, S, M, L)
